For Atomic Display Base FPGA-GW1NR 720P (1280x720) Max Output,

For Atomic Display Base FPGA-GW1NR 720P (1280x720) Max Output, Beschrijving

For Atomic Display Base FPGA-GW1NR 720P (1280x720) Max Output, Description

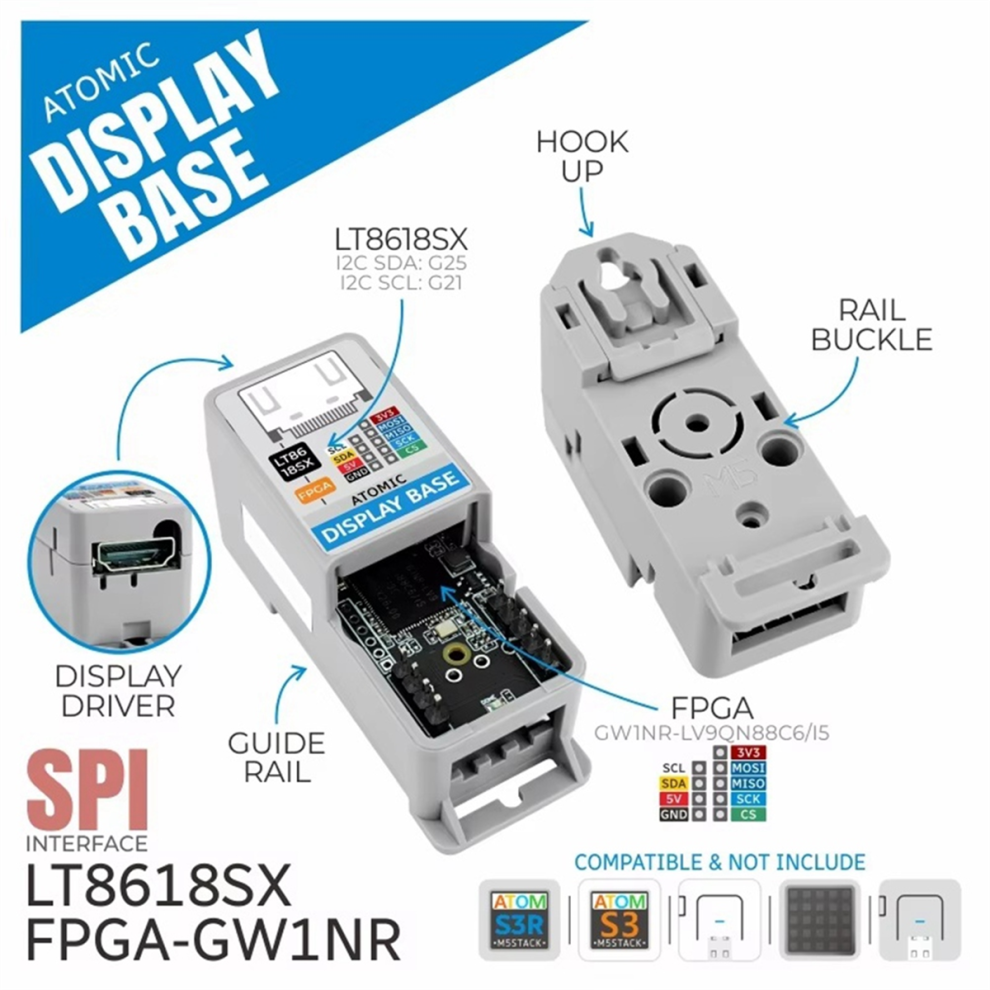

Uses FPGA (Gowin GW1NR-9C)
Built-in LT8618SX RGB-to-high-definition multimedia signal chip (supports 24-bit color depth)
SPI interface (FPGA) + I2C interface (LT8618SX)
Maximum 720P (1280x720) image output
Various output modes with optimized frame rates of up to 12 - 16 FPS

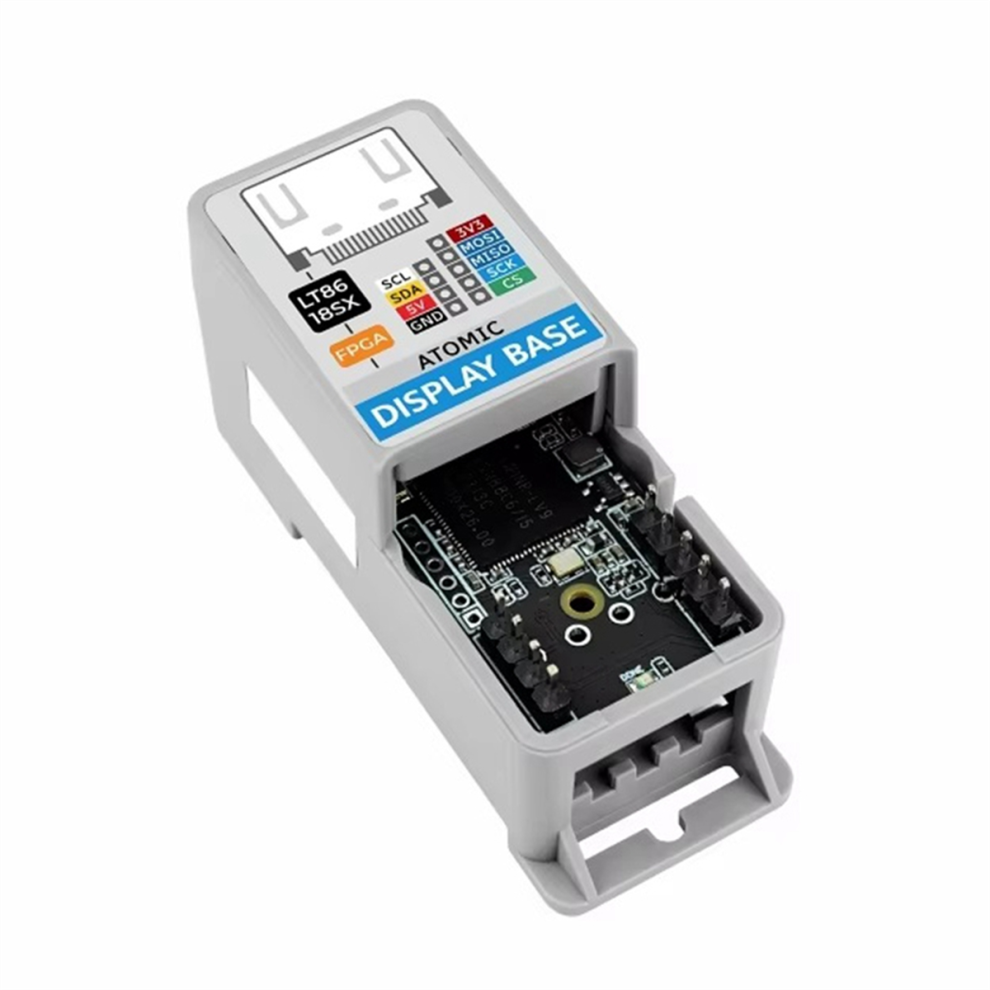

for Atomic Display Base is a high-definition display driver unit that uses FPGA to emulate traditional SPI TFT-LCD data output, supporting up to 720P (1280x720) image output. It achieves broad compatibility for display output through a dedicated RGB-to-high-definition multimedia signal chip. Users can pair it with the ATOM series hosts to meet different memory and application requirements.
The for Atomic Display Base can replace traditional PC-controlled display panel solutions, offering a more cost-effective option.
It is widely applicable in industrial control displays, smart home information screens, education and conference presentations, and remote monitoring displays.
Note: for Atomic Display Base requires a display with adaptive resolution scaling. Some displays without this feature may experience display abnormalities.
Development platforms: for Arduino, ESP32-IDF (UIFlow not yet supported)
Different batches may have different printing screens, but it does not affect the use
Applications:
Display input signal source
High-definition data dashboard
Colour:Grey
Material:plastic
Package Contents:
1 x for Atomic Display Base
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
