For LoRa32V3 Development Board for SX1262 ESP32-S3 Node WIFI

For LoRa32V3 Development Board for SX1262 ESP32-S3 Node WIFI Beschrijving

For LoRa32V3 Development Board for SX1262 ESP32-S3 Node WIFI Description
1. The ESP32+Lora Development Board Has A Thin And Petite Body And Is Suitable For Multiple Scenarios. Its Application Can Be Seen In A Variety Of Smart Scenarios.
2. Support for Ide, Support Systems Sdk, Support , Support Mircopython, Support Nodemcu
3. Support for Development Environment/Win7 Or Above System To Automatically Install The Driver
4. Comes With Lora Antenna, Battery Cable, And Pin Header (Lithium Battery And Breadboard Not Included)
5. 863928 Band Antenna, High Gain, Small Standing Wave Ratio, Reasonable Structure And Stable Performance
Description:
1. Main Frequency: 240Mhz
2.Flash:8Mbyte
3. Processor: Xtensa 32-Bit Lx7 Dual-Core Processor
4. Main Control Chip: Esp32-S3fn8
5.Lora Chip: SX1262
6. Deep Sleep: Less than 10ua
7. Open Communication Distance: 2.8km
8.Usb Adapter Chip: CP2102
9. Dual-Mode Bluetooth: Traditional Bluetooth And Ble Low-Power Bluetooth
10. Development Environment: Perfect Support For
11. Working Voltage: 3.3~7V
12. Working Temperature Range: -20~70C
13. Receiver Sensitivity: -139Dbm (SF12, 125Khz)
14.Supported Modes: Wifi, Bluetooth, Lora
Material: PCB+Plastic+Metal
colour: As shown
Package Contents:

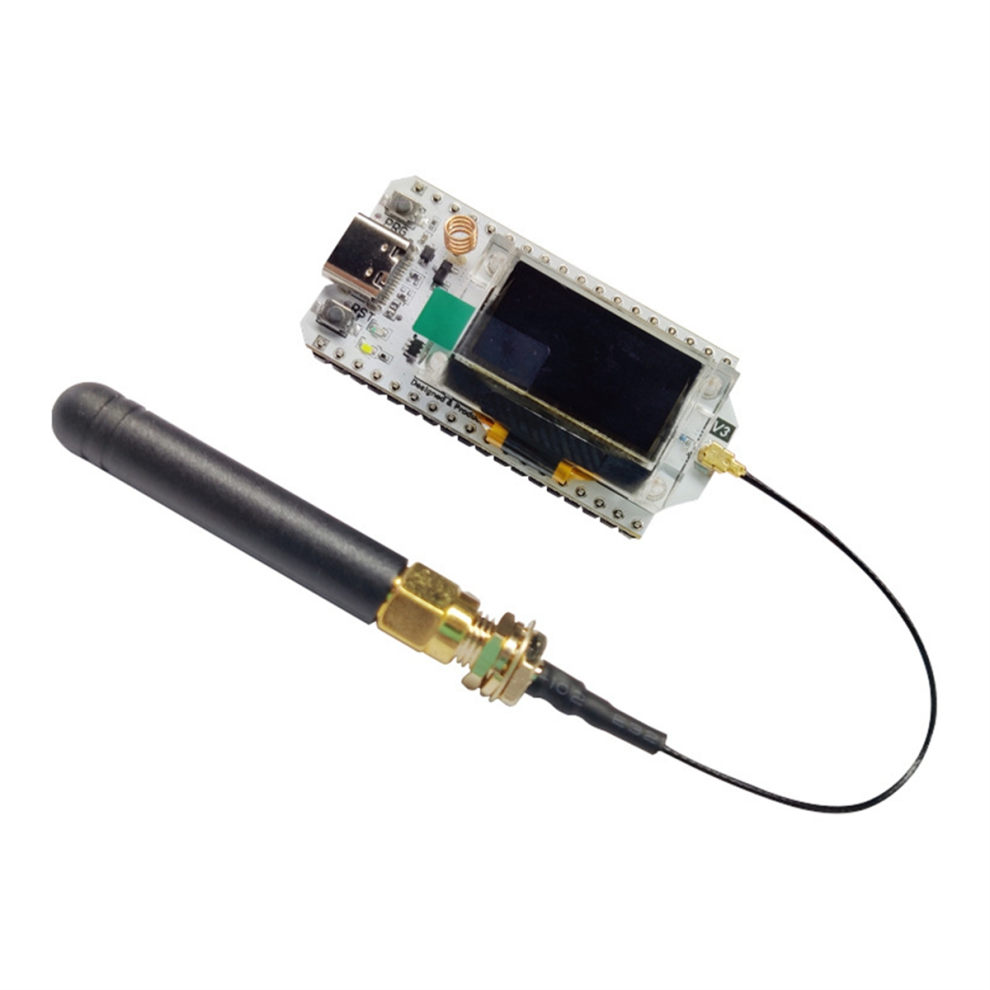

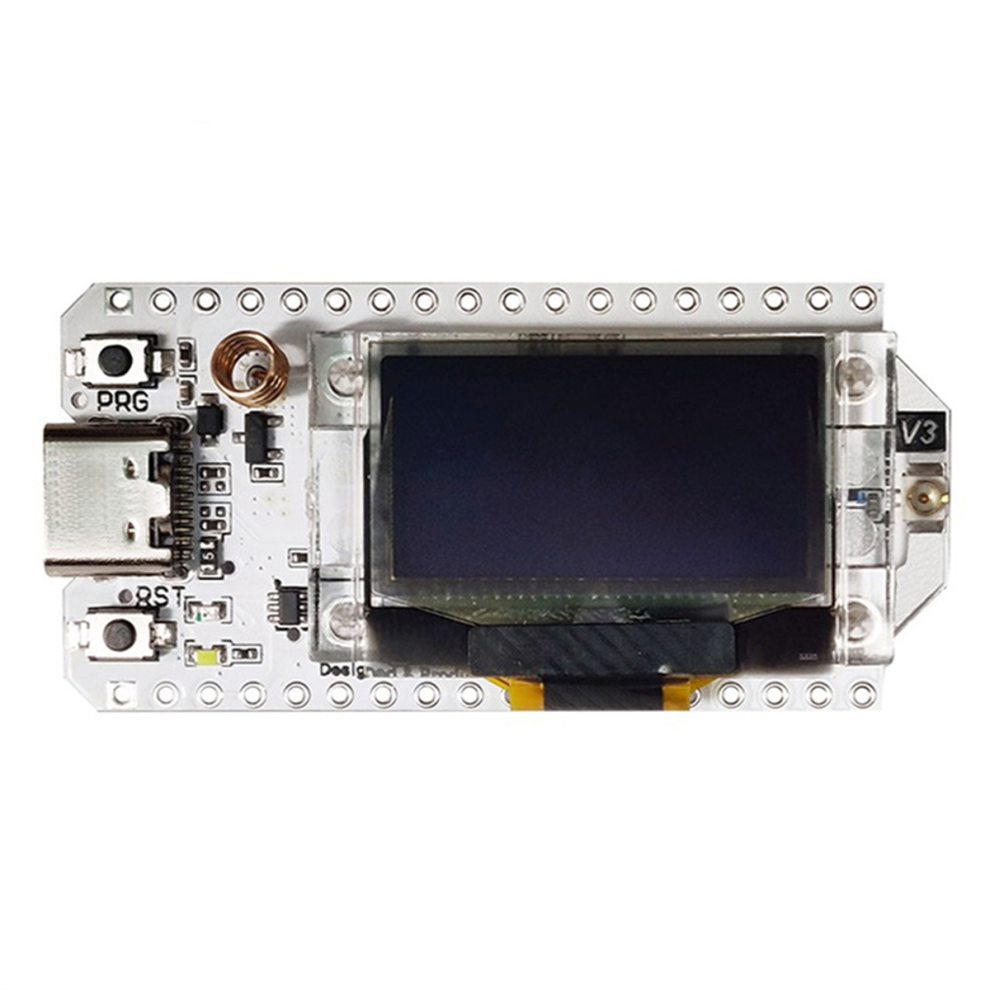

1 x Lora32v3 Development Board
1 x Lora Antenna
1 x Battery Cable
1 x Pin Header
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
