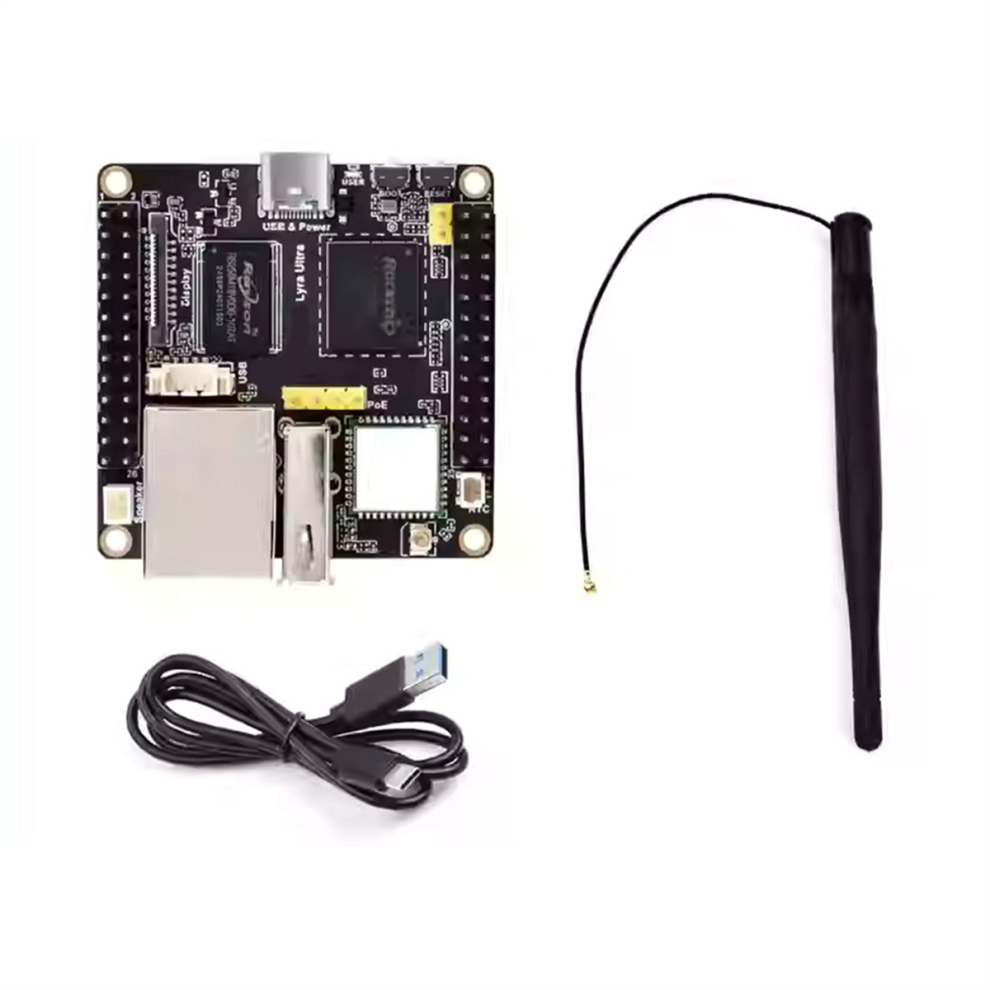

For Luckfox Lyra Ultra Linux Development Board OnBoard EMMC-8GB

For Luckfox Lyra Ultra Linux Development Board OnBoard EMMC-8GB Beschrijving

For Luckfox Lyra Ultra Linux Development Board OnBoard EMMC-8GB Description
Tri-core ARM Cortex-A7 32-bit core, integrated VFP, supports single-precision and double-precision floating-point operations
Built-in ARM Cortex-MO MCU design, supports SMP and AMP configurations
Supports DDR2/DDR3/DDR3L memory interface expansion to meet a variety of expansion needs
The low-speed interface adopts Rockchip Matrix 1O design, which allows rich multiplexing functions to share limited chip pins, making peripheral circuit adaptation more flexible
Built-in audio and video codec, supports multiple audio input and output, and provides high-quality audio playback and recording functions
Type:OnBoard EMMC-8GB 2.4GHz Wi-Fi6/Bluetooth 5.2/BLE
Processor: Tri-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory: Onboard 512MB DDR3L
USB: Native USB OTG2.0x1, HUB expansion USB HOST2.0x2
Screen interface: MIPI DSI 2-lane
Network port: 10/100M Ethernet port
Storage medium: 8GB eMMC
Wireless communication: Onboard 2.4GHz Wi-Fi6/Bluetooth 5.2/BLE
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:Black
Material:PCB
Package Contents:
1 * Development Board Kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
