For PwrCAN Module13.2 Multi-Function Communication Module Description

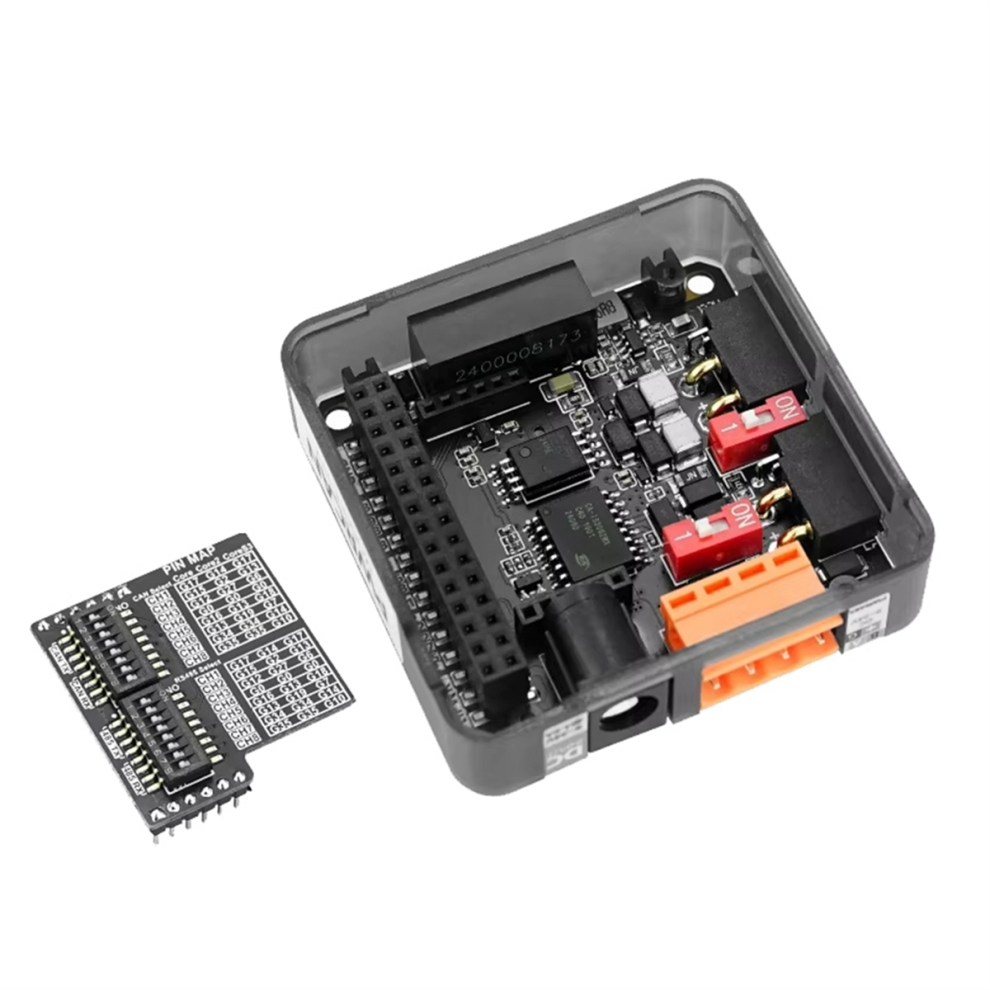

PwrCAN Module 13.2 is a multifunctional module designed for the PwrCAN bus, integrating isolated CAN communication and DC 9-24V power bus. The module also includes Pwr485 (with isolation) bus functionality and can provide isolated 5V power supply to the M5 host.
The CAN communication part uses the CA-IS3050G isolated transceiver, and the RS485 part uses the CA-IS3082W isolated transceiver. The GPIOs related to CAN and RS485 communication can be through dip switches, and the 120-ohm terminal resistance at the CAN and RS485 outputs can also be through dip switches.
The module's power bus supports DC 9-24V wide voltage input, with the DC socket directly connected to the HT3.96 and XT30 power parts. The built-in isolated power module F0505S-2WR3 provides power to the M5 host.
This module is suitable for fields such as robot control, protocol conversion, industrial automation, automotive communication systems, intelligent transportation, and building automation.

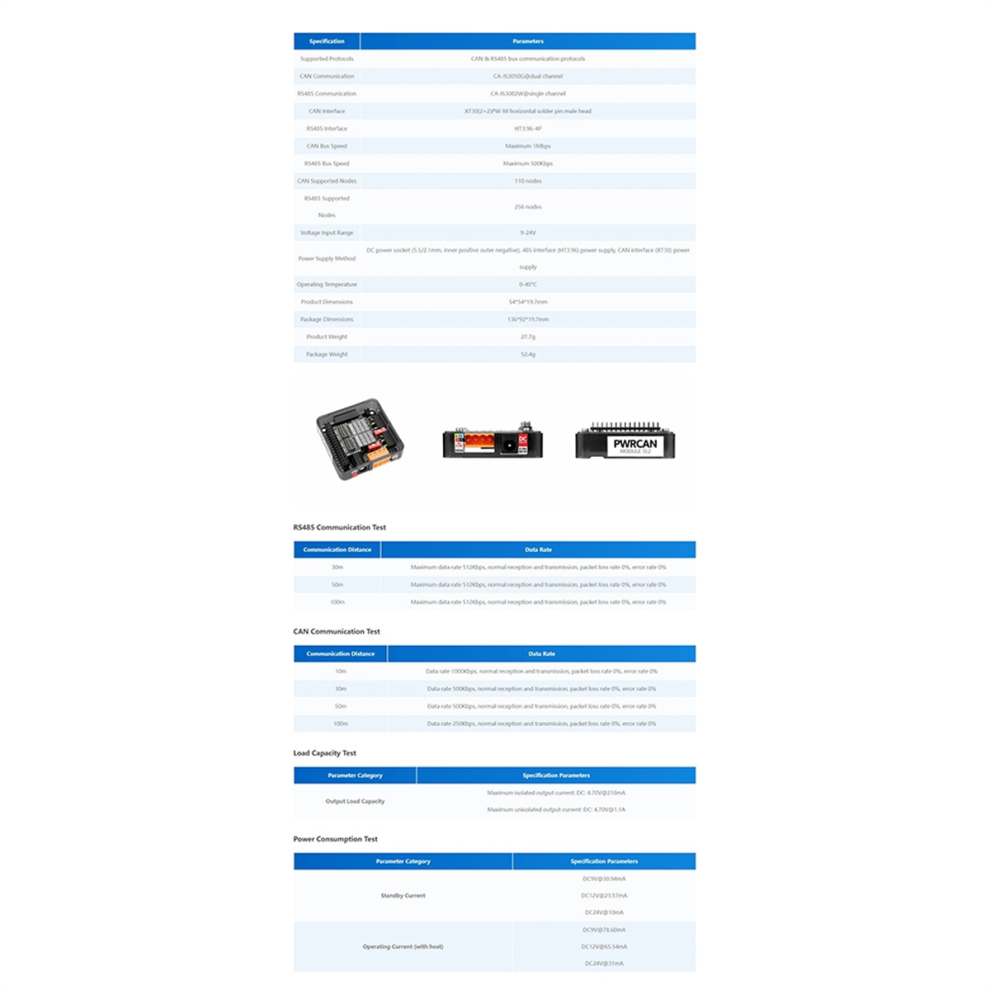

Features
Isolated CAN bus (dual channel)
Isolated RS485 bus
Signal isolation
Power isolation supply
Multiple power interfaces
Wide voltage input range (9-24V)
CAN/RS485 communication pin switching dip switch
Color: black
Material: ABS
Package Contents:
1 x for PwrCAN Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
