GLEDOPTO ESP32 PWM WLED LED Controller 5 Modes in 1 DC 12-24V

GLEDOPTO ESP32 PWM WLED LED Controller 5 Modes in 1 DC 12-24V Beschrijving

GLEDOPTO ESP32 PWM WLED LED Controller 5 Modes in 1 DC 12-24V Description
WLED ESP32 - Efficient Chip: WLED is an open-source project. We use the efficient ESP32 chip for quick response and an excellent user experience. Additionally, it supports OTA upgrades. When upgrading, select the ESP32 version firmware. Incorrect firmware may cause damage to the product.

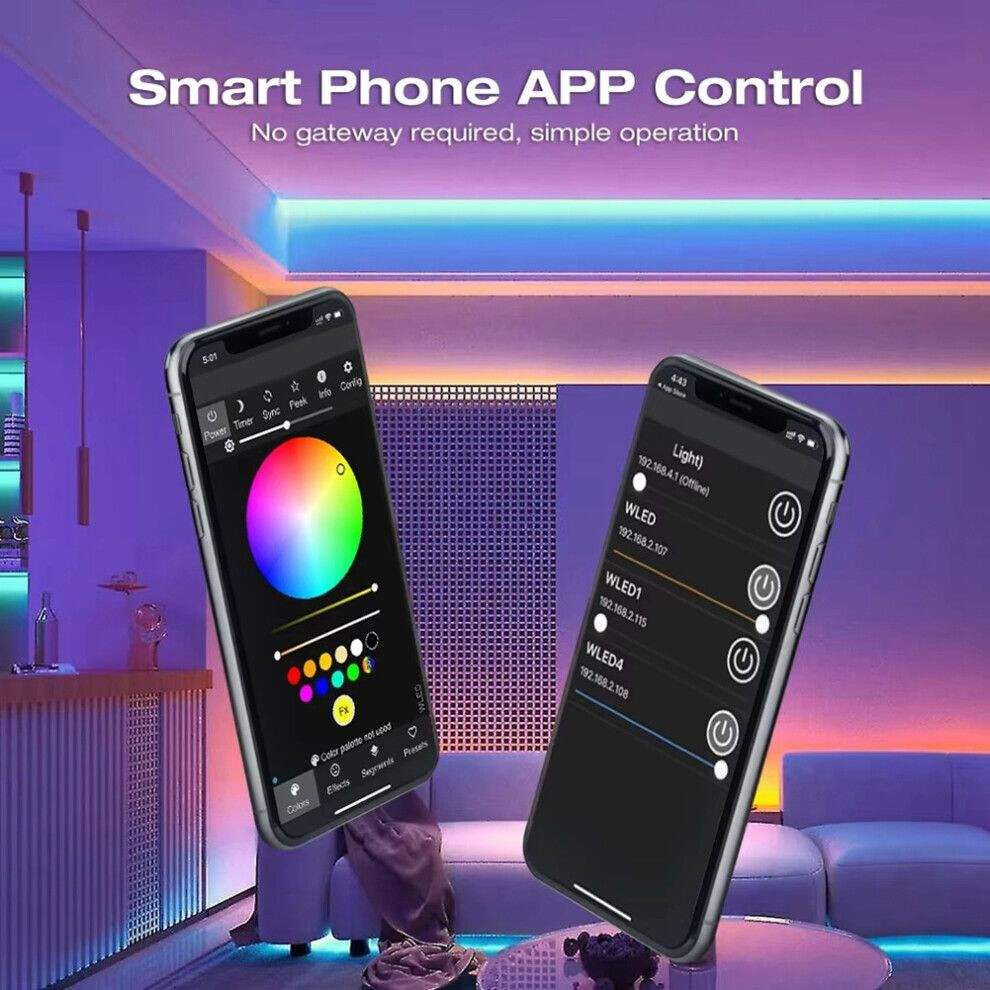

Convenient Control: The ESP32 PWM WLED LED controller can be directly controlled via the WLED app using wifi without the need for a gateway. Easily control lights anytime and anywhere.
Versatile Compatibility: Supports five types of PWM dimmable light strips including RGBCCT, RGBW, RGB, CCT, and single-color. Meets diverse lighting needs.

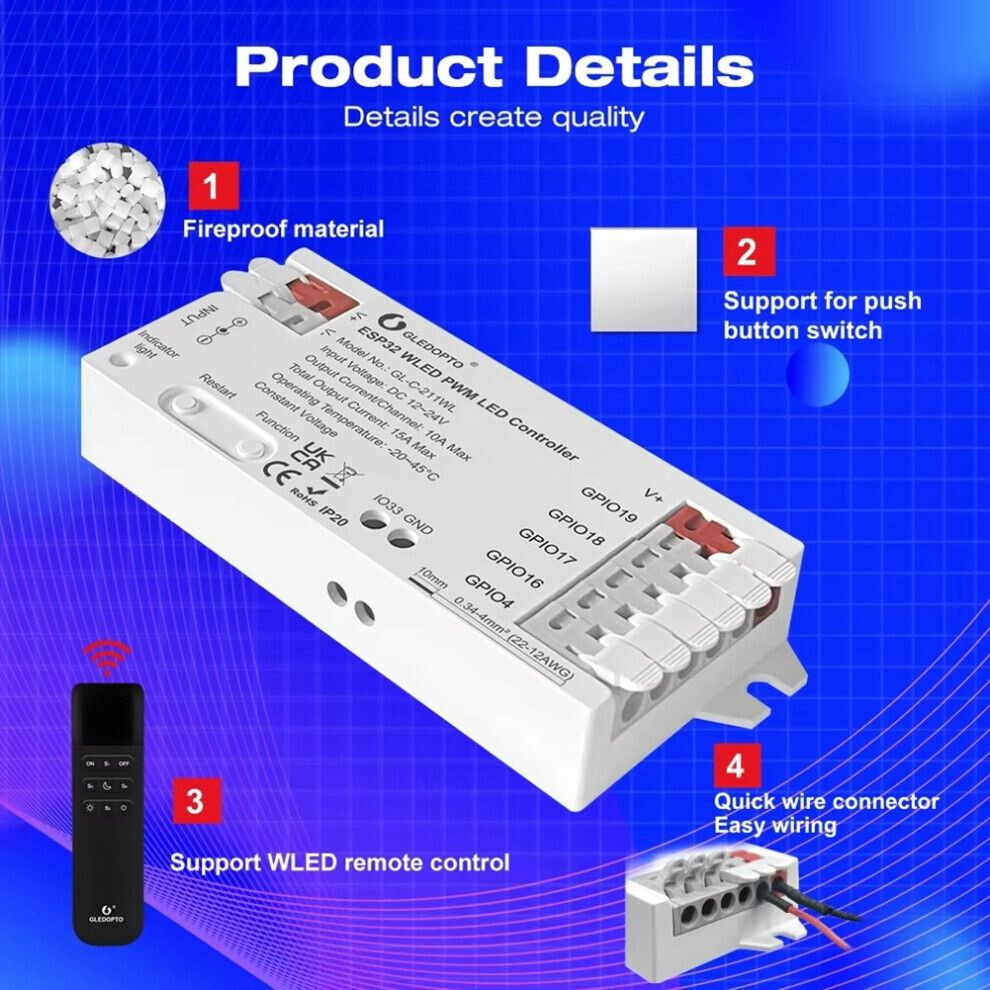

Upgraded Wiring Port: The upgraded wiring port makes installation more convenient.
DIY Expansion: With a DIY port for connecting a push switch. Customize lighting control as you wish. Safe and Reliable: Equipped with reverse connection protection. No damage even with incorrect wiring.

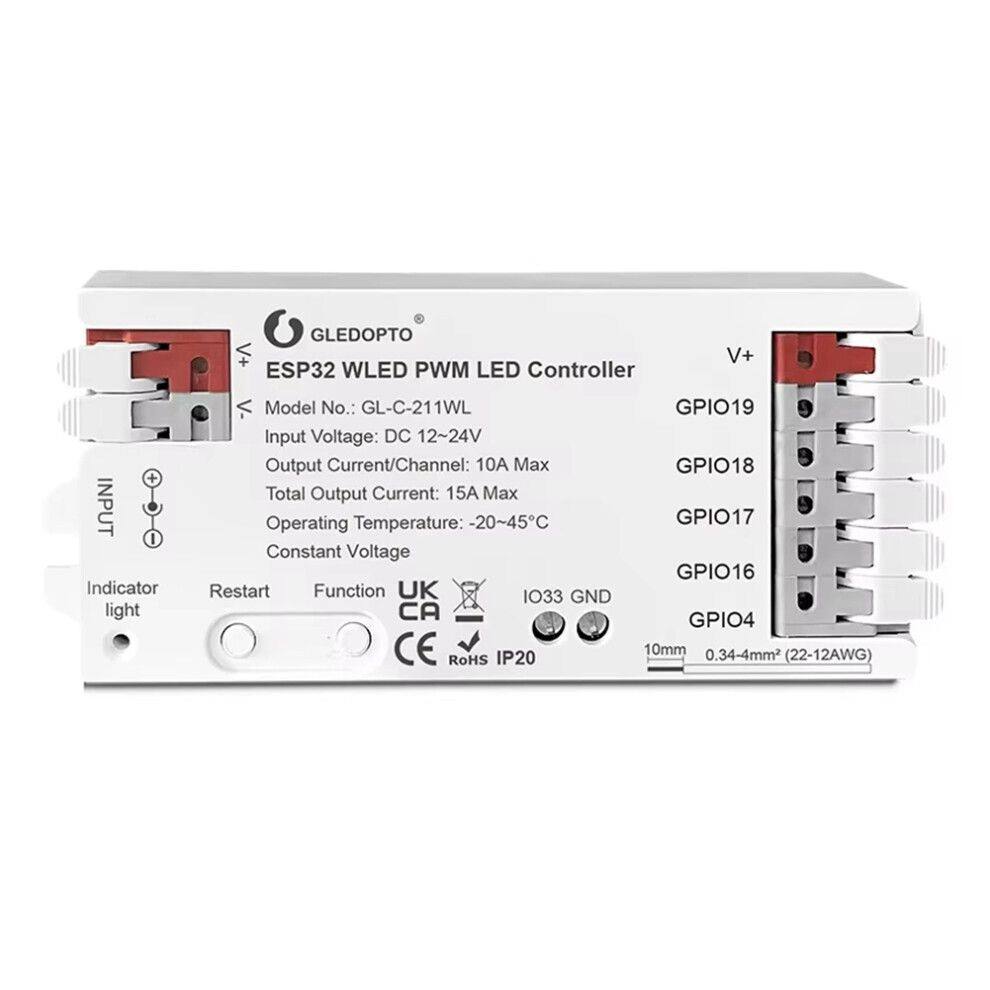

Product Name:ESP32 PWM WLED Strip Light Controller
Model No.:GL-C-211WL
Voltage:DC 12-24V
IC Quantity:800 Max
Total Current:15A Max
Size:18x45x108mm
Operating Temperature:-20-45
Supported Strip:PWM Dimming Method RGBCCT, RGBW, RGB, CCT, Dimmer LED Strip
Attention:
The chip of this controller is ESP32. Please carefully confirm the chip version information of the firmware before upgrading. Incorrect firmware upgrades will cause product damage.
Please note:
This ESP32 WLED controller is PWM Dimming method , Only applicable to regular PWM Dimming RGBCCT, RGBW, RGB, WWCW, CCT, Dimmer LED strips, not applicable to addressable light strips.
The connected light strip can only light up in one color at a time and has no dynamic mode.
Colour:White
Material:ABS
Package Contents:
1 * PWM WLED LED Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
