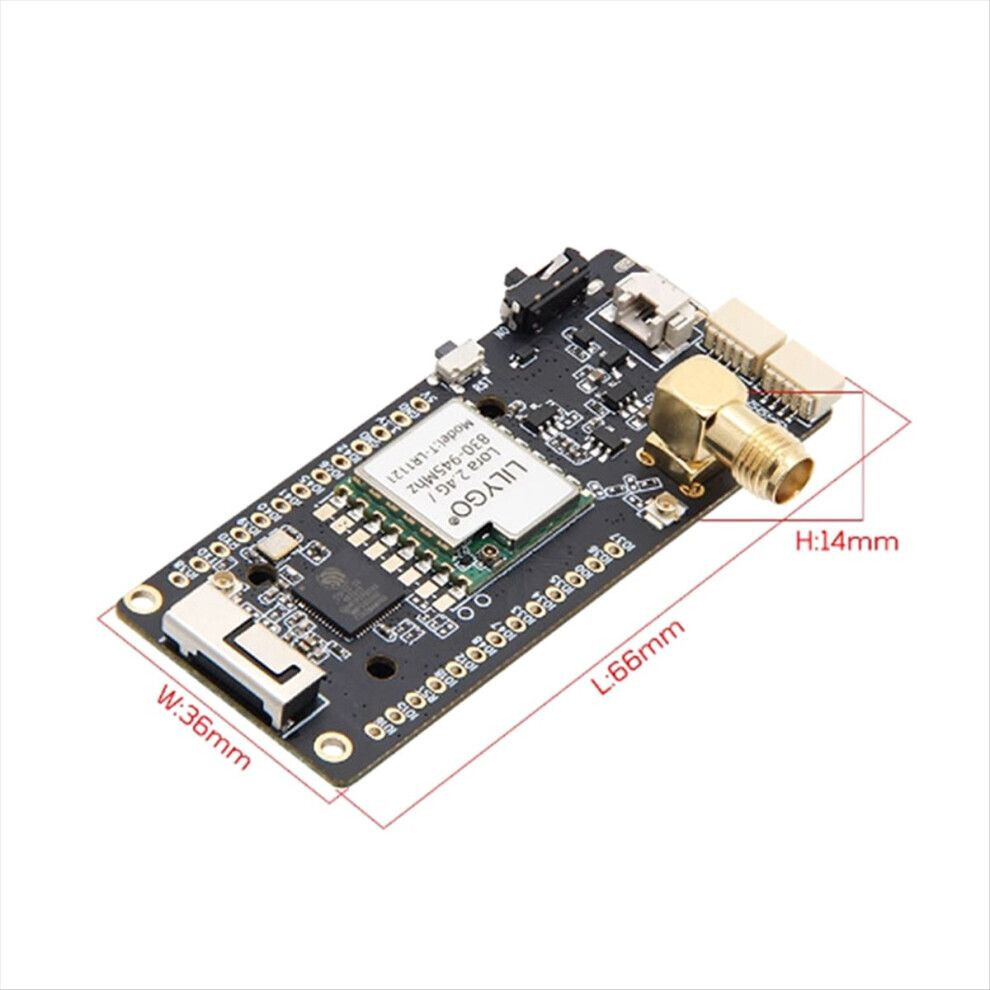

LILYGO T3S3-LR1121/2.4G V1.2 ESP32-S3 LoRa2.4G Development Board

LILYGO T3S3-LR1121/2.4G V1.2 ESP32-S3 LoRa2.4G Development Board Beschrijving

LILYGO T3S3-LR1121/2.4G V1.2 ESP32-S3 LoRa2.4G Development Board Description
Powerful LoRa Communication Performance: Equipped with the LoRa module, it delivers outstanding long-range communication performance, suitable for IoT applications requiring extended reach and low power consumption.
Global Usability with LoRa 2.4G Frequency Band: Optional the LoRa 2.4G frequency band ensures stable operation globally, complying with different countries' and regions' spectrum regulations.
Advanced Main Control Chip: Integrated with the ESP32-S3 main control chip, providing higher computing performance and additional interface options, enhancing device flexibility and expandability.
TF Card Support: The device supports TF cards (SD cards) for extended storage, facilitating users in storing and managing data, particularly useful in scenarios requiring large-capacity storage.
Wide Range of Applications: Leveraging the long-range capabilities of LoRa technology, this module finds applications in various IoT scenarios, including smart agriculture, smart cities, and industrial IoT.
Hign-concerned Chemical:None
MCU: ESP32S3FH4R2
Flash: 4MB
PSRAM: 2MB
Wireless communication protocols: 2.4 GHz Wi-Fi and Bluetooth 5 (LE)
Onboard functions: Reset + Boot button, support TF Card
Resolution: 128x64
I2C interface: SDA--I018 SCL--I017
USB charging voltage and current: 500mA 5V
Colour:As Shown
Material:PCB
Package Contents:

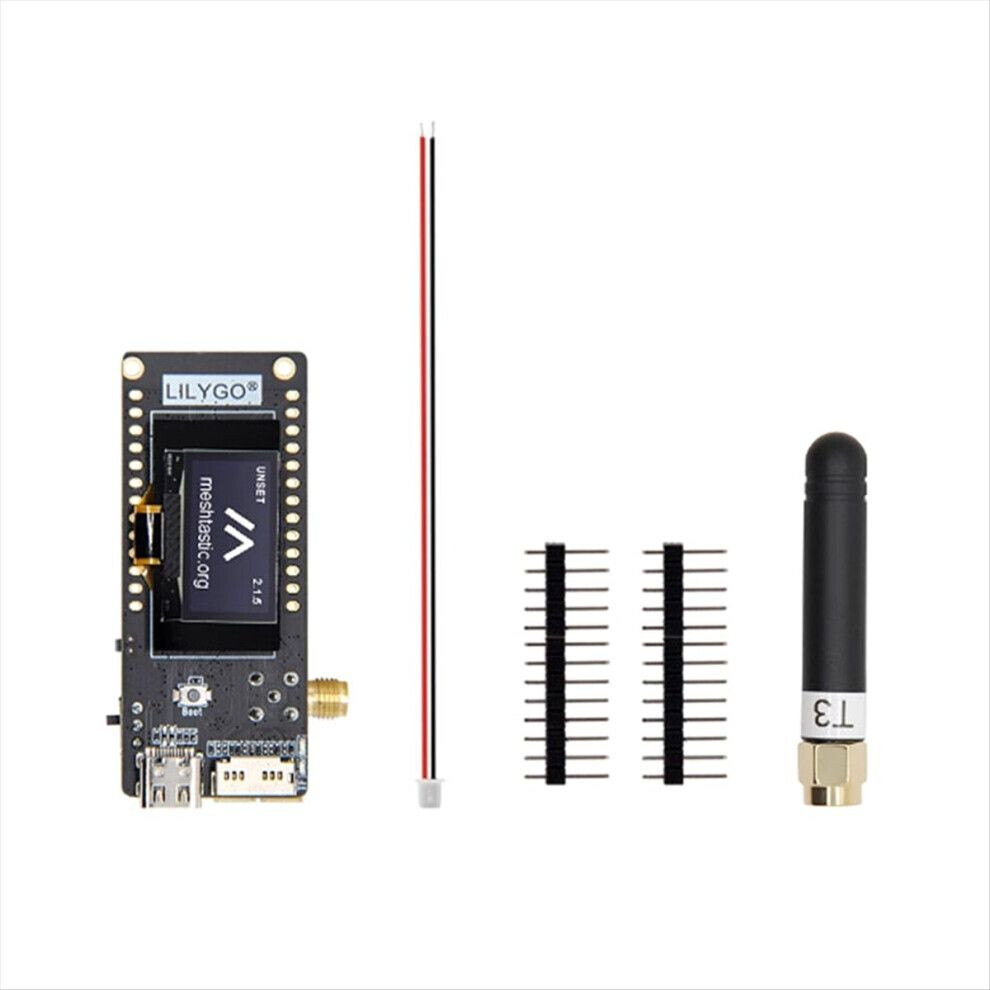

1 * ESP32-S3 Board Module kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
