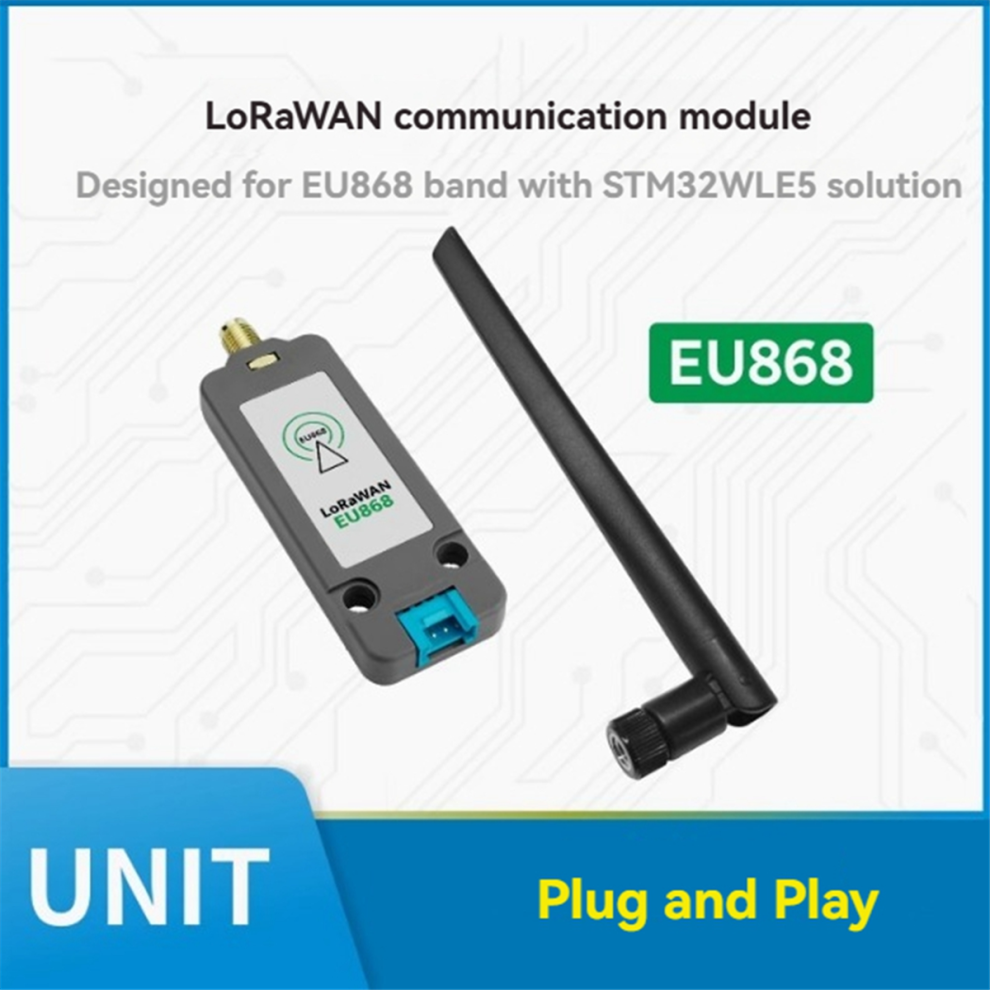

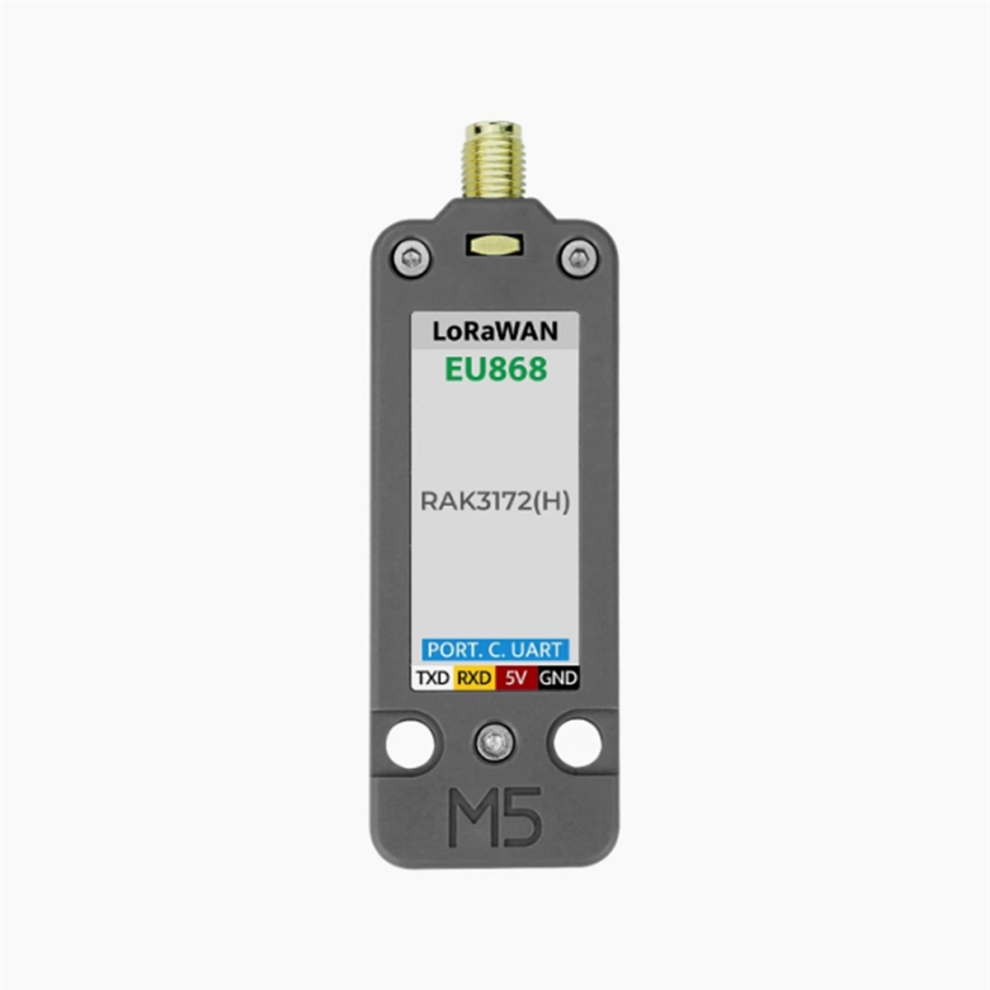

Unit LoRaWAN-EU868 is a LoRaWAN communication module based on LoRa technology, specifically designed for the EU868 (868-870MHz) frequency band, suitable for Europe and other regions using the EU868 frequency band.
The module adopts the STM32WLE5 solution, supporting long-range communication with low power consumption and high sensitivity characteristics.
The module integrates the LoRaWAN protocol stack and supports three operating modes: Class A, Class B, and Class C. It also supports point-to-point (P2P) communication mode and uses a UART communication interface (controlled by the AT set) for flexible configuration.
Additionally, the product features a high-performance rubber antenna, with an optimized antenna design that provides more stable signal coverage and longer communication distance, making it suitable for complex environments. The module can be used as a data collection node to connect to a gateway for data collection and management, or it can enable direct communication between devices in scenarios where no gateway is needed.
It is widely used in long-range, low-power IoT communication scenarios, such as smart agriculture, industrial monitoring, and environmental monitoring node deployments.
Follows LoRaWAN 1.0.3 protocol
Supports EU868 frequency band
Supports LoRa P2P (point-to-point) communication
LoRaWAN activation modes: OTAA, ABP
Serial communication (AT commands)
High-sensitivity stub antenna
Low power consumption
Compatible with for holes
Development platforms: for UIFlow 1.0, for UIFlow 2.0, for IDE
The printing/appearance from batch to batch, but it not affect the use; the actual product may have color difference due to different light or display.
Colour:Photo Color
Material:plastic

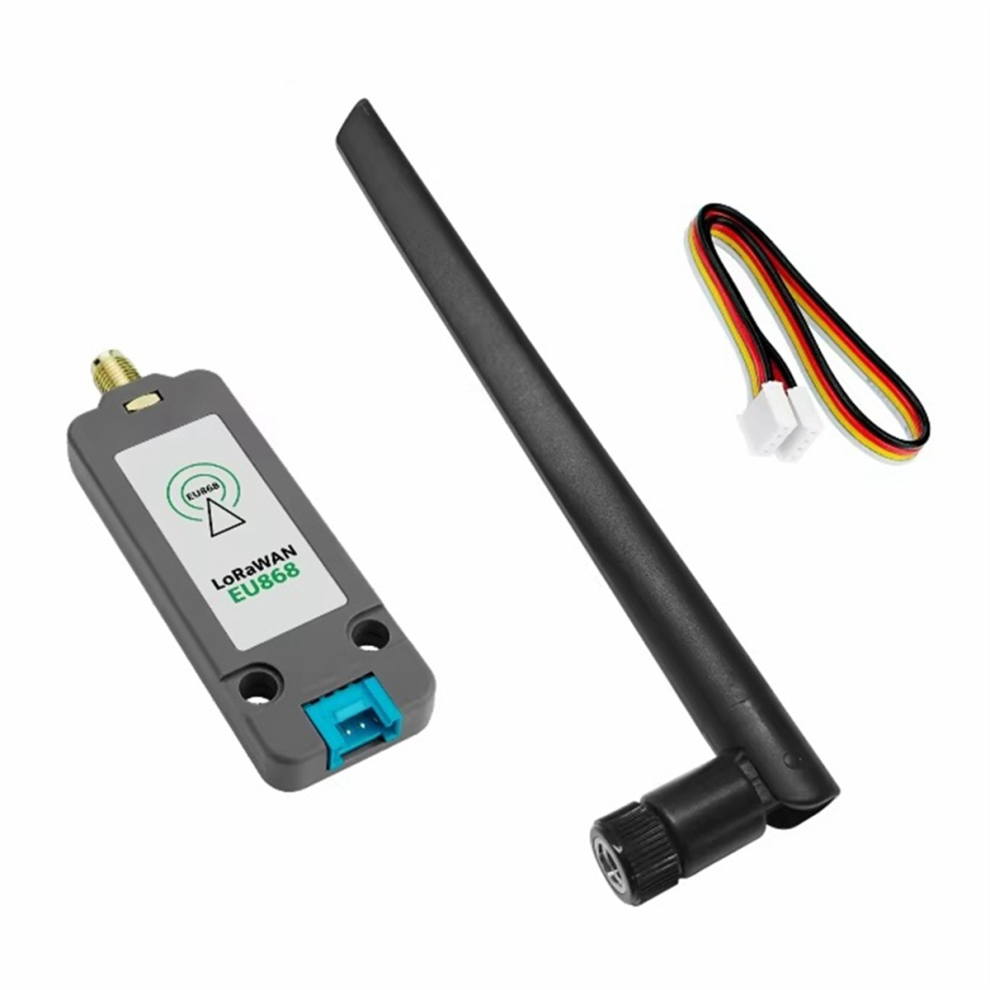

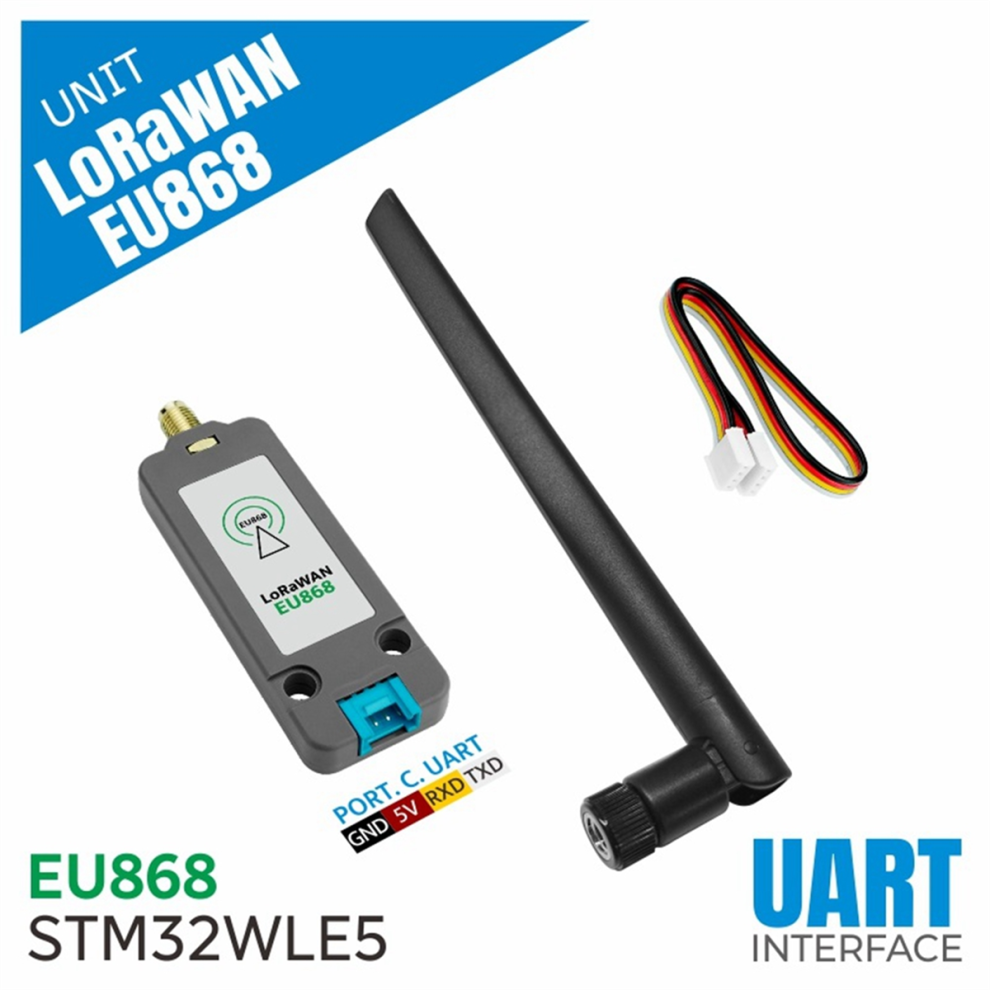

Package Contents:
1 x Unit LoRaWAN-EU868
1 x cable (cable color is random, specified color is not accepted)
1 xStub antenna Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
