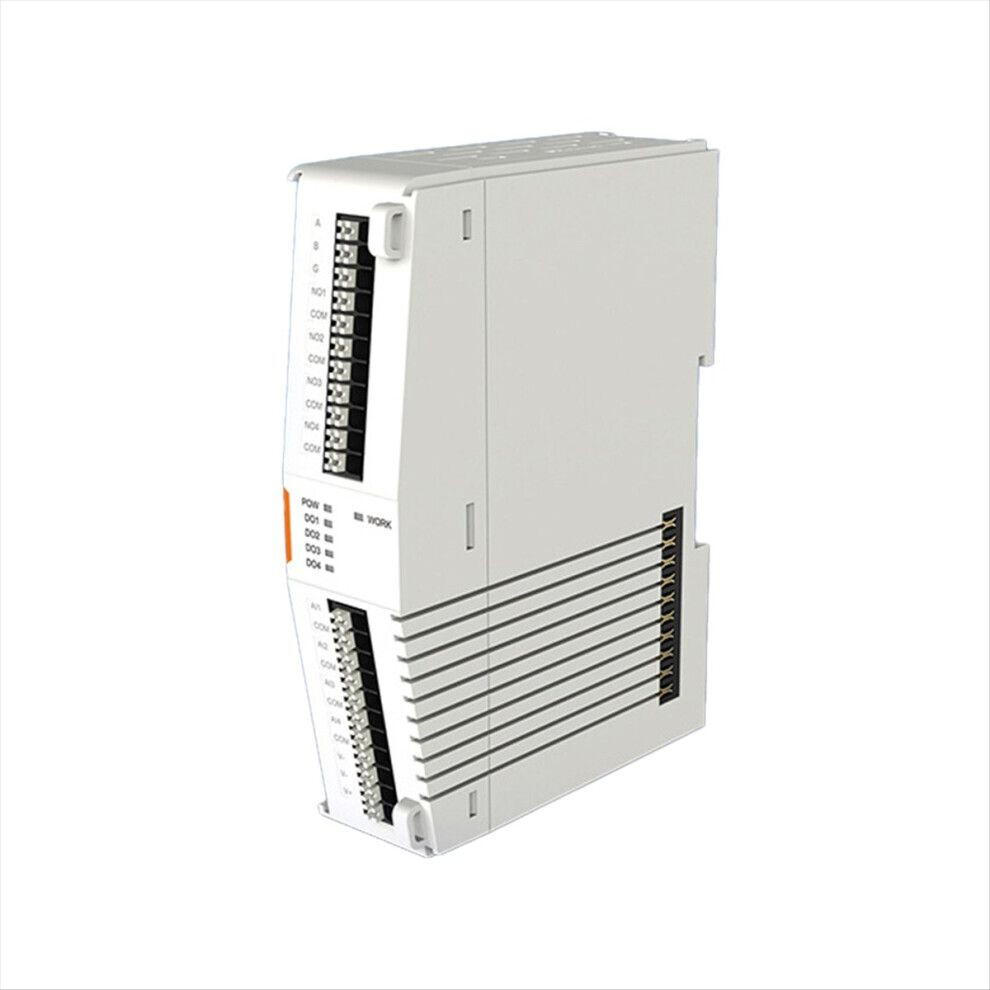

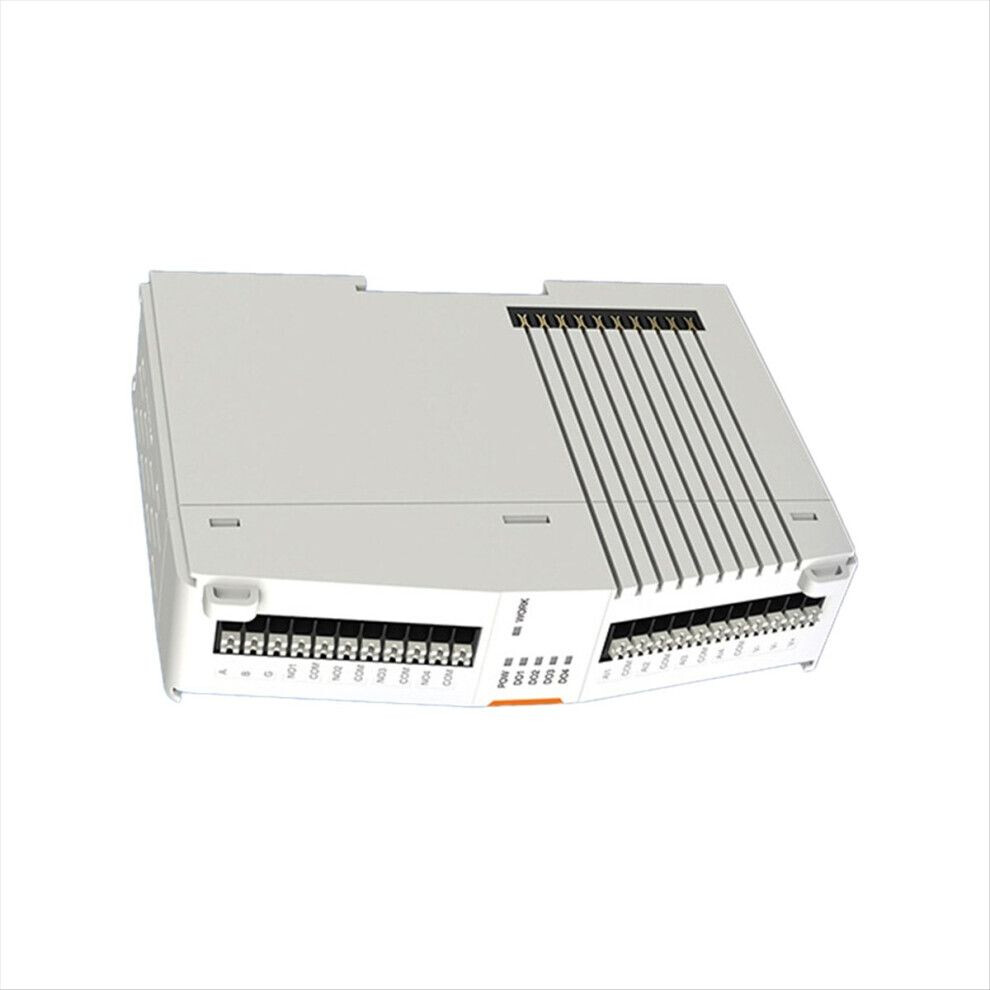

-M100-EAU Industrial Remote IO Gateway 4AI4DO Extender

-M100-EAU Industrial Remote IO Gateway 4AI4DO Extender Beschrijving

-M100-EAU Industrial Remote IO Gateway 4AI4DO Extender Description
Remote serial access:Enables remote serial access over the internet for industrial serial devices, simplifying device management.
High Reliability Design:Features dual watchdog and ESD/surge protection for stable 7x24h operation without downtime.
Edge Computing:Supports edge computing, enabling real-time data processing and control without cloud latency.
Modept/High-performance CPU:Equipped with a 32-bit Arm -M7 core CPU, the -M100 offers a processing speed of up to 400MHz.
Modular I/O Gateway: modular design allows for easy expansion with I/O modules, enhancing flexibility and cost-saving.
Default parameters: 9600, NONE, 8,1
Baud rate: 4800, 9600, 115200, 230400
Check digit:NONE, EVEN, ODD
Data bits: 8
Stop bits:1,2
Terminal power supply: DC: 12-24V
Normal operating temperature: -25 - +75
Storage temperature: -40 - +105
Working humidity: 5%-95% (no condensation)
AI: Current detection, 4-20mA
DO: Relay output,
contact load: 3A 250VAC/ 3A 30VDC,
durability: 100,000 times
(The product appearance and printed words depending on the batch, but this does not affect use)
Colour: As Shown
Material: ABS
Package Contents:
1 x RS485 Collection Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
