Matrix 1S HD Brushless Flight Controller for DJI O4 Drones

Matrix 1S HD Brushless Flight Controller for DJI O4 Drones Beschrijving

Matrix 1S HD Brushless Flight Controller for DJI O4 Drones Description
Advanced Flight Controller: Matrix 1S is equipped with STM32G473CEU6 processor, providing high-performance processing for your 1S HD whoops drone. This flight controller is designed to enhance your flying experience with its efficient processing power
Integrated 12A ESC: This flight controller is equipped with a powerful 12A ESC, which ensures reliable power and smooth response, suitable for aggressive flying maneuvers and stable hovering
Built-in ELRS 2.4G receiver: Enjoy enhanced connectivity and reduced latency with the integrated ELRS 2.4G receiver, making it ideal for both novice and professional drone pilots
Improve drone performance and provide smoother and more reliable flight
Plug and play, no soldering required, installation and maintenance in one step

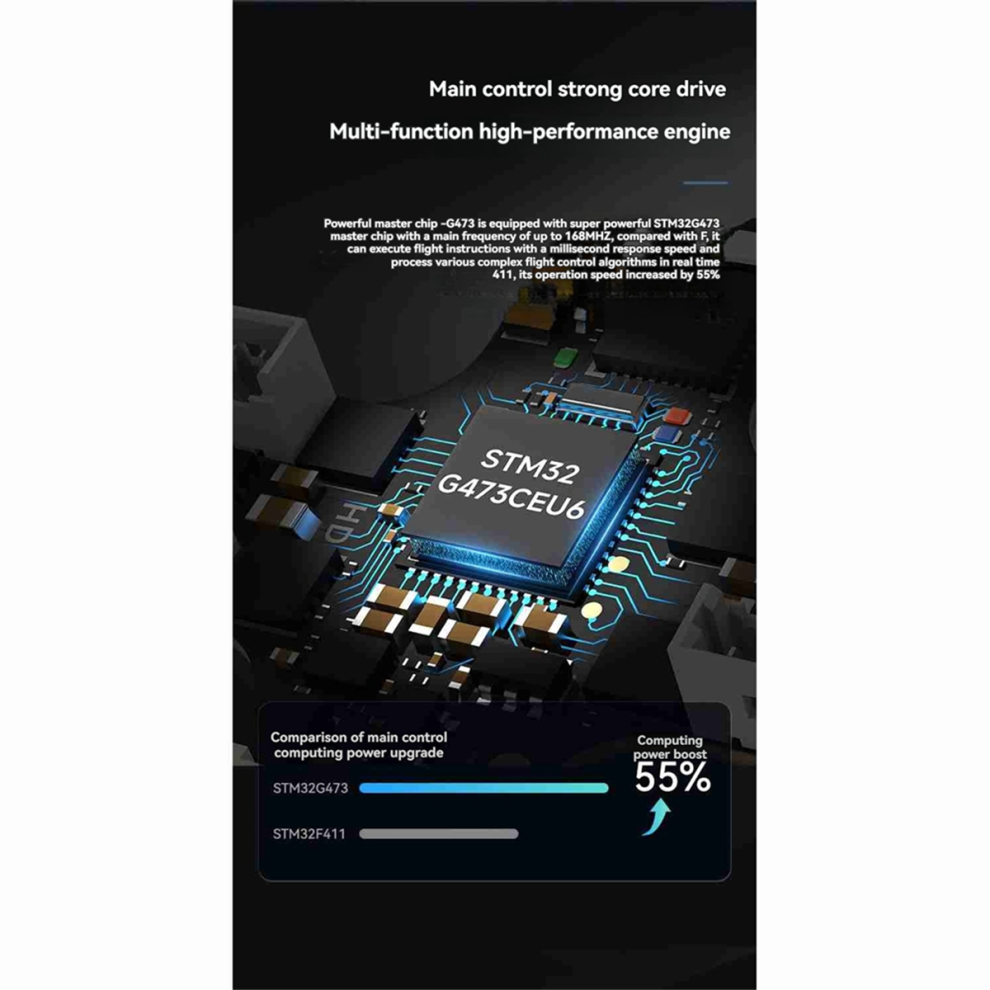

Processor: STM32G473CEU6 (168MHz)
Black box: 16MB
BEC: 5V/3A
Receiver: Serial ELRS 2.4GHz (V3.4.3 version)
Flight control firmware: Betaflight_4.5.1_BETAFPVG473
Motor terminal: JST1.25-3Pin

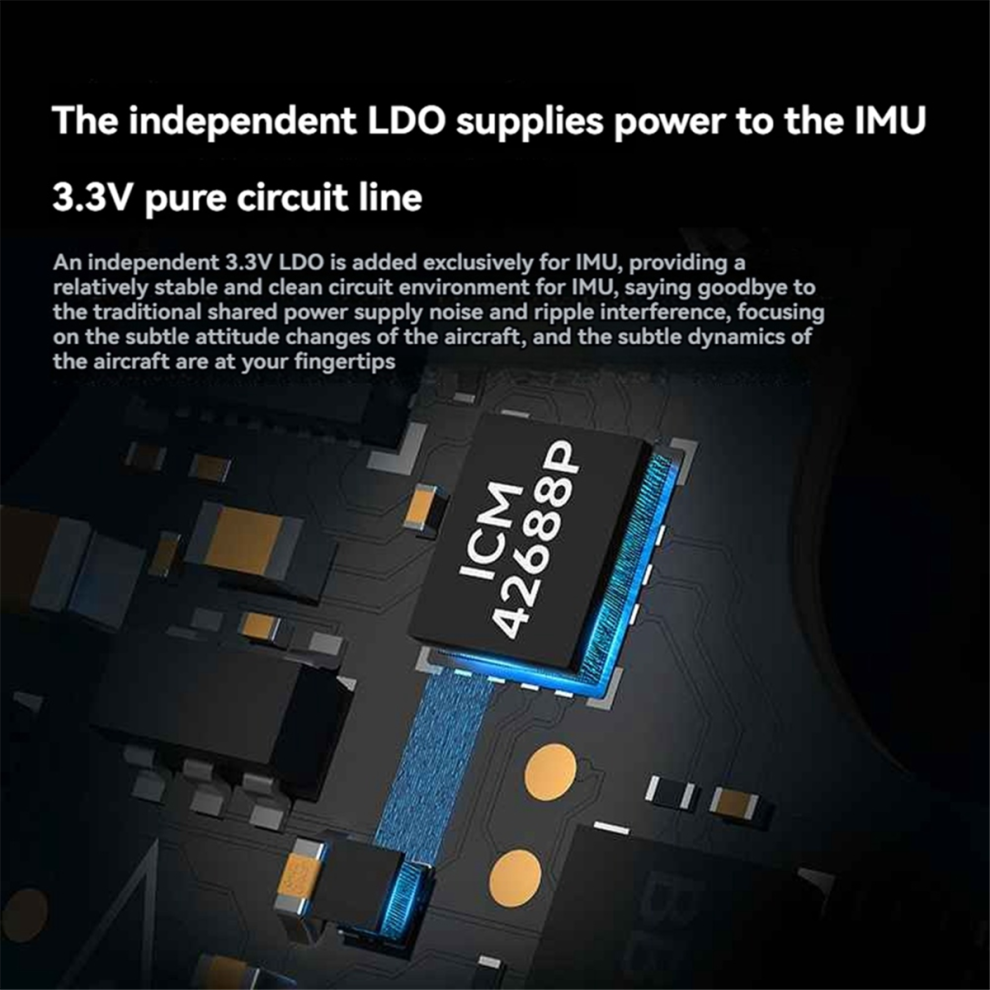

Gyroscope: ICM42688P
Sensor: voltage and current

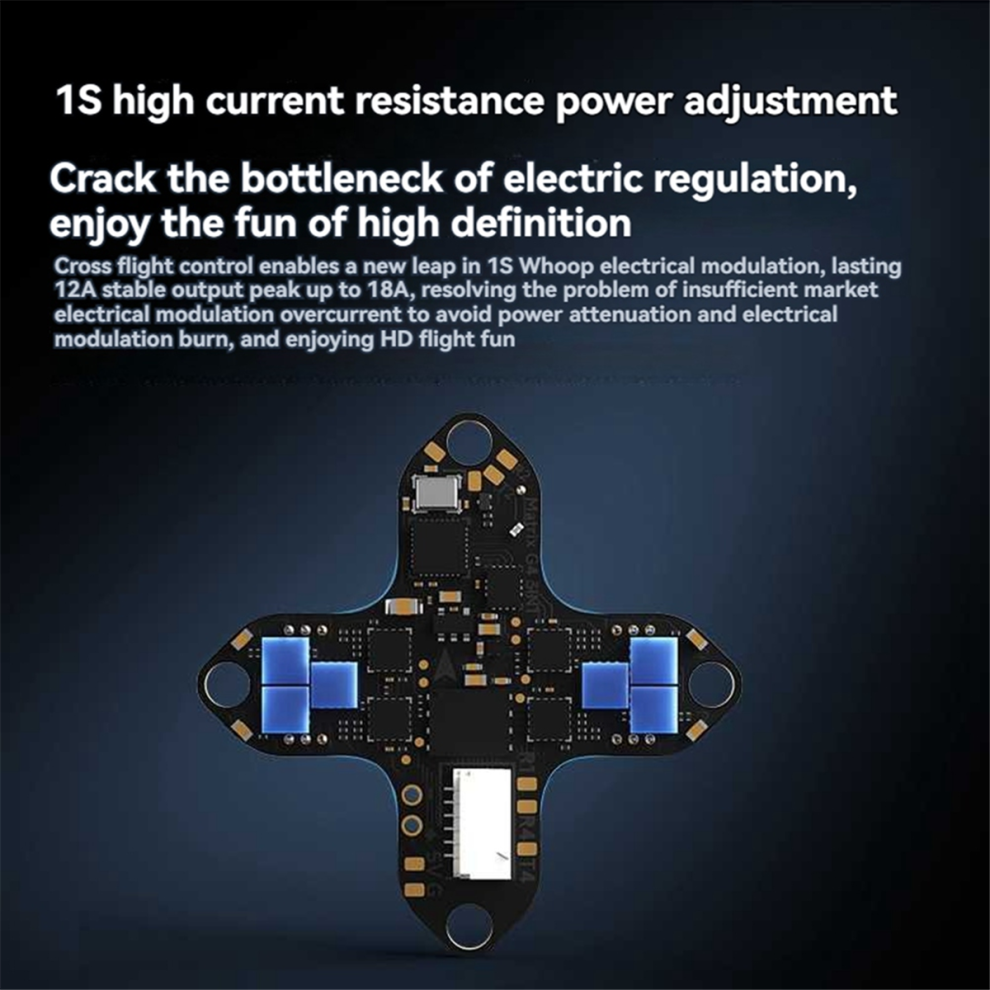

ESC: 12A continuous current
USB interface: SH1.0-4Pin
HD digital VTX port: SH1.0-6Pin
Power interface: BT2.0
Installation size: 25.5mmx25.5mm
UART: UART1, UART2 (for image transmission), UART3 (for receiver), UART4
Colour:Black
Material:PCB
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Package Contents:
1 * Flight Controller Kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
