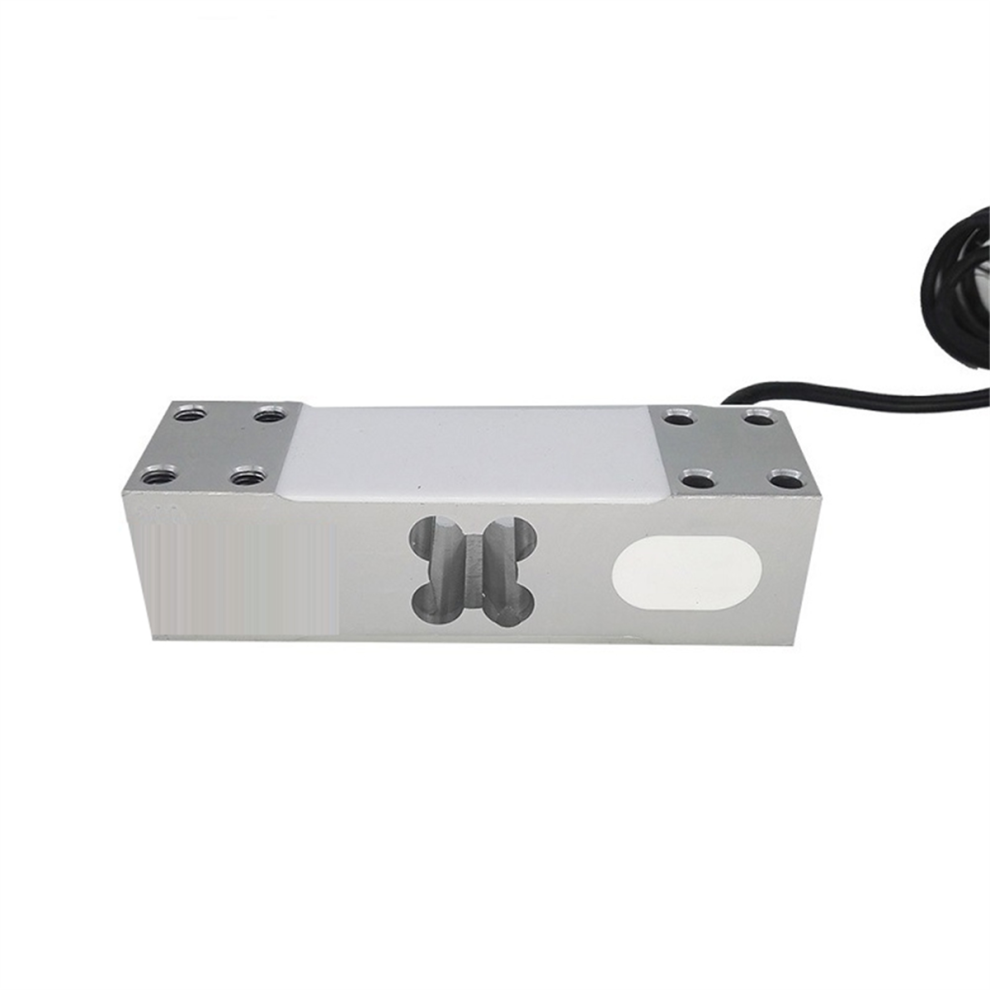

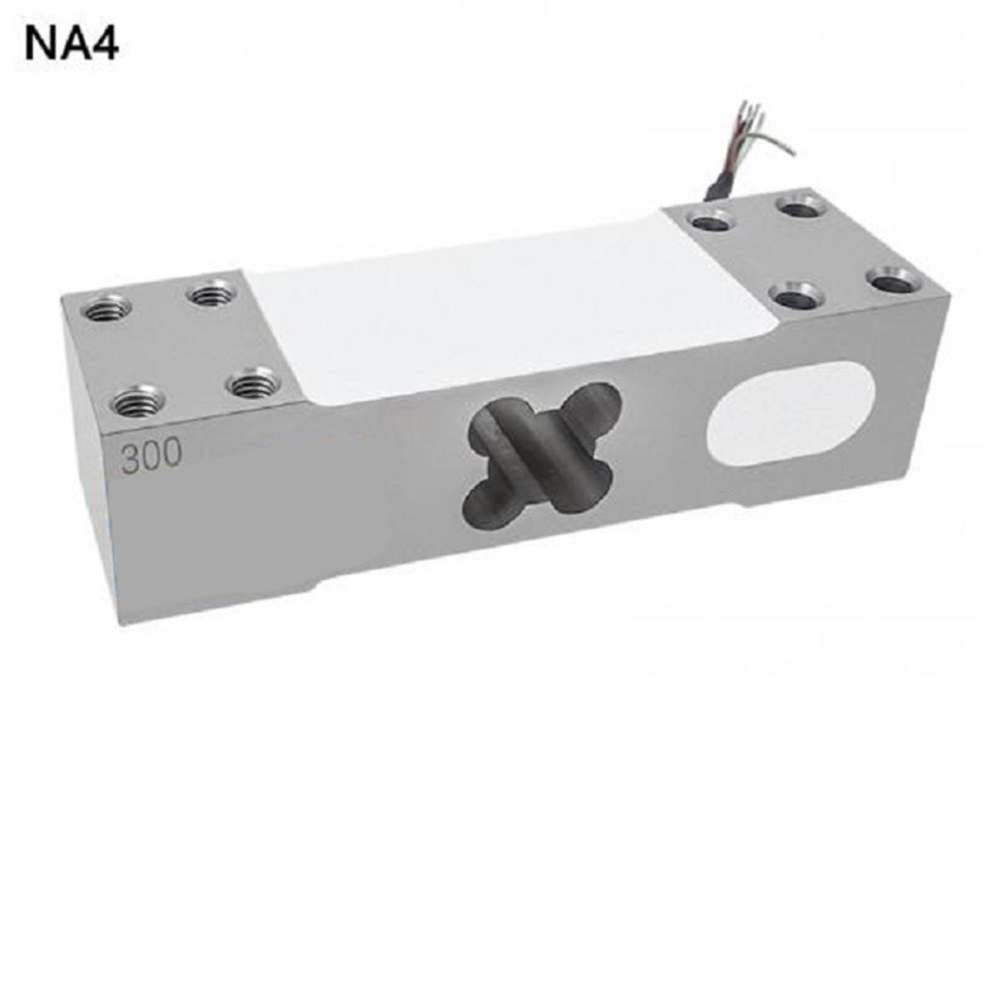

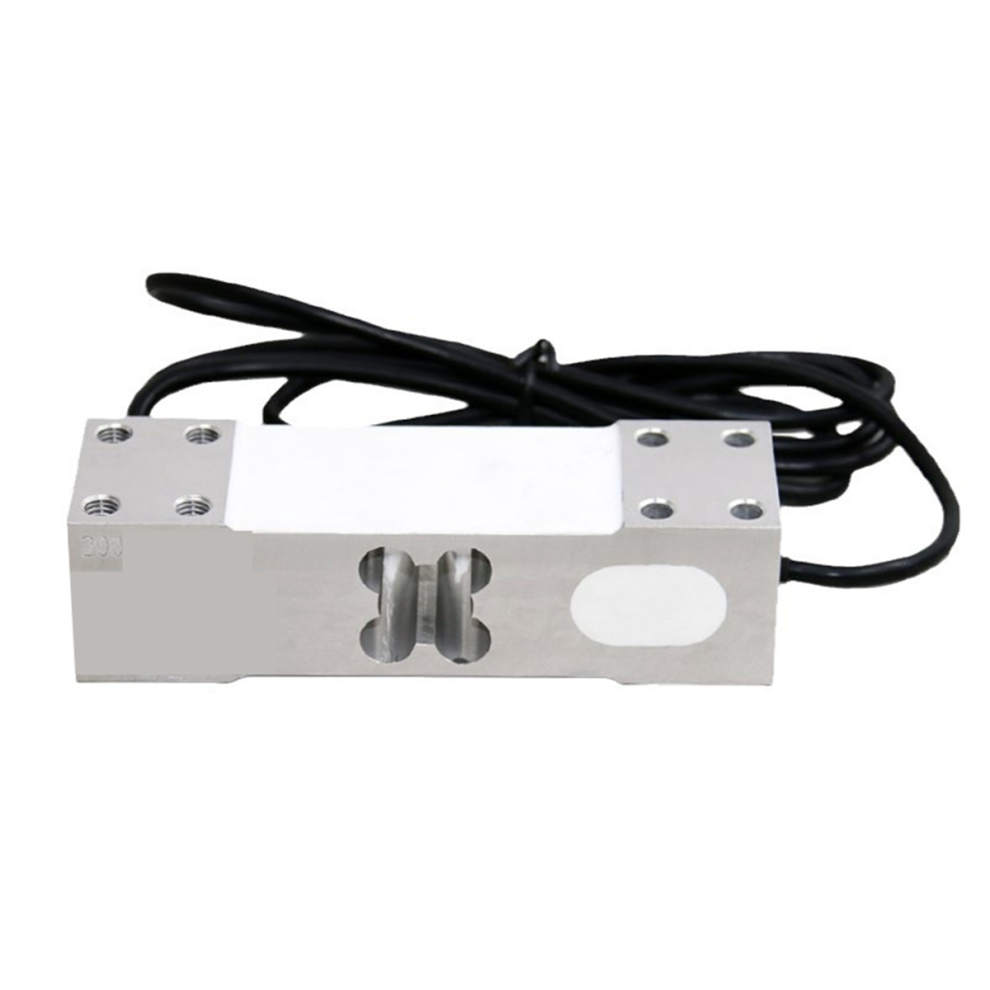

NA4 Weighing Sensor Load Cells Electronic Scale Sensor 100KG

NA4 Weighing Sensor Load Cells Electronic Scale Sensor 100KG Beschrijving

NA4 Weighing Sensor Load Cells Electronic Scale Sensor 100KG Description
The elastic body of the sensor is made of aluminum alloy material; treatment
White glue seal, four corner correction, easy calibration
High precision, with multiple accuracy levels C3 to C5
Application fields: Widely used in electronic pricing scales, weighing scales, counting scales and other large platform electronic scales, packaging machinery equipment, etc.
Rated output:2.0 mV/V5%
Zero Balance:0.0200 mV/V
Non-linear:0.02 %R.O.
Hysteresis:0.02 %R.O.
Repeatability:0.02 %R.O.
Creep (30 minutes):0.02 %R.O.
Back to Zero (30 minutes):0.02 %R.O.
Overload rate:150 %R.O.
Overload rate:200 %R.O.
Output temperature effect:0.002 %R.O./
Zero temperature effect:0.003 %R.O./
Input impedance:41015 Ω
Output impedance:3505 Ω
Insulation impedance: equal 5000 MΩ/(50VDC)
Recommend operating voltage:5-12
Operating voltage:15
Operating temperature range:-20-60
Cable:Φ5 x 2m
Recommend table size:500x600 mm;600x600 mm
Wiring mode:Red: Power +, Black: Power-, Green: Signal +, White: Signal-
Rated load:100KG
Color:As Shown
Material:Aluminum alloy
Package Contents:
1 * Load Cells
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
