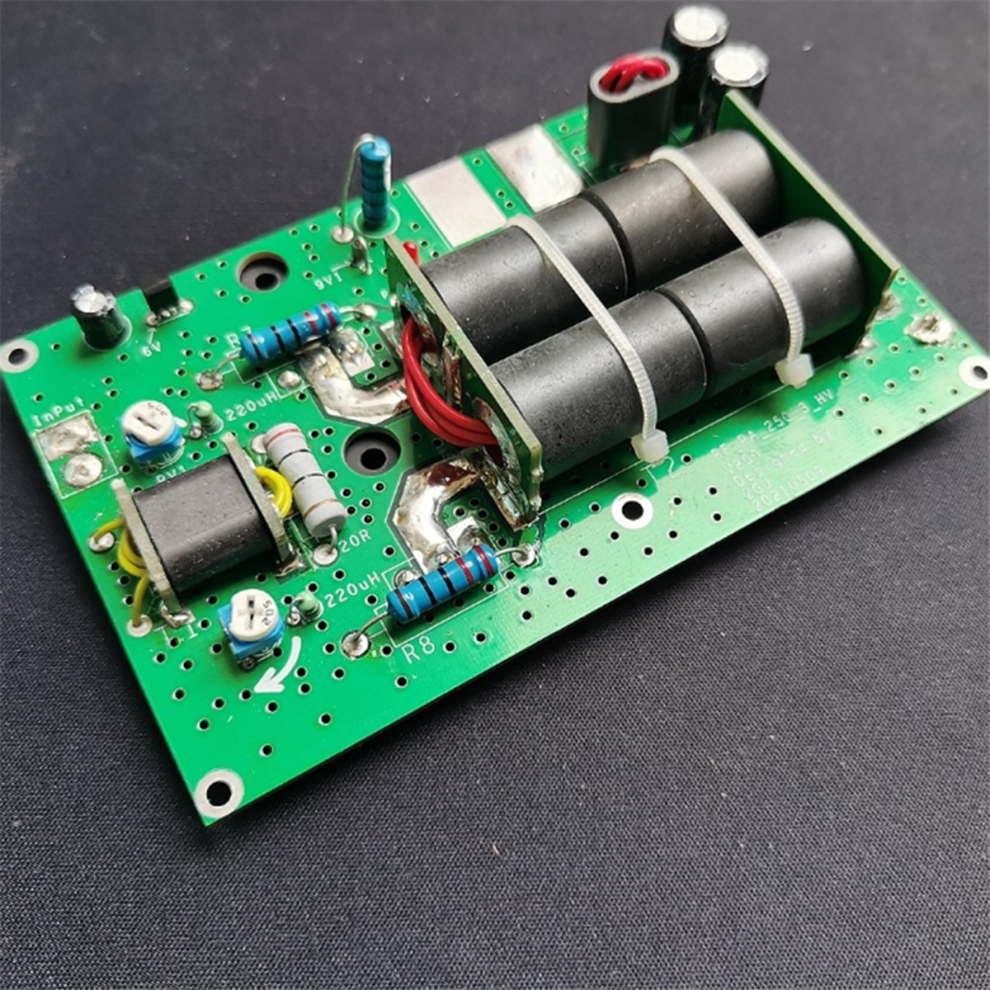

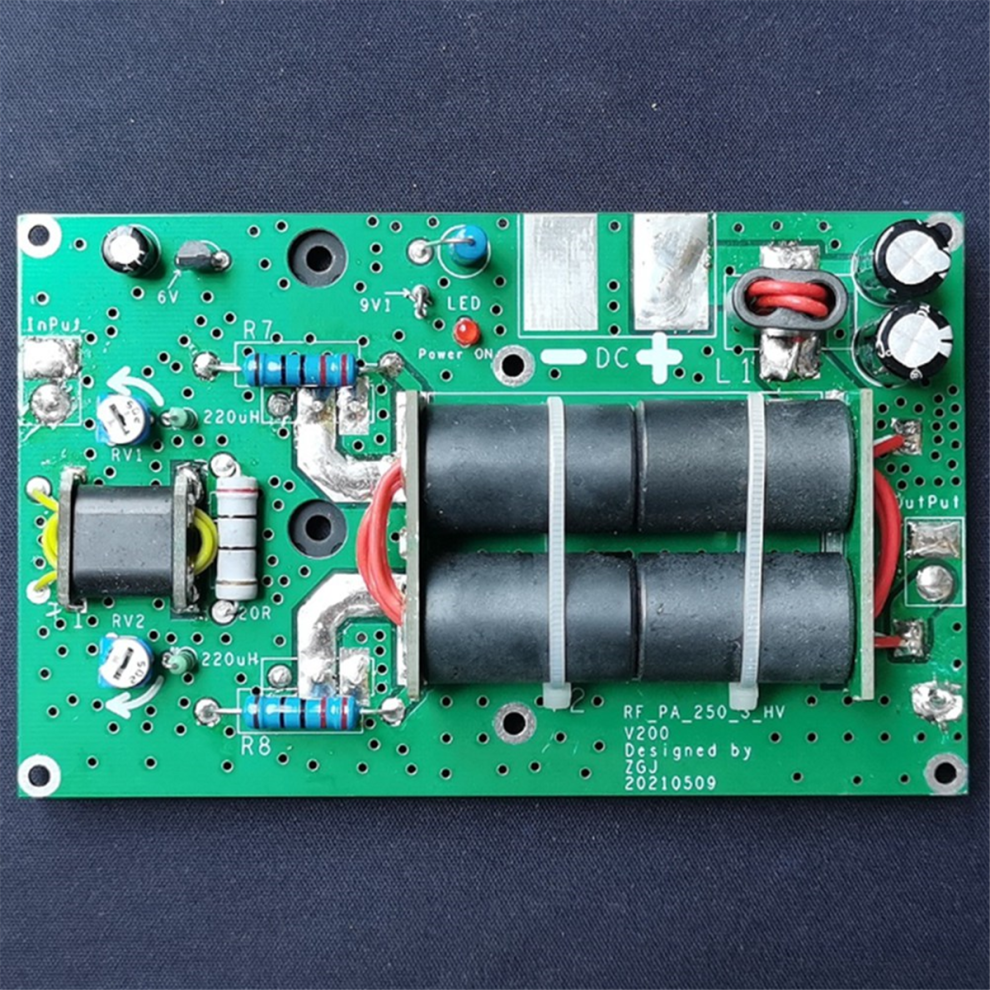

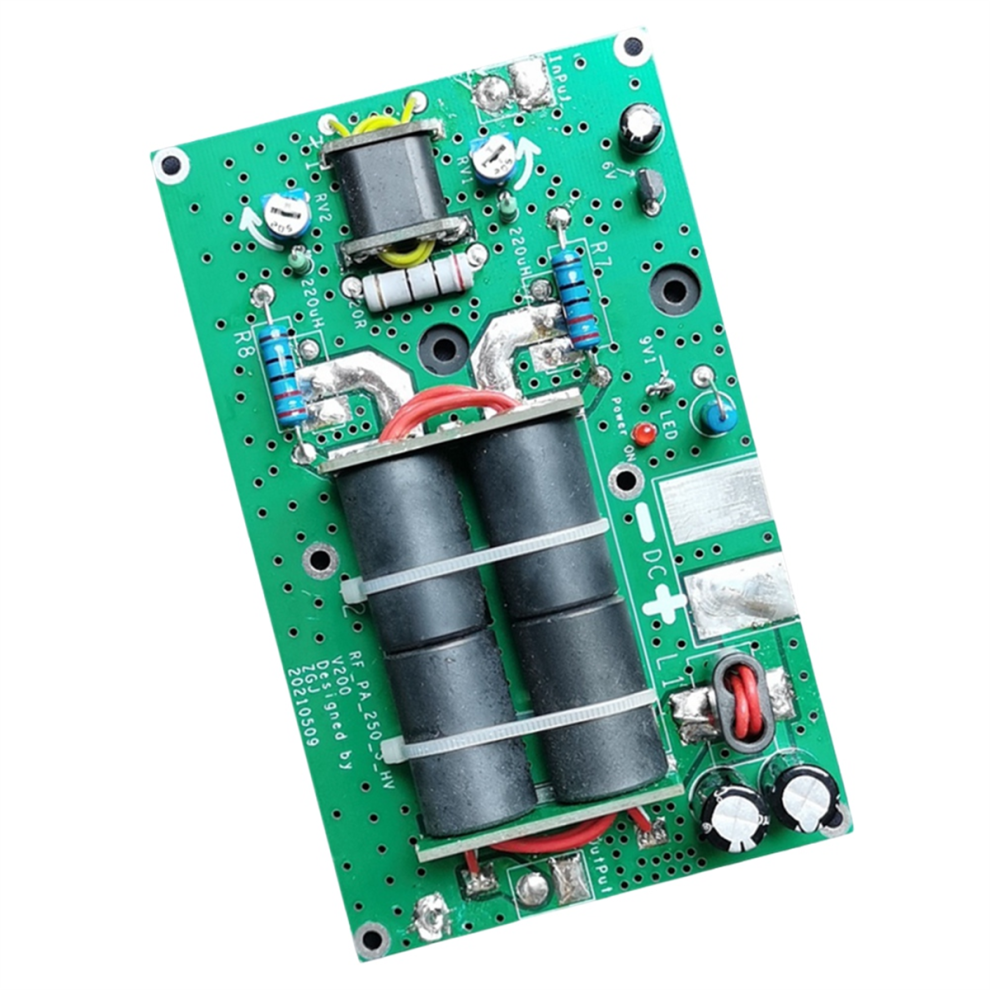

NEW 180W Short Wave Linear High Frequency HF Power Amplifier

NEW 180W Short Wave Linear High Frequency HF Power Amplifier Beschrijving

NEW 180W Short Wave Linear High Frequency HF Power Amplifier Description
High-frequency power amplifiers must be connected to the nominal load before they are powered on (the default for our amplifiers is 50 ohms). No-load operation damage the power amplifier, which is very important!
Input: 1-10W
Output: 180W (24V, 7MHz, 50 ohm load), 120W (13.8V, 7MHz, 50 ohm load)
Operating frequency range: 3-15MHz, maximum power is around 7MHz, high-frequency gain drops significantly, do not use more than 15MHz.
Output impedance: 50 ohms
Supply voltage: 12V-24V
Note: It's DIY kits, needs to finish by yourself., without input and output connectors, and without heat sink.
The words and individual parts on the product may be slightly different due to different factory batches, but it not affect normal use.
Colour:As Shown
Material:PCB
Package Contents:
1set x 180W HF linear high frequency power amplifier
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
