PWM Speed Controller 4Pin Violent Fan Governor Water Cooling Radiator

PWM Speed Controller 4Pin Violent Fan Governor Water Cooling Radiator Beschrijving

PWM Speed Controller 4Pin Violent Fan Governor Water Cooling Radiator Description

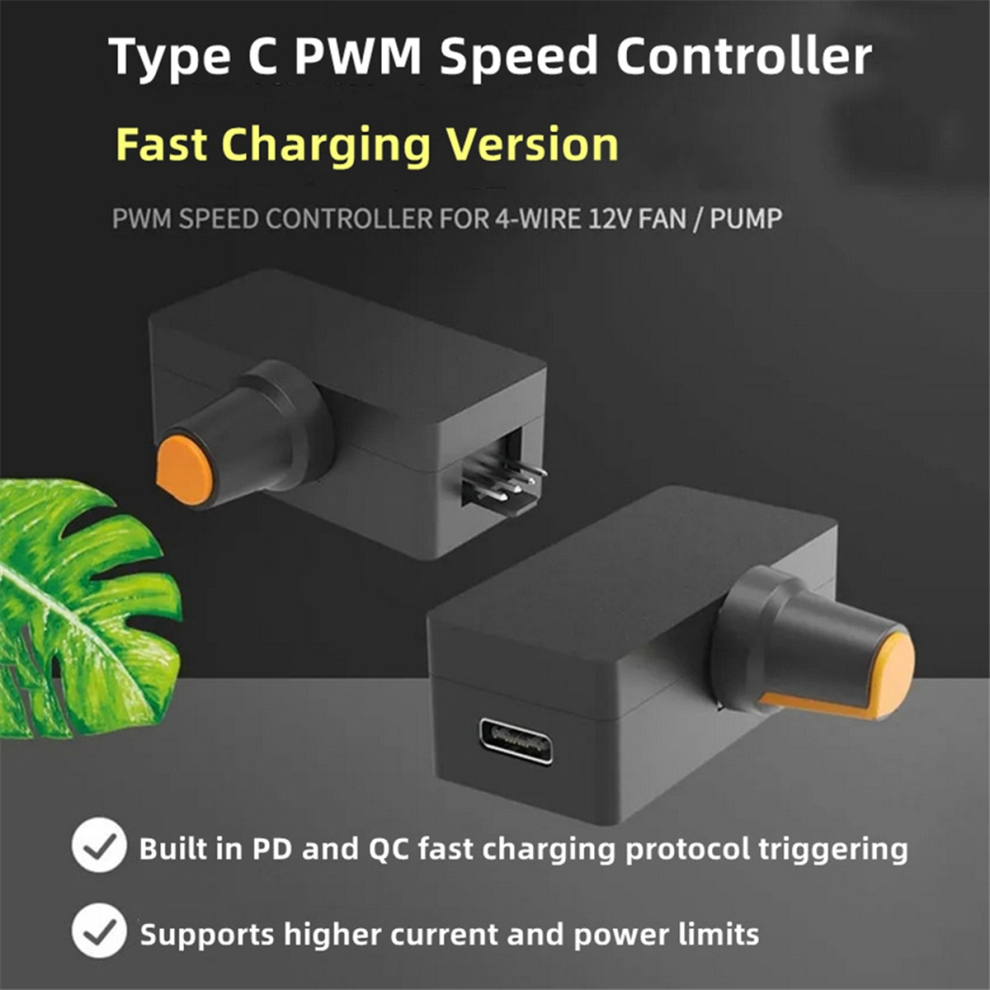

Fast charging version of PWM speed regulator suitable for high power/multi-device application scenarios
Support larger current and higher power limit
Built-in PD/QC fast charging protocol trigger (only supports PD/OC fast charging charging head or power bank as power supply device)
With a PD fast charging head over 45 watts, it can output up to 36 watts (12V3A).With the standard OC fast charging head, it can output 18 watts (12V 15A)
Applicable scenarios: violent high-power or large number of PWM fans and water pump speed adjustment requirements. The common 12V0.2APWM fans can control more than 15 fans at the same time.
PWM duty cycle (0-100%)
The input terminal is TYPE-C female port
Designed specifically for 12V 4-wire PWM fans/water pumps
The output end is a small 4Pin socket (KF2510)
Built-in PWM signal generation circuit
Integrated solution, integrated power supply + speed regulation
Operation method: Turn the knob clockwise to increase speed, counterclockwise to decrease speed, and turn the knob fully counterclockwise to close.
NOTE:
Only supports standard PD/QC fast charging protocol power supply equipment.
Fast charging version of the PWM governor does not offer USB cable, need to self-match high current on the USB cable quality requirements are high, please choose high quality cable.
It is recommended to use standard PD/QC fast charger head or charging treasure (with 12V gear).
Specification:
Product name: PWM speed regulator (fast charging version)
Support protocol PD/QC fast charging protocol
Output voltage: 12V
PWM frequency: about 25KHz
Output current: PD up to 3A, QC up to 1.5A
Input port: USB TYPE-C female port
Output port: PWM 4Pin(KF2510)
Speed adjustment range: PWM duty cycle 0-100%
Material: PLA
colour: Black
Package Contents:
1 x PWM Speed Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
