RS-485 Breakout Board for Seeed Studio XIAO Development Board

RS-485 Breakout Board for Seeed Studio XIAO Development Board Beschrijving

RS-485 Breakout Board for Seeed Studio XIAO Development Board Description
Seamless compatibility with for Seeed Studio XIAO: Designed to work seamlessly with for Seeed Studio XIAO development boards.

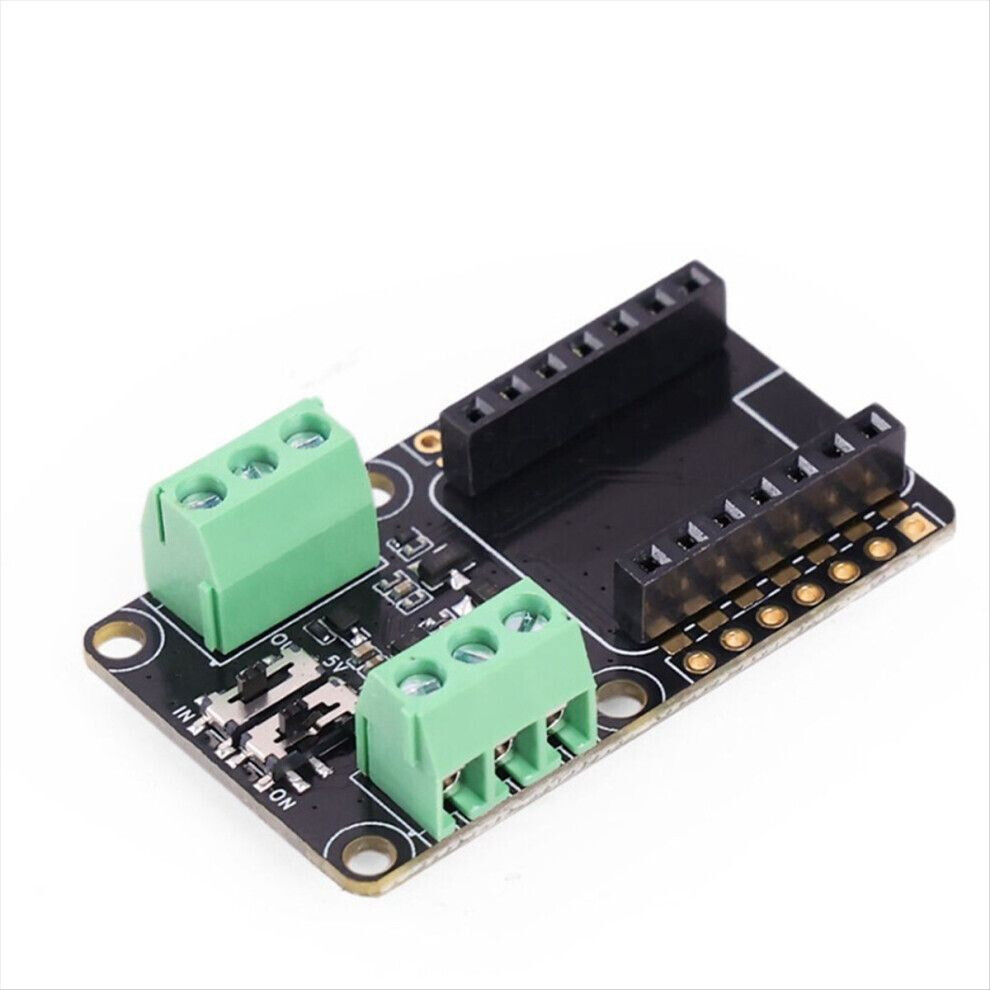

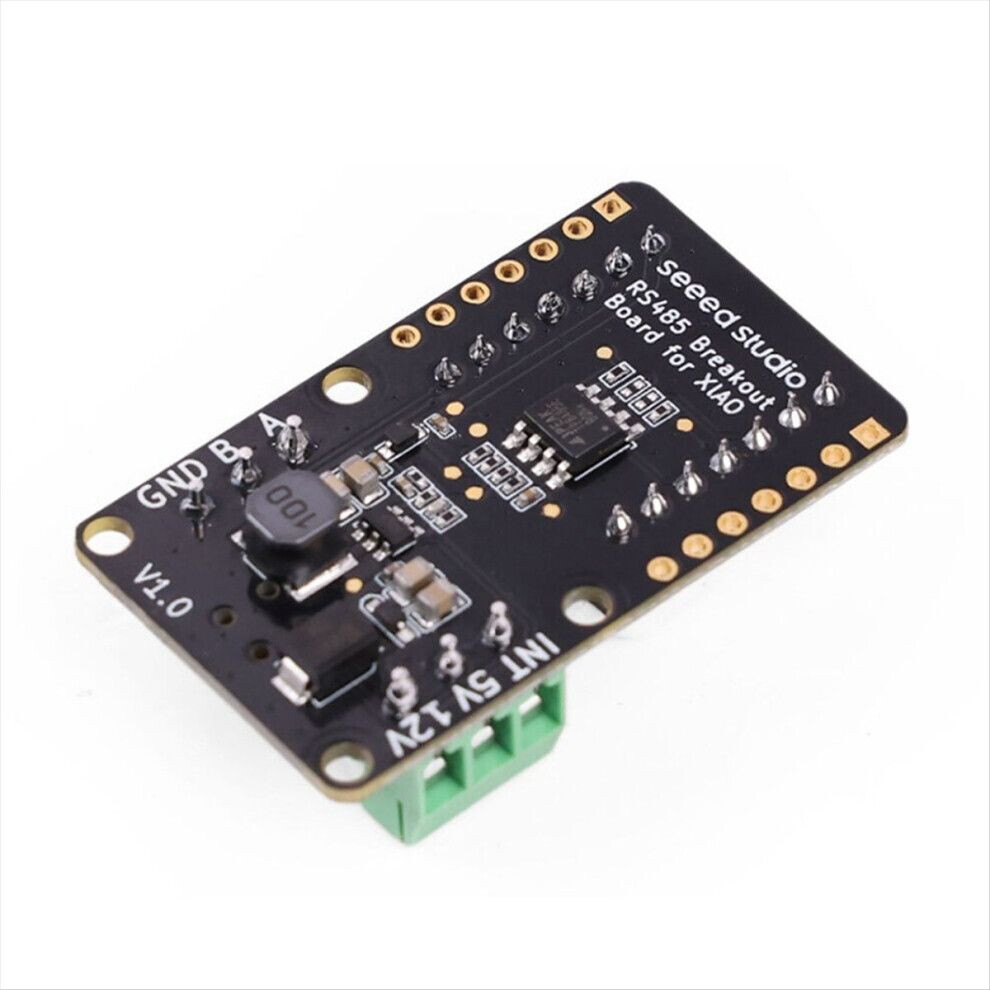

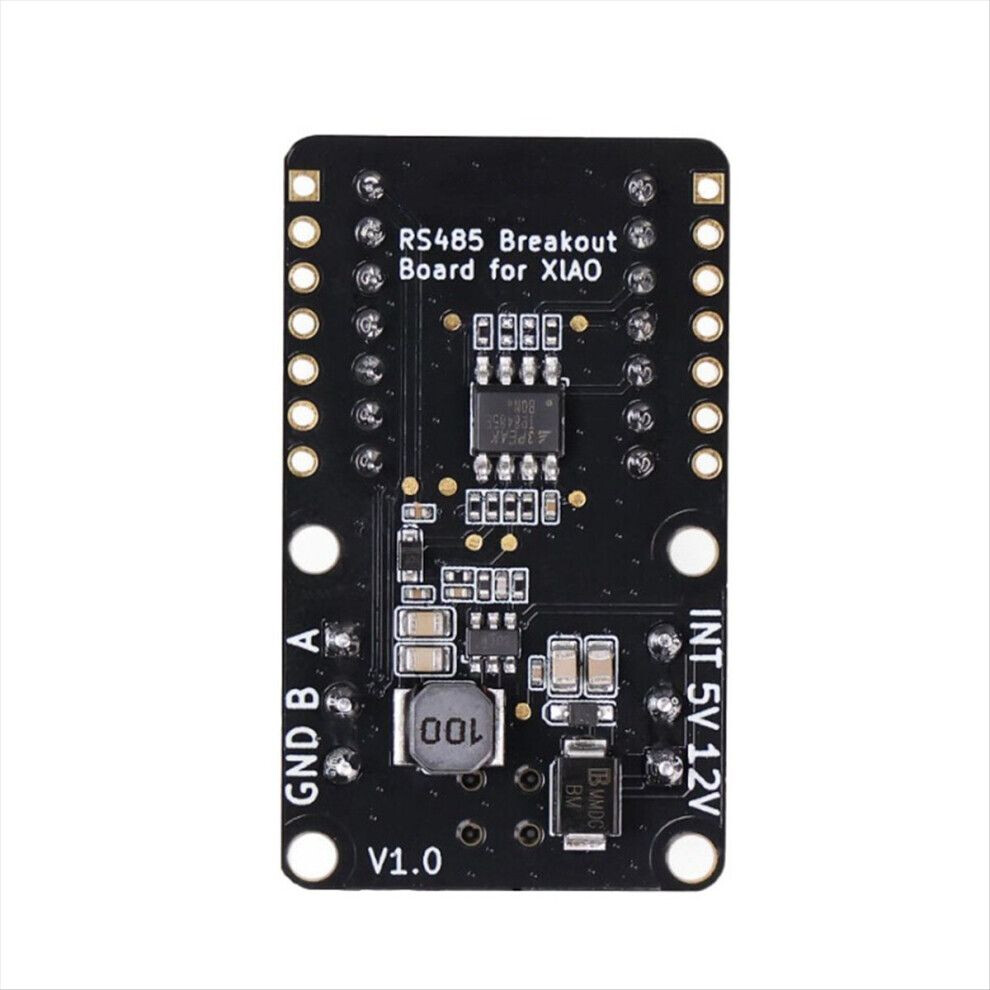

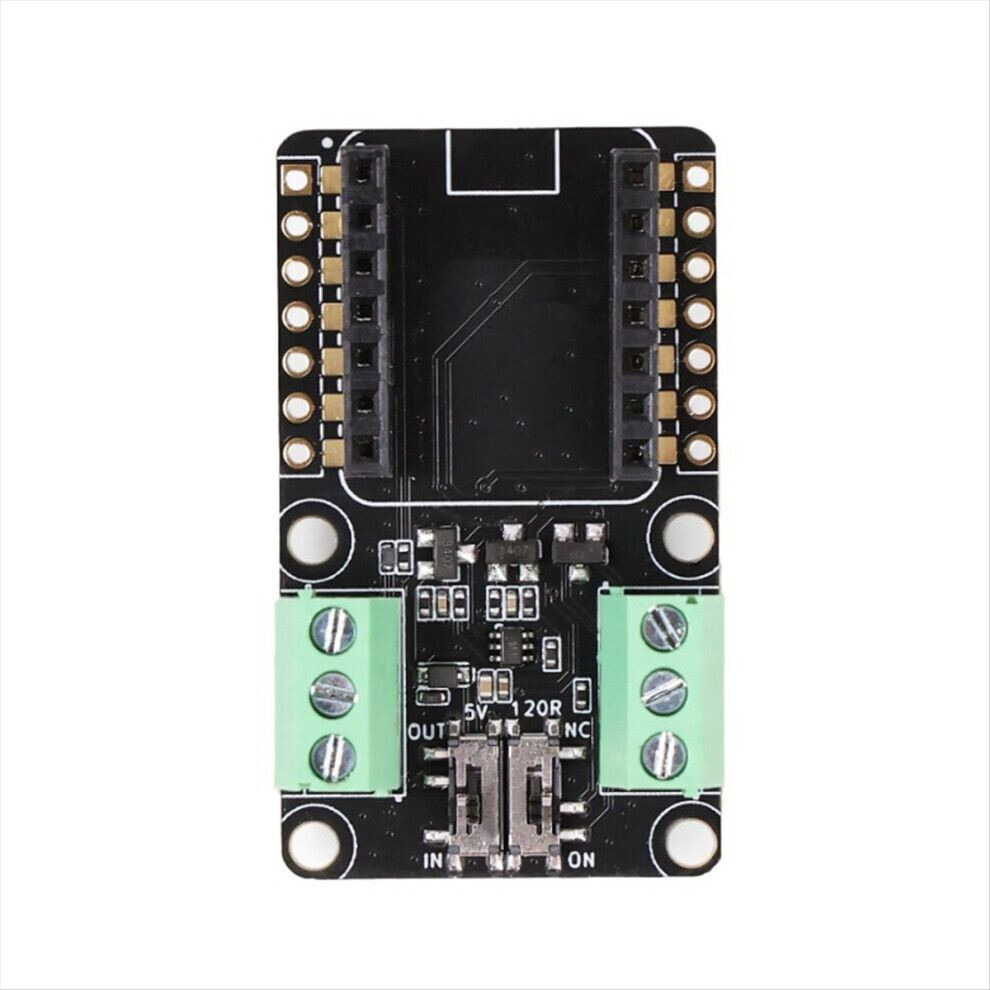

The RS-485 breakout board is a versatile RS-485 expansion board designed for Seeed Studio XIAO development boards.
Equipped with the TP8485E transceiver IC, this breakout board efficiently converts UART serial streams into RS-485 signals. The TP8485E operates as a half-duplex transceiver, enabling unidirectional communication up to 1200 meters.
Designed for efficiency, this breakout board only requires a single 5V or 12VDC power supply for power. Its RS-485 output is implemented via a 3-pin terminal for signal line and power connections. These features make it ideal for robust data transmission over long distances and in high-noise environments.
Compact design: The breakout board has a compact form factor (the size of 2 XIAO boards), making it suitable for projects with limited space.
Product: RS-485 Breakout Board
Compatibility: for Seeed Studio XIAO development board, for Adafruit QT Py
Communication interface: RS-485
RS485 chip: TP8485E, half-duplex transceiver
Terminal connection: 3-pin signal line terminal and 3-pin power terminal
Communication distance: 1200 meters
Transmission speed: 250k bps
The product appearance and printed words may vary depending on the batch, but this does not affect use
Colour:Black
Material:PCB
Package Contents:
1 x RS-485 Breakout Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
