RV Taillight Converter Stable Performance Trailer Wiring Converter

RV Taillight Converter Stable Performance Trailer Wiring Converter Beschrijving

RV Taillight Converter Stable Performance Trailer Wiring Converter Description
1. TRAILER CONNECTOR: Converting vehicles with separate turn and stop lights to standard 2 wire trailer wiring, providing a trailer connector on your vehicle by splicing into the electrical system vehicle.
2. WIDELY USED: Comes with a standard 4-way flat plug for connecting trailer taillights, brake lights, and turn signals. Up to 5.0 amps for turning and R / L brake.
3. PREMIUM MATERIAL: Made from quality plastic material with advanced manufacturing technology, which is reliable and stable.
4. DUST COVER: Equipped with a dust cover, keeping the connector clean when not in use, protecting the connector terminal from rain and rust, ensures good conductivity.
5. COLOR CODED: Color coded and pre stripped standard cables for easy installation. Providing more convenience.

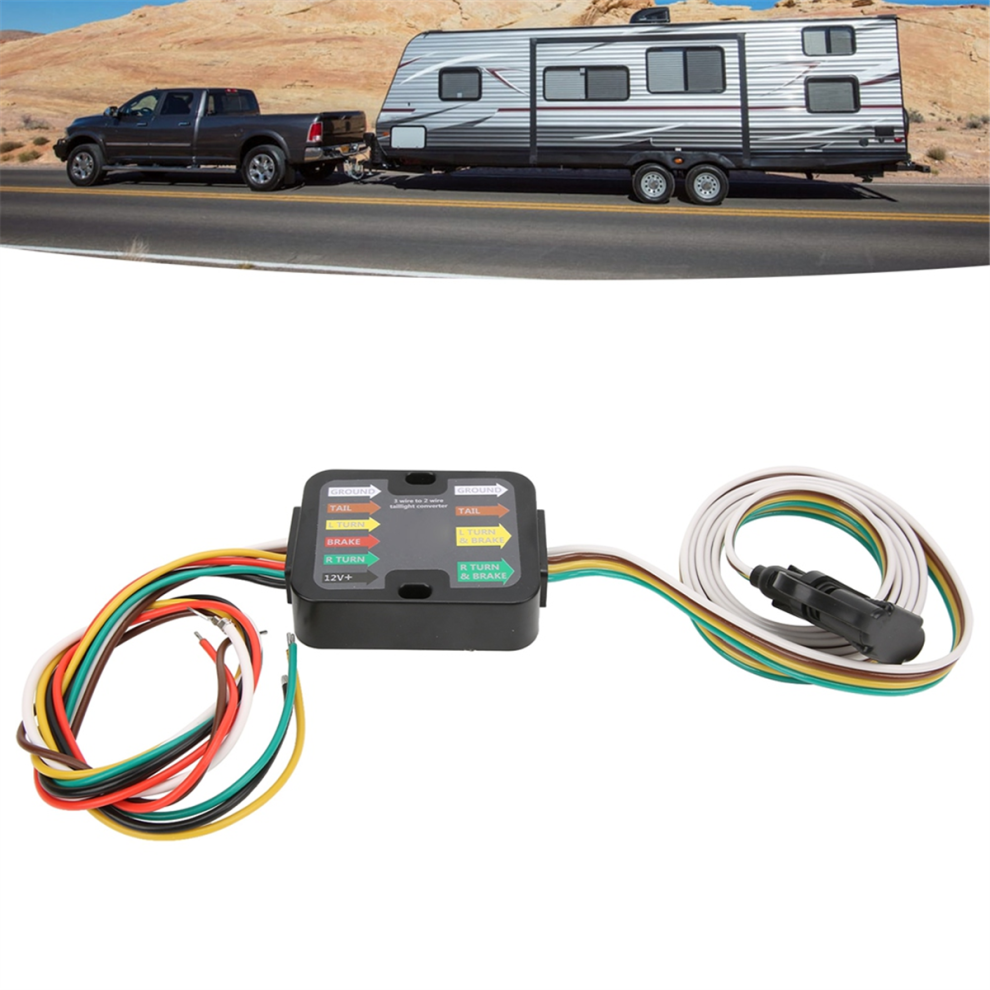

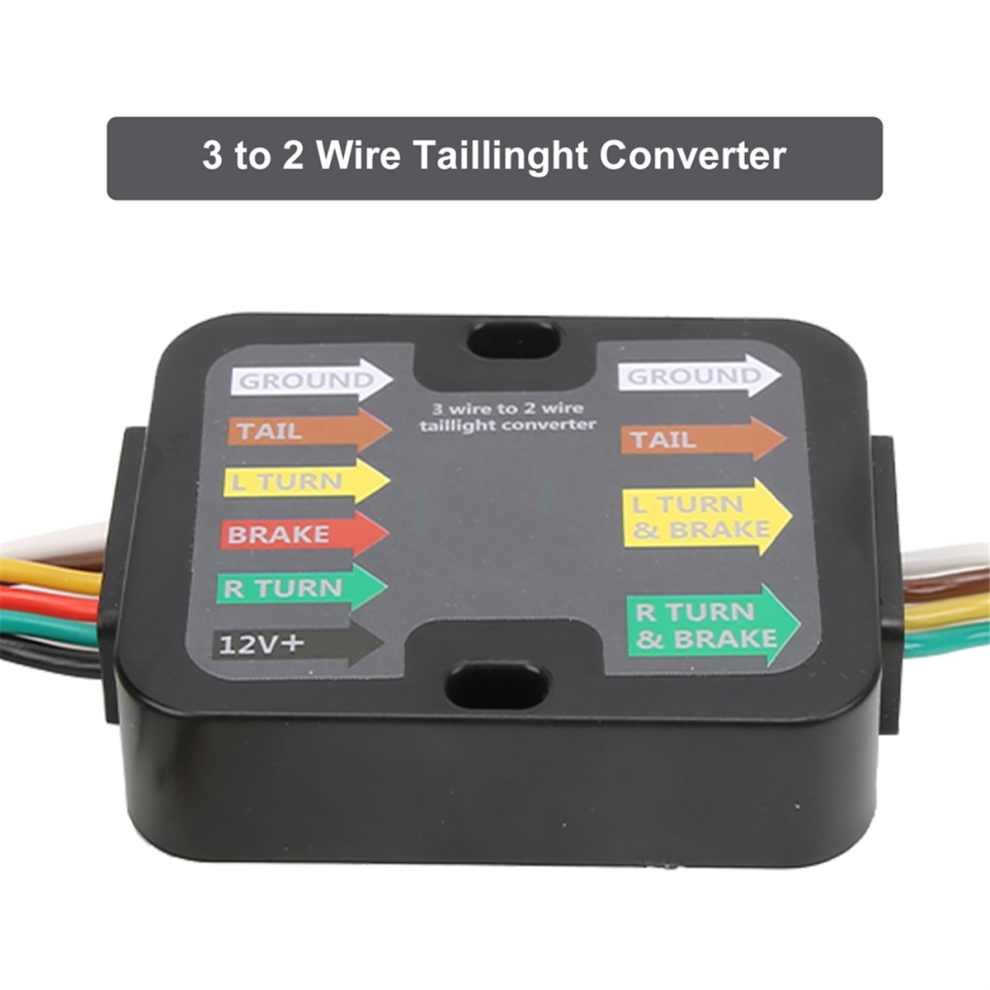

Trailer Wiring Converter Powered 3 to 2 Wire Trailer Tail Light Converter with 60in Wiring LED Compatible
Item Type: Trailer Wiring Converter
Type: Tail Light Converter
Output Type: 4 Way Flat 60 Inches
Turn and Brake Circuits: Maximum 5 Amps Per Circuit
Tail Light: 7.5 Amps Per Circuit
Wire Configuration:
Black: 12V+ Battery Power
Green: Right Turn
Red Stop/brake Lights
Yellow: Left Turn
Brown: Tail Lights
White: Ground (Vehicle Structure)
Output Type: 4 Way Flat Panel 60 Inches
Steering and Circuits: 5 Amps Maximum Per Circuit
Color: As Shown
Material: Metal+Plastic

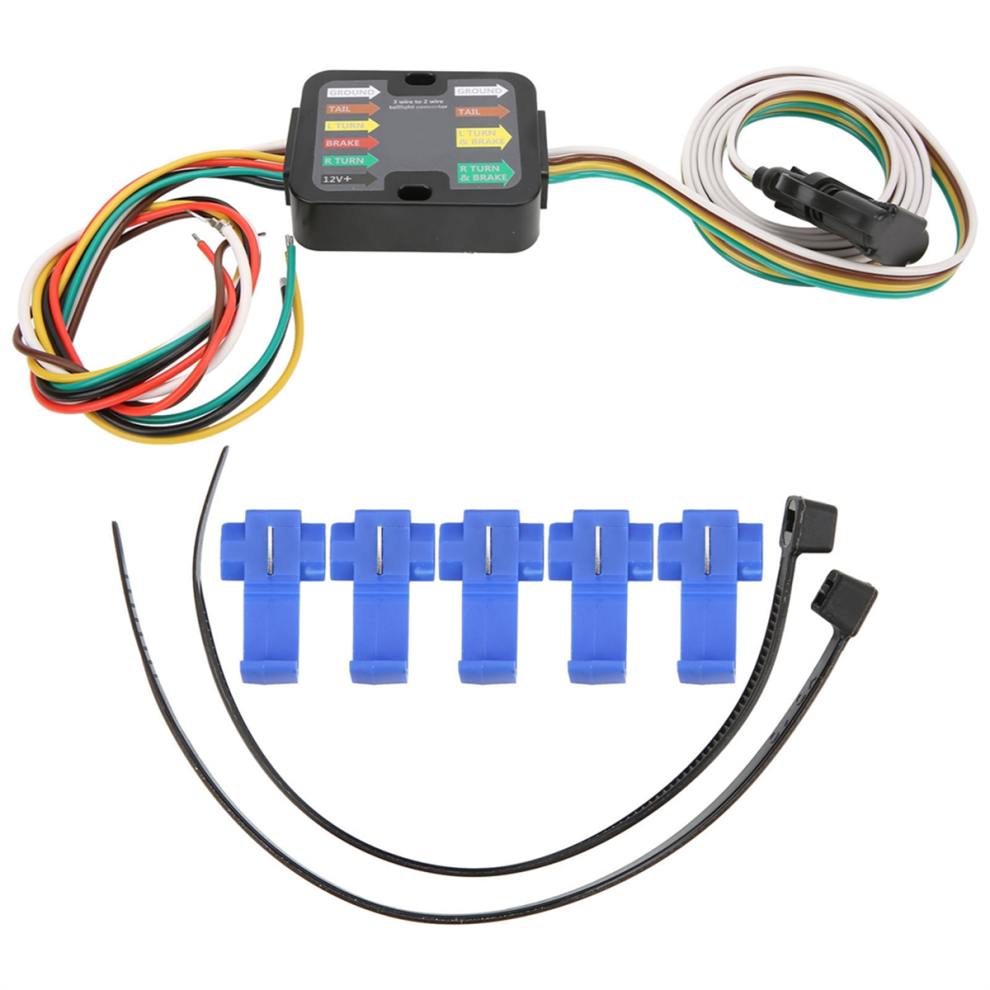

Package Contents:
1 * trailer wiring converter
5 * mounting clips
2 * cable ties
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
