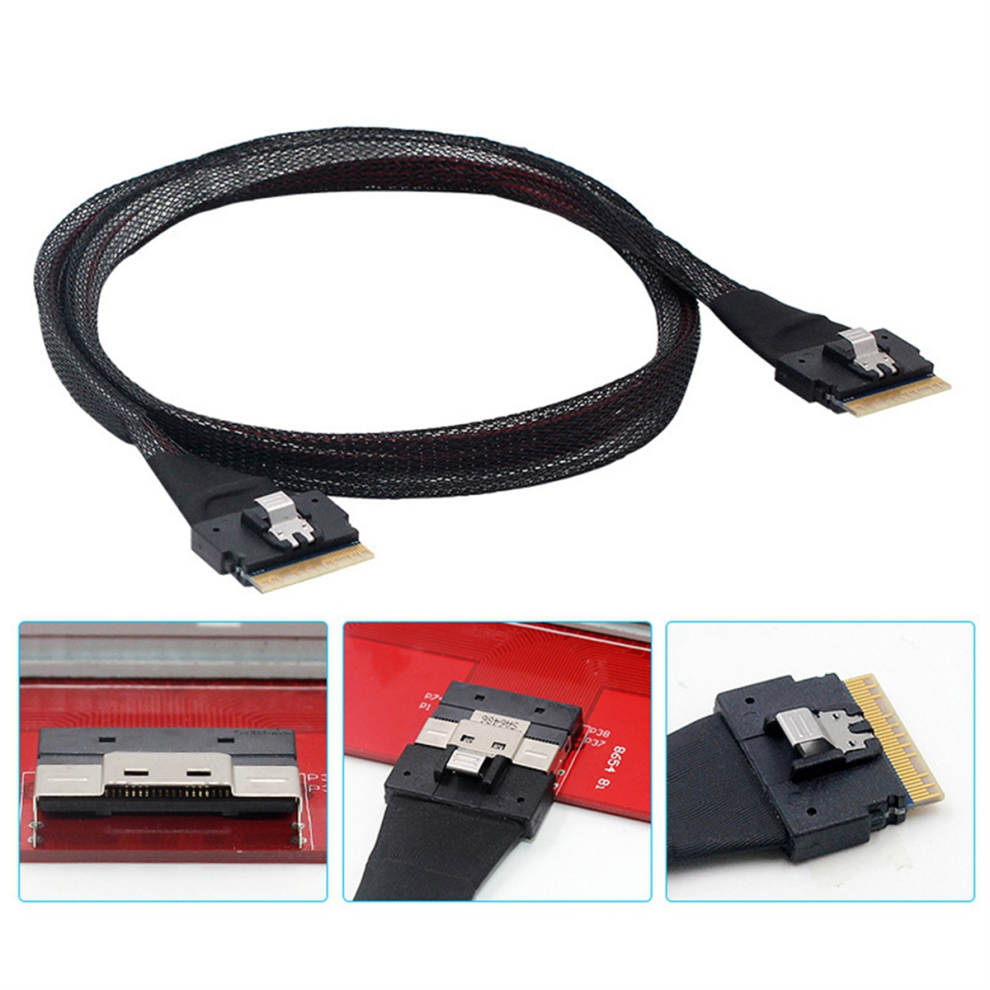

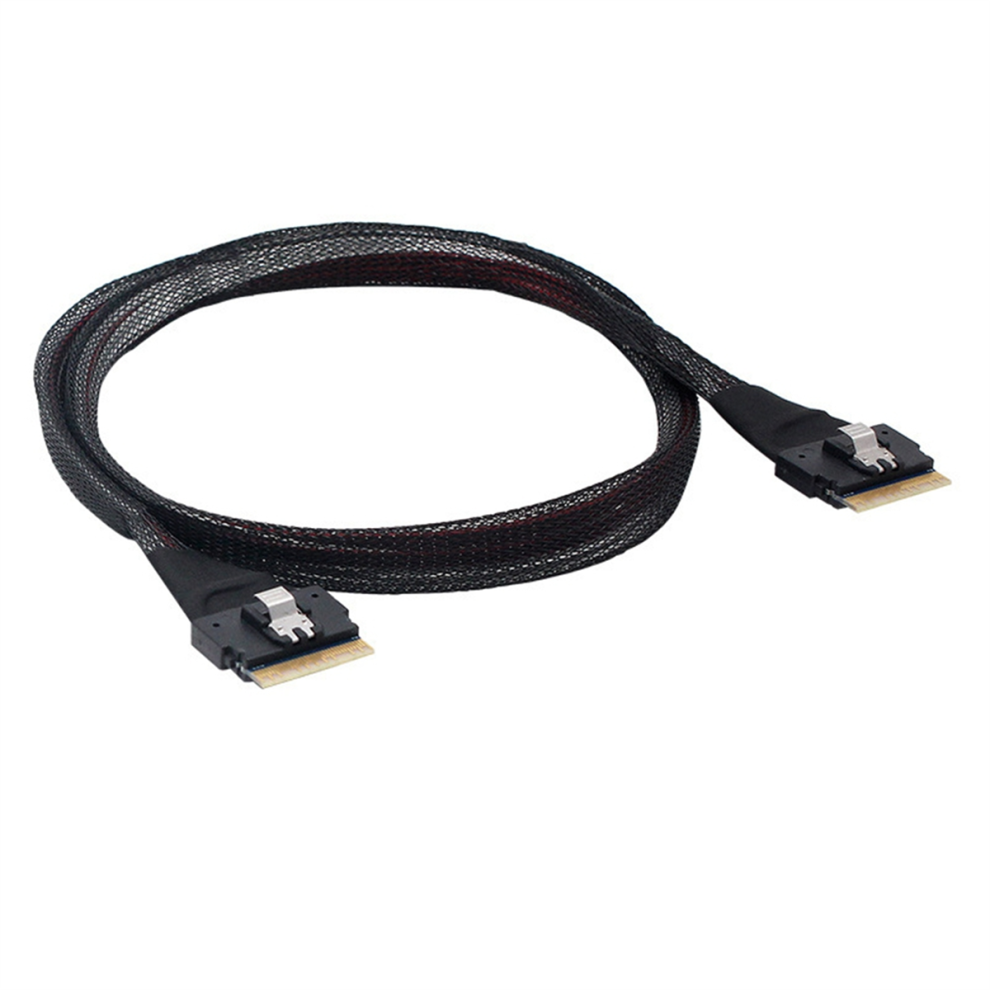

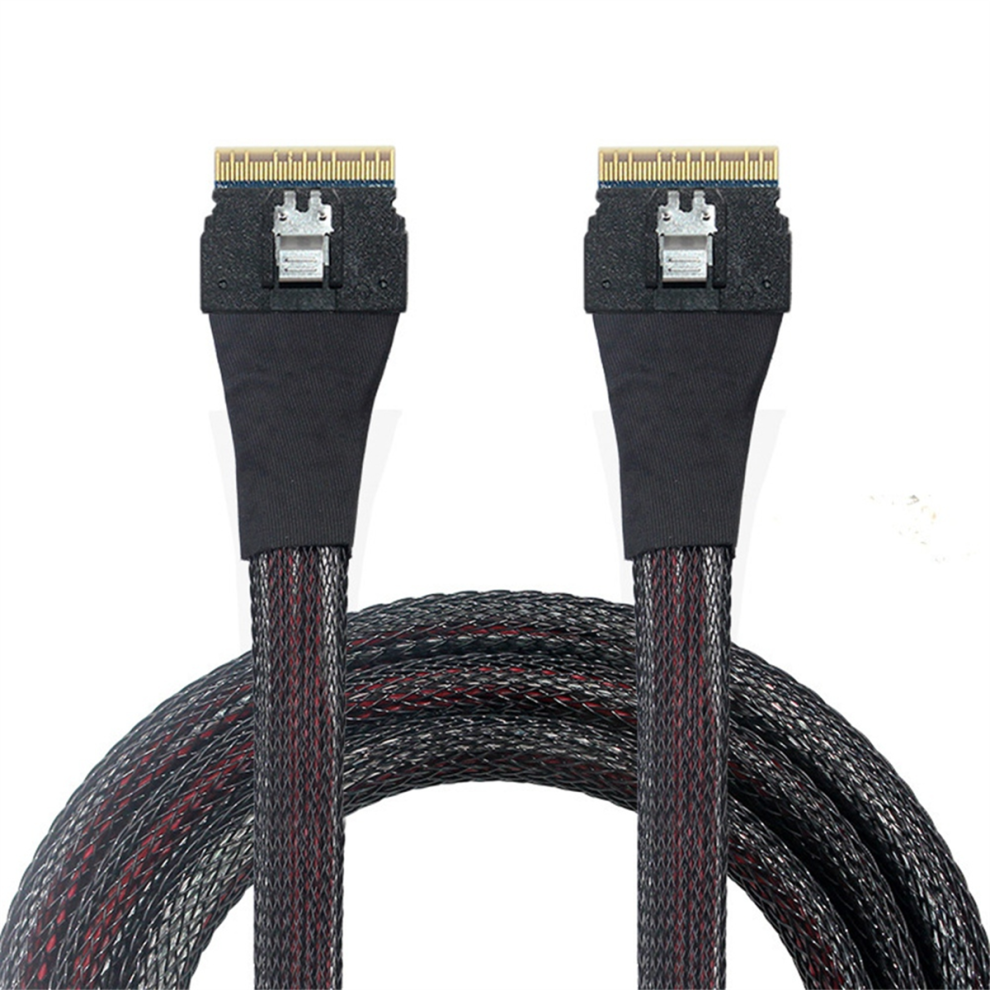

Server High-Speed Cable SFF-8654 Slim SAS to PCI-E

Server High-Speed Cable SFF-8654 Slim SAS to PCI-E Beschrijving

Server High-Speed Cable SFF-8654 Slim SAS to PCI-E Description

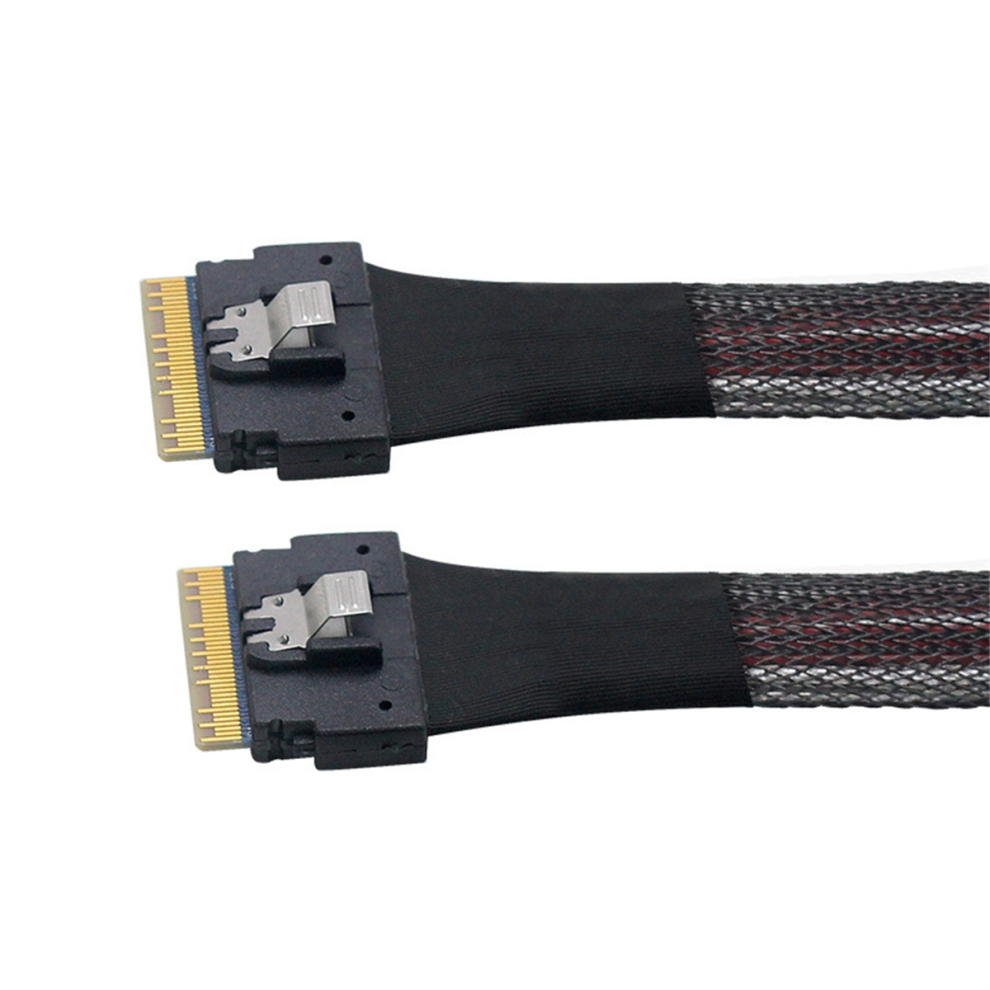

Host end: Slim SAS 4.0 SFF-8654 8i 74PIN
Target end: Slim SAS 4.0 SFF-8654 8i 74PIN
The Ultraport SlimSAS complies with the T10/Serial Attached SCSI (SAS-4) standard and is compatible with all known protocols.
The space occupied by the Ultraport SlimSAS connector is the same as that of the Mini SAS.
Typical applications include servers, switches, routers, storage racks, etc
Cable specifications:
Host/controller connection: 1 x 74 pin high-definition Mini SAS SFF-8654-8i male head with latch
drive connection: 1 x 74 pin 8654-8i socket - male with latch
Wire - 32 AWG silver plated copper 85 ohm flat ribbon cable
Length: 0.8 meters
Fire Protection: -1
Adopting dual cable technology, foldable, high bandwidth, low skew cable.
SlimSAS SFF-8654 to SFF-8654 cable, 8 configurations, SAS4.0, Up to 24Gbps, 30AWG.
The ribbon cable interface and component options provide low profile and design flexibility.
Application: It is an ideal choice for setting up storage devices, rack stations, disk stations, storage area networks, and servers.
Color:Black
Material:Plastic + Braided Wire
Package Contents:
1 * Server high-speed cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
