Solar Charging Controller 12V 24V WiFi Solar Panel Regulator 20A

Solar Charging Controller 12V 24V WiFi Solar Panel Regulator 20A Beschrijving

Solar Charging Controller 12V 24V WiFi Solar Panel Regulator 20A Description
1.LCD display: LCD display setting is adopted, and the display timing setting corresponds to the LCD display, which can clearly observe the operation status of the equipment and facilitate the modification and setting of the operation parameters.
2.Large-section wiring port: The wiring port with large -section and large spacing is adopted to increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption.
3.Multiple USB charging ports: Support most USB port devices on the market, mobile phones, tablet computers, game consoles, etc.

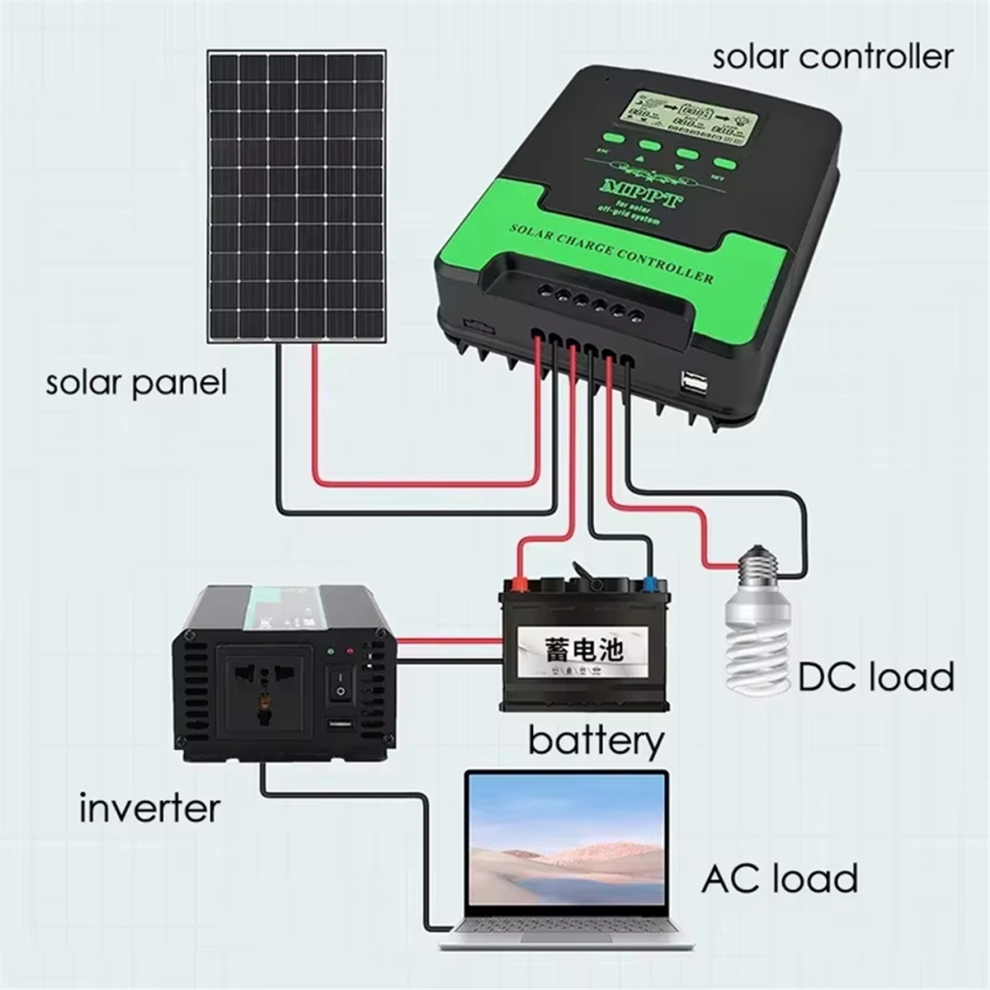

4.Wide range of applications: Suitable for solar street lights, solar roofs, solar billboards, solar power generation systems, solar RVs, and solar awnings.
Name: Solar controller
System voltage: 12V/24 self-identification
No-load consumption: 0.4W
Maximum solar input voltage: VOC 100V (Different rate different voltage)
Battery voltage: 9-32V
Maximum power voltage range: battery voltage +2V-100V (Different rate different voltage)
Rated charging current: 20A
Rated load current: 20A
USB output: 5V/3A
Conversion efficiency: 98%
MPPT tracking efficiency: 99%
Temperature compensation coefficient: -2mv//2V
Working temperature: -10-+65
Protection level: IP21
Color: Black & Green
Material: plastic
Package Contents:
1 x Solar Charging Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
