T3002P Upgrade 300Wx2 Bluetooth Digital Power Amplifier Board

T3002P Upgrade 300Wx2 Bluetooth Digital Power Amplifier Board Beschrijving

T3002P Upgrade 300Wx2 Bluetooth Digital Power Amplifier Board Description

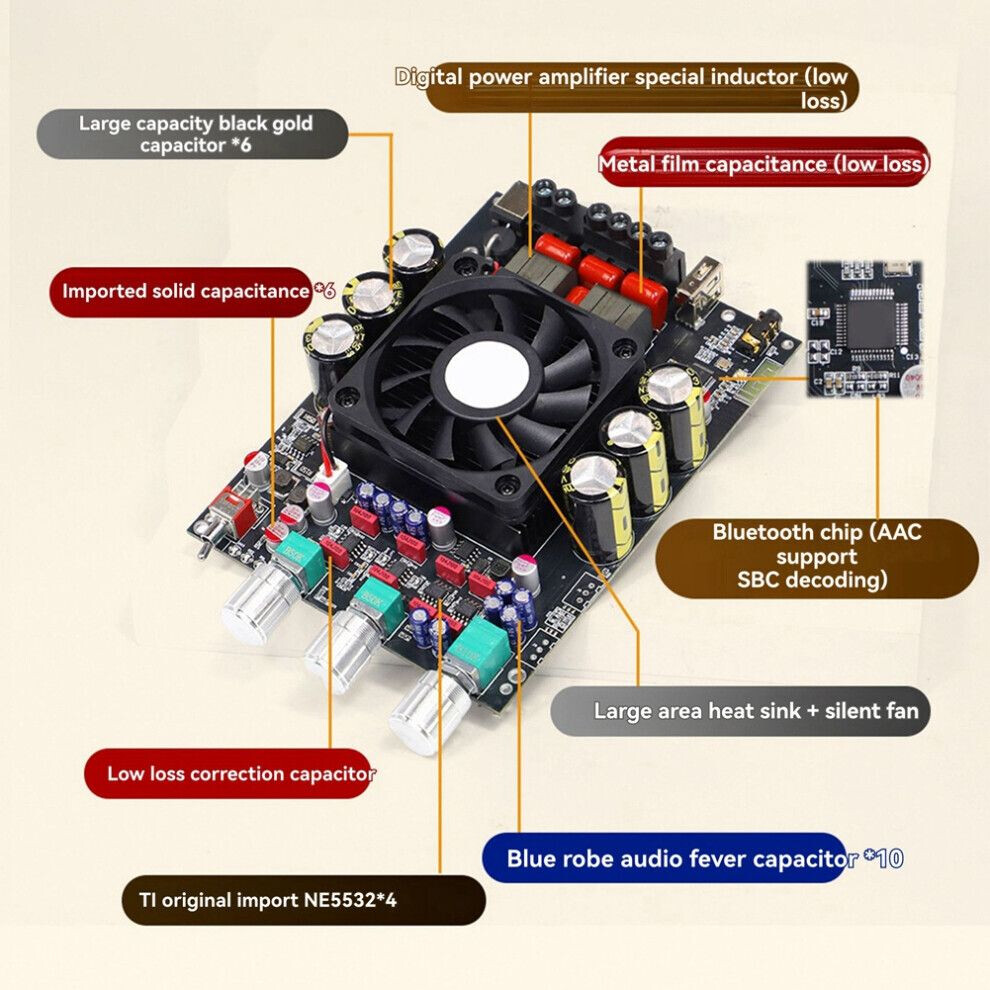

Adopting XY-T3002P chip, audio power core, high efficiency, low power consumption, high-definition sound quality, and comprehensive protection mechanism.

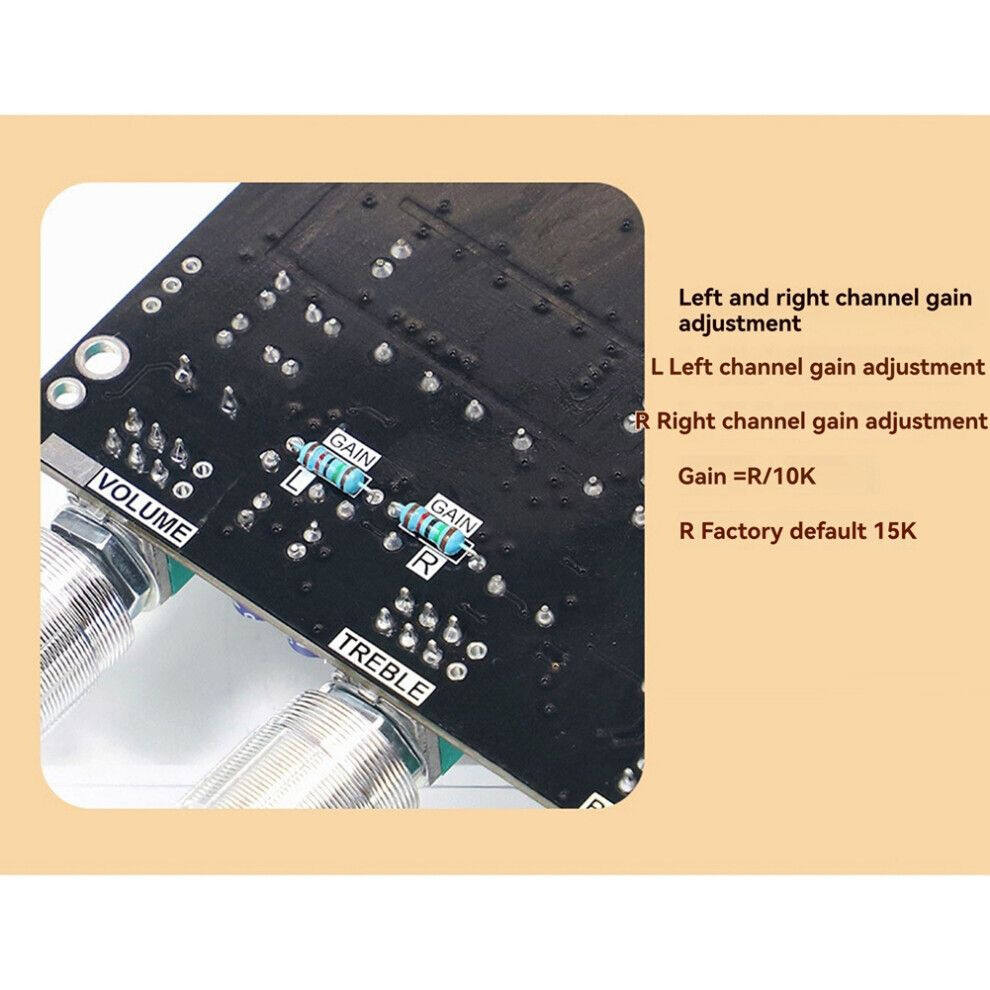

Easy to use, independent tuning of high and low frequencies, more convenient to use.
Low loss, using digital amplifier specific inductors for lower losses.
Multiple decoding options, supporting Bluetooth audio decoding and USB flash drive decoding.
Product name: Bluetooth digital audio amplifier board
Product model: XY-T3002P
Power supply: DC19-51V/10A or above
Bluetooth version: 5.2

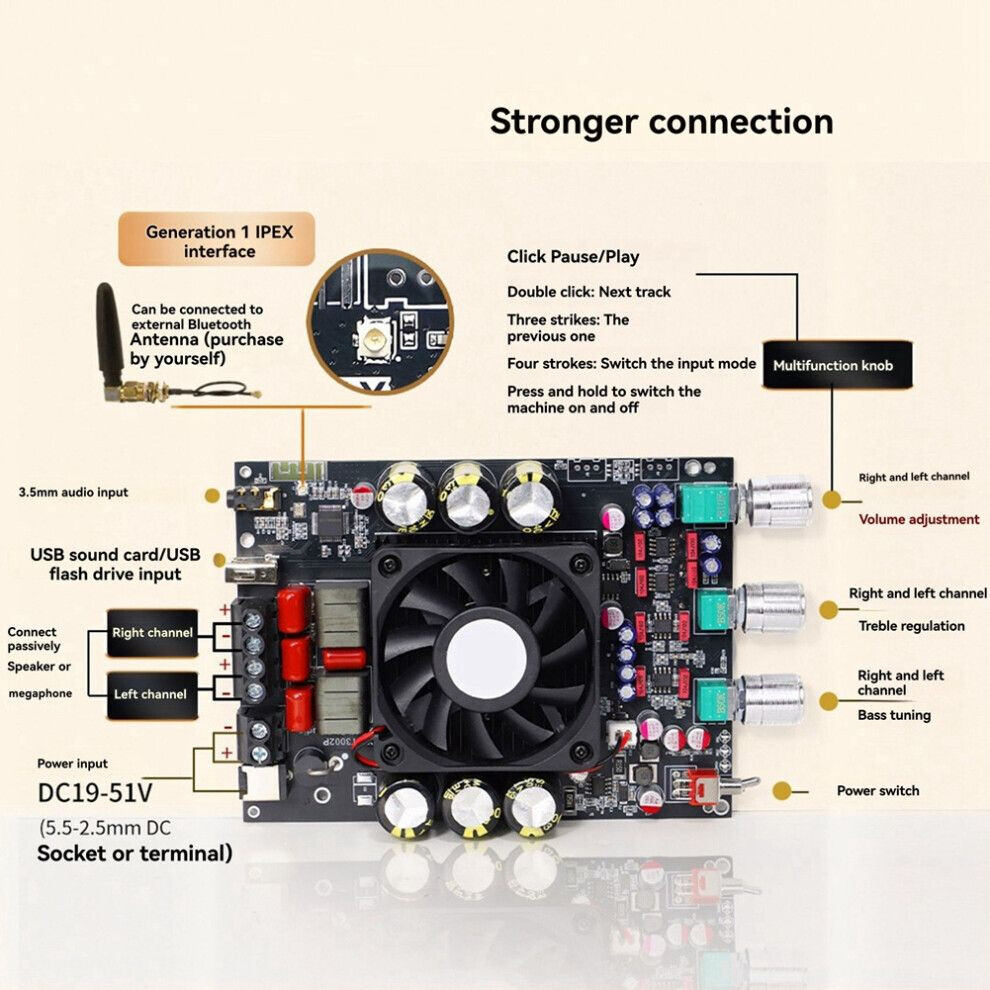

Audio source input: Bluetooth/AUX/U disk/USB sound card
Bluetooth audio decoding: AAC SBC
U disk lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
30W+30W8Ω/24VDC
70W+70W4Ω/24VDC
80W+80W8Ω/36VDC
160W+160W@ 4Ω/36VDC
160W+160W@ 8Ω/50VDC
300W+300W @4Ω/50VDC
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:Black
Material:PCB+components
Package Contents:
1 * Amplifier Board(Potentiometer integrated)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
