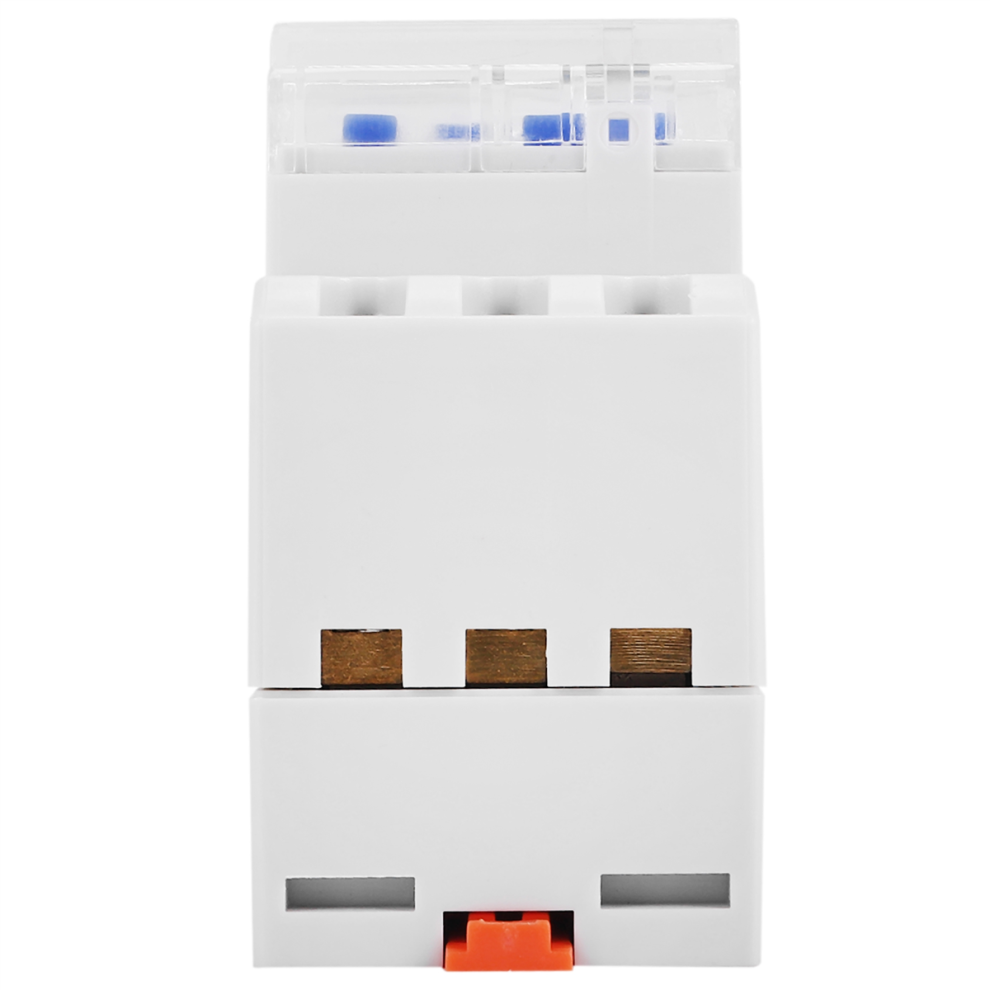

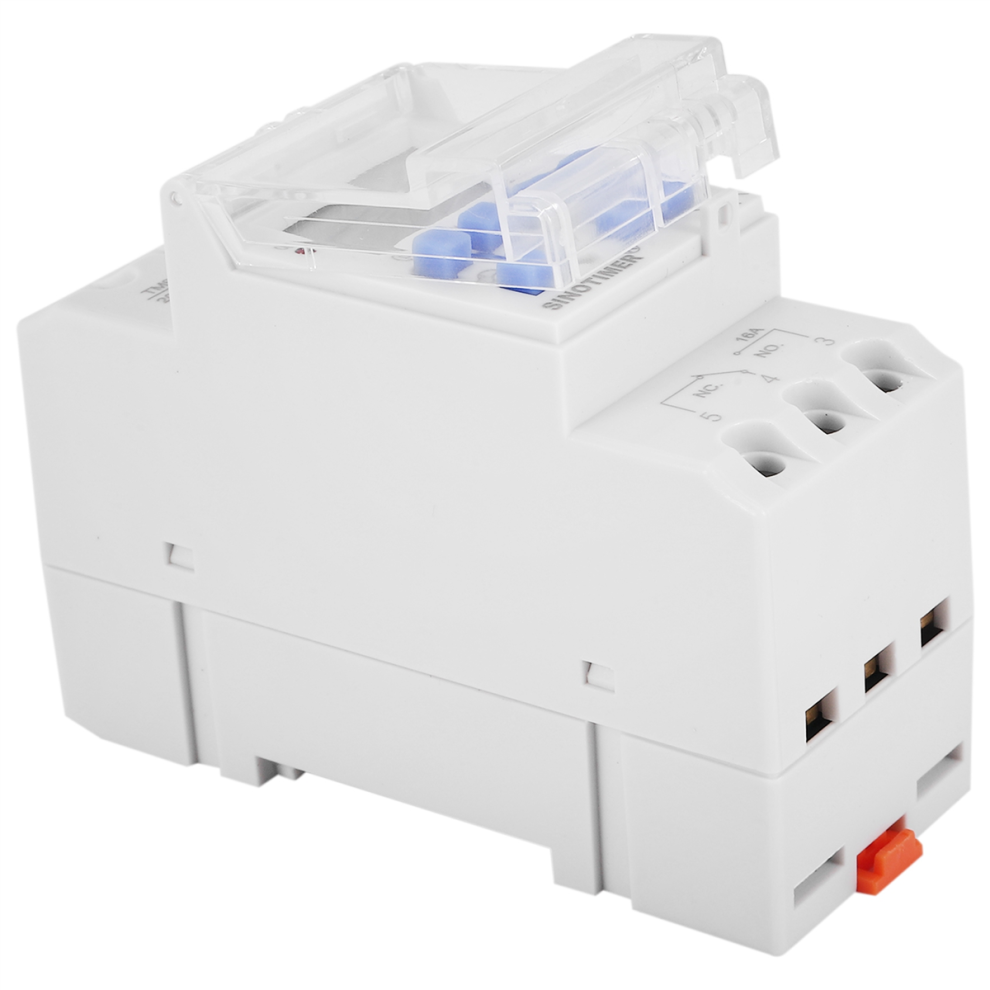

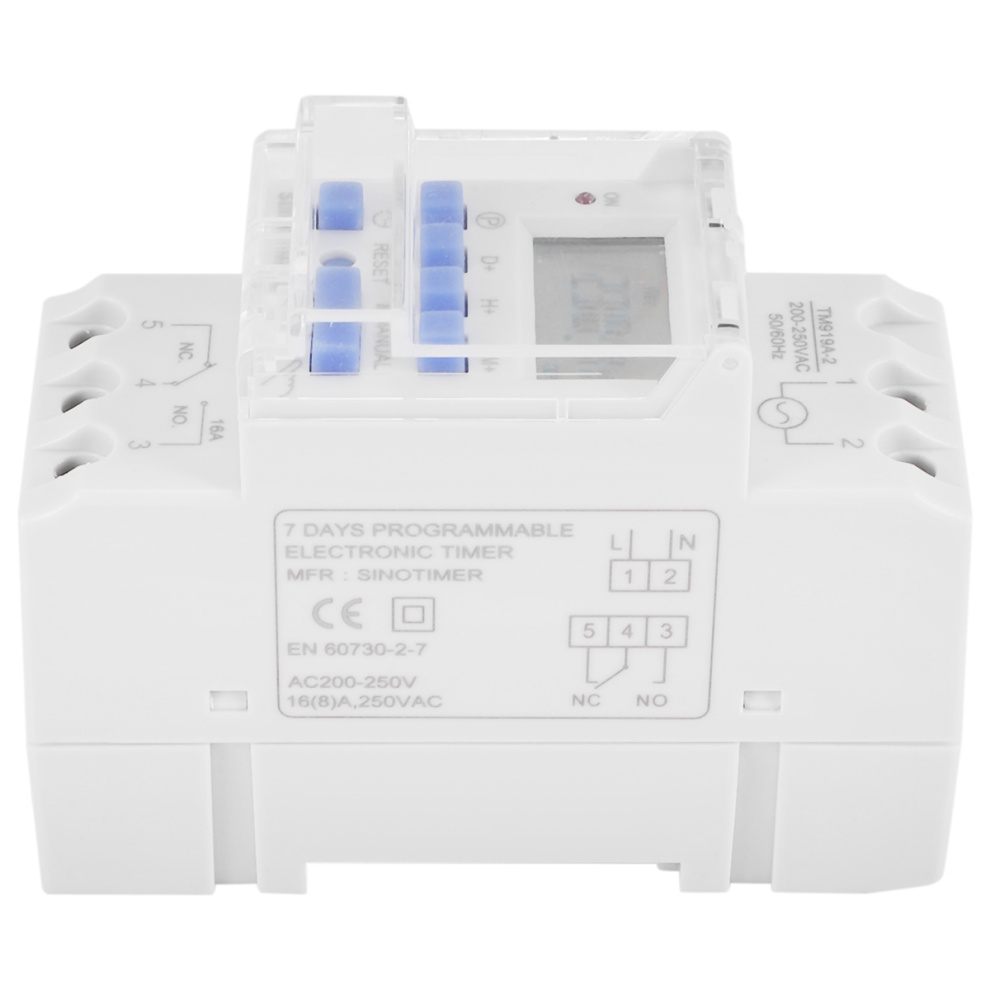

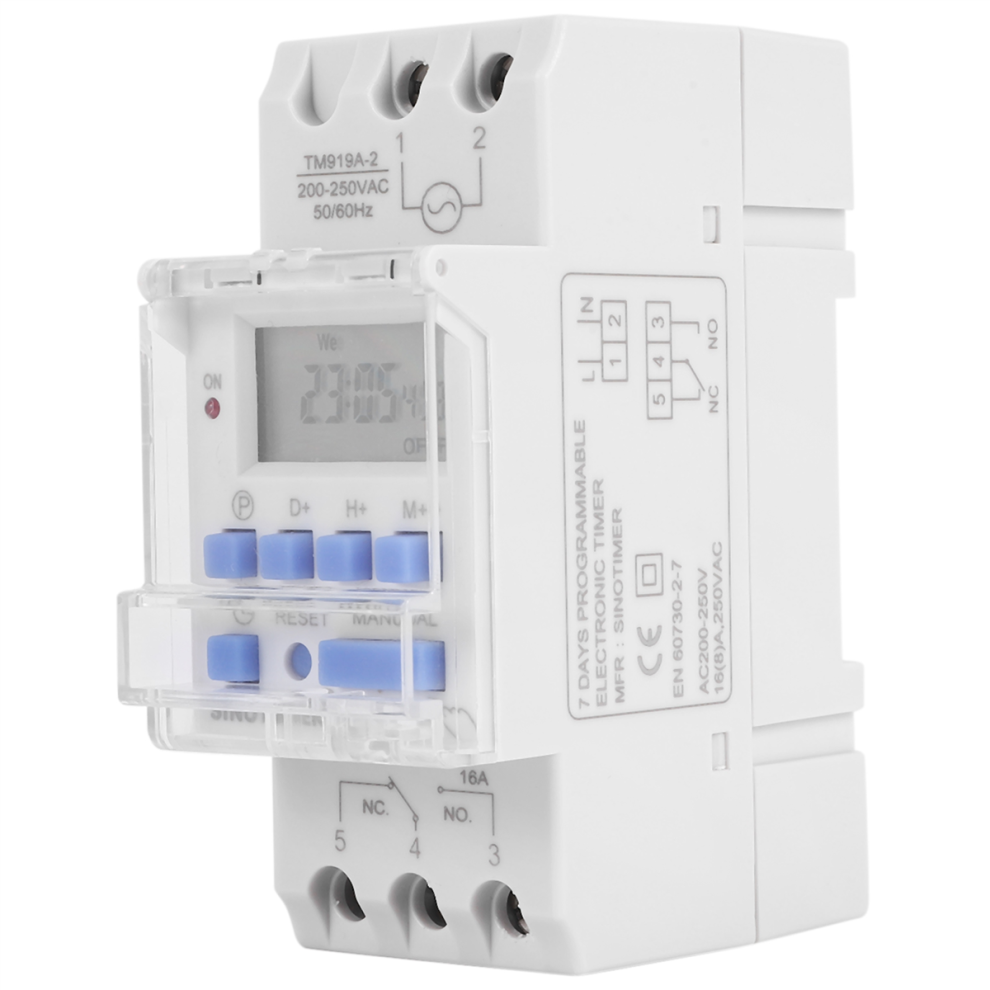

TM919A-2 Programmable Digital Time Switch AC 220V 16A

TM919A-2 Programmable Digital Time Switch AC 220V 16A Beschrijving

TM919A-2 Programmable Digital Time Switch AC 220V 16A Description
1. Easy to read LCD display, LED indicators.
2. 16 ON/OFF programs per day, 15 combinations to a week.
3. 24 hours / a week programmable.
4. Countdown function. Max 24 hours countdown to OFF.
5. Replace battery CR2032 for back-up the memory (save the programs you set) when power failure.Repeat programs with 16 on/off settings, and setting on/off manually. Perfectfor household use in 35mm DIN Rail mounted.
Functions:
1.Clock display(12hr/24hr format
2.Timer
3.Countdown
Parameters:
1.Power Supply: 220V AC 50/60Hz
2.Capacity:16A
3.Timing Range:1min~168hours
4.Programs:16 ON/OFF per day
5.Power consumption:Less than 5VA
6.Black-out:90 days
7.Average error:Less than 2sec/day
8.Temperature range:-10~50 Celsius
9.Humidity :Less than 95%
10.Installation:87 x 65 x 36mm
Model Number: TM919A-2
Usage: Industrial
: Digital
Type: Mini
Replace Battery: CR2032 for saving programs
Output: Switch Output 1NO+1NC
color:White
Material:ABS
Package Contents:
1 x Timer Switch TM919
1 x English Manual
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
