UWB Decawave'S DW3000 10cm Tracking Indoor Positioning Module

UWB Decawave'S DW3000 10cm Tracking Indoor Positioning Module Beschrijving

UWB Decawave'S DW3000 10cm Tracking Indoor Positioning Module Description
IEEE802.15.4-2015 UWB
IEEE802.15.4z (BPRF mode)
Support channel 5 6489.6MHz
Data rates are 850kbps and 6.8Mbps respectively
Data packet length can reach up to 1023 bytes

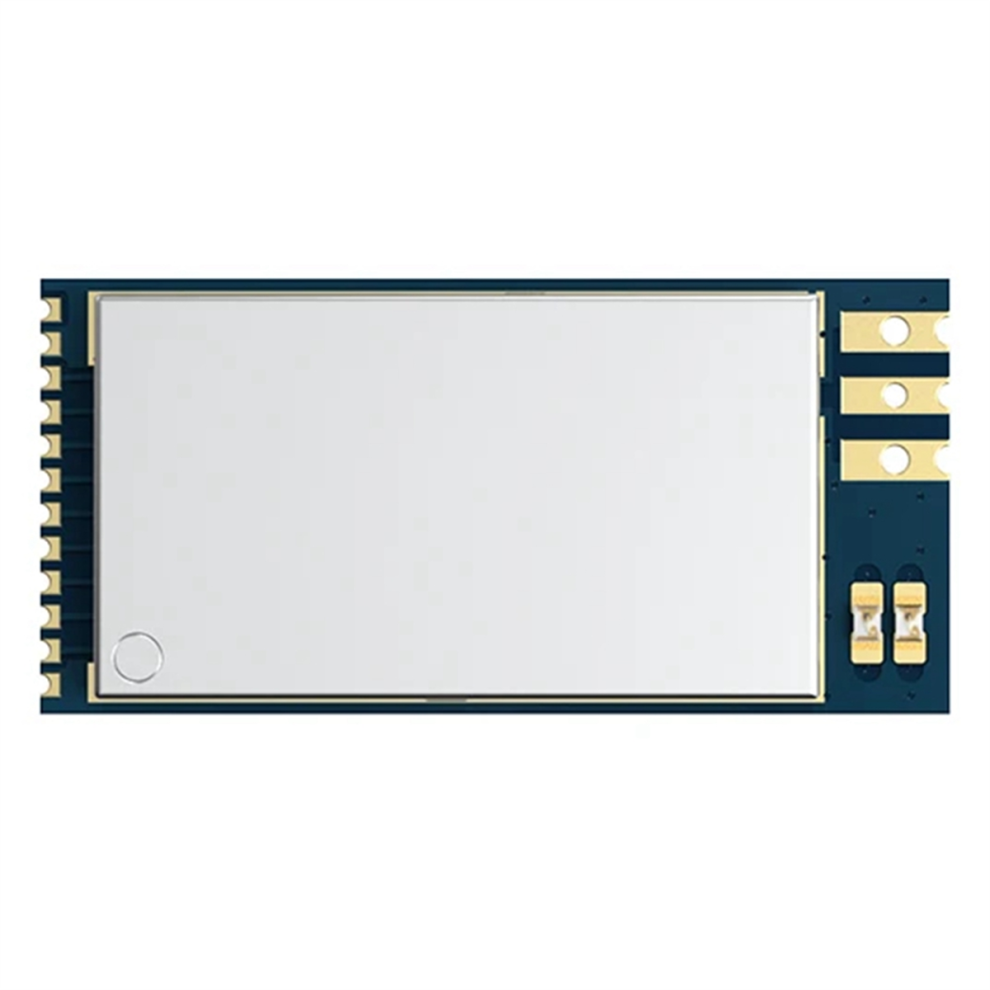

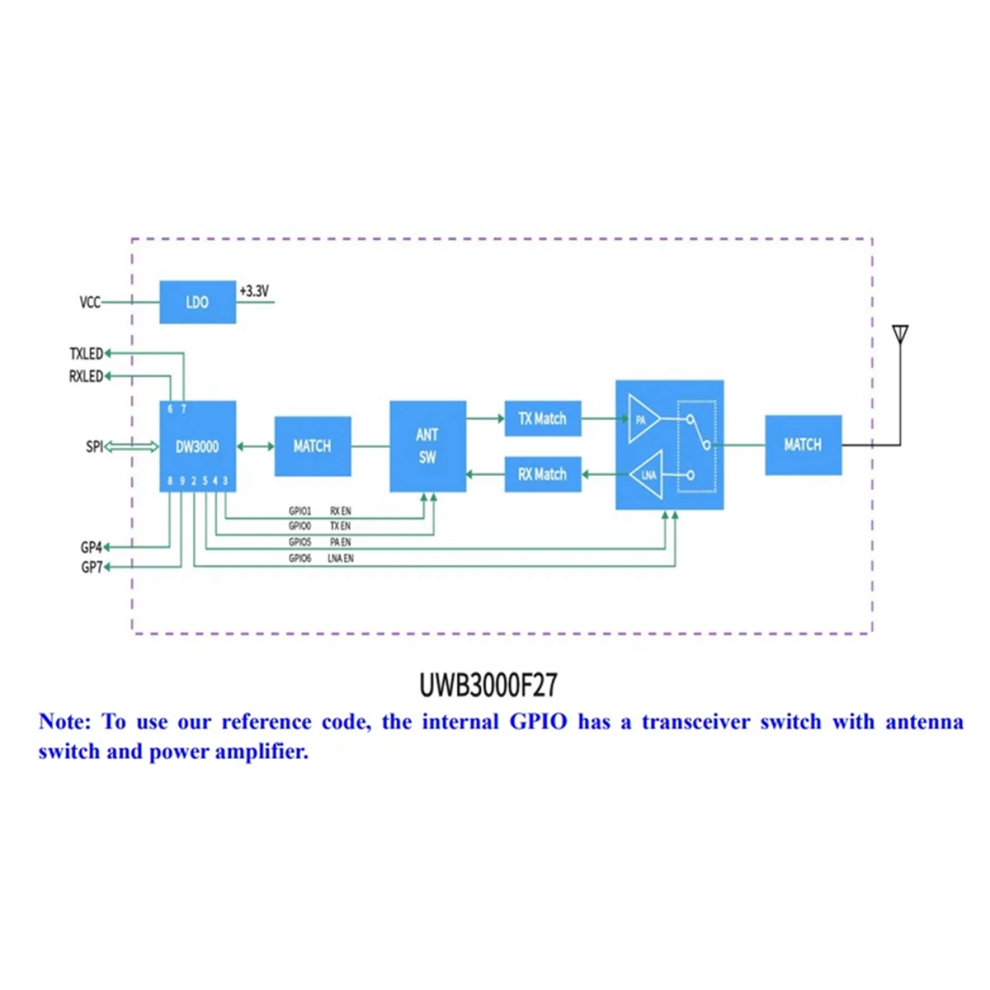

UWB3000F27 is a fully integrated single-chip ultra-wideband (UWB) low-power low-cost transceiver IC and a 0.5W high-power amplifier chip using Decawave's DW3000 IC series, compliant with IEEE802.15.4-2015 and IEEE802.15.4z (BPRF mode). It can be used for two-way long-distance ranging, TDoA and PDoA systems, with a positioning accuracy of 10 cm.
Support two-way ranging, TDoA and PDoA positioning solutions
Programmable transmission power
Accurate positioning and data transmission,
Positioning accuracy is 10 cm
Ultra-long-distance communication and ranging
Application areas:
Coal mine underground positioning
Hospital medical staff positioning
Large-scale industrial production personnel positioning
Various indoor positioning occasions
Color: blue
Material: ABS
Package Contents:
1 x UWB3000F27 ranging module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
