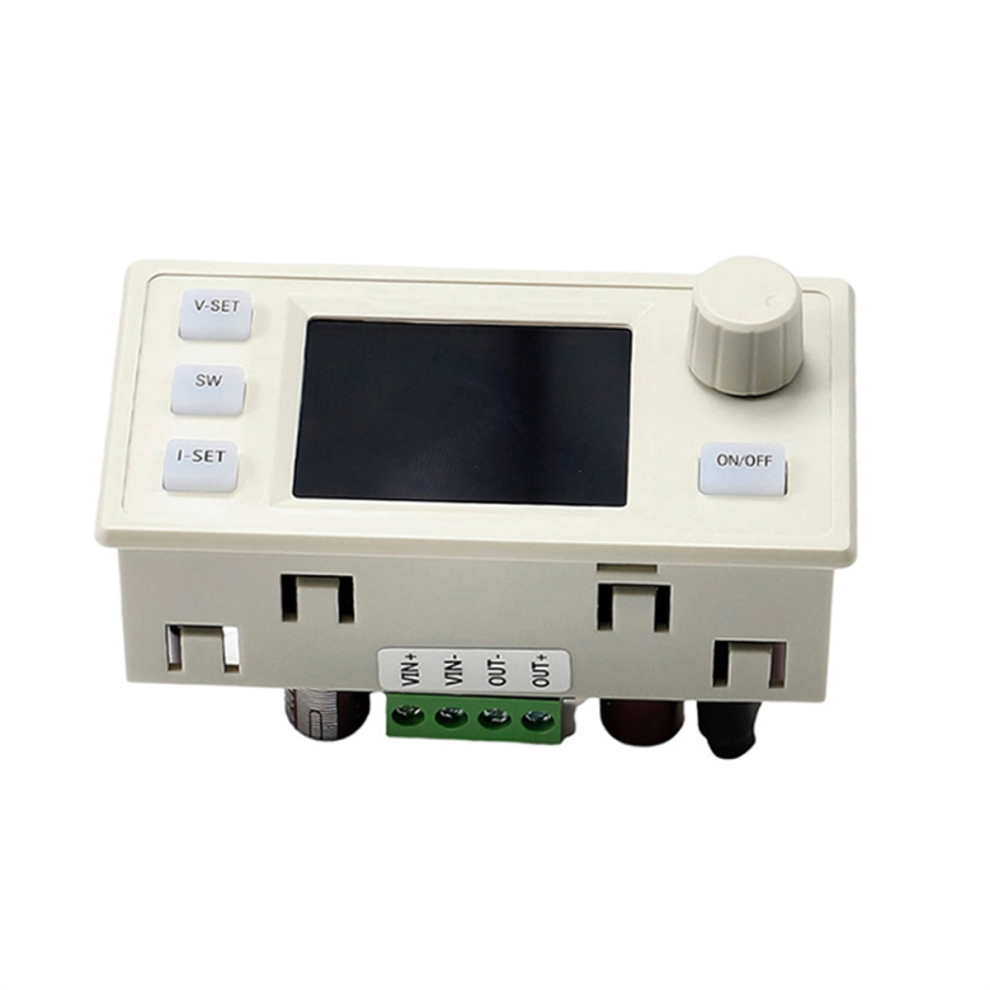

XY6509X CNC Adjustable DC Voltage Regulator Power Supply

XY6509X CNC Adjustable DC Voltage Regulator Power Supply Beschrijving

XY6509X CNC Adjustable DC Voltage Regulator Power Supply Description
Support serial communication, standard MODBUS protocol, support firmware upgrade, support MPPT solar charging.

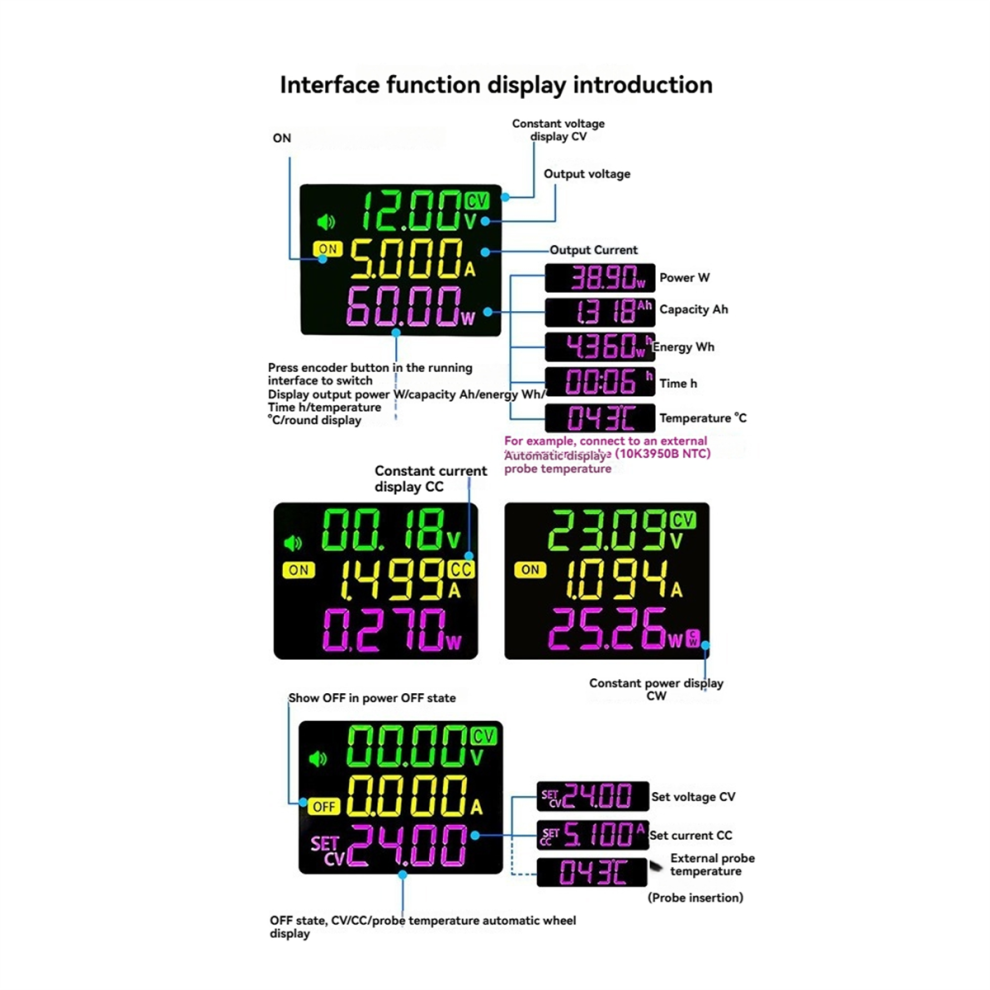

Visualization range 38x29mm, LCD screen is bigger than 1.8 inch! LCD screen layout is reasonable, the font is large, full and rounded, professional power supply LCD screen.
The display board adopts immersed gold design, conductivity is better, more ! Shell using one-piece injection molding shell, flame retardant material more secure! Double-layer buckle design, double circuit board fixed more firmly.
High-precision external clock crystal, to the accuracy of the time, capacity/energy statistics more accurate, 48-pin powerful MCU controller, 64M frequency computing speed faster!
Built-in buzzer button prompts, alarm prompts have an .
Input voltage: 12.0-72V
Output Voltage: 0-65V
Voltage accuracy: +0.5%+1 word
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Buzzer: Yes
MPPT function: support MPPT solar charging
About the protection mechanism:
Input anti-reverse connection: Yes
Input undervoltage protection (): 10-75V adjustable, default 10V output
Over-voltage protection (OVP): 0-67V adjustable, default 67V output
Over Temperature Protection (OTP): 0-110 adjustable, default 95
Overtime Protection (OHP): 1 minute-99 hours and 59 minutes, default off
Over capacity protection (OAP): 0-9999Ah adjustable, default off
Over-energy protection (OPH): 0-4200KWH adjustable, default off
Specification:XY6509X:
Output current: 0-9.000A
Output power: 585W
Output over power protection (OPP): 0-650W, default 650W
Overcurrent Protection (OCP): 0-9.2A, default 9.2A
Colour:As Shown
Material:Plastic
Package Contents:
1 * DC step-down power supply
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
