1-480 Minute Timer Delay Relay Switch AC 110-220V 7A Output with 16 Modes

Descrição de 1-480 Minute Timer Delay Relay Switch AC 110-220V 7A Output with 16 Modes

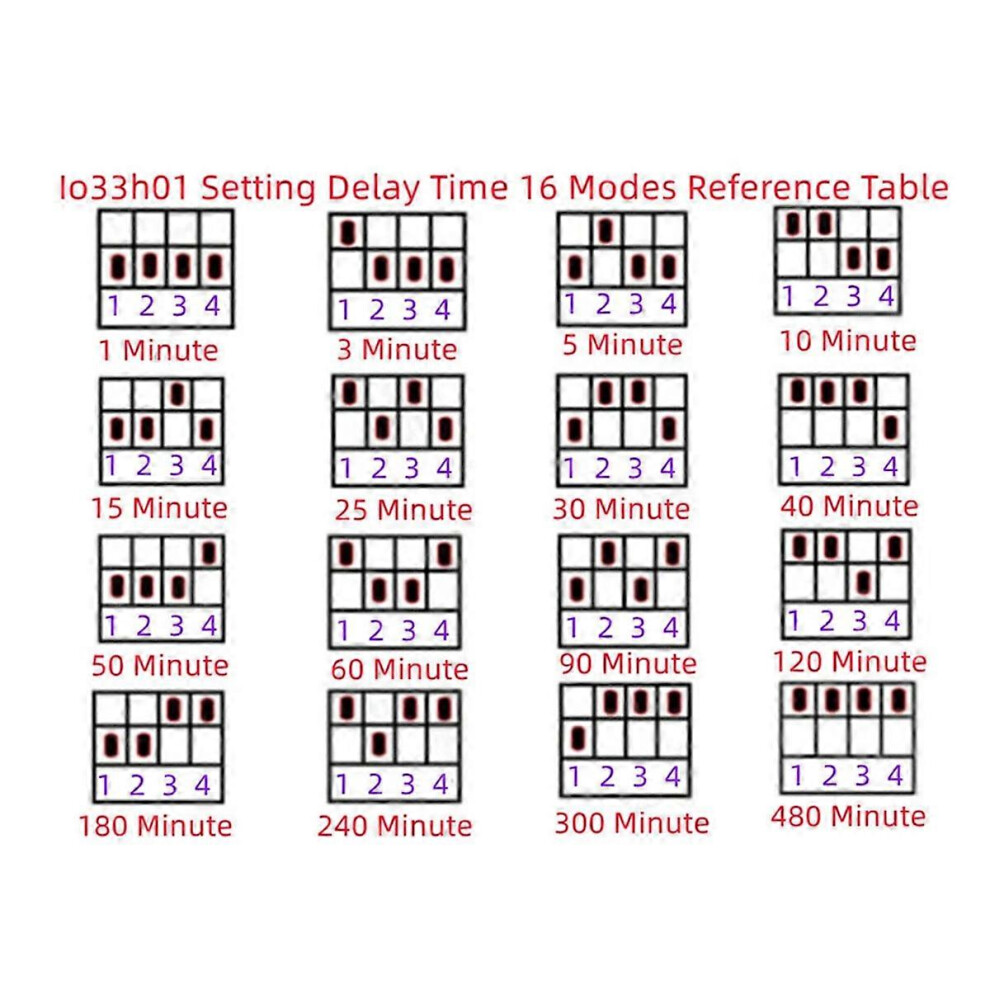

Product Details 1. Delayed shutdown function stops power supply automatically after set time, suitable for controlling exhaust fans, motors, air coolers and more 2. Compact size with simple operation, easy to install in living room, kitchen, bathroom and other home scenes 3. 16 selectable delay modes from 1 minute to 480 minutes, meeting various timing needs 4. LED indicator shows working status clearly, constant light means working, flashing means delay over Specifications 1. Material: PCB+Components 2. Output voltage: AC110-220V 3. Power supply voltage: AC110-220V 4. Output current: 7A (MAX 10A) 5. Control power: 1400W (max) incandescent lamp, 300W (max) energy saving lamp 6. Working temperature: -25~85 (-13F~185F) 7. Working humidity: 5%~95%RH 8. Working power consumption: 43mA 9. Maximum standby power consumption: 12mA 10. Number of control channels: 1 output 11. Colour: As shown 12. Style: B with housing Package Contents 1. 1 x Delay Relay Switch Warm Tips 1. Set delay time before power on, live setting is not allowed 2. Disconnect main power supply to shut down in advance during use 3. Power on again to start second time delay 4. Due to different product batches, appearance may vary slightly which does not affect use 5. Light reflection and different displays may cause color difference between picture and real item 6. Measurement allowed error is +/- 1-3cm
