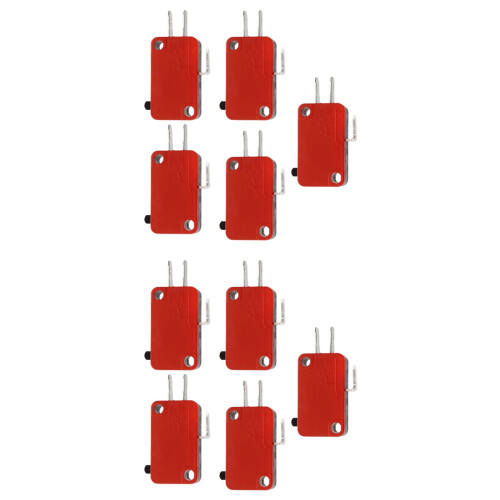

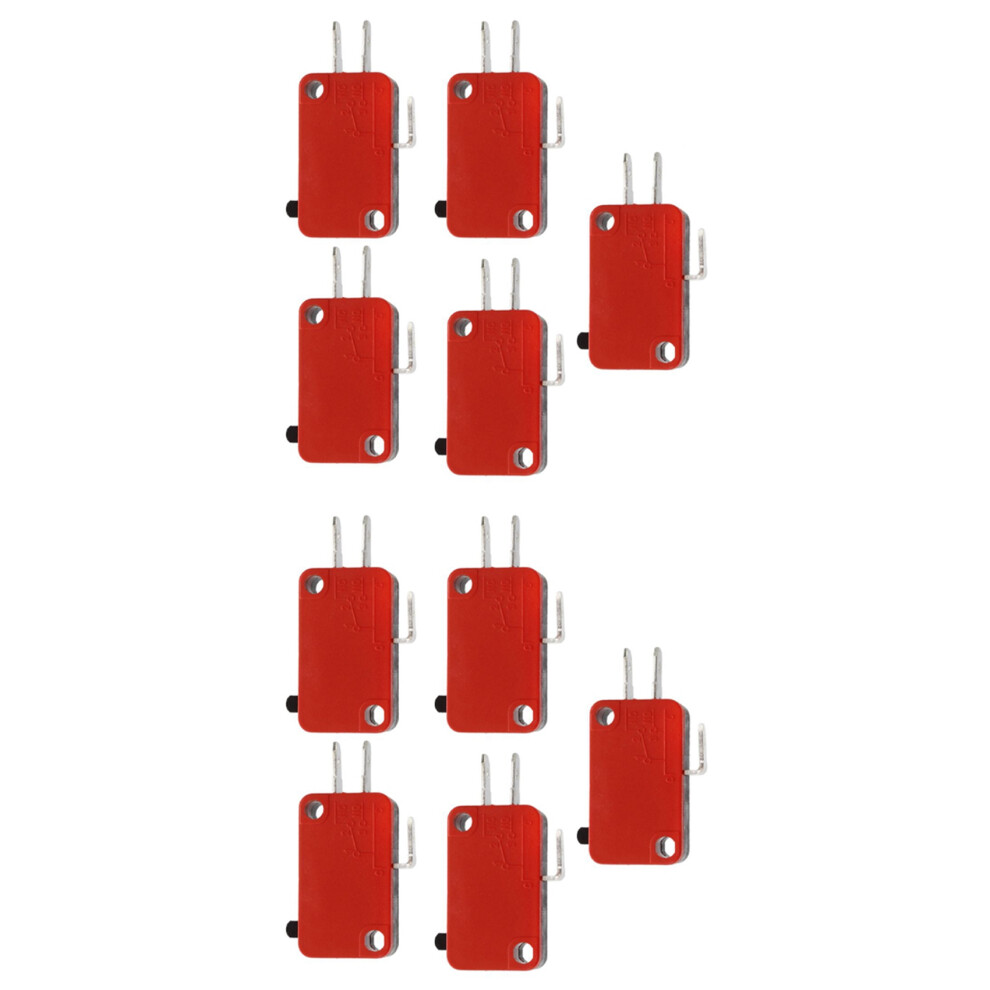

15A 250VAC 4A 250VAC Srew Connector Actuator Limit Micro- 10 Pcs

Descrição de 15A 250VAC 4A 250VAC Srew Connector Actuator Limit Micro- 10 Pcs

Product Name : Micro-;Model No. : 25T85;Actuator Type : Push Button
Working Voltage & Current : 15A AC 250V, 4A AC 250V
Body Size(Each) : 3 x1.6 x 1cm/1.1 inch x 0.6 inch x 0.4 inch (L x W x H)
Push Button Size : 0.4 x 0.3cm/0.16 inch x 0.12 inch(L x H)

Net Weight : 66g;Material : Plastic & Metal;Color : Red, Black, Silver Tone
Designed to control the movement of a mechanical part.
High precision mechanism design offering acute operation and long life.
The Micro- is widely used in appliance, electronic equipment, automatic machine, car electric, etc.
In snap action contacts, the movement of the actuator applies force to an overcenter mechanism.
This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
Snap action contacts have different trip and reset points.
The distance between the trip and reset point is called the travel to reset, hysteresis, or differential.
Finite travel to reset helps to avoid multiple changes of state if the object actuating the is subject to vibration.
Snap action contacts ensure repeatable performance in applications that involve low speed actuators.
The amount of travel of the contacts is also not dependent the amount of travel by the actuator.
Package Content : 10 x Micro-
