2X DC6-60V 30A Storage Battery Charging Control Module Protection Board Charger LCD Display XY-CD63L
Novo
Em stock
Porque vai adorar comprar na OnBuy:
- Ganhe Cashback em cada compra – utilize-o imediatamente na sua próxima encomenda
- Entrega gratuita – em milhões de artigos em todo o site
- Os clientes adoram-nos – 134,000 avaliações com classificação « Excelente »
20,69 €
34,14 €
39% de desconto!
+5,50 € Entrega
1%
O que é o Cashback instantâneo?
Saber mais
Os preços dos produtos vendidos na OnBuy incluem IVA.
Opções de pagamento sem juros disponíveis
Ver descrição completa e detalhes do produto
Entrega: Padrão (5,50 €) | sáb 26 set - sex 2 out
Vendido por: Hoeappt
Devoluções: 30 Dias
Proteção de pagamento de 180 dias
Também pode gostar
Descrição e Detalhes
Resumo

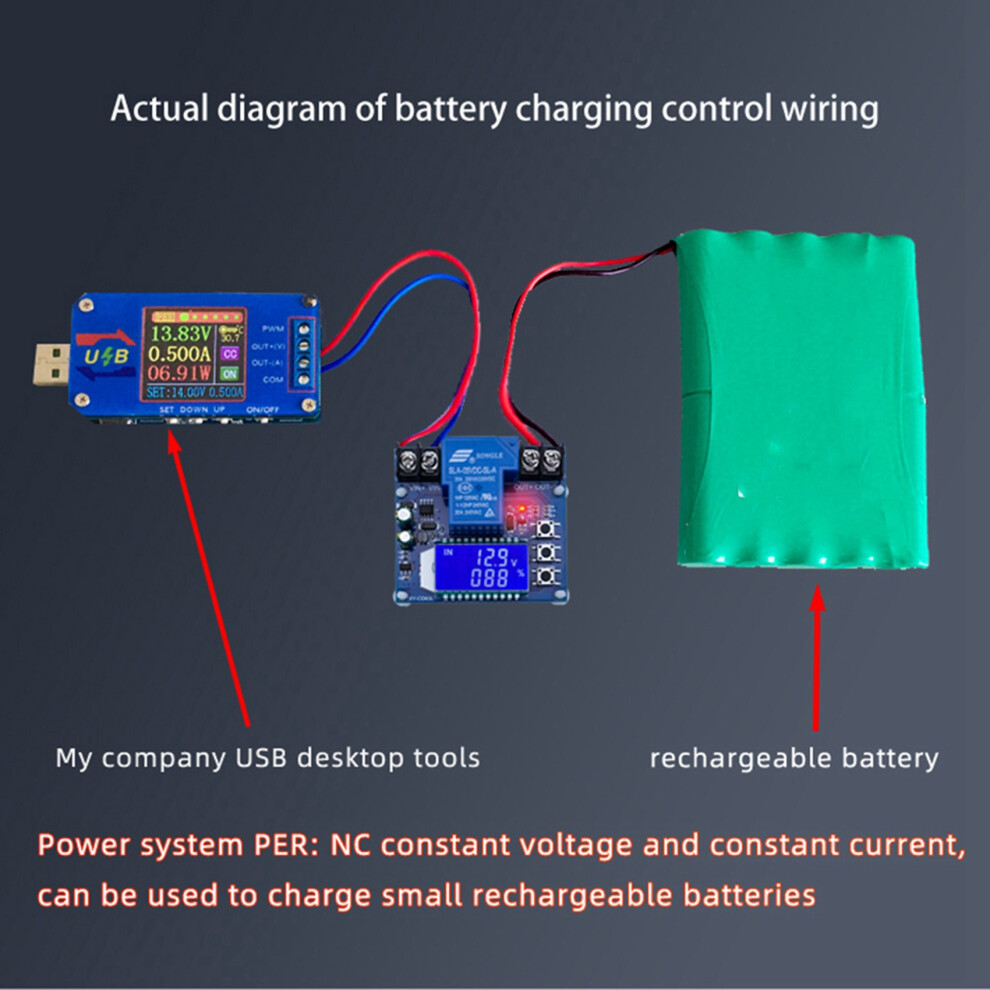

- Charging mode IN: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned on, and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage UP, the relay is disconnected to complete an automatic charging; the relay is turned on, IN flashes, indicating that it is charging.
- Discharge mode OUT: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage UP, the relay is turned on and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned on and OUT flashes, Indicates that it is discharging.
- Note: This product is a simple voltage controller, which uses a relay to turn on and off the output. It only functions as a switch and cannot be transformed.
- Charging Control Module
- 30A battery Charging Control Module
Descrição de 2X DC6-60V 30A Storage Battery Charging Control Module Protection Board Charger LCD Display XY-CD63L
Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage , the relay is disconnected to complete an automatic charging; the relay is turned , IN flashes, indicating that it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage , the relay is turned and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn and off the output. It only functions as a and cannot be transformed.
Function Description:
1. Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
2. Button function:
button: Short press to display% and , long press for 5 seconds to mode, charging mode: IN, discharging mode: OUT
SET button: short press to view the currently set parameters; long press the SET button to enter the parameter setting interface, set : voltage upper limit, dn: voltage lower limit, OP: conduction , dOP: delayed conduction (0-999 seconds) , There is FOP in discharge mode: forced conduction (0-10 seconds)
DOWN button: Short press to turn off/ the relay enable (emergency stop function) after it is turned off, the LCD display is OFF, and the relay is disconnected
Colour:
Material: plastic
Size: 62 x 57 x 22mm
Detalhes
| OPC | PXXR96D |
|---|---|
| Códigos | 4712288513931 (EAN) |
| Informações sobre o Produto e Segurança |
Dados do Produto
| Height | 6cm |
|---|---|
| Width | 6cm |
| Length | 7cm |
| Weight | 0.105kg |
| Colour | blue |
| Material | plastic |
