2X PM1.0 PM2.5 PM10 Detector Module Air Quality Dust Sensor Tester Detector Support Export Data Monitoring

Descrição de 2X PM1.0 PM2.5 PM10 Detector Module Air Quality Dust Sensor Tester Detector Support Export Data Monitoring

Data transmission can be completed through the host computer software;Acrylic clear case shell, high transmittance to be looked through;Built in for ARM 32 bit processor, accurate detection & system fluency
2.8inch TFT screen, colorization display, wide angle vision to 180 degree;High sensitivity sensor ensures the high accuracy in data collections;Semi-closing design performs excellent in heat radiation, long-life use
Multipurpose in air quality detection in PM1.0, PM2.5, PM10.0, AQI, temperature&humidity, suspended particulate matter;Real- detection results will be shown screen in corresponding colors related to collected datas
, easy to use and be a straightaway in data interpretation;Power supply in 5V universal, usb socket, car charger, power bank, etc;Suitable for home/office and car or part scope air quality detection

Font color: Multi Colors
Resolution Ratio: 320x240
Operation Current: 1-2A
Temperature Measure Range: -20 to 60 Celsius
Accuracy: +/- 0.1 Celsius
Language Version: English
Working Principle:
Multi-angle Scattering Detection, irradiation in the suspended particulate matter in the air and generate scattering. Scattered light will be collected in a specified angle at the same . According to the scattering intensity, -varying curves can be obtained through the sensor. Being processed by the microcomputer processor, equivalent particle diameters and the number of suspended particulate matter with different sizes in per unit volume can be obtained.
colour: transparent
Material: acrylic
size: Approx. 8.5x6.5x3.7cm/ 3.35x2.56x1.46inch

Package Contents:

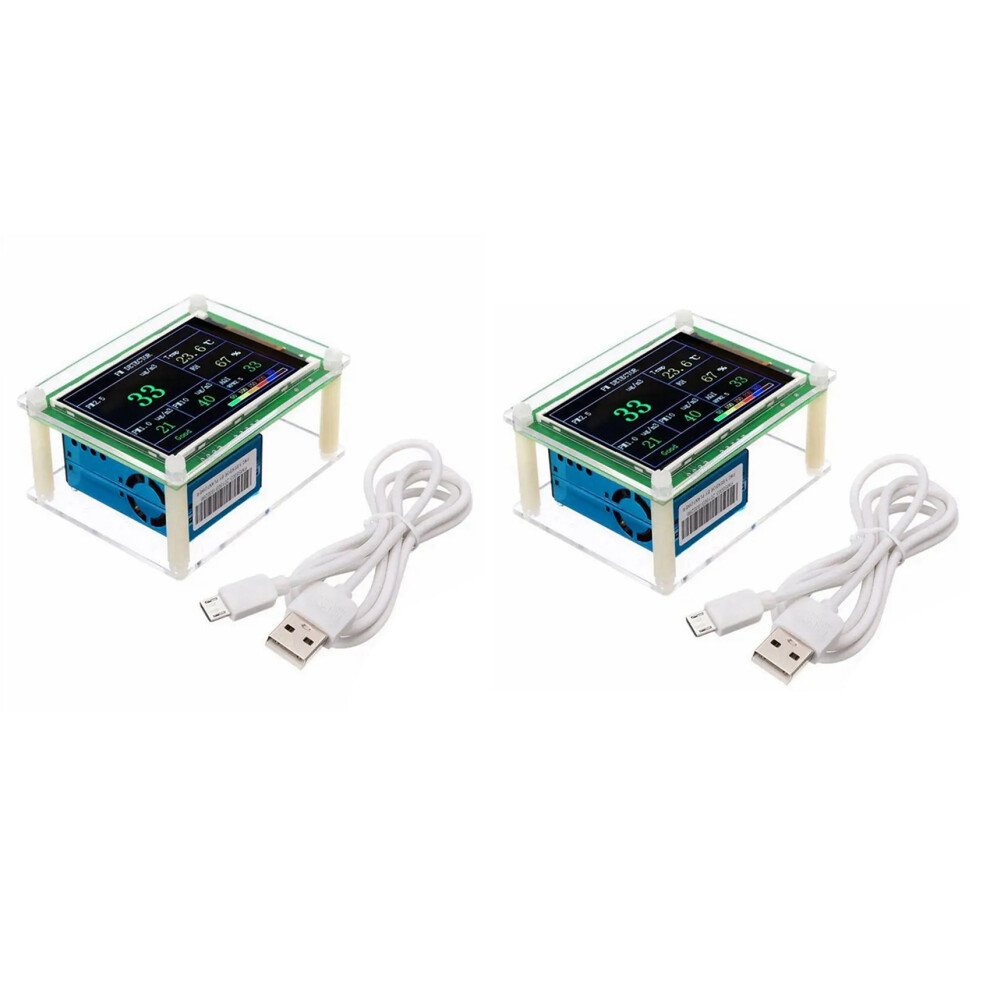

2 x PM2.5 Air Quality Detector
2 x USB Cable
