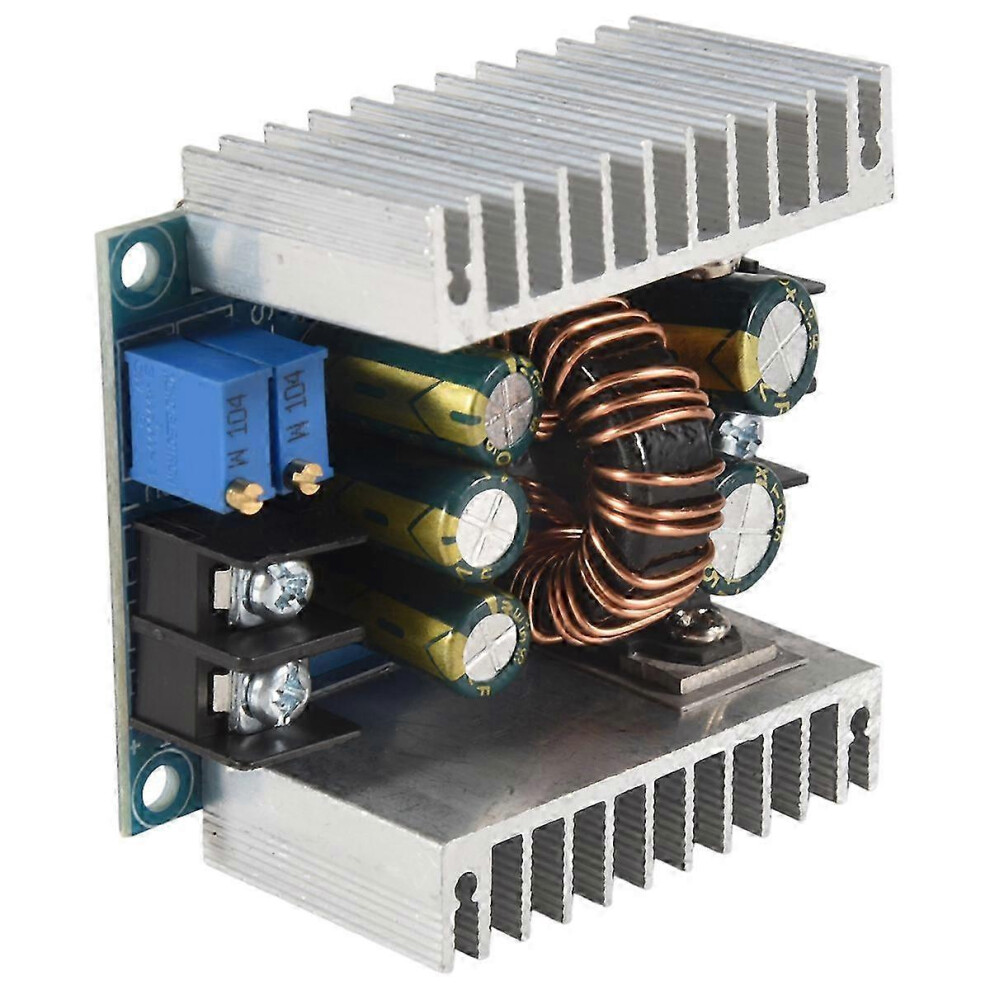

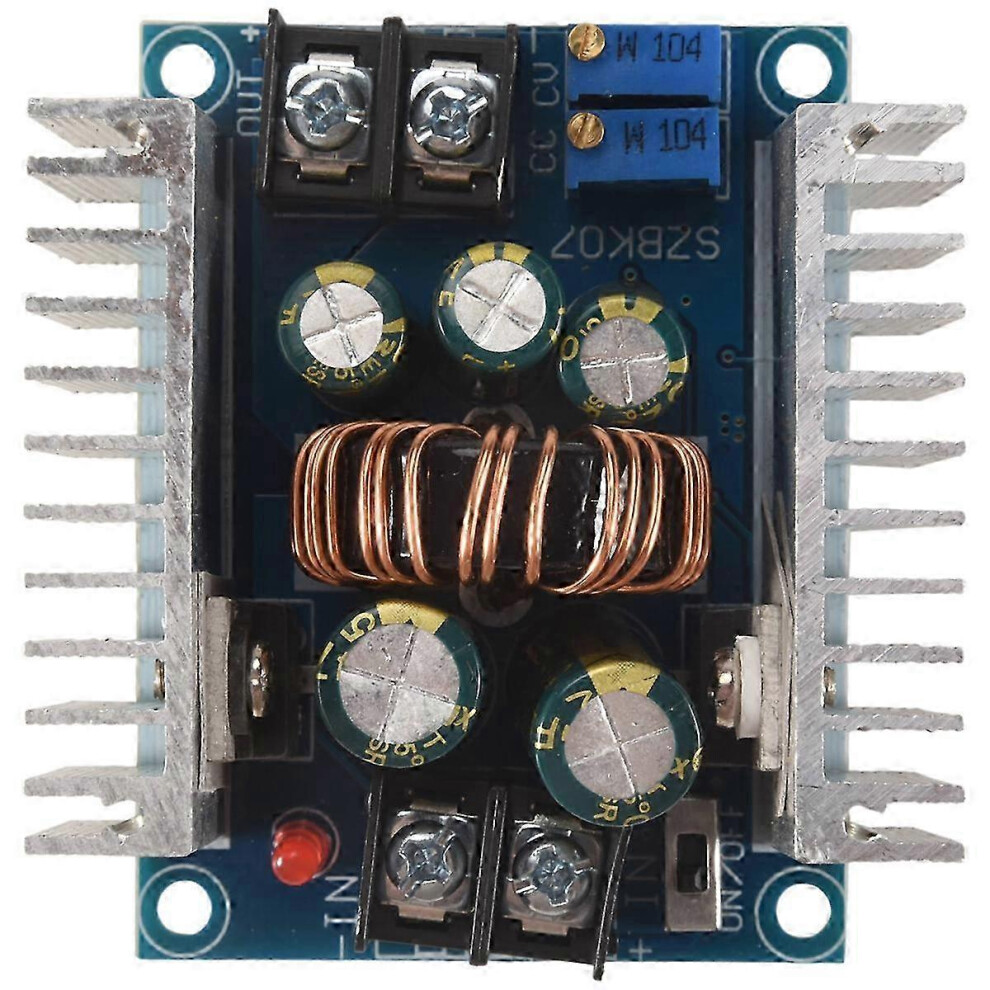

300W 20A DC-DC Step Down Buck Converter Module, Adjustable Voltage 1.2-36V, 6-40V Input

Descrição de 300W 20A DC-DC Step Down Buck Converter Module, Adjustable Voltage 1.2-36V, 6-40V Input

Product Details ①. Wide input voltage range from 6V to 40V DC (10V to 40V suggested) allows accurate adjustment of output voltage and current, meeting various power needs. ②. High efficiency up to 95% (24V to 12V, 20A) reduces energy loss during voltage conversion. ③. Equipped with 75V/80A large current dual MOS tube and high frequency low resistance electrolytic capacitor for low ripple and stable output. ④. Large current 30A screw terminals make wiring convenient and secure. ⑤. 2 heat sinks enhance heat dissipation, ensuring stable operation even under high current conditions. ⑥. Self-recovery short circuit protection (cannot short circuit for long time) provides added safety. Specification ①. Input Voltage: 6V to 40V DC (10V to 40V suggested) ②. Output Voltage: 1.2V to 36V DC ③. Output Current: 20A (max.), 15A (suggested) ④. Efficiency: 95% (24V to 12V, 20A) ⑤. Output Ripple: 50mV ⑥. Wiring Method: Terminal ⑦. Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06inch ⑧. Colour: As shown ⑨. Material: PC+Metal ⑩. VO+: Output positive; VO-: Output negative; +IN: Input positive; -IN: Input negative; CV: Output voltage adjustment; CC: Output current adjustment; EN: Enable, low voltage level shut off output; suspension, high voltage level is effective Package Contents ①. 1 x 300W 20A Step Down Buck Converter Warm Tips ①. When there is a big difference between input and output voltage, please decrease power and current. ②. When input and output is common grounded, no-load CV output constant voltage, CC output constant current. ③. Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. ④. The measurement allowed error is +/- 1-3cm.
