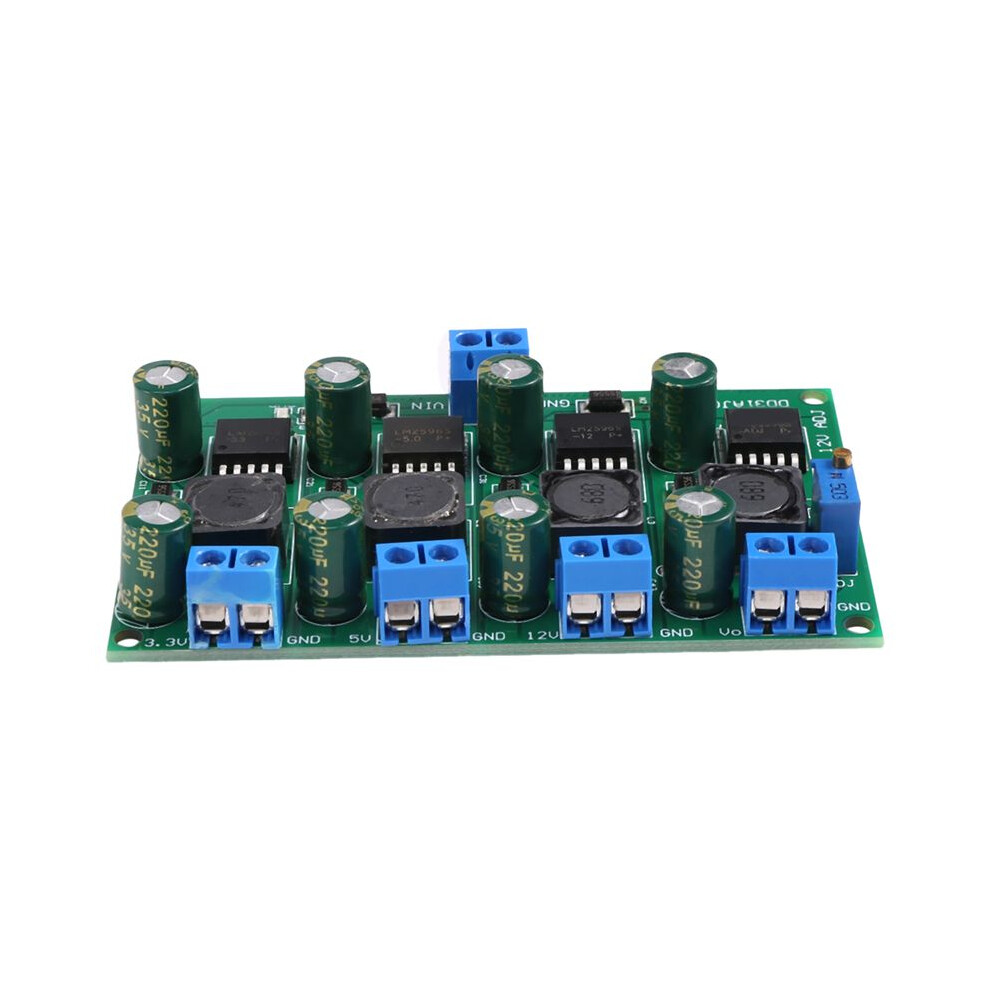

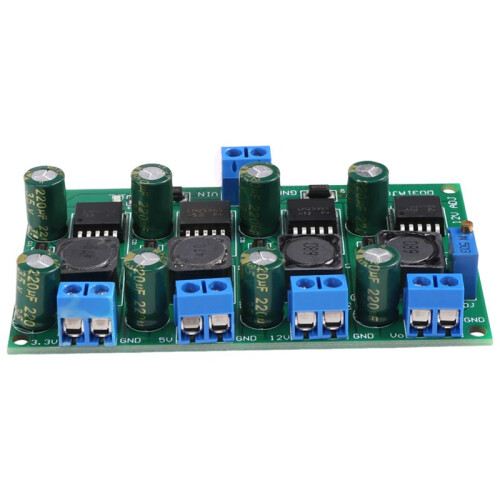

3A 4 Channels Multiple Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Output Step-Down Buck Converter Board
Em stock
Porque vai adorar comprar na OnBuy:
- Ganhe Cashback em cada compra – utilize-o imediatamente na sua próxima encomenda
- Entrega gratuita – em milhões de artigos em todo o site
- Os clientes adoram-nos – 133,000 avaliações com classificação « Excelente »
Os preços dos produtos vendidos na OnBuy incluem IVA.
Opções de pagamento sem juros disponíveis
Ver descrição completa e detalhes do produto
Entrega: Padrão (Grátis) | sex 18 - qua 23 set
Vendido por: JJBRDZ
Devoluções: 30 Dias
Proteção de pagamento de 180 dias
Resumo
- 3.3V output: Input 4.5-30V, Output 3.3V (±3%)
- 5V output : Input 6.5-30V, Output 5V (±3%)
- 12V output : Input 13.5-30V, Output 12V (±3%)
- AJD output : Input 4.5-30V, Adjustable Output 2-28V
- Maximum output current per channel : 3A;
Descrição de 3A 4 Channels Multiple Switching Power Supply Module 3.3V 5V 12V ADJ Adjustable Output Step-Down Buck Converter Board
3.3V output: Input 4.5-30V, Output 3.3V (3%)
5V output : Input 6.5-30V, Output 5V (3%)
12V output : Input 13.5-30V, Output 12V (3%)
AJD output : Input 4.5-30V, Adjustable Output 2-28V
Maximum output current per channel : 3A;
Overall maximum load power: 50 watts
Working frequency 150KHz.
Input reverse connection protection
Built in thermal shutdown function,Built in current limit function,Built in second current limit function
Operating Temperature :-40C to +85C
Storage Temperature : -65C to +150C
This is a - voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long
3 Input power must be greater than the output power, because the power consumption of the module itself
size:88x55x15mm
Material:plastic
colour:green
Package Contents:
1 * DD31AJQA 3A 4-channels Step-Down Buck Converter Module
Detalhes
| OPC | PVPMW7F |
|---|---|
| Marca | Torribaly |
| Códigos | 4711341955053 (EAN) |
| Informações sobre o Produto e Segurança |
Dados do Produto
| Height | 4cm |
|---|---|
| Width | 9cm |
| Length | 11cm |
| Weight | 0.058kg |
| Colour | green |
| Material | plastic |
