3X 12V Light Control Photoresistor Relay Module Detection Sensor XH-M131

Descrição de 3X 12V Light Control Photoresistor Relay Module Detection Sensor XH-M131

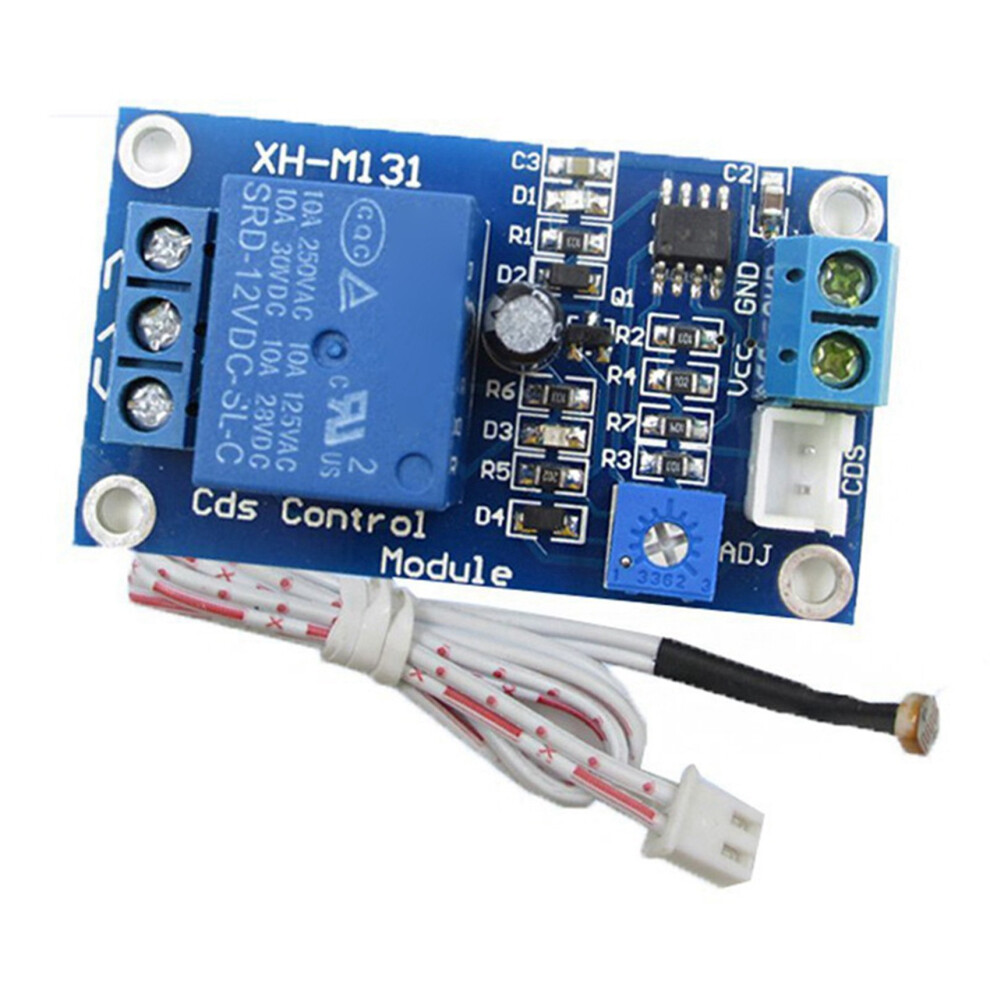

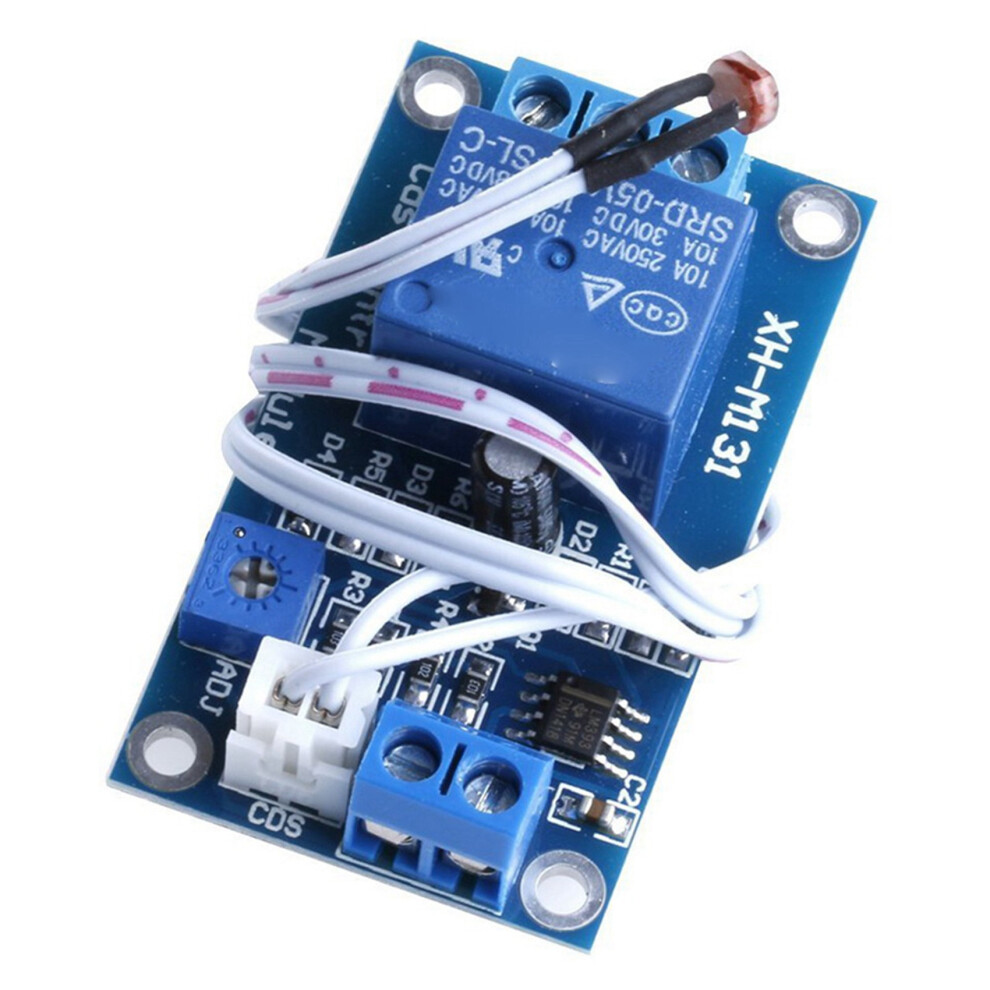

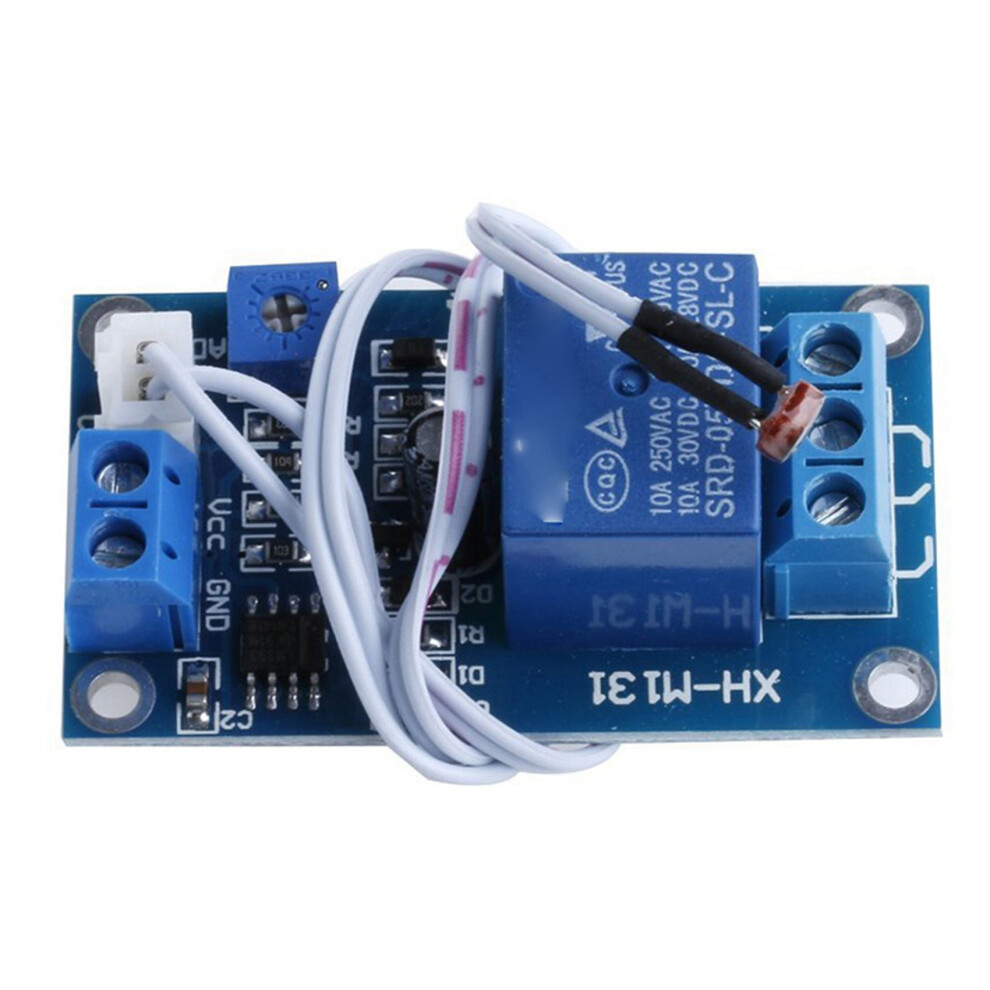

using the photoresistor induction light intensity comes with the relay, direct control load
Distribution bit sensitivity adjustment, start relay threshold set by adjusting potentiometer, when the dark this threshold, the module relay is energized, bright this threshold, the relay release;
12 V power input is designed for relay board regulator transistor to provide sensor Used to make the product more stable and reliable;
onboard optocoupler isolation drive relay, the effective protection of the chip to make the product more reliable work;
has four fixed bolt hole for easy installation

Material: metal
Color:
With lines, color is random
Module using the instructions:
1, photoresistors module is most sensitive to ambient light, generally used to detect the brightness of the ambient light.
2, the module when the ambient light is darker than the threshold value is set, the relay is energized, the common terminal and the normally start is turned , when external ambient light is brighter than the set threshold value, the relay is switched off, the common terminal and the normally closed end connected;
3, the public side, normally open, normally closed three , the equivalent of a dual-control , relay coil power, public end and often the beginning of conduction, radio, public end normally closed terminal conduction;
Supply voltage: 12VDC
Current: Greater than 100mA
Load: 250V 10A AC or 30V 10A (the current is less than this range can be used)
Size: 5.3cm x 3cm

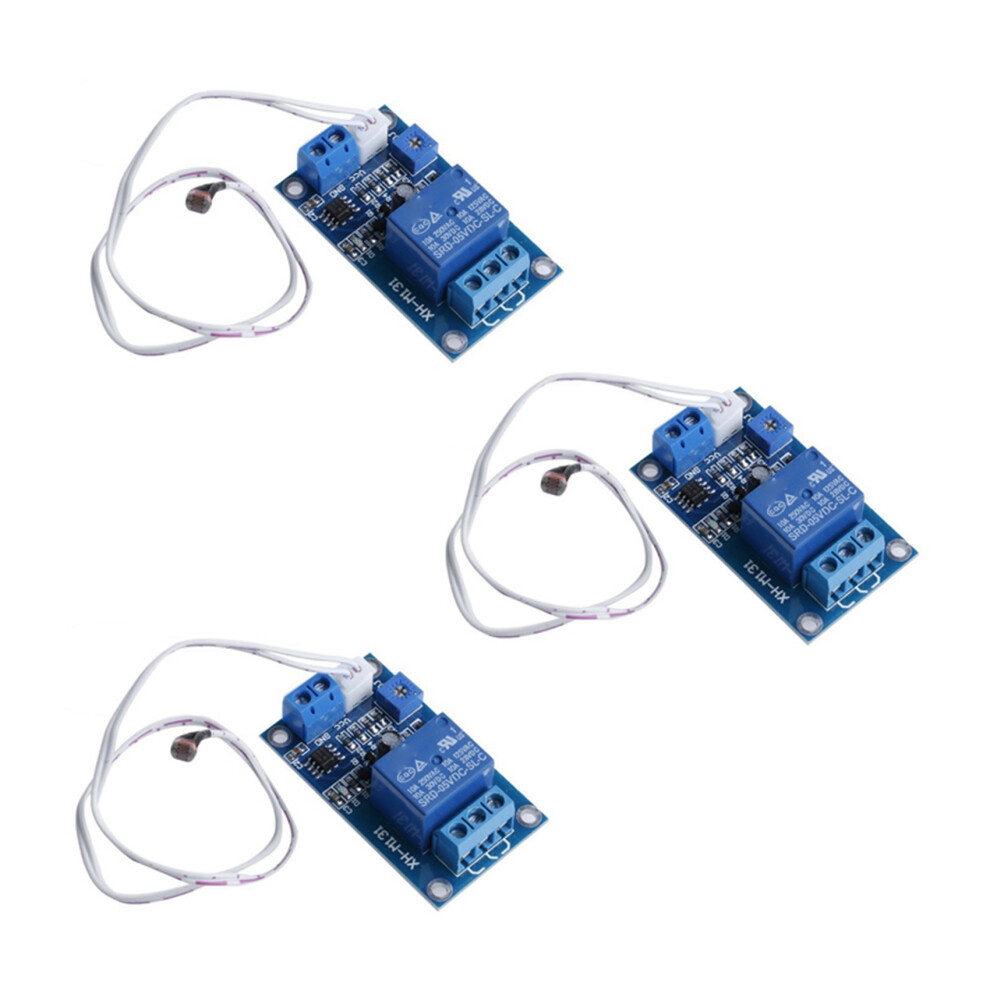

Quantity:3Pc

Package Includes:
3Pc xDC 12V Photoresistor Module Relay Light Detection Sensor Light Control
Note: Random color, don't accept the specified color.
