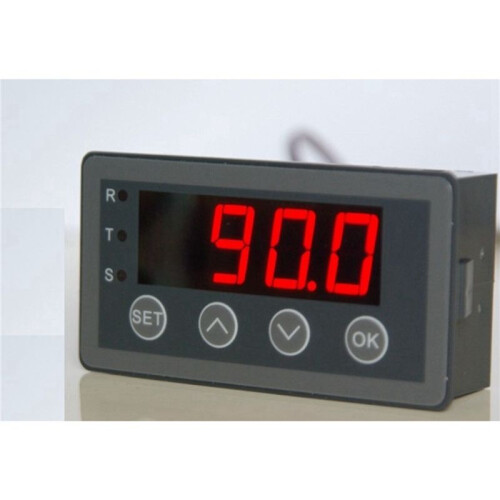

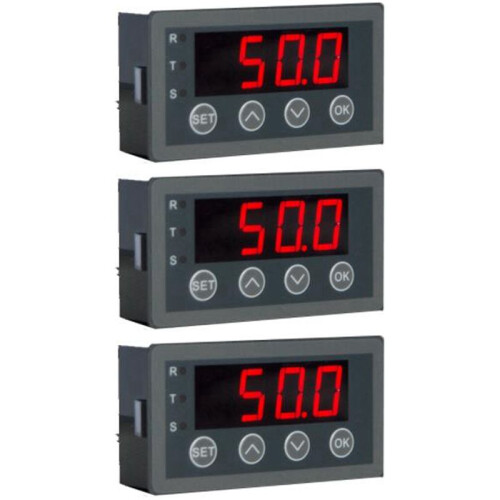

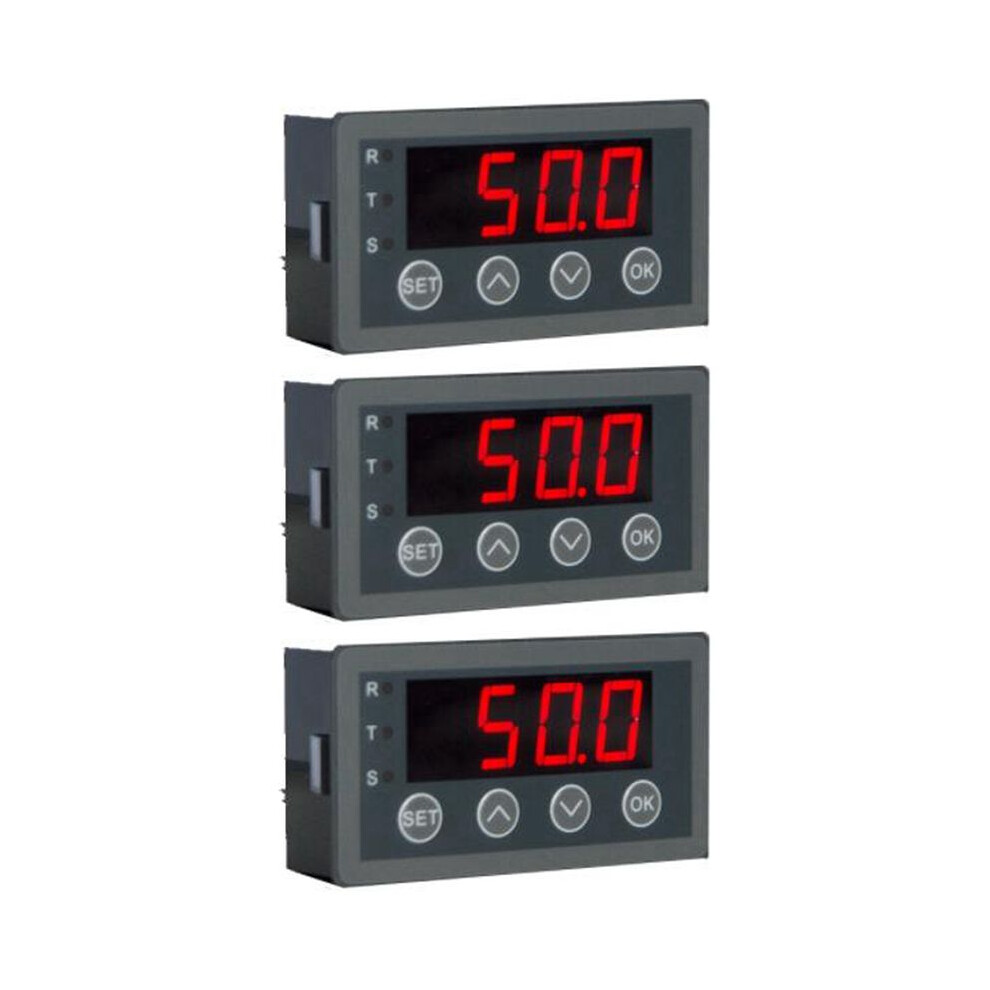

3X Digital Display Meter 0-10V 0-20MA 2-10V 4-20MA Analog Input Display Table Digital Display with RS485 Version

Descrição de 3X Digital Display Meter 0-10V 0-20MA 2-10V 4-20MA Analog Input Display Table Digital Display with RS485 Version

1. The meter can be called a universal analog input display meter. It can be matched with various sensors with analog output to display the actual physical quantity. Such as temperature transmitter, frequency converter, motor speed, pressure, liquid level, concentration, etc.
2. The instrument supports current input or voltage input.
3. Default adaptation: 0-10V, 2-10V, 0-20mA, 4-20mA. By setting the bias parameter and gain parameter, it can adapt to other inputs in the range of 0-10V, or 0-20mA.

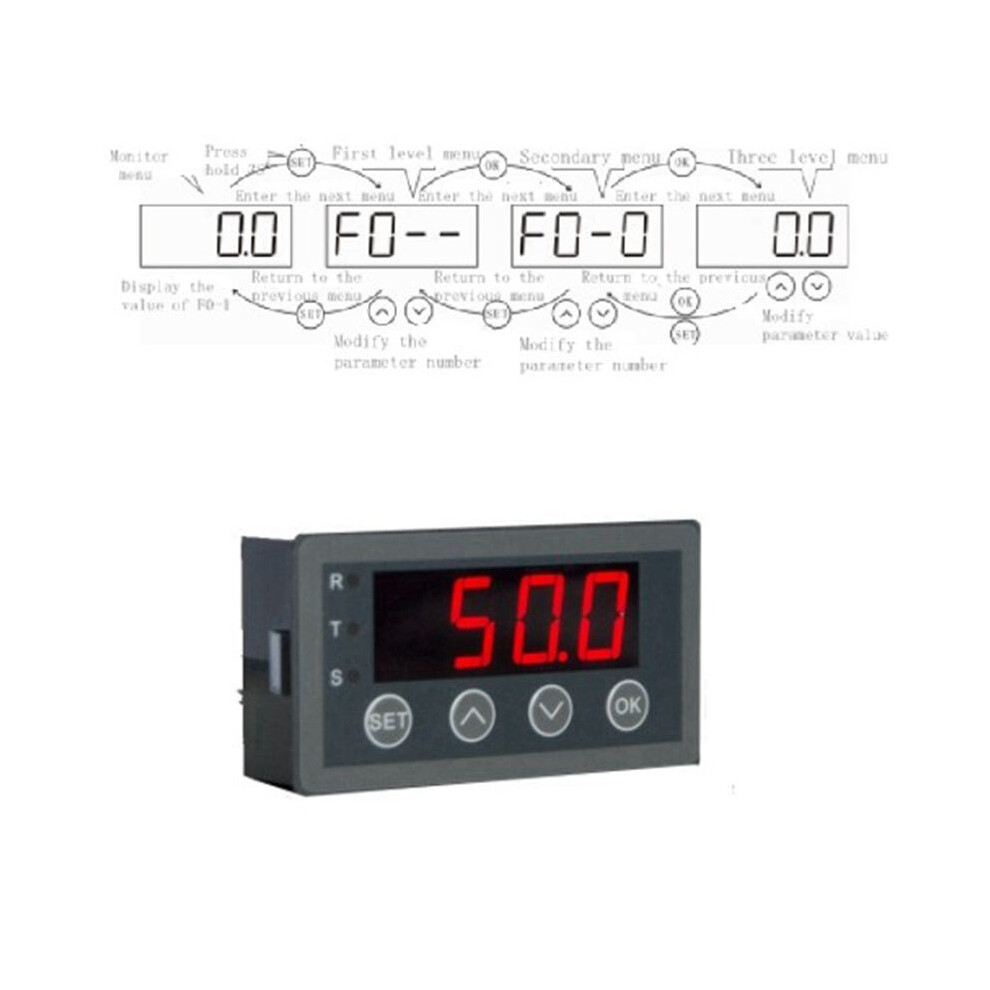

4. It is displayed as a percentage by default. You can also set your own display range through F0-2 ~ F0-4.
5. The instrument with 485 interface has already supported the communication between the meters, and it is convenient to realize multiple displays.

Model description:standard version: HXDSBOXAH-NR:

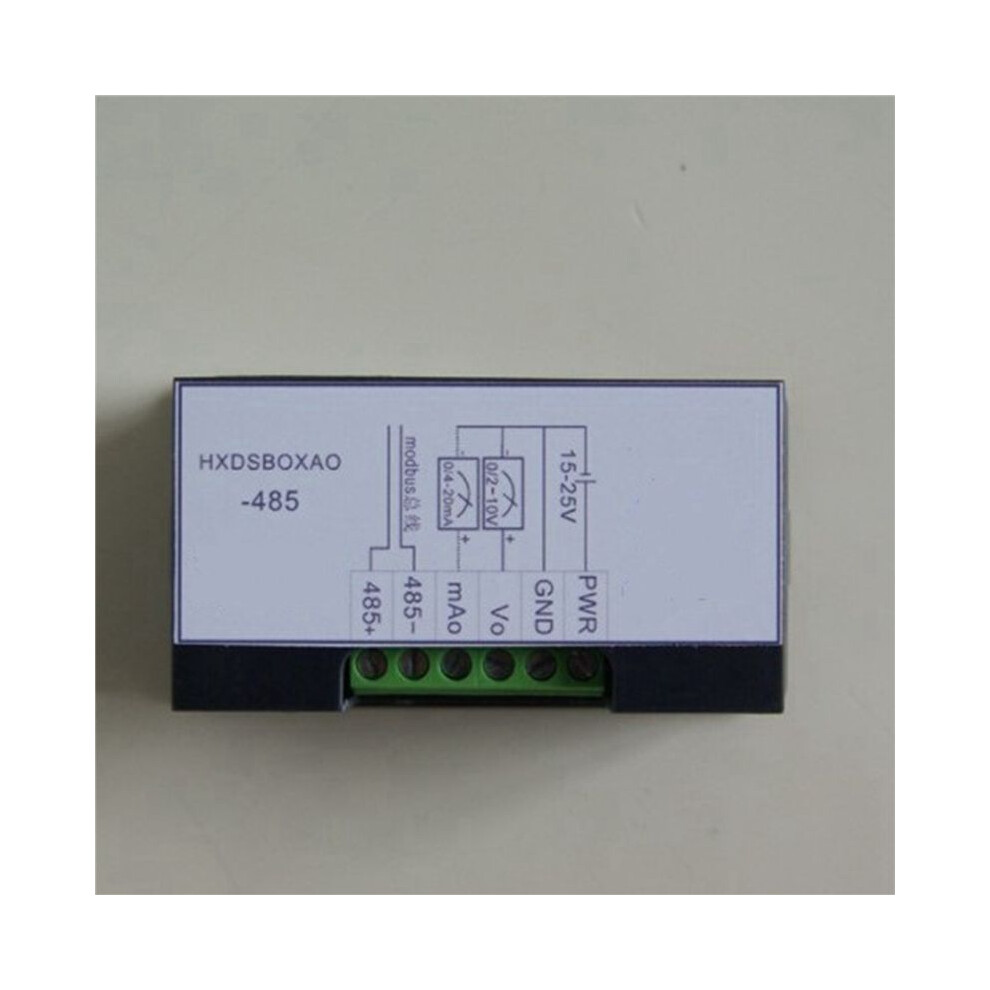

With RS485 version: HXDSBOXA-485:
With relay output version: HX BOXAI-RL
Standard version and version with RS485, rated power supply voltage range: DC6~25V, power consumption: 24V/40mA: with relay output version, rated power supply voltage
Range: DC8~25V, power consumption: 24V/50mA: power supply anti-reverse connection and surge protection
Colour:gray
Material:plastic
Size:79 x 43 x 25mm

Package Contents:
3 x Digital display meter
