3X KQ-130F compatible Power Line Carrier Module / No External Components Required

Descrição de 3X KQ-130F compatible Power Line Carrier Module / No External Components Required

1. The carrier board that integrates the KQ-330F module and peripheral circuits does not require other coupling components, and can be directly connected to 220V AC power. The external dimension is 53x38x17 mm (LxDxH), and the single row of pins leads out. 1 and 2 pins are connected to 220V AC power supply without direction (1 pin, 2 pin spacing 2X0.1 inches), 2 feet and 3 feet are 1.1 inches apart, and the rest of the feet are 0.1 inches apart.

2. The working frequency is 120~135KHZ, and the interface baud rate is 9600bps. The actual baud rate is 100bps.

3. The maximum length of one frame of continuous transmission is \u2264252 bytes, the length of one frame of continuous transmission is defined by the user from 1 to 252, and the module will not send redundant data

4. Receiving sensitivity \u22641mV

5. Out-of-band rejection capability \u2265 60 dB

Bandwidth \u226410 KHZ

Insulation resistance 500V \u2265500M\u03A9

Power supply: DC +5V when receiving: \u226411mA when sending \u2264230mA

Power frequency insulation withstand voltage: 3000V 1min test between AC and GND has no breakdown and no leakage current.

Anti-Lightning-strike: TVS tube protection inside the board, from PCB board wiring material selection to component material selection, are designed according to wide temperature, high pressure resistance, and high pressure shock resistance.

Working temperature: -25\u2103~70\u2103 Humidity\u226490%

KQ-130F power carrier module does not need any peripheral devices, as long as it provides a 5V power supply, it can be used. The transmission power supply is independent pin. If the user needs bidirectional transmission, two 5V pins can be connected in parallel.

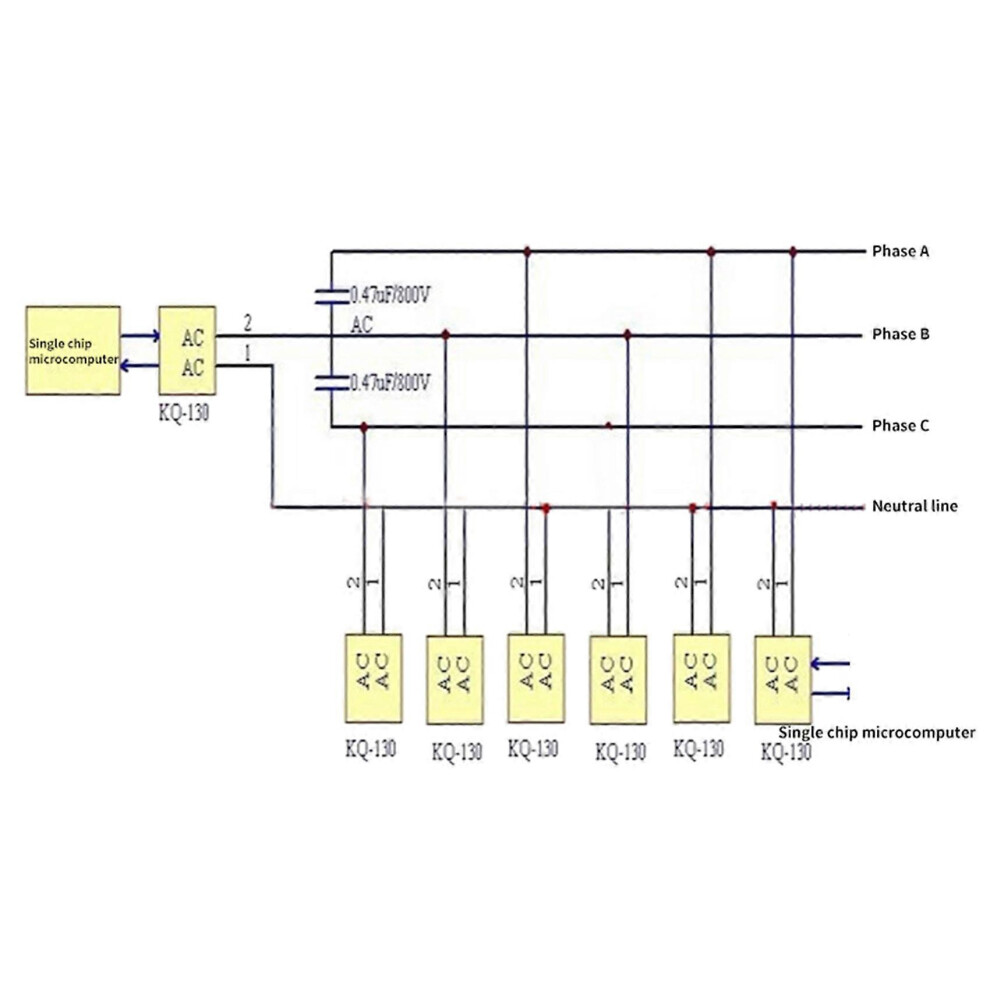

All modules of our company support point-to-point, point-to-multipoint networking communication mode, and control the collection of multipoint data through polling.

color:As shown

Material:PCB

Package Contents:

3 x KQ-330F module

Only the above package content, other products are not included.

Note: Light reflection and different displays may c
