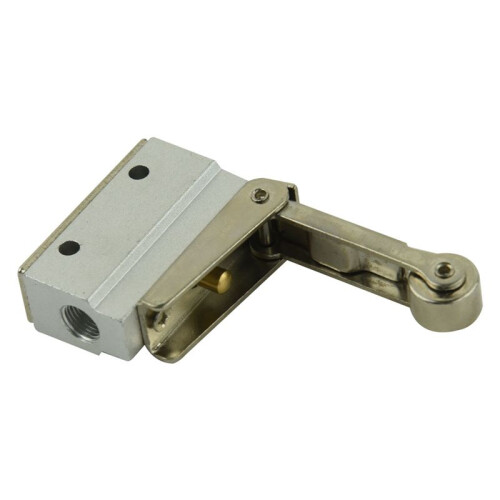

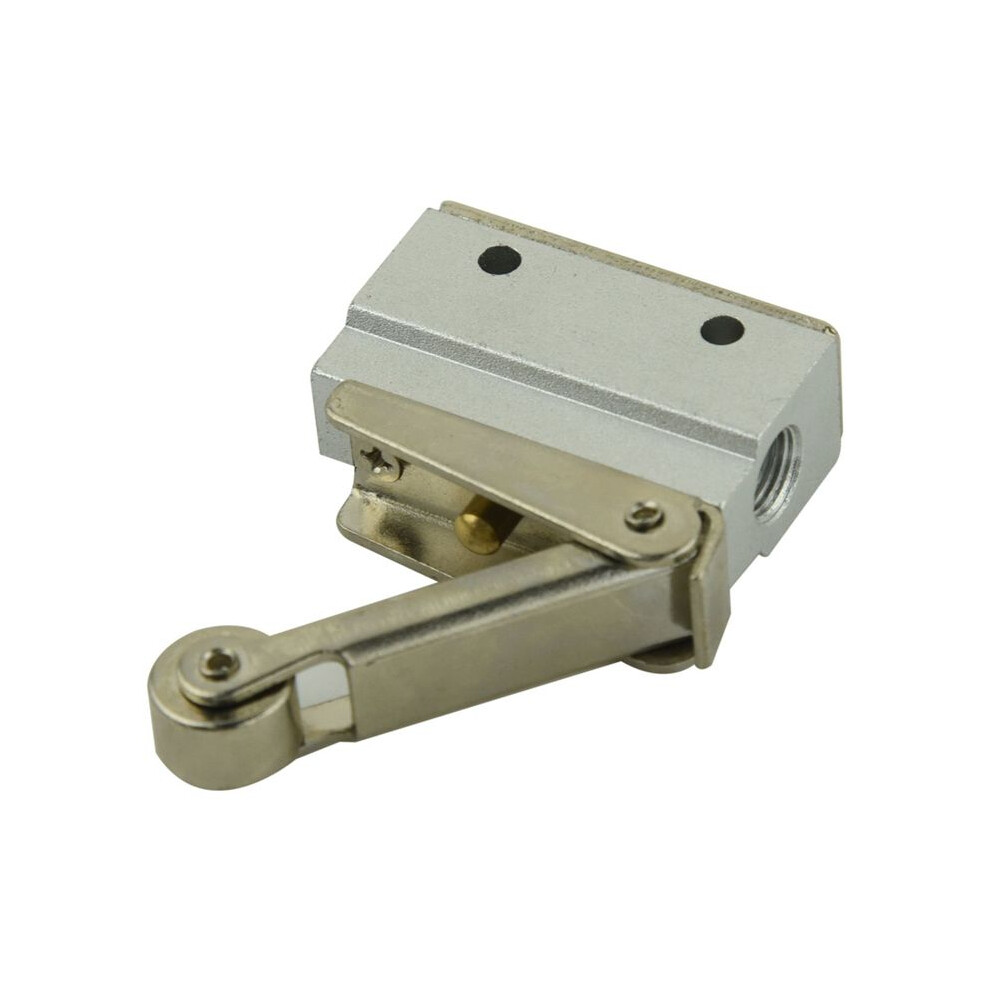

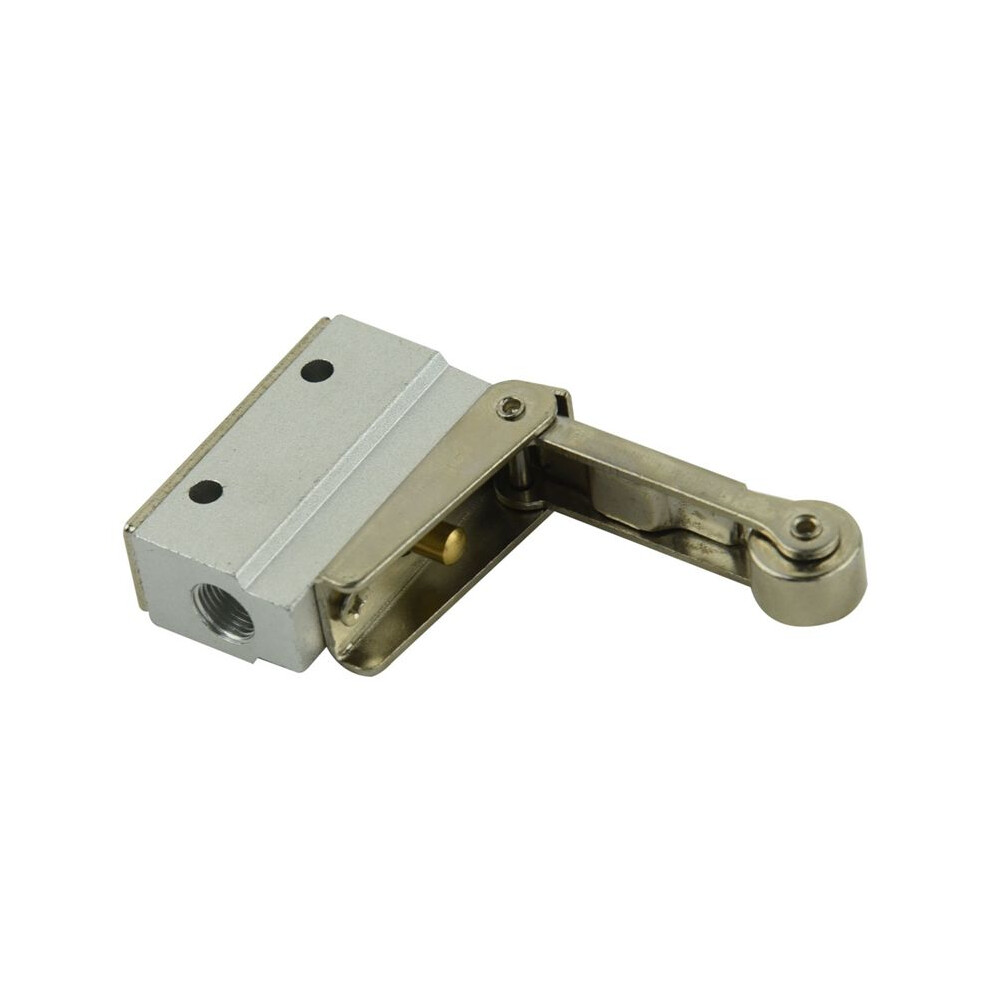

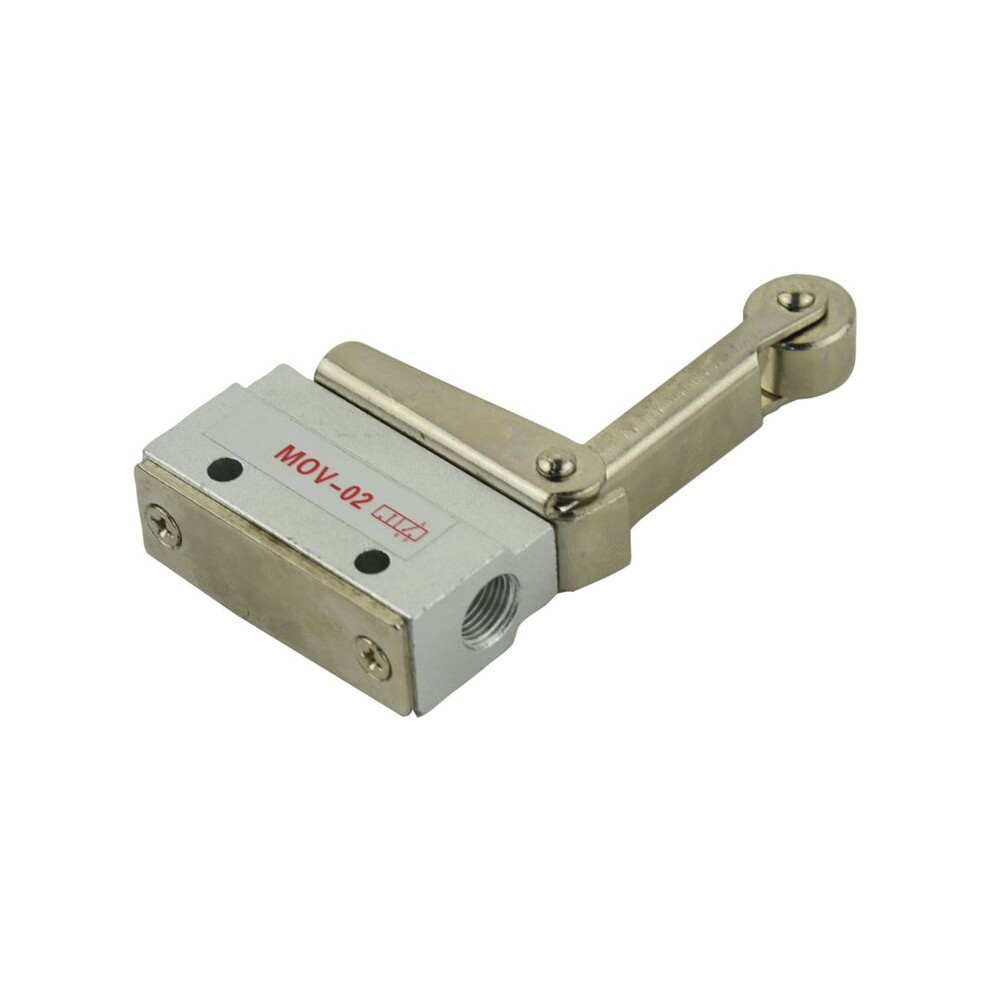

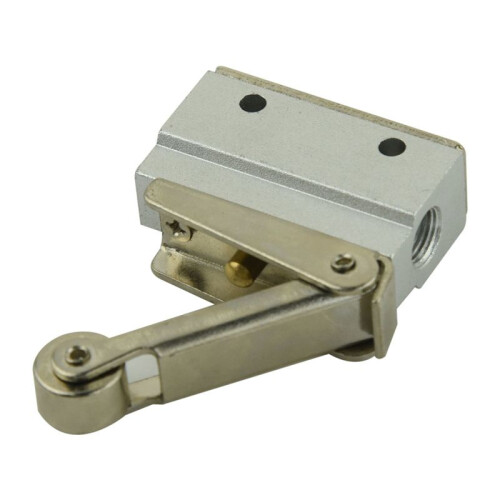

3X MOV-02 8.5mm 2 Position 3 Way Roller Lever Mechanical Valve

Descrição de 3X MOV-02 8.5mm 2 Position 3 Way Roller Lever Mechanical Valve

Product Name : Mechanical Valve;
Model : MOV-02;
Resetting Type : Standard Type;
Actuator Type : Roller Type
Fluid : Air;Position and Way No. : 2 Position 3 Way;

Pipe Thread Diameter: 8.5mm
Fixing Hole Diameter: 4.5mm;
Working Pressure Range: 0 - 8kgf/cm2
Roller Diameter: 13.8mm / 0.5 inch;
Arm Size(not include roller): 50 x 11mm / 1.9 inch x 0.47 inch (L x W);
Body Size(Approx.): 44 x 23.3 x 16mm / 1.7 inch x 0.9 inch x 0.63 inch(L x W x T)
Material: Alloy
3/2 way mechanical valve.
Steady performance,easy installation.
This pneumatic mechanical valve is used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted
Package: 3 x Mechanical Valve
