4mins DIY Recordable Greeting Card Module Light Sense Voice Sound Record Chip (Loop Play)

Descrição de 4mins DIY Recordable Greeting Card Module Light Sense Voice Sound Record Chip (Loop Play)

Features

1. Customizable recording lets you record music or any message you want for up to 4 minutes.

2. Light-sensing activation triggers the button and starts music playback automatically.

3. Powered by 3 button-cell batteries, with a 16Ω 0.25W speaker that delivers sufficiently loud sound.

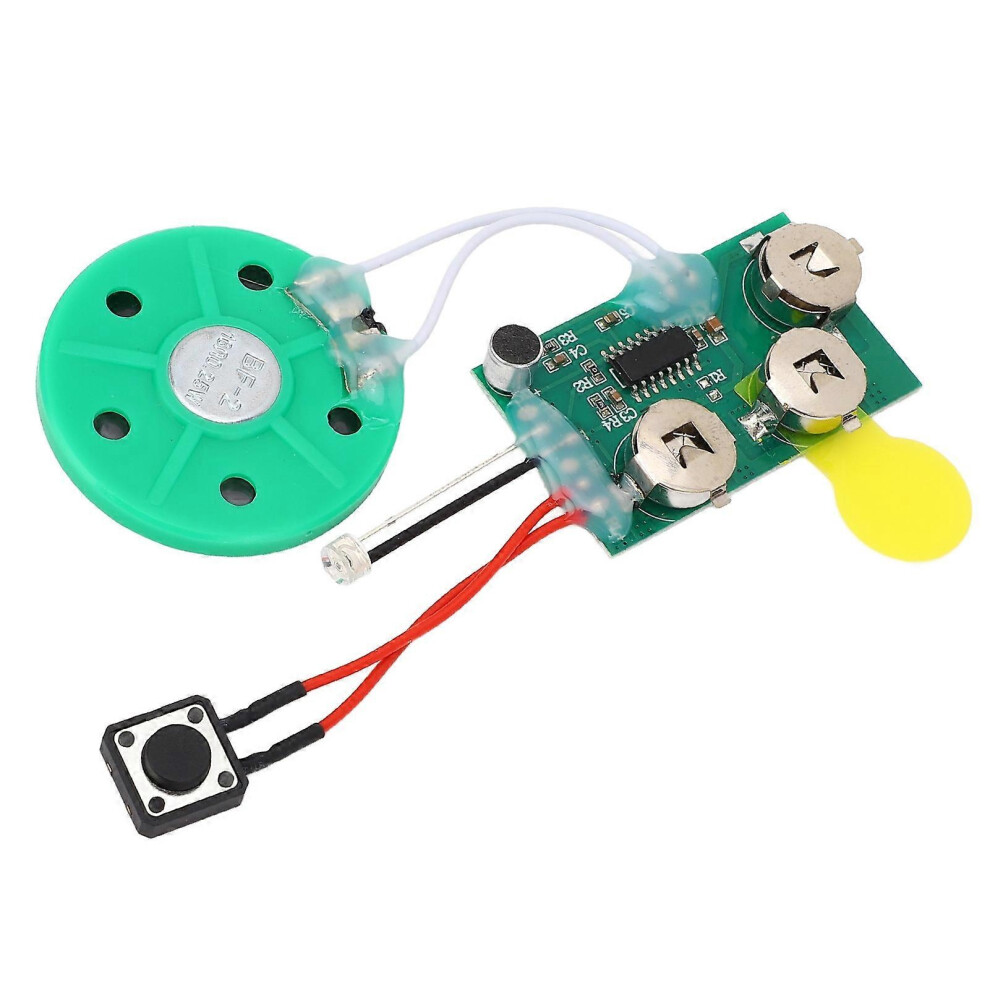

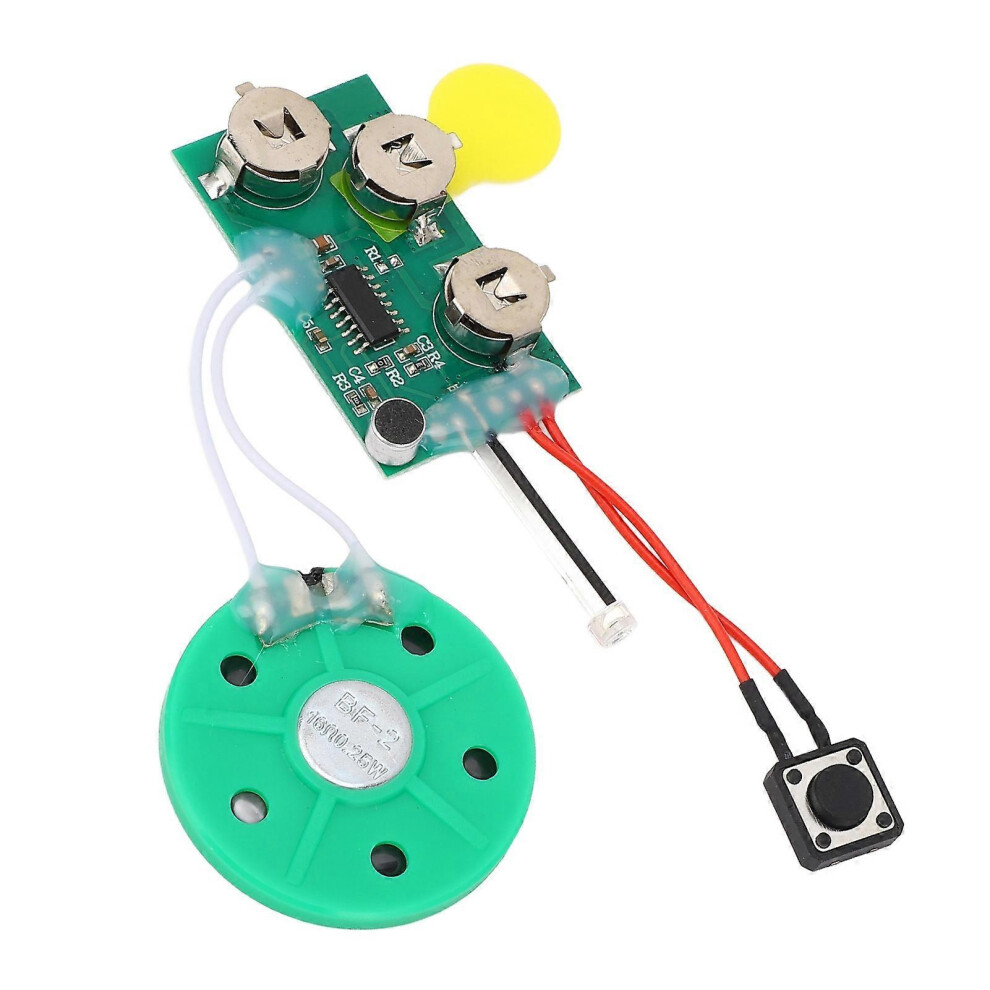

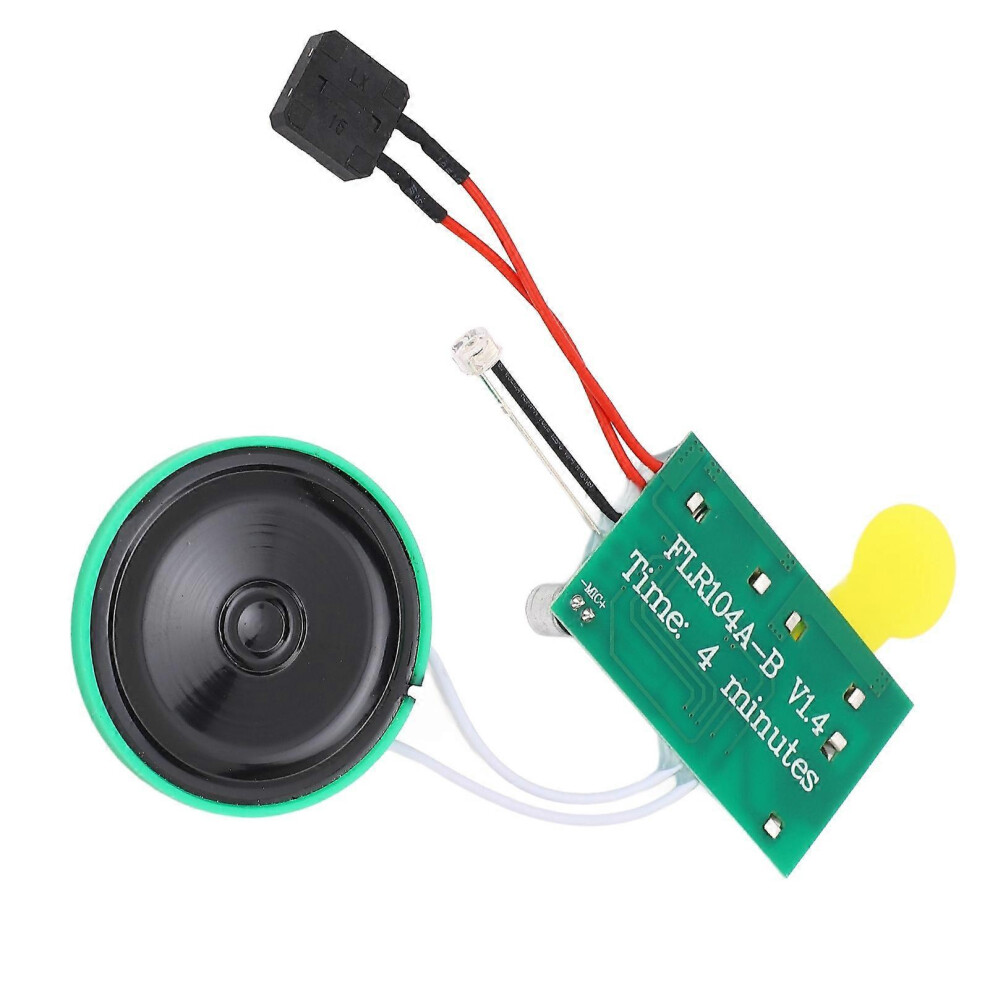

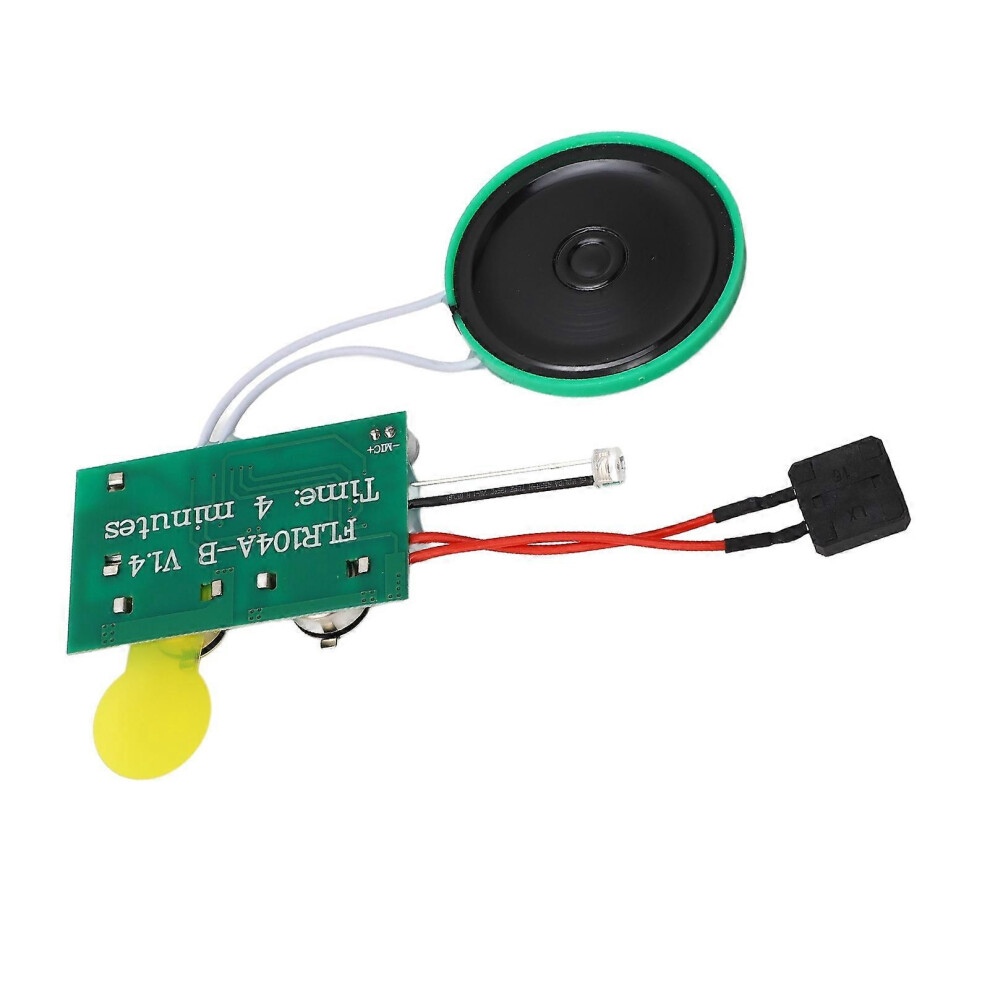

4. The module comes pre-soldered with the microphone, buttons, speaker, and battery components, so it is ready to use right after receiving the product, making it highly convenient.

5. Suitable for greeting cards, gift boxes, jewellery boxes, crafts, children's toys, and similar creative projects.

Specification

Recording time: 4 minutes

Working voltage: 3 button batteries, 3.0V-4.5V (batteries are included)

You can record repeatedly, and each new recording will replace the previous one.

Board size (L*W*H): 46 * 27 * 10mm / 1.8 * 1.1 * 0.4in

Speaker diameter: Approx. 40mm / 1.6in

Speaker thickness: Approx. 5mm / 0.2in

Key cable length: Approx. 5cm / 2in

Optional play mode: Single Play, Loop Play

Package list: 1 * Greeting Card Module

Recording and playback operation: Press the record button, hear the "DI" sound, then release the record button and speak from a distance of 5-10 cm from the microphone to start recording. Press the record button again, and when you hear the drop sound, release the button to indicate that recording is complete. Then press the play button to play the currently recorded sound. Press the play button again during playback to stop the sound.

Note: The key with the red wire is the recording key, and the key with the black wire is the play key.
