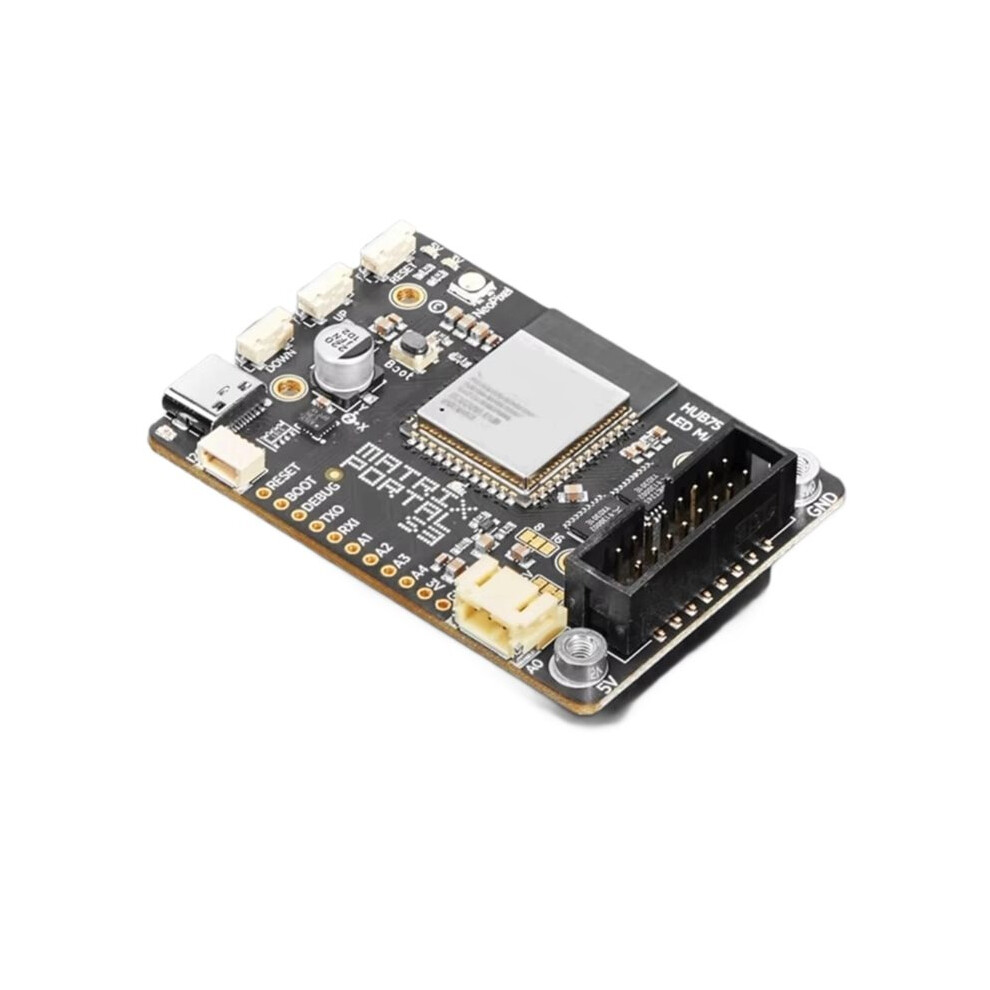

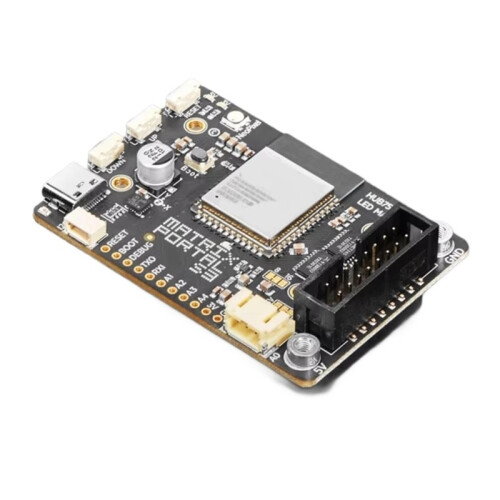

5778 Module for Adafruit Matrix Portal S3 CircuitPython Powered Internet Display WiFi and

Descrição de 5778 Module for Adafruit Matrix Portal S3 CircuitPython Powered Internet Display WiFi and

ESP32-S3 processor with 8 MB flash and 2 MB of , fully supporting and CircuitPython.
Built-in WiFi and LE capabilities, with CircuitPython currently supporting only WiFi.
USB Type C connector for data and power connectivity.
JST 3-pin connector with analog input for easy connection with JST PH 2.0mm pitch cables.
Includes LIS3DH accelerometer for digital sand projects or detecting taps/orientation, GPIO breakout strip, user interface buttons, and indicator LEDs.
The product features a powerful ESP32-S3 processor with 8 MB flash and 2 MB of , providing full support for and CircuitPython. It comes with built-in WiFi and LE capabilities, although CircuitPython currently supports only WiFi. The USB Type C connector allows for seamless data and power connectivity. Additionally, the JST 3-pin connector offers an analog input for quick connections with any JST PH 2.0mm pitch cable. The LIS3DH accelerometer is perfect for digital sand projects or detecting taps and orientation. The GPIO breakout strip includes reset, boot selection, TX debug output, and 6 GPIO pins, with 4 analog inputs supporting PWM, SPI, or I2S for adding other hardware. The product also features two user interface buttons, one reset button, an indicator NeoPixel, and red LED, along with green power indicator LEDs for both 3V and 5V power. The 2x10 socket connector fits snugly into 2x8 HUB75 , eliminating concerns about 'off by one' errors.
Color: Black
Material: PCB

Package Contents:
1*5778 Module
