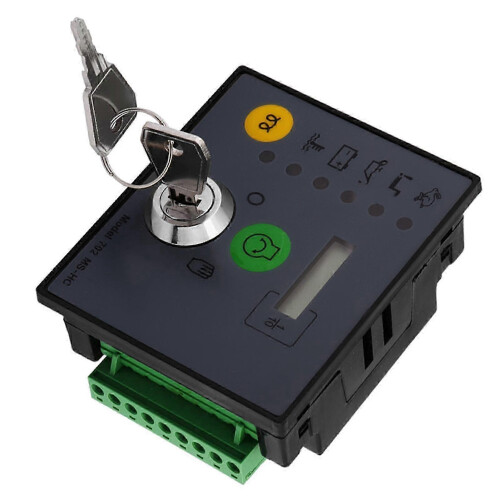

702 MS-HC Manual Start Generator Controller Panel With Keys for Engine Monitoring Protection

Descrição de 702 MS-HC Manual Start Generator Controller Panel With Keys for Engine Monitoring Protection

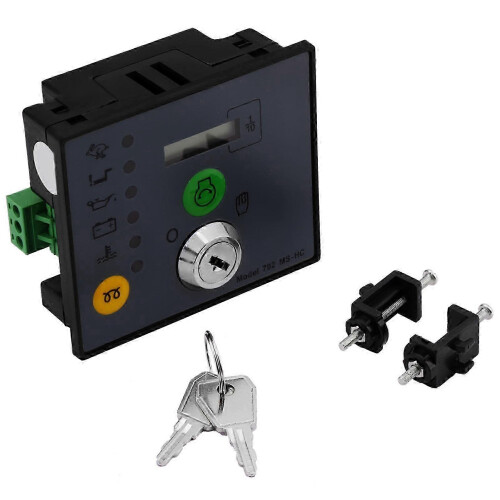

Product Details ①. Microcomputer control ensures reliable generator operation with manual start/stop functionality via on-board key/buttons ②. Comprehensive engine protection monitors low oil pressure, high water temperature, and overspeed, automatically shutting down the engine during fault conditions ③. LED indicators provide clear fault information, while LCD displays accurate running accumulative time for maintenance tracking ④. Battery charging monitoring capability through the WL terminal on the charge alternator Specification ①. Model: 702 MS-HC ②. Size: 8.5 x 7 x 3.8cm / 3.45 x 2.76 x 1.50inch ③. Weight: 157g ④. Overspeed protection trip setting: 57Hz (for 50Hz nominal operation) or 68Hz (for 60Hz nominal operation) Package Included ①. 1 x 702 MS-HC Generator Controller ②. 2 x keys ③. 2 x screws Warm Tips ①. During engine cranking and the first 10 seconds after starting, all alarm conditions except overspeed are suspended to allow engine to reach optimum running speed ②. Overspeed protection trip setting can be calibrated at the rear of the module for 50Hz or 60Hz operation ③. Follow manual start procedure: turn key to palm position press pre-heat button for required time press start button turn key to off position to stop engine
