BSIDE ZT702S Digital Multimeter Auto True RMS Tranistor Probe Multimetro Meter 48M/S 10MHZ PC WaveCompatiblem Data Storage Oscilloscope_Surprise Gift

Descrição de BSIDE ZT702S Digital Multimeter Auto True RMS Tranistor Probe Multimetro Meter 48M/S 10MHZ PC WaveCompatiblem Data Storage Oscilloscope_Surprise Gift

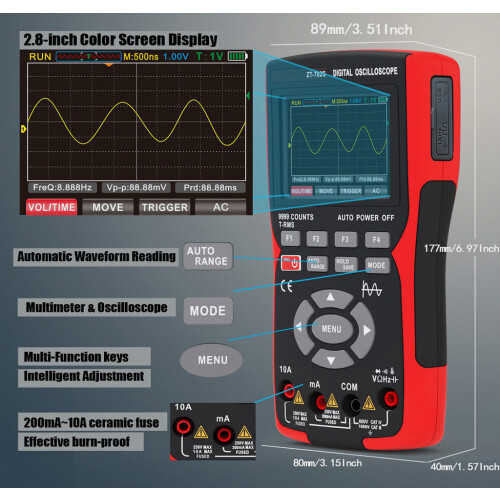

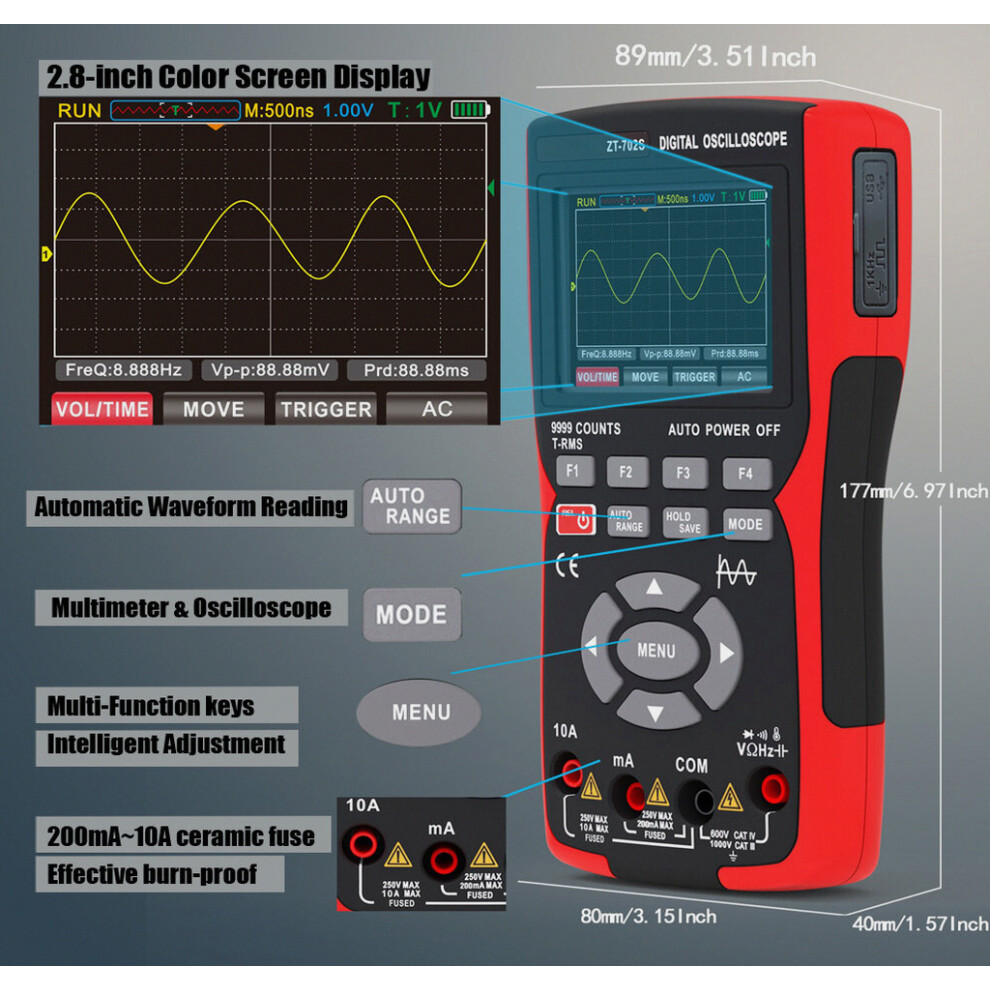

ZT702S is a fully functional, practical and cost-effective handheld Multimeter Oscilloscope newly launched by BSIDE. Please click here to download the Chinese and English manual Features: [Scope Mode]: 2.8" IPS color LCD oscilloscope, 10MHZ bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.[Multimeter Mode]: 9999 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.[Data Saved and Transfer]: The tested data can be saved and transfered.[Color LCD Display]: Color LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.[Rechargeable]: Come with a rechargeable 18650 battery & charging cable, you will never worry about power problem. Specification: Display: 9999 countsScreen Size: 2.8 inchBandwith: 10MHzReal-time smaple rate: 48MSa/sInput Impedance: 1MΩ,@16pfMaximum input voltage: 400V (DC+AC peak)Horizontal SEC range: 50ns/div -20s/divVertical sensitivity: 20mV/div -10V/divDC voltage:9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V (0.5%+3)AC voltage:9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V (1.0%+3)DC current:9999μA/99.99mA 1μA/0.01mA (0.8%+3); 999.9mA/9.999A 0.1mA/0.001A (1.0%+3)AC current:9999μA/99.99mA 1μA/0.01mA (1.0%+3); 999.9mA/9.999A 0.1mA/0.001A (1.2%+3)Resistance:99.99Ω0.01Ω (1.0%+3); 999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ (0.5%+3);9.999MΩ 0.001MΩ(1.5%+3); 99.99MΩ 0.01MΩ (3.0%+5)Capacitance: 9.999nF 0.001nF (5.0%+20);99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF (2.0%+5);9.999mF 0.001mF (5.0%+5)Frequency:99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz (0.1%+2) Temperature: -20-1000/-4-1832 (2.5%+5)Diode: YesContinuity: YesPower: 18650 battery Package Included: 1 x Oscilloscope1 x Test Leads1 x Oscilloscope probe1 x Thermocouple1 x Carrying Case1 x Screwdriver1 x User Manual
