Compatible With SINOTIMER MH0302 Intelligent Temperature Humidity Controller MH0302

Descrição de Compatible With SINOTIMER MH0302 Intelligent Temperature Humidity Controller MH0302

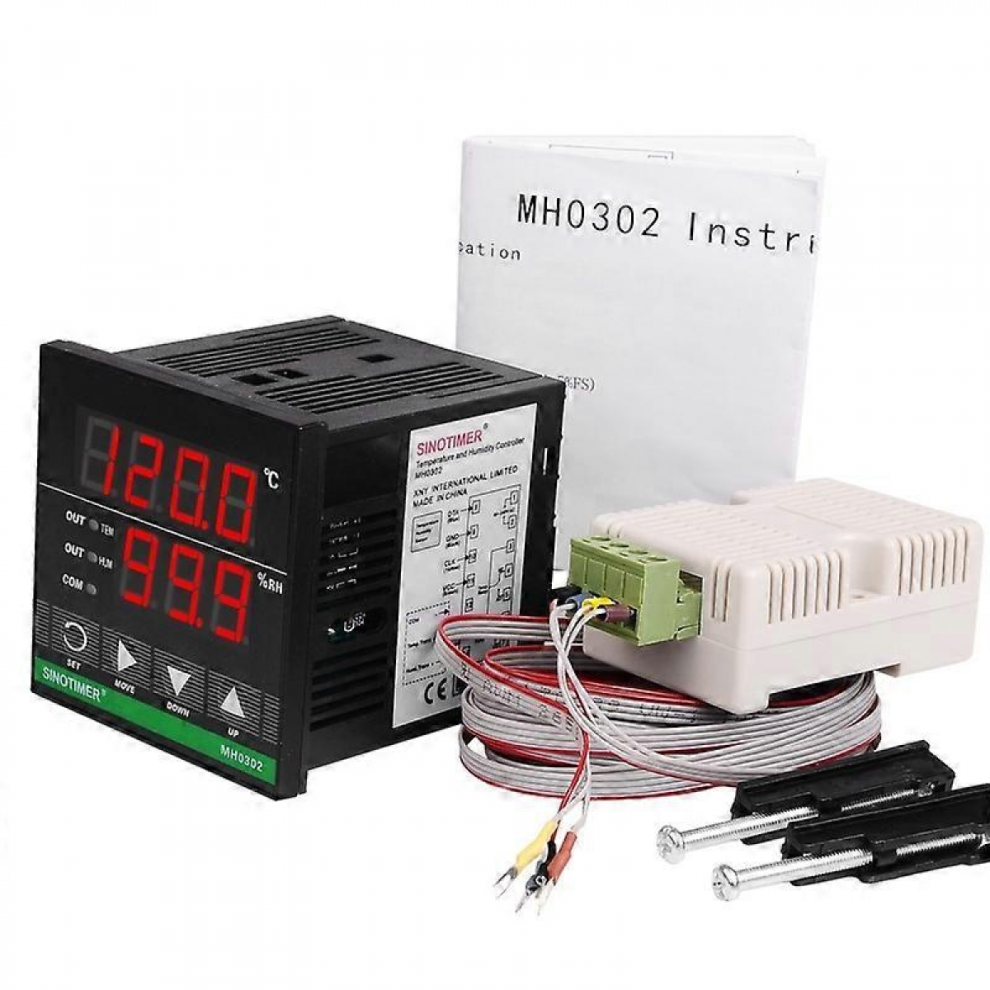

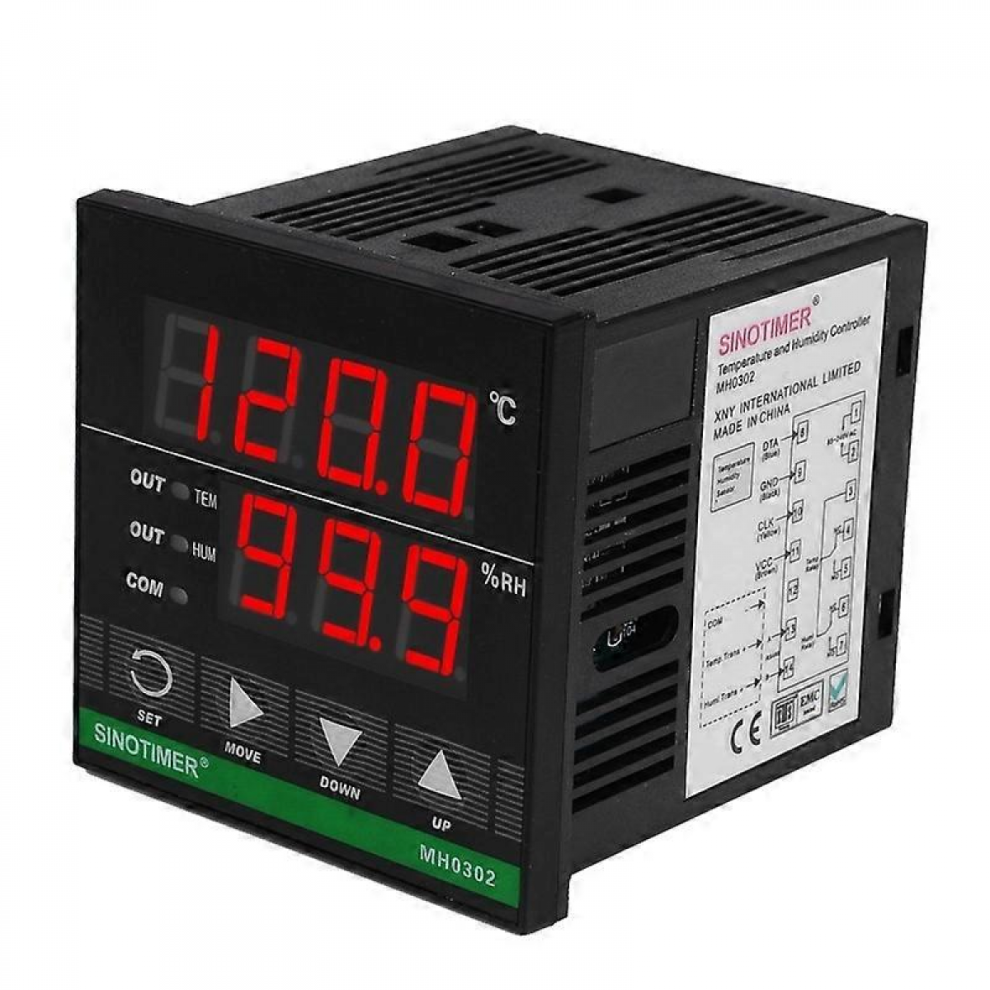

SINOTIMER MH0302 Intelligent High Precision Temperature Humidity Controller Digital Display Temperature and Humidity Meter

1. Operating power: AC220V, 50HZ

2. Power consumption: less than 2W

3. Resolution: 0.1

4. Setting temperature: -40.0-120 degrees Celsius

5. Setting humidity: 0-99.9%

6. Basic error: temperature: less than 0.5% FS; humidity: less than 4.5% FS

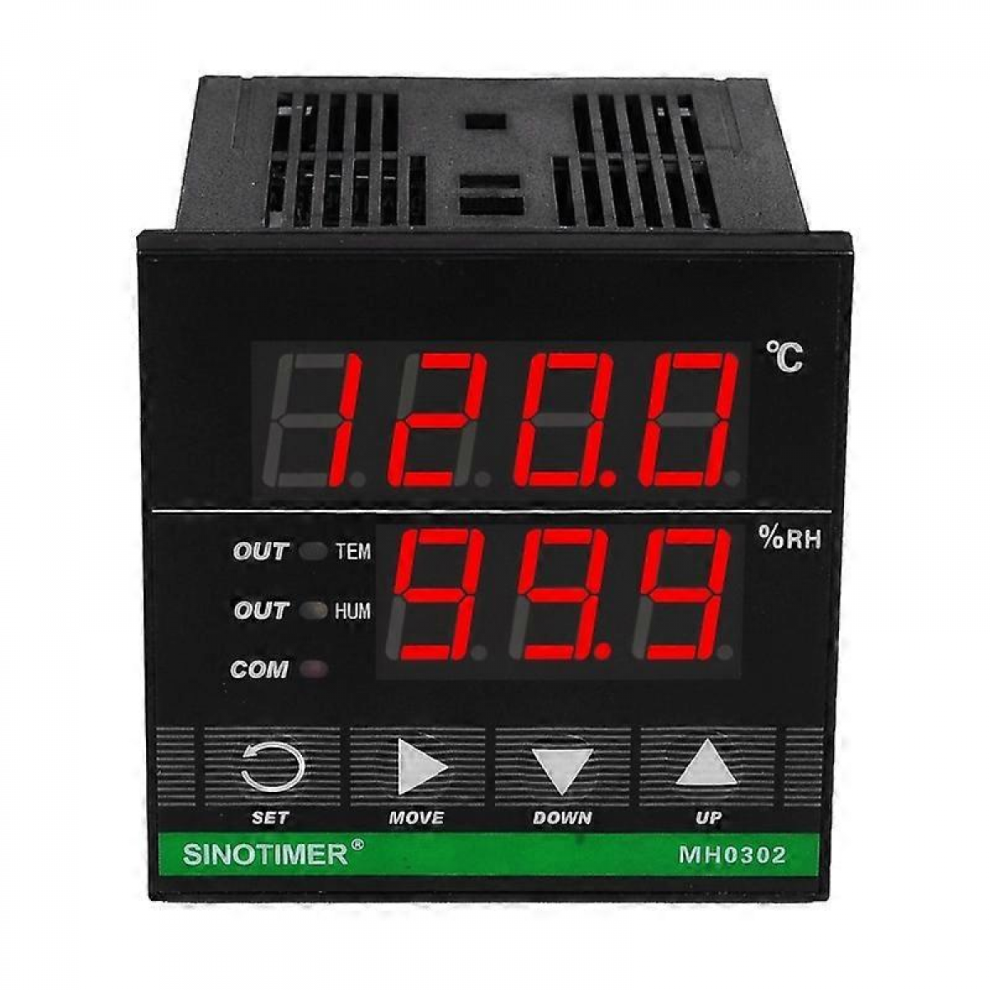

7. Display device: LED (0. 56 inch)

8. Control output: AC250V 3A (resistive load)

9. Operating environment: -10 - 50 degrees Celsius, 45-85% RH

10. External size: about 7.2 x 7.2 x 8cm

11. Opening size: about 6.8 x 6.8cm

Main uses:

1. Apply to the baking room, grain depot, warehouse, machine room, breeding, textile industry and other need for automatic dehumidification or humidification and automatic temperature exhaust or heating occasions

2. Suitable for automatic heating and dehumidification of outdoor terminal box and distribution box, preventing all kinds of malfunctioning accidents caused by creepage between terminals

3. Suitable for automatic heating and dehumidification of indoor high-voltage power distribution equipment and high-voltage switch operating mechanism, automatic heating in low-temperature environments to prevent switch malfunction caused by insulation creepage and mechanism failure in low-temperature environments

4. Apply to the switching mechanism box, trolley type switchgear, medium-set cabinet, box transformer and other equipment in the box for a number of parts of the moisture-proof, low-temperature on-line monitoring

Features:

1. Real-time display of temperature and humidity, optional modules can realize the temperature and humidity transmission output and RS485 communication function

2. Using high-performance, high-precision, corrosion-resistant, long-life digital temperature and humidity sensors, wide measurement range, good linearity, can work reliably for a long time in a variety of environments

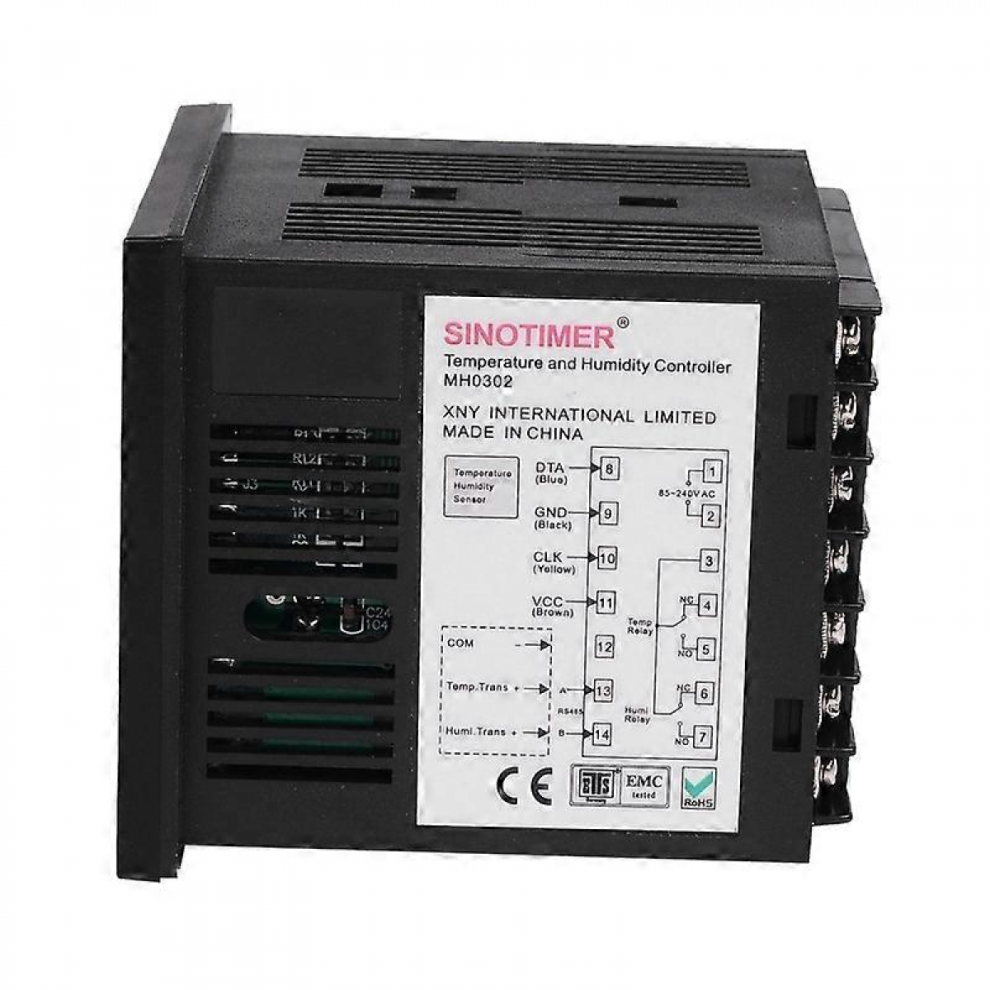

3. Sensor with 4 wires for temperature and humidity signal transmission, the distance between the sensor and the instrument can be within
