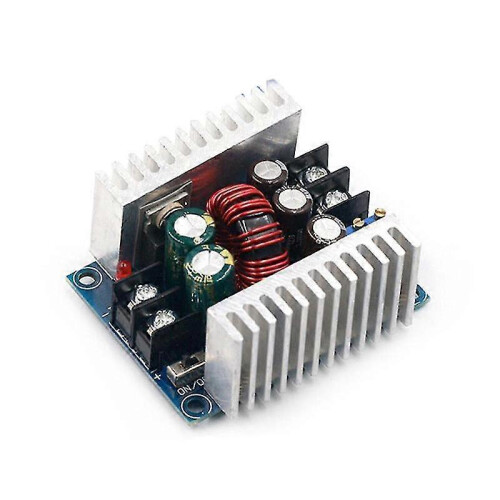

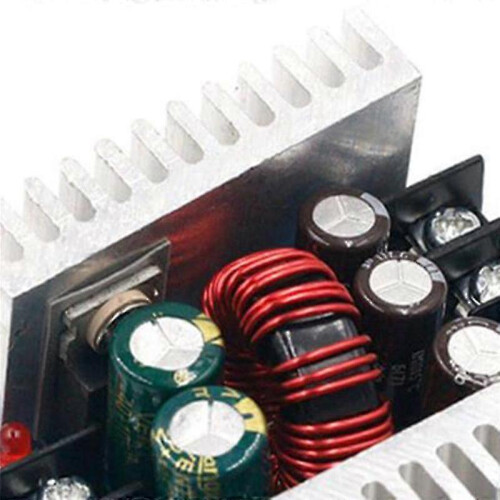

DC-DC Adjustable Buck Converter Module 300W 20A Constant Current Voltage Regulator 6V-40V Input 1.2V-36V Output Power Driver

Descrição de DC-DC Adjustable Buck Converter Module 300W 20A Constant Current Voltage Regulator 6V-40V Input 1.2V-36V Output Power Driver

Product Details 1. Wide input voltage range from 6V to 40V DC (10V to 40V suggested) for versatile power source compatibility 2. High efficiency up to 95% (24V to 12V, 20A) reduces energy loss during voltage conversion 3. 75V/80A large current dual MOS tube ensures stable performance under high current conditions 4. High frequency low resistance electrolytic capacitors provide low ripple (50mV) and stable output 5. 30A screw terminals enable convenient and secure wiring for high current applications 6. Dual heat sinks enhance heat dissipation to maintain optimal operating temperature Specification 1. Input Voltage: 6V to 40V DC (10V to 40V suggested) 2. Output Voltage: 1.2V to 36V DC 3. Output Current: 20A (max.), 15A (suggested) 4. Efficiency: 95% (24V to 12V, 20A) 5. Output Ripple: 50mV 6. Short Circuit Protection: Self-recovery (cannot short circuit for long time) 7. Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06inch 8. Material: PC+Metal 9. Colour: As shown Package Contents 1. 1 x 300W 20A Buck Converter Warm Tips 1. When there is a small difference between input and output voltage, decrease power and current 2. EN pin function: low voltage level shuts off output; suspension or high voltage level enables output 3. When input and output are common grounded, no-load CV outputs constant voltage and CC outputs constant current 4. Light and different displays may cause the color of the item to differ slightly from the real thing 5. The measurement allowed error is +/- 1-3cm
