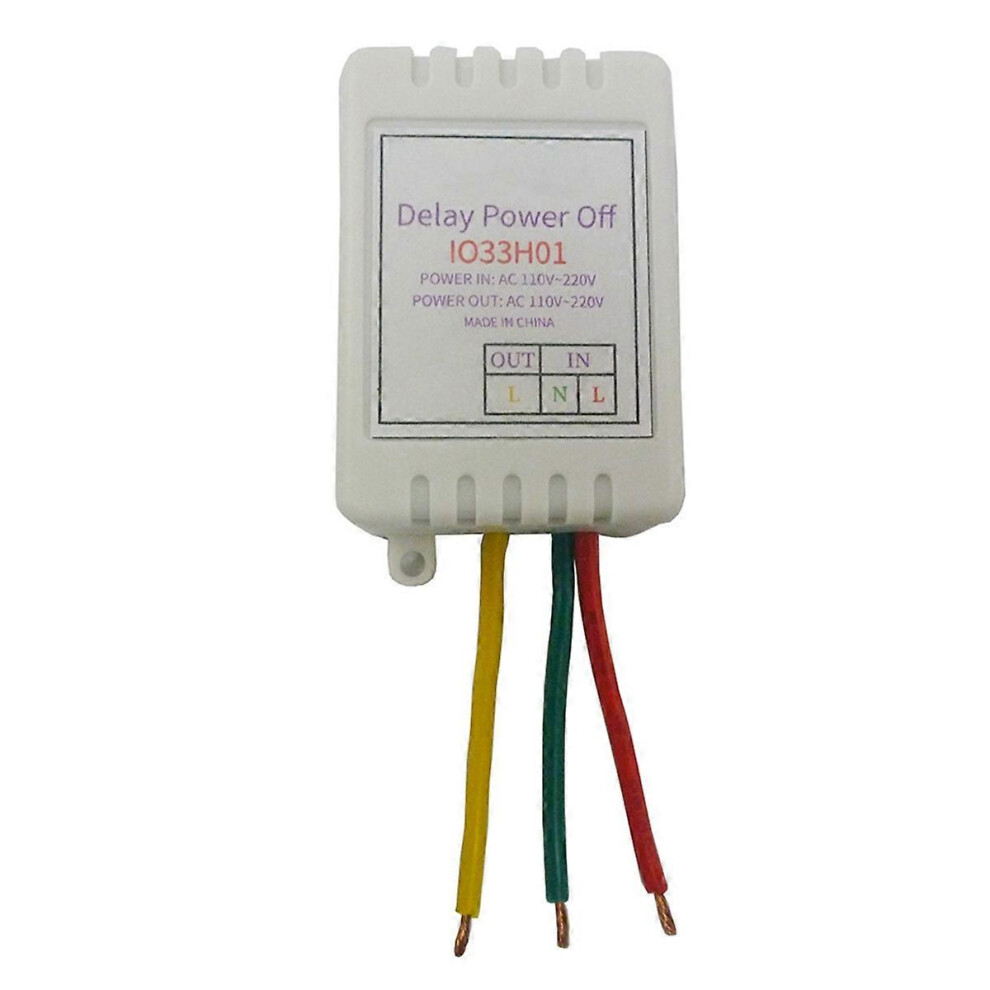

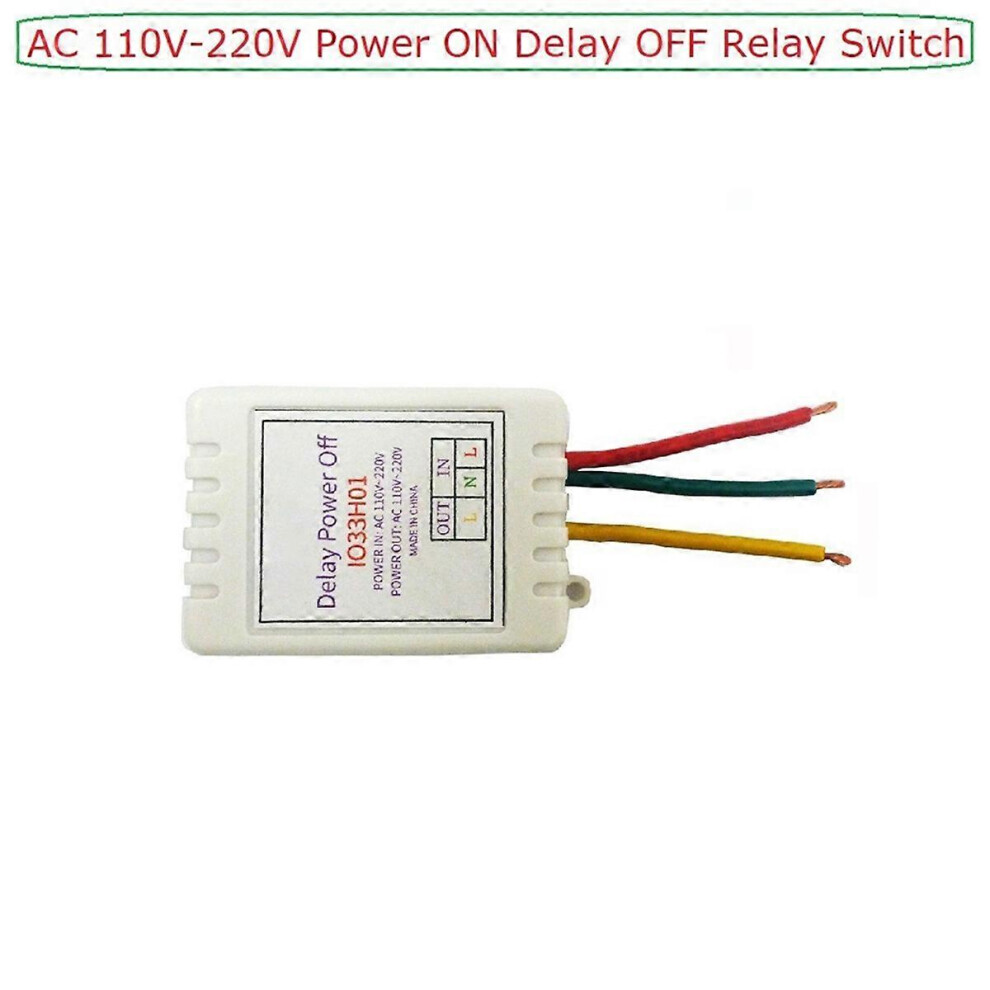

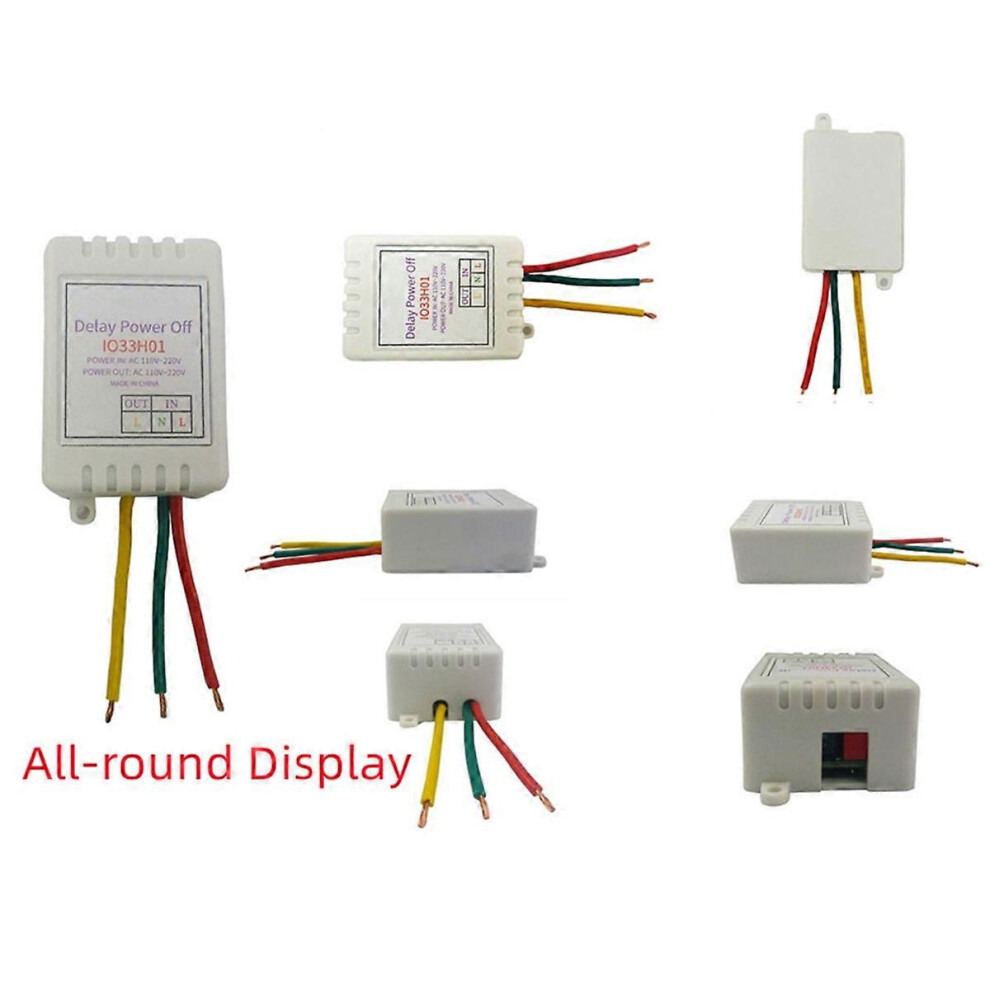

Delay Off Timer Relay Switch AC 110-220V 7A 16 Modes 1-480 Min Adjustable

Descrição de Delay Off Timer Relay Switch AC 110-220V 7A 16 Modes 1-480 Min Adjustable

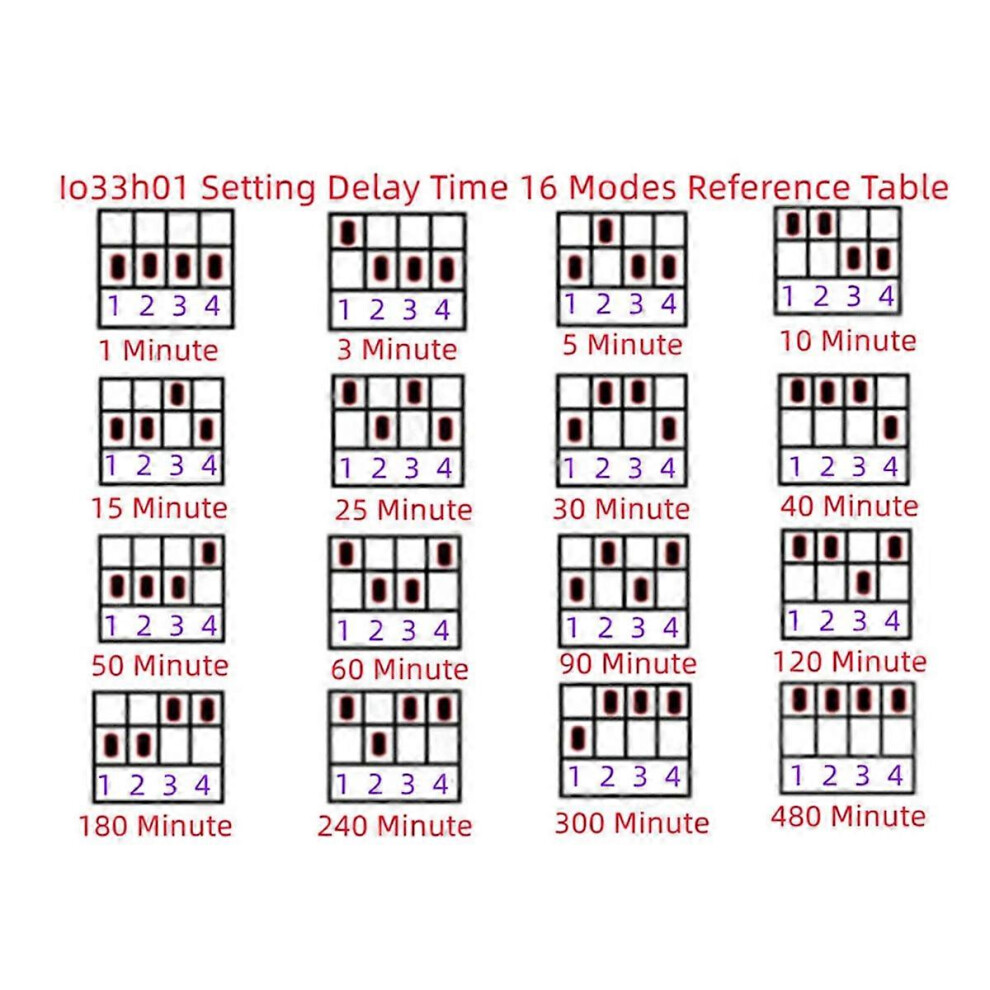

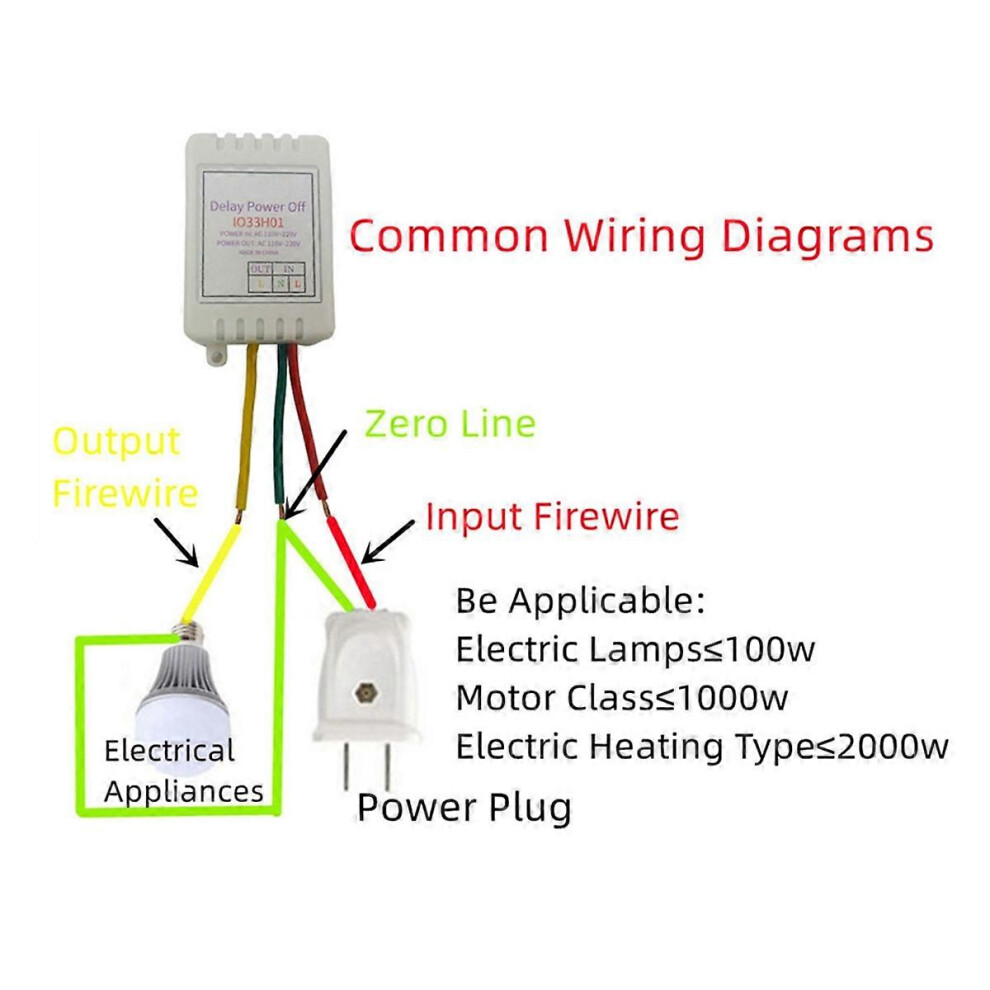

Product Details ①. Delayed shutdown function stops power supply automatically after set time, suitable for controlling exhaust fans, motors, air coolers and other devices in living room, kitchen, bathroom and other scenes ②. Small size with simple operation, stable performance ensures reliable use ③. 16 delay modes available from 1 minute to 480 minutes, meeting various time control needs ④. LED indicator shows working status clearly, constant light means working, flashing means delay over Specification ①. Material: PCB+Components ②. Output current: 7A (MAX 10A) ③. Working power consumption: 43mA ④. Output voltage: AC110-220V ⑤. Power supply voltage: AC 110-220V ⑥. Maximum standby power consumption: 12mA ⑦. Number of control channels: 1 output ⑧. Working temperature: -25~85 ⑨. Working humidity: 5%~95%RH ⑩. Control power: 1400W (max) incandescent lamp, energy saving lamp 300W (max) ⑪. Colour: As Shown ⑫. Style: B with housing Package Contents ①. 1 Delay Relay Switch Warm Tips ①. Set the delay time before power on, live setting is not allowed ②. After checking correct wiring, power on to start working. When time is up, module stops power supply ③. To shut down in advance, disconnect the main power supply of the module ④. To start second delay, power on again ⑤. Due to different product batches, the appearance may vary, which does not affect the use ⑥. Light reflection and different displays may cause color difference between picture and real item ⑦. Measurement allowed error is +/- 1-3cm
