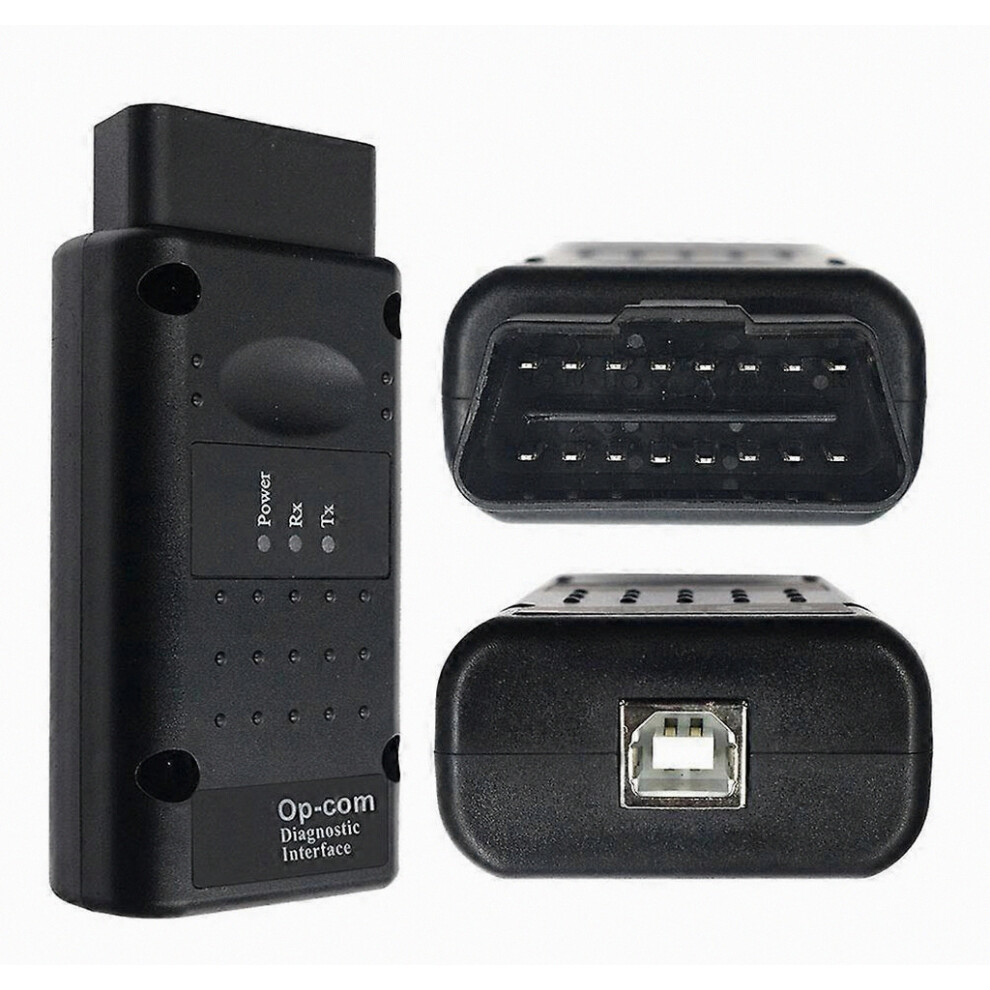

Diagnostic Tool for Opel OP COM OP-COM PIC18F458 Firmware OPCOM V1.99

Descrição de Diagnostic Tool for Opel OP COM OP-COM PIC18F458 Firmware OPCOM V1.99

Features:

1. The diagnostic inteface is USB port based, so there will be no compatibility issues, with serial to USB converters.

2. The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit

4. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples. Since many pins used in the OBD connector for Opel, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 Serial Link ISO9141, KW81, KW82, KWP2000

5. Fault codes will be shown with all available information: Full status information Present, Not present, Intermittent

6. The program shows you measuring block information on many control module, you can choose anything from the list on your own.

7. You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

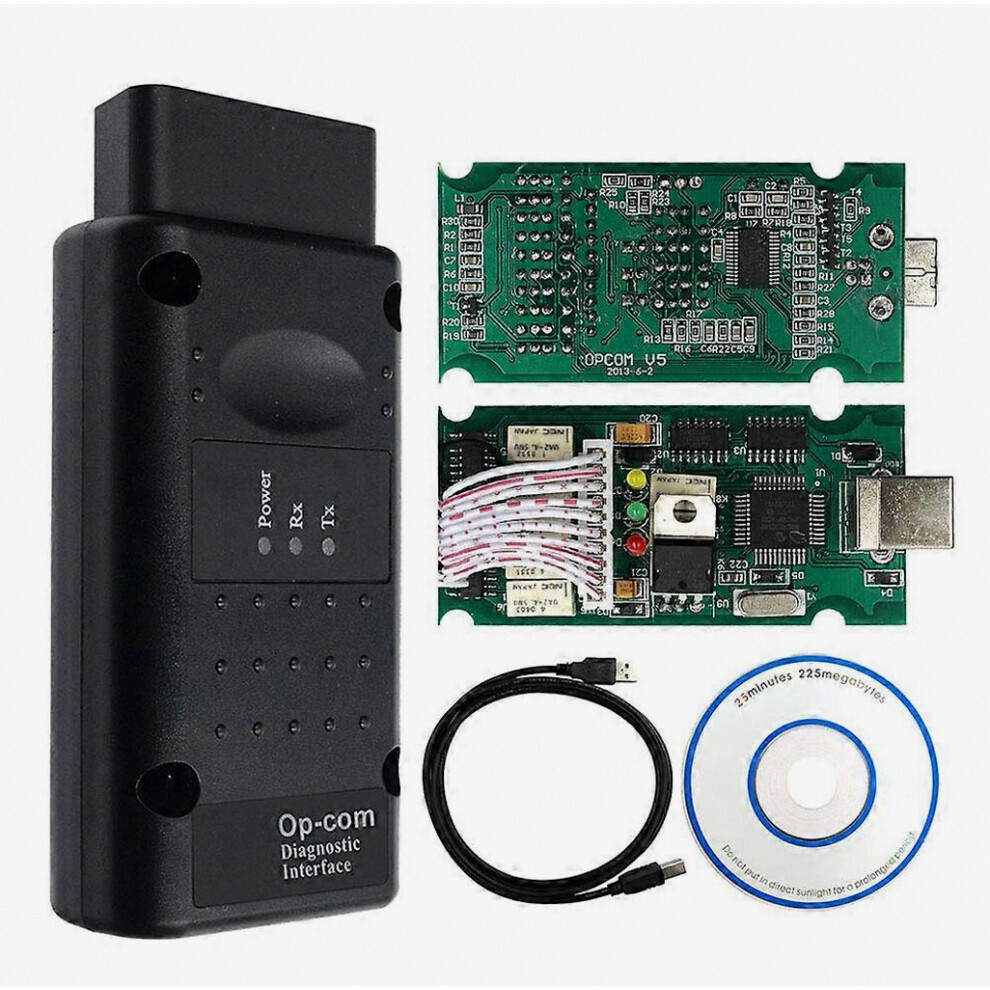

Package List:

1 x OP-COM Interface

1 x USB Cable

1 x CD
