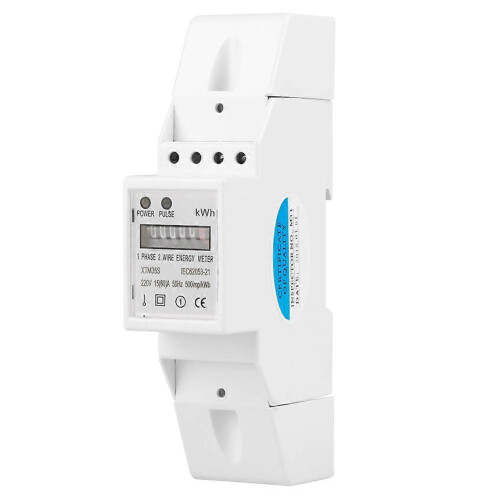

DIN Rail Energy Meter 220V 15(60)A Class 1 Single Phase 2 Wire KWh Meter

Descrição de DIN Rail Energy Meter 220V 15(60)A Class 1 Single Phase 2 Wire KWh Meter

Product Details 1. 35mm DIN standard rail mounted, conforming to DIN EN 50022, suitable for standardised installation environments 2. Bipolar width complying with DIN43880, ensuring compatibility with common mounting setups 3. Selectable 5+1 digit step motor impulse register (99999.1kWh) for accurate energy measurement recording 4. Polarity passive energy impulse output terminal conforming to IEC 62053-31 and DIN 43864, facilitating energy data transmission 5. Two separate LEDs indicating power state and energy impulse signal, providing clear operational status visibility 6. Measures single phase two wire active energy consumption in one direction, independent of load current flow direction, complying with IEC 62053-21 7. Transparent PC short terminal cover reduces installation space and enables convenient centralised installation Specification 1. Model: XTM35S 2. Accuracy: Class 1 3. Voltage: 220V 4. Current options: 5(30)A, 20(80)A, 15(60)A 5. Insulation performance: AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv 6. Size: 14 x 7cm / 5.51 x 2.75in 7. Weight: 186g Package Included 1. 1 x DIN-Rail Electric Meter 2. 1 x Manual Warm Tips 1. Ensure correct wiring according to the manual instructions before use 2. The transparent terminal cover should be properly installed to protect the terminals 3. Select the appropriate current rating model based on actual usage requirements
