Ebike SW900 LCD Display Control for Electric Bicycle Speed Meter with Plug and Settings Function

Descrição de Ebike SW900 LCD Display Control for Electric Bicycle Speed Meter with Plug and Settings Function

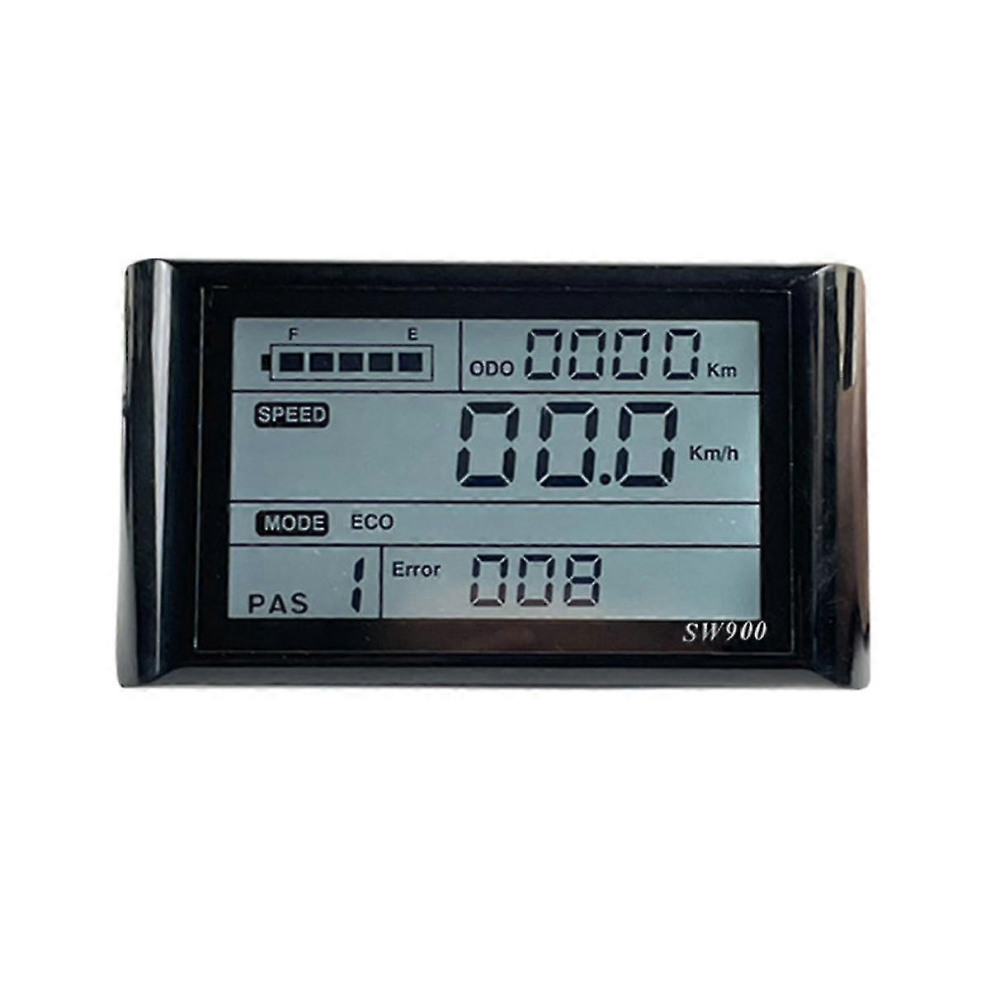

Features: (1) Display functions include speed display, pedal assist gear display, battery level indicator, fault prompt, mileage, single trip mileage, headlight status, and single riding time display.

(2) Control and setting functions include power switch control, headlight switch control, 6 km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, and voltage setting.

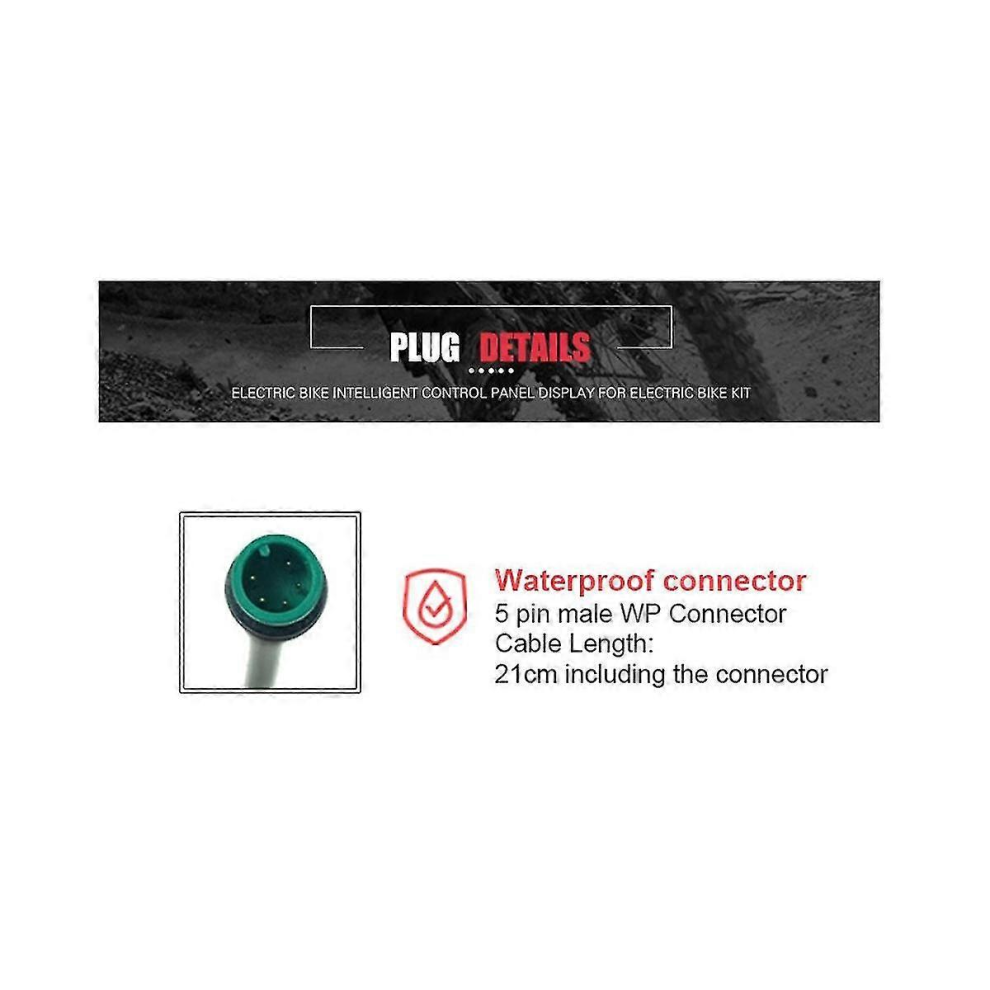

(3) Harness description: red (P+) meter power wire; blue (VCC) electric door lock wire; black (GND) negative wire; green meter data receiving wire; yellow (TX) meter data transmission wire.

(4) Meter setting functions: long press the up and down buttons on the meter to enter meter settings. P01: backlight brightness, level 1 is the darkest and level 3 is the brightest. P02: mileage unit, 0 = KM, 1 = MILE. P03: voltage level, 24V, 36V, 48V. P04: sleep setting, 0 means no sleep; other values are sleep time, range 1-60, unit: minutes. P05: pedal assist gear, 1-9. P06: wheel diameter, unit: inch, precision: 0.1. P07: number of speed magnets, range: 1-100. P08: speed limit, speed percentage range 0-100%, 100 means full speed. P09: zero-start and non-zero-start setting, 0 = zero start, 1 = non-zero start. P10: drive mode setting, 0 = pedal assist drive, handle invalid; 1 = electric drive, turning the handle drives the vehicle, assist function invalid at this time; 2 = pedal assist drive and electric drive coexist at the same time. P11: assist sensitivity setting range: 1-24. P12: assist start intensity setting range: 0-5. P13: pedal assist magnet type setting, with three types of 5, 8, and 12 magnets; 5 and 8 are single Hall pedal assist sensors, and 12 is used for dual Hall assist sensors. P14: this function is reserved. P15: this function is reserved. P16: ODO reset setting, long press the up button for 5 seconds to reset ODO.

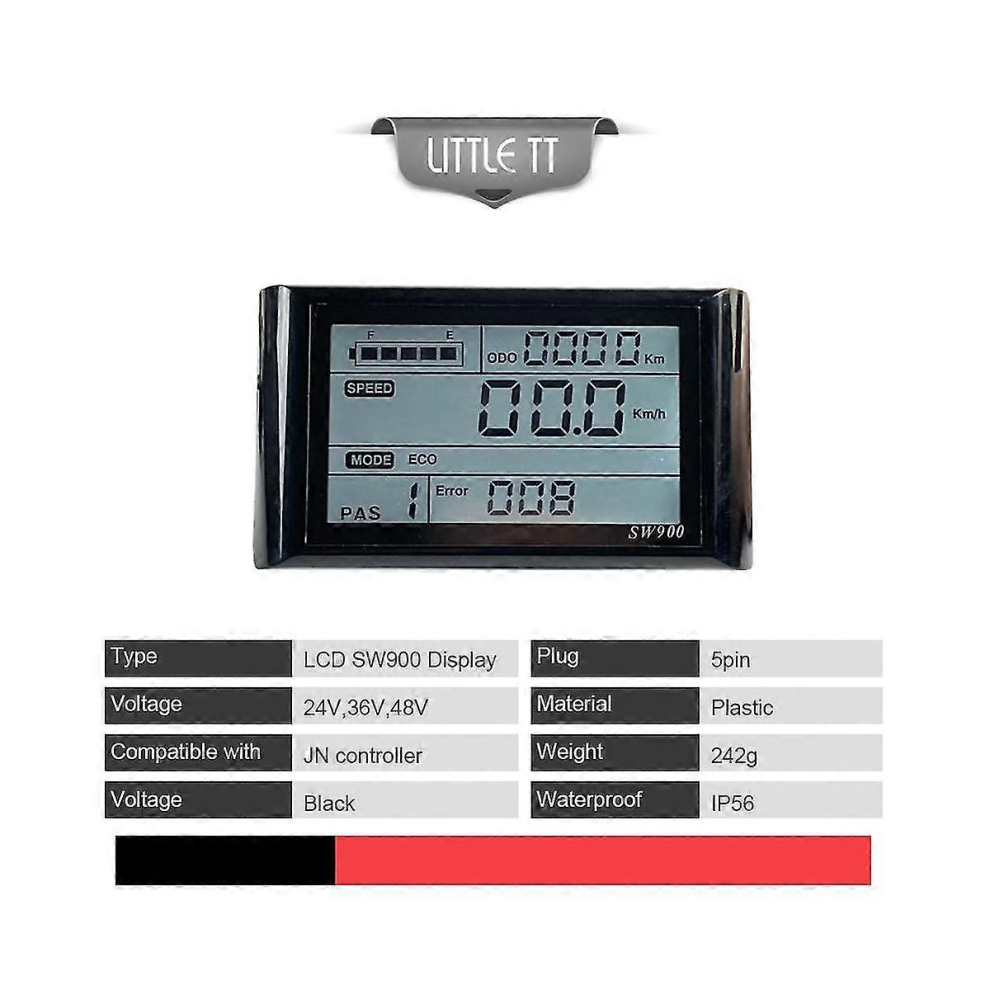

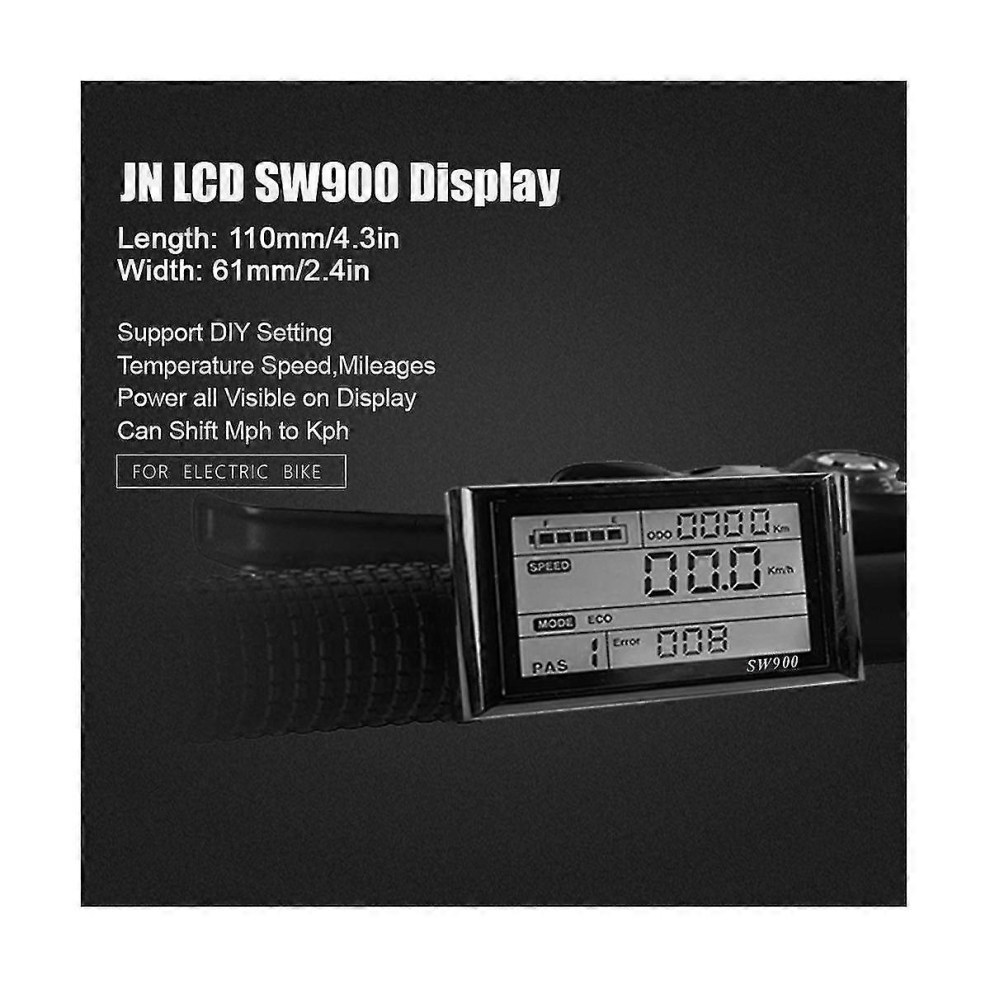

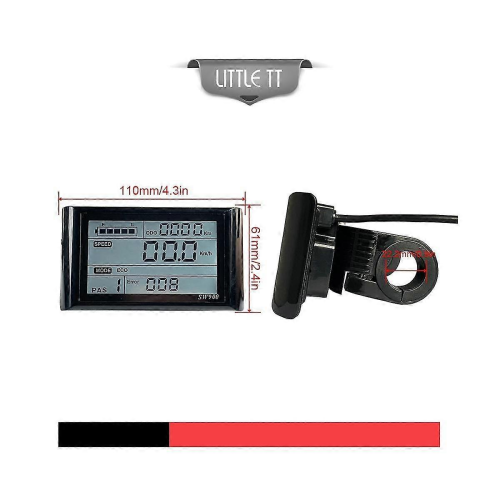

(5) This display is designed for an electric bicycle handlebar installation, with a black plastic housing. Package contents: 1 x display. Only the above package content is included, other products are not included. Note: light reflection and different displays may cause the color of the item in the picture to differ slightly from the actual product. The allowed measurement error is +/- 1-3 cm.
