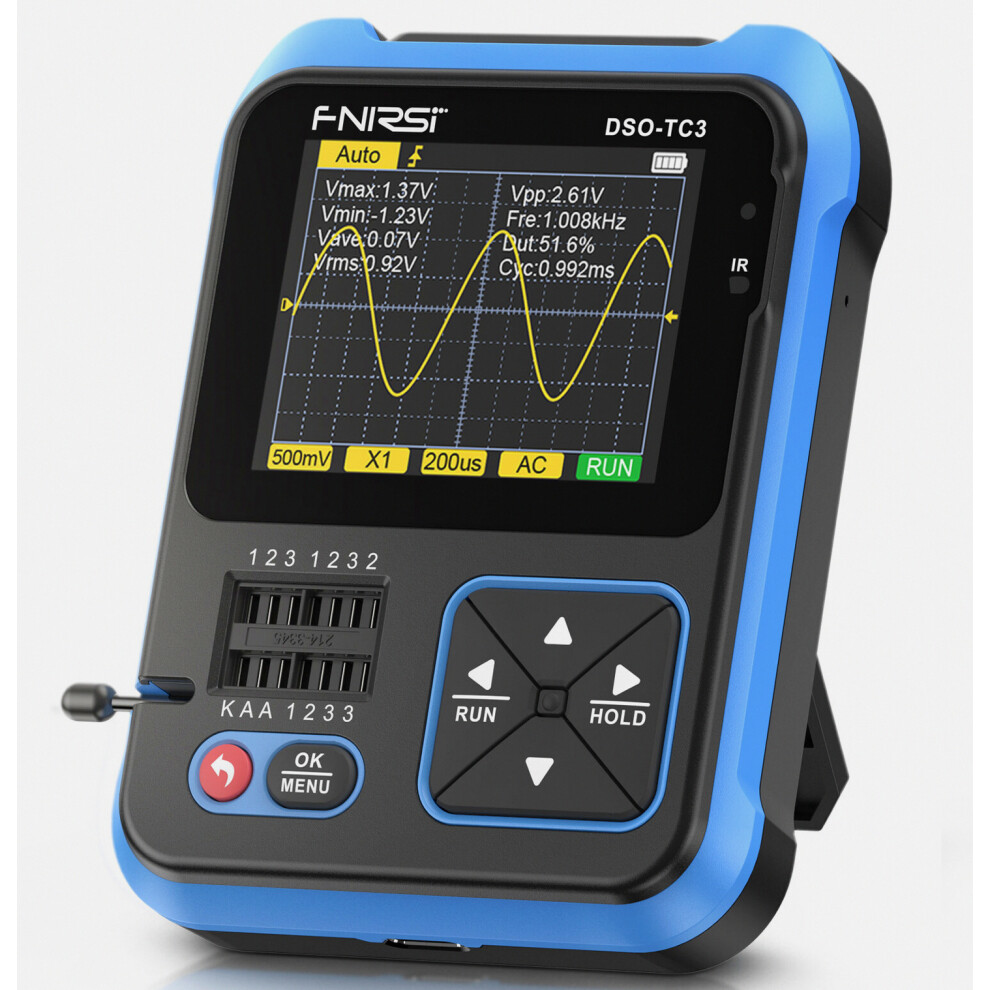

FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1 Multifunction Electronic Component Tester_Surprise Gift

Descrição de FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester Function Signal Generator 3 in 1 Multifunction Electronic Component Tester_Surprise Gift

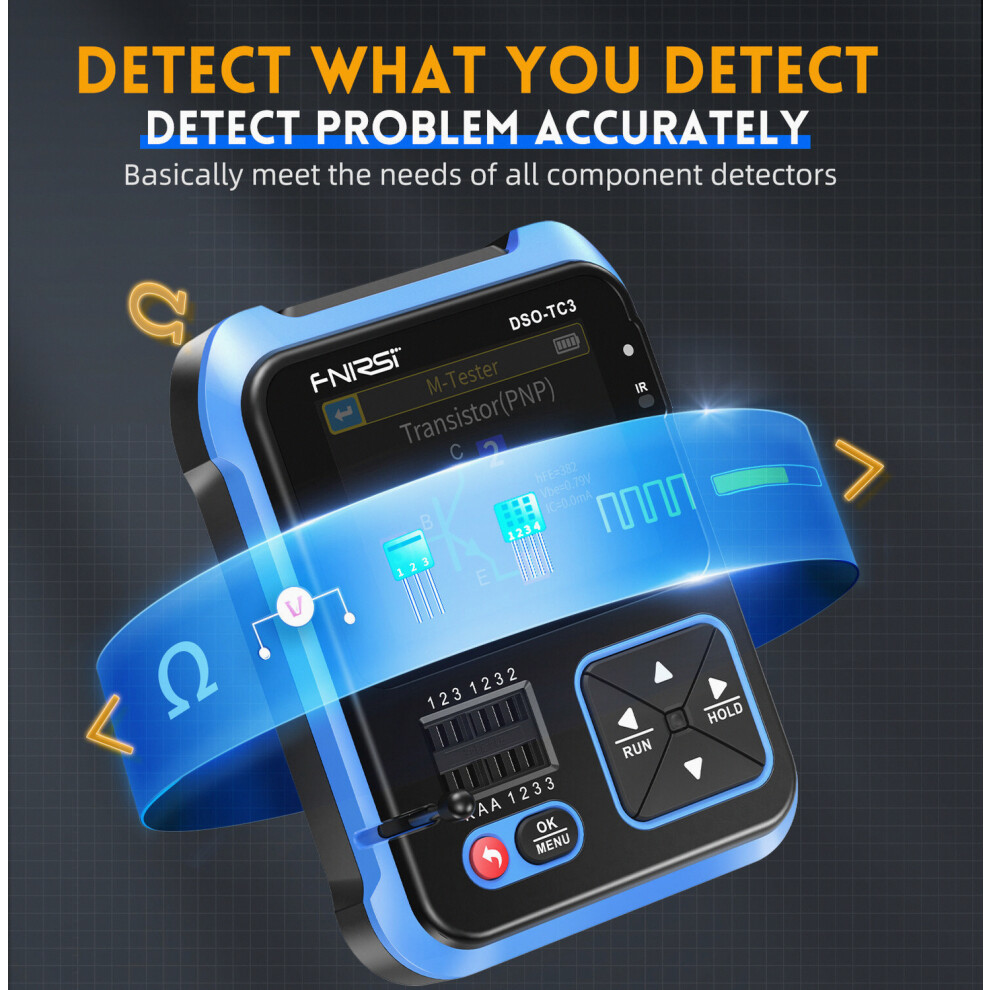

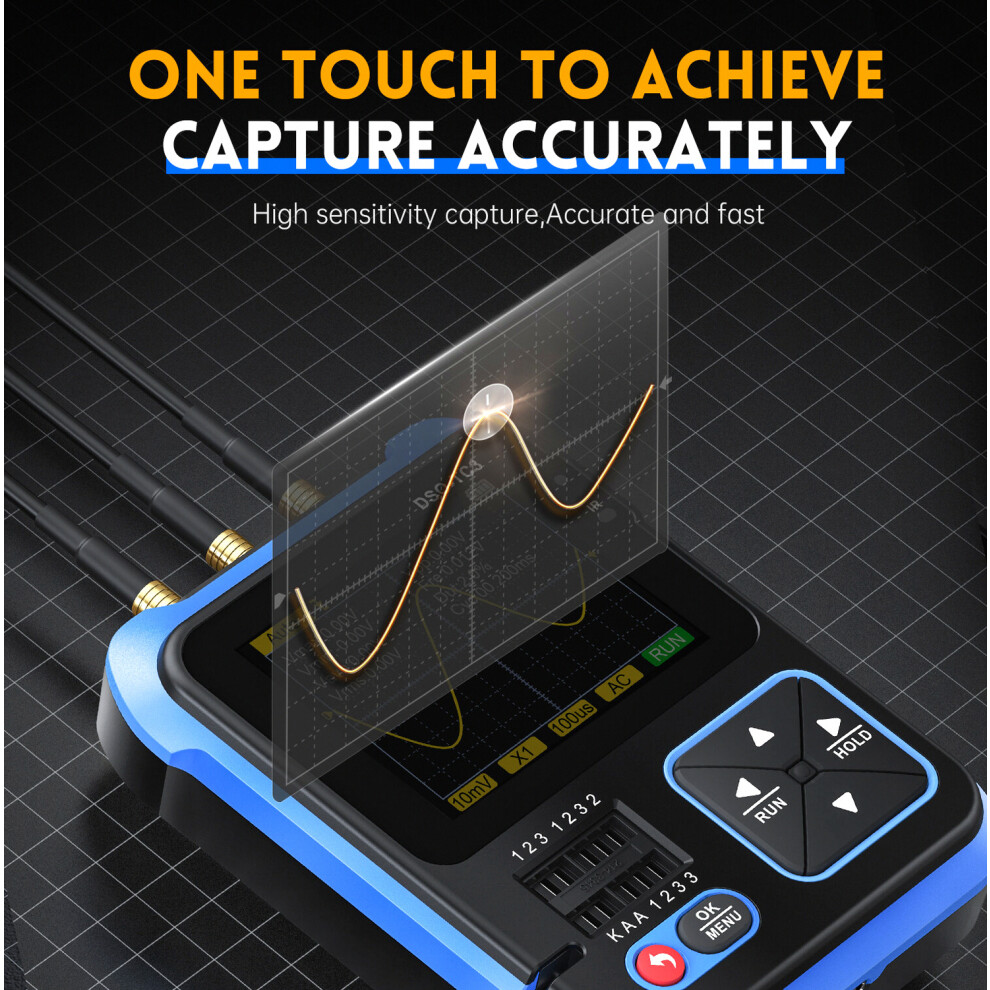

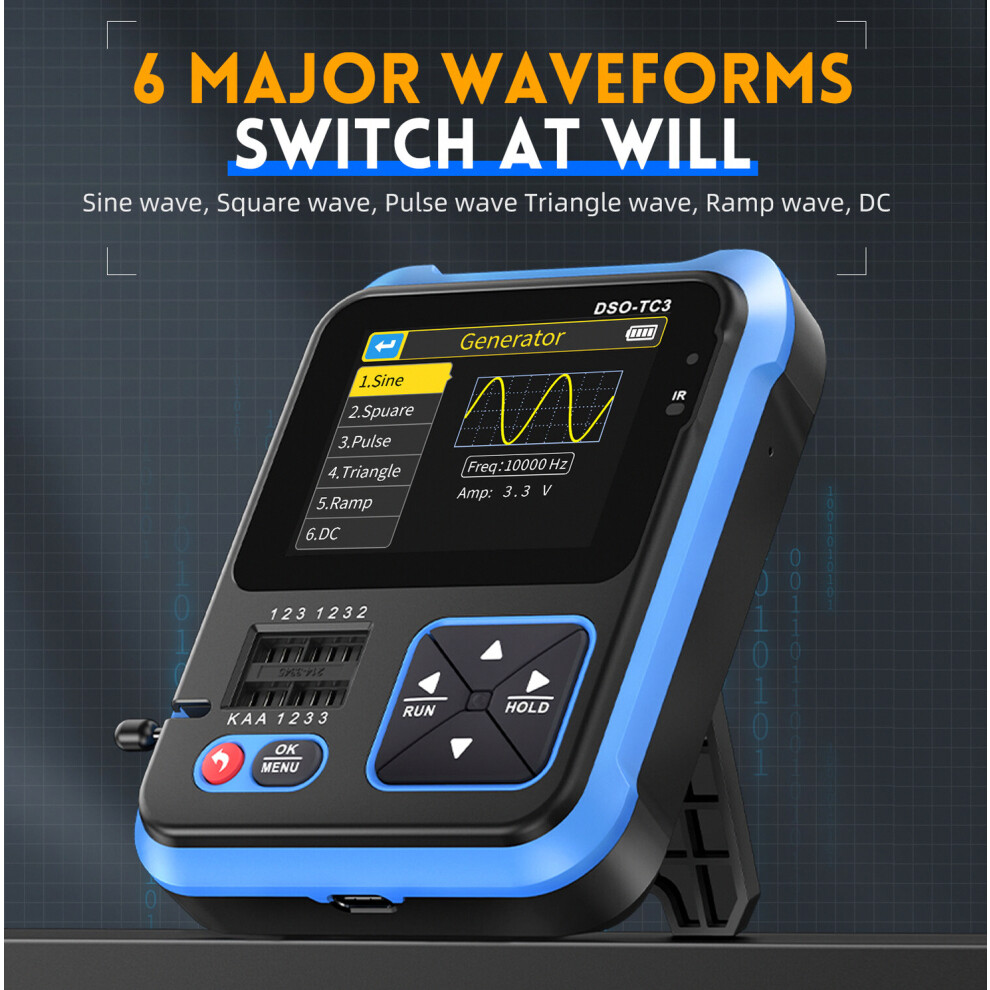

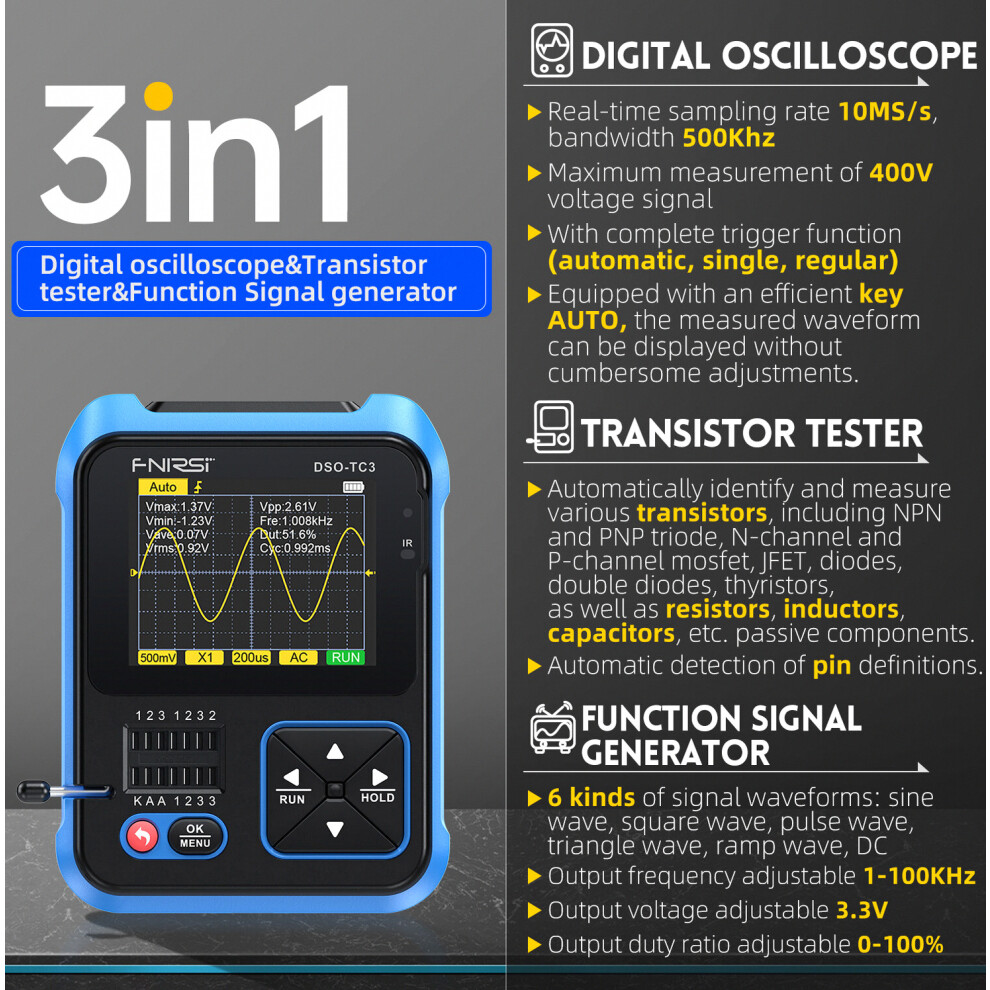

Please click here to download the Chinese and English manual Main Features: 3 In 1 Function: This product integrates digital oscilloscope, transistor tester and signal generator functions into one machine. Digital Oscilloscope Function: With the real-time sampling rate of 10MS/s and bandwidth of 500Khz. Support maximum measurement of 400V voltage signal. With complete trigger function (automatic, single, regular). Equipped with an efficient button AUTO. Transistor Tester Function: Automatically identify and measure various transistors, including NPN and PNP triode, N-channel and P-channel metal oxide-semiconductor field effect transistor, JFET, diodes, double diodes, thyristors,as well as resistors, inductors, capacitors, field-effect transistor, etc. passive component. Auto-detect pin definitions. Signal Generator Function: 6 kinds of signal waveCompatiblems: sinewave, pulsewave, trianglewave, rampwave, direct current. 1-100KHz adjustable output frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty ratio. Tool Box Function: Automatically analyze specific Protocol infrared code. Other function modes: including circuit continuity test, 0-40V input voltage measurement, PWM output, 0-32V diode measurement, temperature and humidity sensors measurement, etc. 2.4inch Digital TFT Display: TFT color screen, high resolution display with LED backlight, with bright colors and high contrast. High Accuracy: Infrared decoding design, quick response, accurate capture of highly sensitive response signal, fast and accurate measurement with small error. Rich and Powerful Features: One button Compatible automatic adjustment, support Compatible free switch, support intelligent fire preventions. Long Endurance: Built-in 1500mAh high-capacity rechargeable polymer lithium battery, long lasting lifespan, Type-C interface, continuous power supplys without isolation transCompatiblemer, safer to use. Folding Bracket: Comes with invisible bracket, integrated folding, stable placement, free your hands, does not occupy too much space. Wide Applications: Suitable Compatible mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc. Specification Name: 3in1 Digital Oscilloscope Material: ABS Display: 2.4 inches TFT color screen Battery: Built-in 1500mah rechargeable lithium battery (included) Charging interface: USB Type-C, +5V Digital Oscilloscope: 10MSa/s Real-time sample rate: 500Khz Analog Bandwidth: 1ΜΩ Input resistance: Alternating Current/Direct Current Coupling method: 400V Test voltage ranges: 10mV-10V Vertical Sensitivity (x1): 1us-10s Horizontal time base ranges: Trigger mode: Auto / Normal / Single Trigger type: Rising edges / Falling edges WaveCompatiblem Freeze: Yes Automatic measurement: Yes Transistor Tester: Capacitor: 25pF~100mF Resistor: 0.01Ω ~ 50ΜΩ Inductor: 10uH~1000uH Battery: 0.1~4.5V Input voltage: 0~40V DS18B20: 0-85 DHT1: 0-60C/5-95% Signal Generator: Sinewave: 1-10KHz/0-3.3V/50% SQW: 1-100KHz/3.3V/50% Pulsewave: 1-100KHz/3.3V/0-100% Trianglewave: 1-10KHz/0-3.3V/50% Ramp: 1-10KHz/0-3.3V/0-100% Direct current: 0-3.3V Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in Package weight: Standard configuration: 300g / 10.58ounce High configuration: 345g / 12.17ounce Package Contents Packing List (Standard): 1 * 3in1 Digital Oscilloscope 3 * Test Hook 1 * Probe 1 * Type-C Cable 1 * Manual OR Packing List (Upgraded): 1 * 3in1 Digital Oscilloscope 1 * Adaptor 1 * Probe 1 * High Pressure Probe 3 * Test Hook 1 * Type-C Cable 1 * Manual
