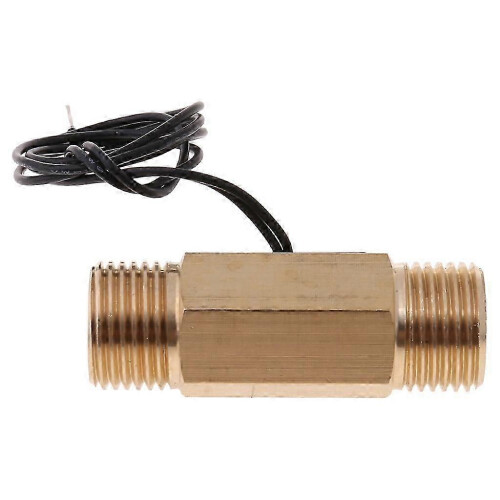

G1/2" Compact Water Flow Sensor Switch, Full Copper, Max 12L/min, for Water Heaters Water Flow Measurement

Descrição de G1/2" Compact Water Flow Sensor Switch, Full Copper, Max 12L/min, for Water Heaters Water Flow Measurement

Product Details 1. No standby power consumption helps reduce energy usage during idle periods 2. All-metal structure ensures stable performance and long service life 3. Small flow start function enables operation with minimum flow of 1-1.5L/min 4. Impurity self-cleaning function maintains reliable operation over time 5. Suitable for use in water heaters, electric faucets and mechanical equipment Specification 1. Material: Full-copper 2. Copper Switch Length: 62mm 3. Type: G1/2" (External Thread Diameter), DN15mm 4. Operating modes: Gravity/ Gravity start switch 5. Minimum start flow: 1-1.5L/min 6. Maximum flow rate: 12L/min 7. Maximum Water Pressure: 1.2MPa 8. Operating voltage: 3-250V (for DC 5V 12V 24V 250V AC:220V) 9. Overload Current: 50mA 10. Life times: 10 million 11. Operating temperature: -20~60 / -4~140 Package List 1. 1pcs DC250V 70W G1/2 Full-copper Water Flow Sensor Switch Flow Switch DN15 Warm Tips 1. Ensure proper installation according to the specified thread size 2. Operate within the recommended flow rate and pressure range 3. Keep the product away from extreme temperatures beyond the operating range 4. Regular maintenance is recommended to ensure optimal performance
