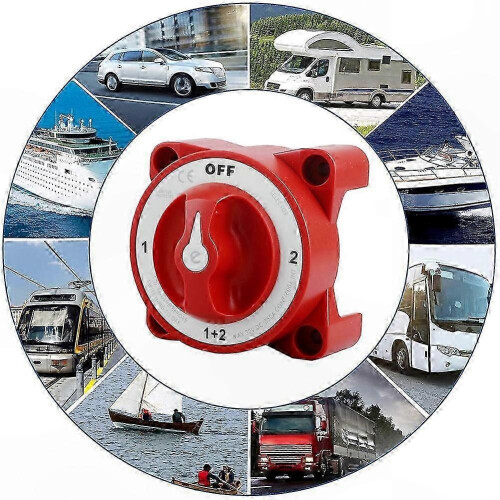

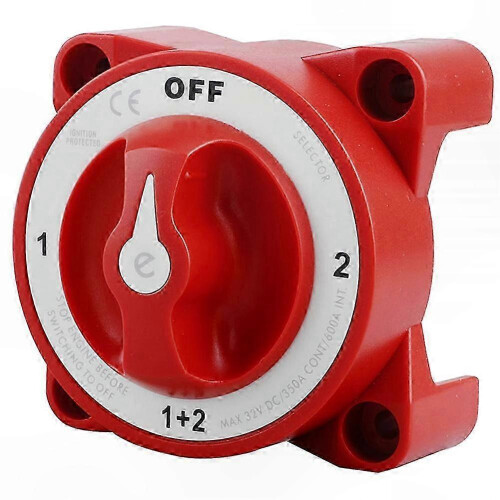

Marine Battery Selector Switch 32V 350A 4 Position DC Disconnect for Boats, Surface Rear Panel Mounting
New
50,50 €
Produtos semelhantes que achamos que vai gostar
Would you like us to let you know when it's back?
Descrição e Detalhes
Descrição de Marine Battery Selector Switch 32V 350A 4 Position DC Disconnect for Boats, Surface Rear Panel Mounting
Product Details 1. Make-contact design enables seamless battery switching without power interruption, ensuring continuous operation. 2. Ignition-safe construction suitable for installation on gasoline-powered boats, enhancing safety during use. 3. Versatile case design allows both surface and rear panel mounting, providing flexible installation options. Specification 1. Switch Type: Selector, 4 Position 2. Color: Red 3. Switch Positions: 4 4. Battery Combine: Yes 5. Alternator Field Disconnect: No 6. Maximum Voltage: 32V DC 7. Terminal Stud Torque: 140 in-lb (15.82 Nm) 8. Continuous Rating: 200A 9. Cranking Rating (1 min): 1000A 10. Battery Inputs: 2 11. Cable Clearance for 4/0 AWG Cables: 1.10 in (27.94 mm) 12. Cable Size to Meet Ratings: 4/0 AWG (120mm²) 13. Mounting Holes: Accept 1/4 inch (M6) screw 14. Terminal Stud Size: 3/8 inch - 16 (M10) 15. Material: Plastic + Metal Package Contents 1. 1 x Battery Disconnect Switch Warm Tips 1. Light and different display settings may cause slight color differences between the picture and the actual item. 2. Measurement allows an error of +/- 1-3 cm.
Detalhes
| OPC | PWV2F72 |
|---|---|
| Códigos | 6944168241698 (EAN) |
| Informações sobre o Produto e Segurança |
