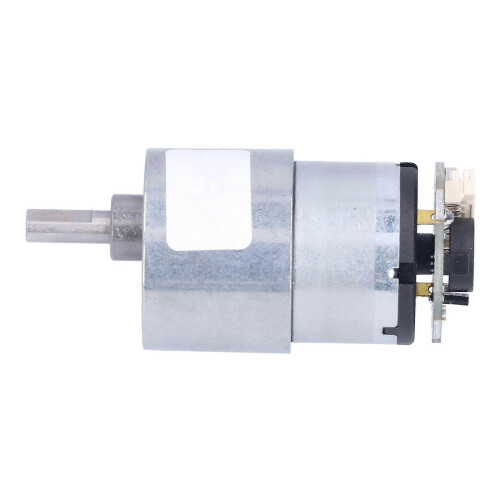

Micro DC Gear Motor, JGB37-520 12V 1000RPM with Encoder 6mm D Type Shaft Speed Reduction Gear Motor

Descrição de Micro DC Gear Motor, JGB37-520 12V 1000RPM with Encoder 6mm D Type Shaft Speed Reduction Gear Motor

Product Details ①. Precise speed control with encoder output signal (SW) for consistent performance in automated devices ②. Wide operating temperature range (-40 to 120) ensures reliability in various environments ③. Compact D-type shaft (6mm diameter, 15.5mm length) fits standard equipment interfaces ④. Multiple reduction ratios (6.3-810) available to match specific torque and speed requirements Specification Parameters ①. Material: Copper, Alloy ②. Shaft Diameter: 6mm / 0.2in (D Type Shaft) ③. Shaft Length: 15.5mm / 0.6in ④. Motor Working Voltage: DC 12V ⑤. Encoder Power Supply Voltage: 3.3V-5V ⑥. No Load Current: 120mA ⑦. Rated Current: 1A ⑧. Reduction Ratios Available: 6.3, 10, 19, 30, 56, 90, 131, 168, 270, 506, 810 ⑨. Rated Torque Range: 0.7-35 kg.cm ⑩. Working Temperature Range: -40-120 / -40F-248F Packaging List ①. 1 x Speed Reduction Gear Motor with Encoder Warm Tips ①. Ensure encoder power supply voltage is within 3.3V-5V range during installation ②. Select appropriate reduction ratio based on specific torque and speed requirements ③. Avoid exceeding maximum torque to prevent motor damage ④. Store in dry environment when not in use
