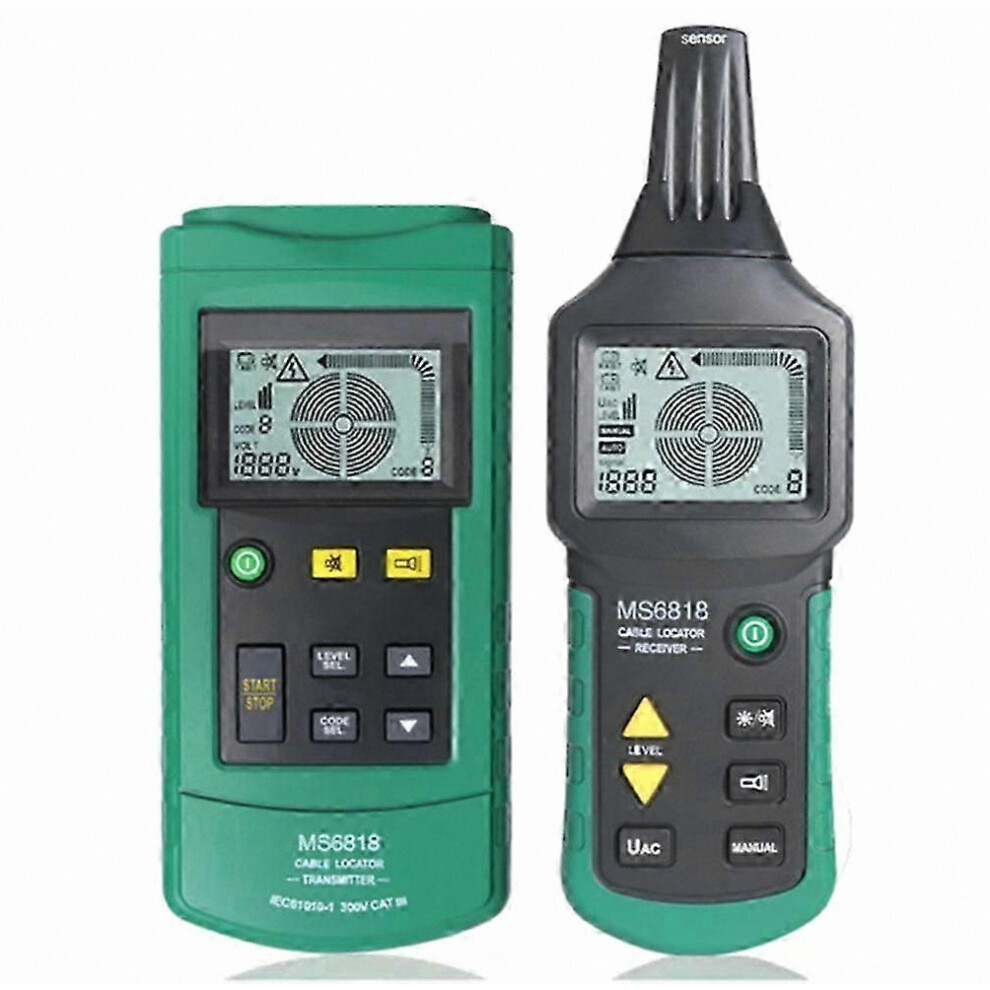

MS6818 Cable Metal Pipe Finder Underground Tester Short Circuit Interruption Detection Cable Locato

Descrição de MS6818 Cable Metal Pipe Finder Underground Tester Short Circuit Interruption Detection Cable Locato

Detecting cables,electrical lines,water/gas supply pipelines buried in wall or earth. Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth. Detecting fuses and assigning current circuits. Detecting interruptions and short-circults in floor heating. Detecting sockets and distribution sockets having accidentally been covered by plastering.

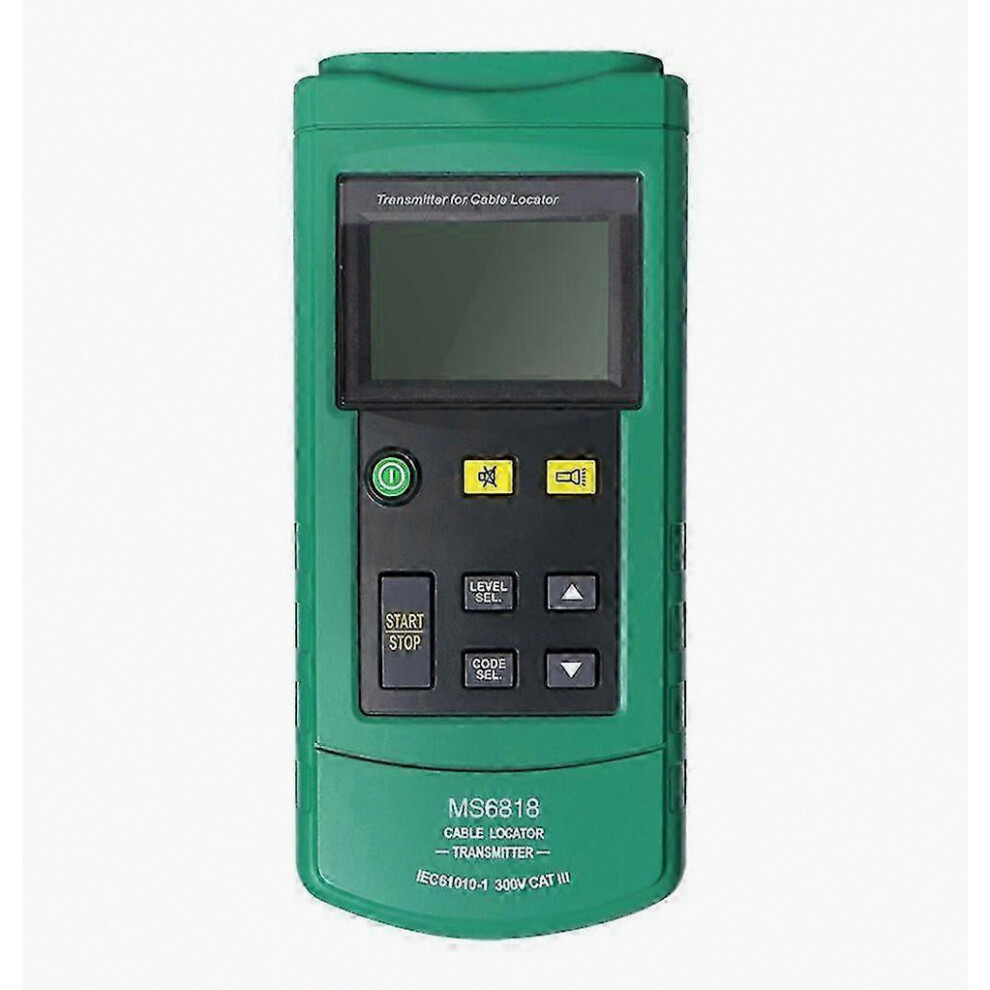

The transmitter is integrated with the function of voltmeter,which can measure 30 to 400V voltage on a linear basis. The screen of the transmitter can display preset transmitting power,transmitted codes,its own battery energy,mains voltage detected, status of mains voltage detected, and warning symbol for mains voltage.

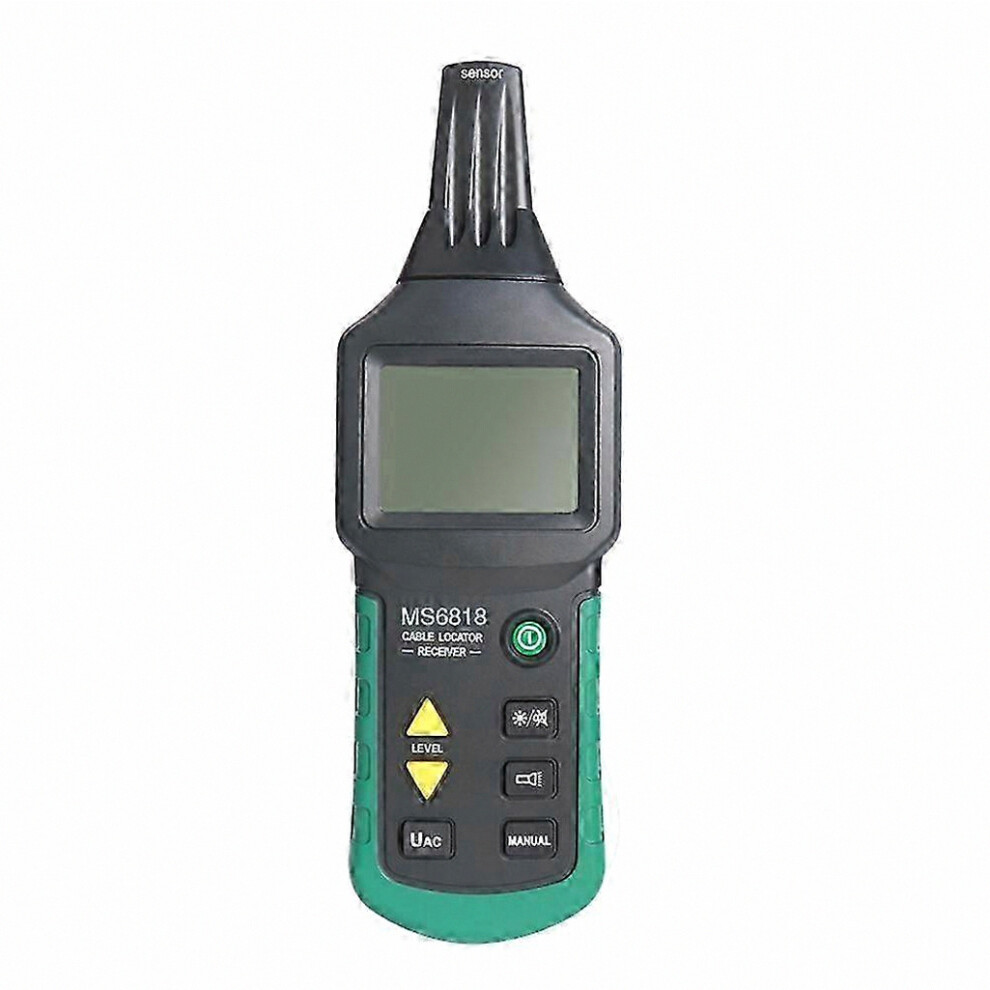

The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference. The sensitivity of the receiver can be adjusted either manually or automatically. The receiver can sweep frequency automatically,both the transmitter and the receiver can work under mute mode

Additional transmitters are available for expansion or to differentiate between multiple signals compactness,durability and portability

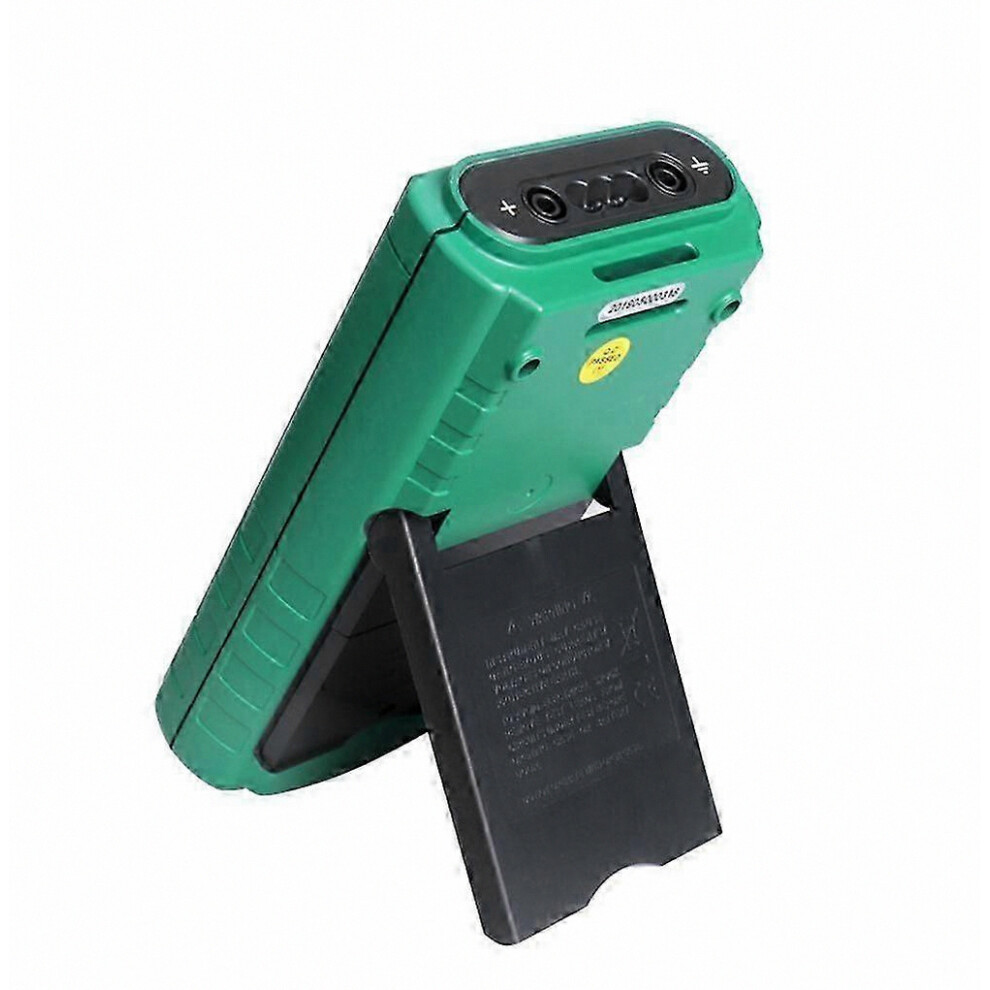

When installing or replacing the battery, please be sure to pay attention to the correct polarity of the battery. If the battery polarity is reversed, damage to the device may occur.

Notice:

1. This detector can measure when the object being measured is . To avoid and injury, please provide insulation protection in accordance with industrial safety regulations.

2. When working with a voltage 120V (60V) DC or 50V (25V) eff AC, to prevent , be sure to comply with the safety regulations on high contact voltage and DIN VDE regulations. The values in parentheses apply to restricted areas such as medical settings, farms, etc.).

Model Number: MS6818

Length of Test Leads: 95CM

Voltage Measurement Range: Transmitter: 30V-400V ()

Output Signal: Transmitter: 125KHz

Voltage: Transmitter: maximum 400V ()

Cable Depth Measurement: Receiver 0-2.5 m (wall/underground cable)

Main Voltage Measurement: Receiver 0-0.4m

Environment Specifications:

Work Environment: Transmitter: 0-40; Receiver: 0-40

Storage Temperature: Transimiter: -20-60; Receiver: -20-60

Relative hamidity(no condensation): Transmitter Maximum:80%; Receiver Maximum:80%

Measuring Height: Transmitter Maximum:2000m; Receiver Maximum:2000m

Battery:

Transmitter:4 x AA Battery (NOT included)

Receiver:4 x 9V Battery (NOT included)

Color:Green & Black

Material:ABS

Package Contents:

1set * MS6818 Wirefinder Diagnostics

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
