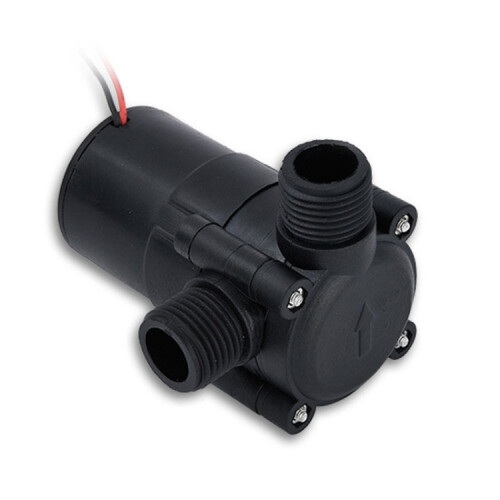

Pipeline Water Flow Generator DC Output compatible Smart Faucets, Gas Water Heaters

Descrição de Pipeline Water Flow Generator DC Output compatible Smart Faucets, Gas Water Heaters

1. The pipeline micro hydroelectric generator adopts a low magnetic resistance high-efficiency generator and water-electricity separation technology, equipped with a standard 4-point external tooth pipe inlet and outlet, suitable for various smart faucets, induction faucets, shower room lighting and sound systems, gas water heaters, solar automatic water supply controllers and other electronic and electrical products that need to be supported by hydropower generation.
2. Water-electricity separation technology, dual magnetic circuit coupled clutch, the volume is only 4/5 of the ordinary micro hydroelectric generator, but the output power is 2-3 times that of ordinary hydroelectric generators.
3. Ingenious structural design, the angle of the inlet and outlet pipes can be installed in a straight or L shape according to requirements.

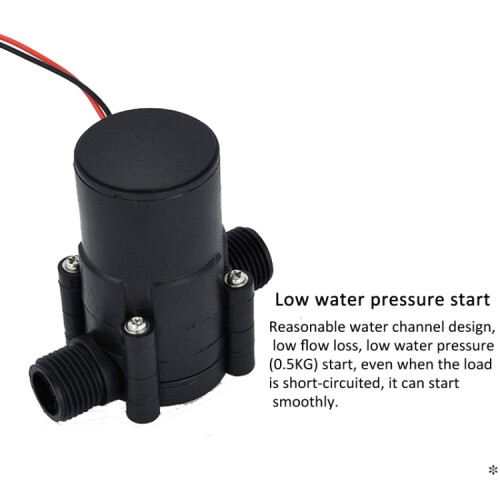

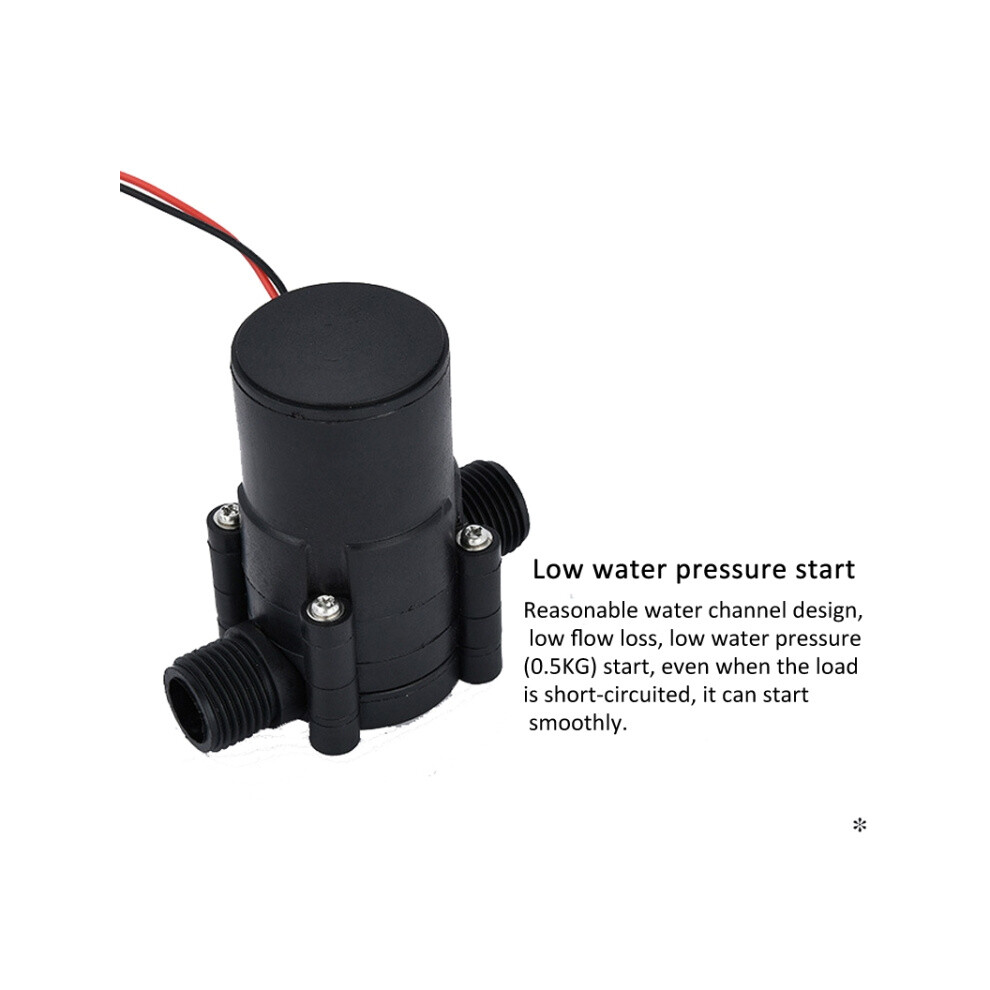

4. Reasonable waterway design, low flow loss, low water pressure (0.05Mpa) start, and it can start smoothly when the load is short-circuited.
5. After diode isolation, it can directly supply rechargeable batteries below 3000MAH or farad capacitors below 5F for charging and power supply, which is a good partner for smart faucets and induction faucets.

Technical parameters:
1. Operating water pressure: 0.05-0.5Mpa
2. Peak operating water pressure: 0.55Mpa
3. Peak pressure: 1.6Mpa
4. Flow loss: 3.6% (at 0.25 MP)
5. Operating temperature range: 5-85 degrees Celsius
6. Output voltage: 9.8-18.5VDC/no load, 8.8-15VDC/0.1 K load
7. Output current: 128-260 MA/0.1 K load.
8. Output port during detection: open
9. Output power 3.5W

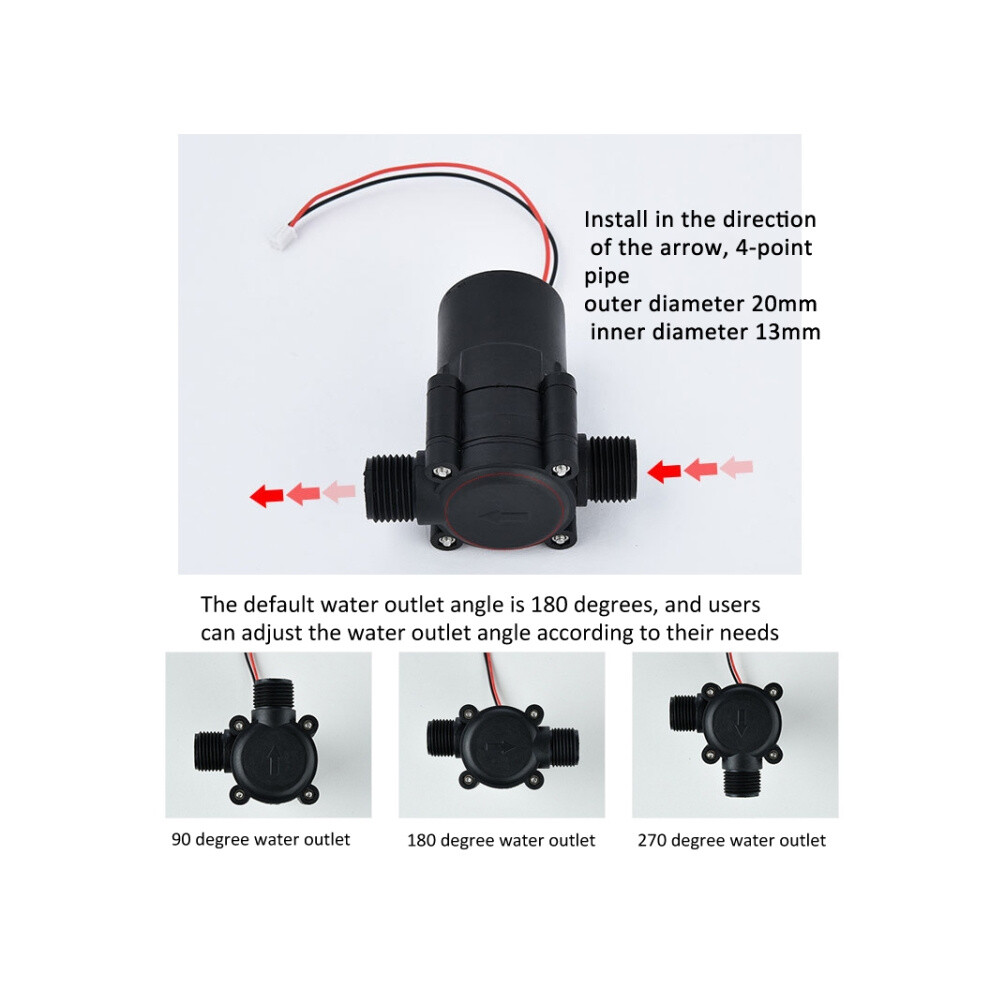

10. The inlet and outlet water pipes can be 90 degrees, 180 degrees, and 270 degrees at three angles

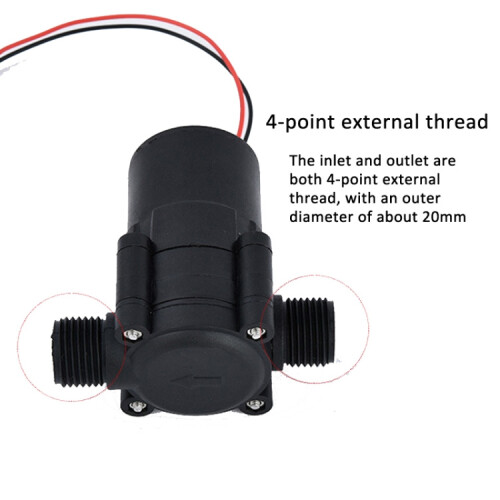

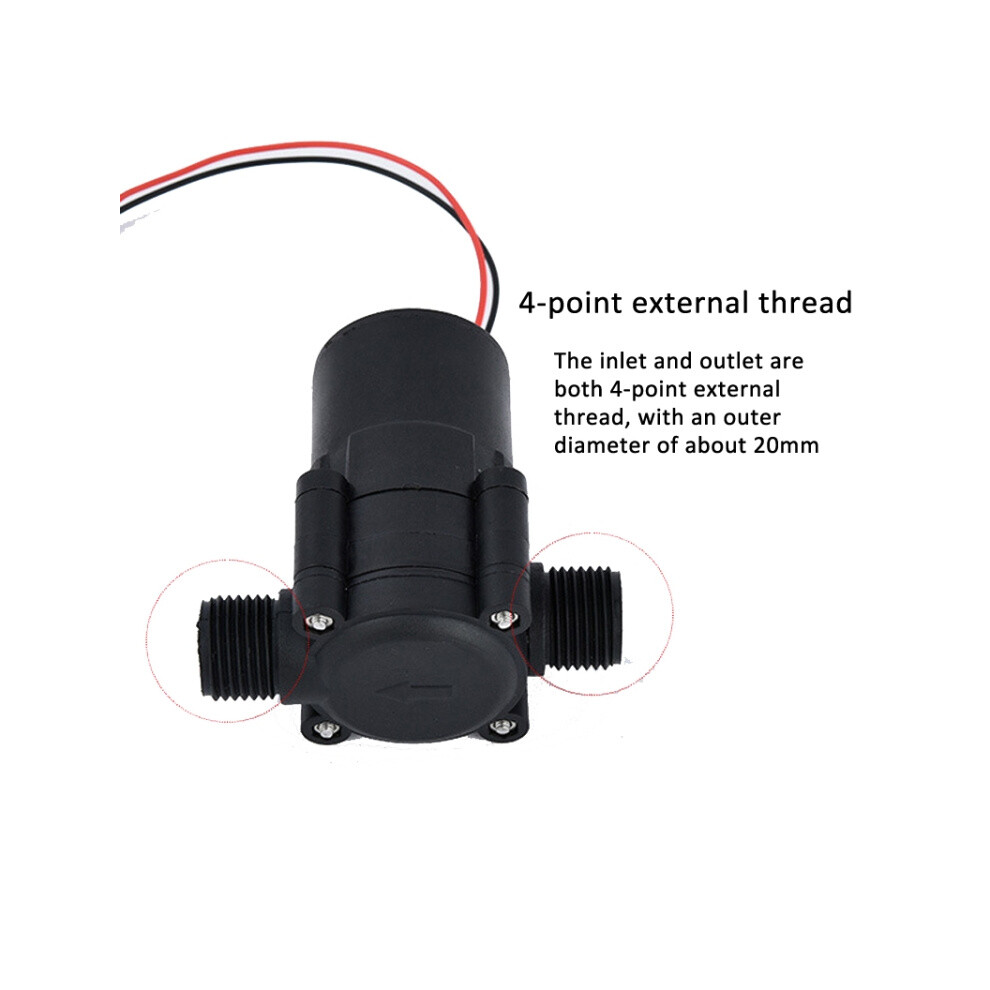

11. Installation method: Install in the direction of the arrow, standard household water pipe 4-branch pipe, outer diameter 20mm inner diameter 13mm
