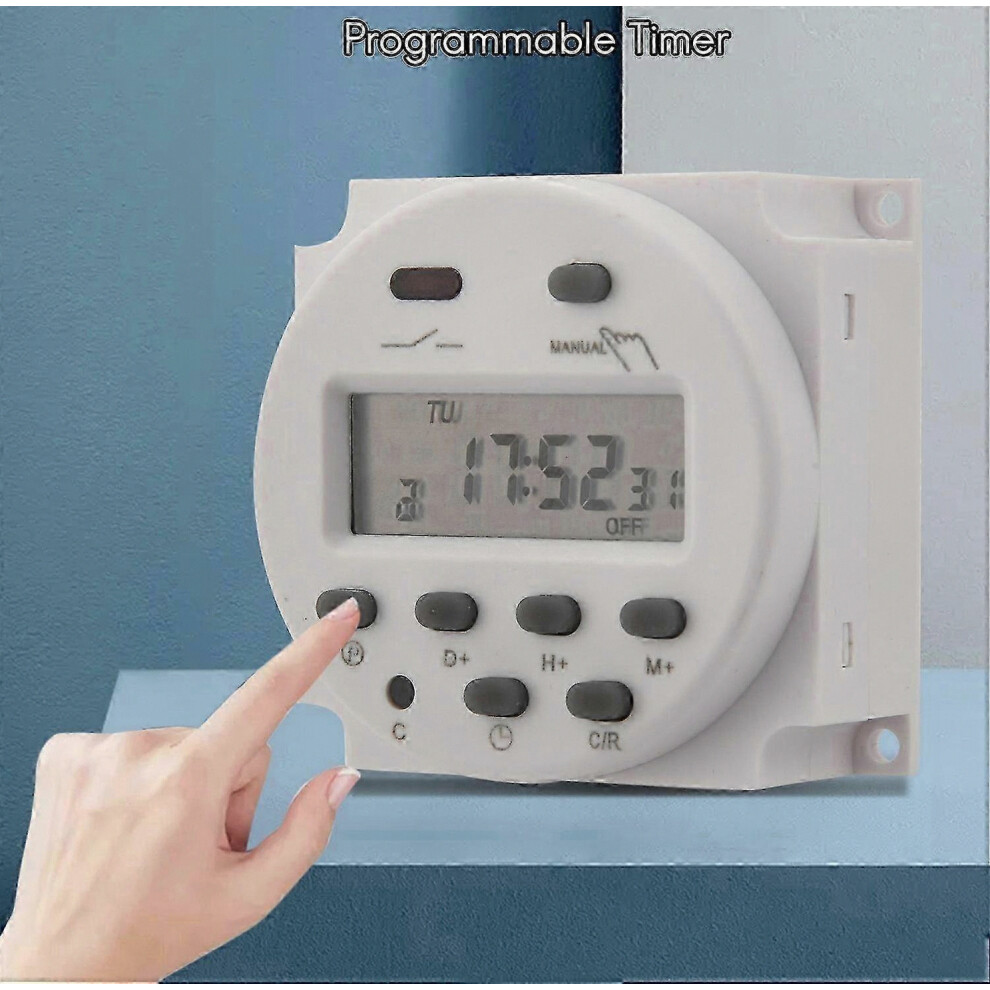

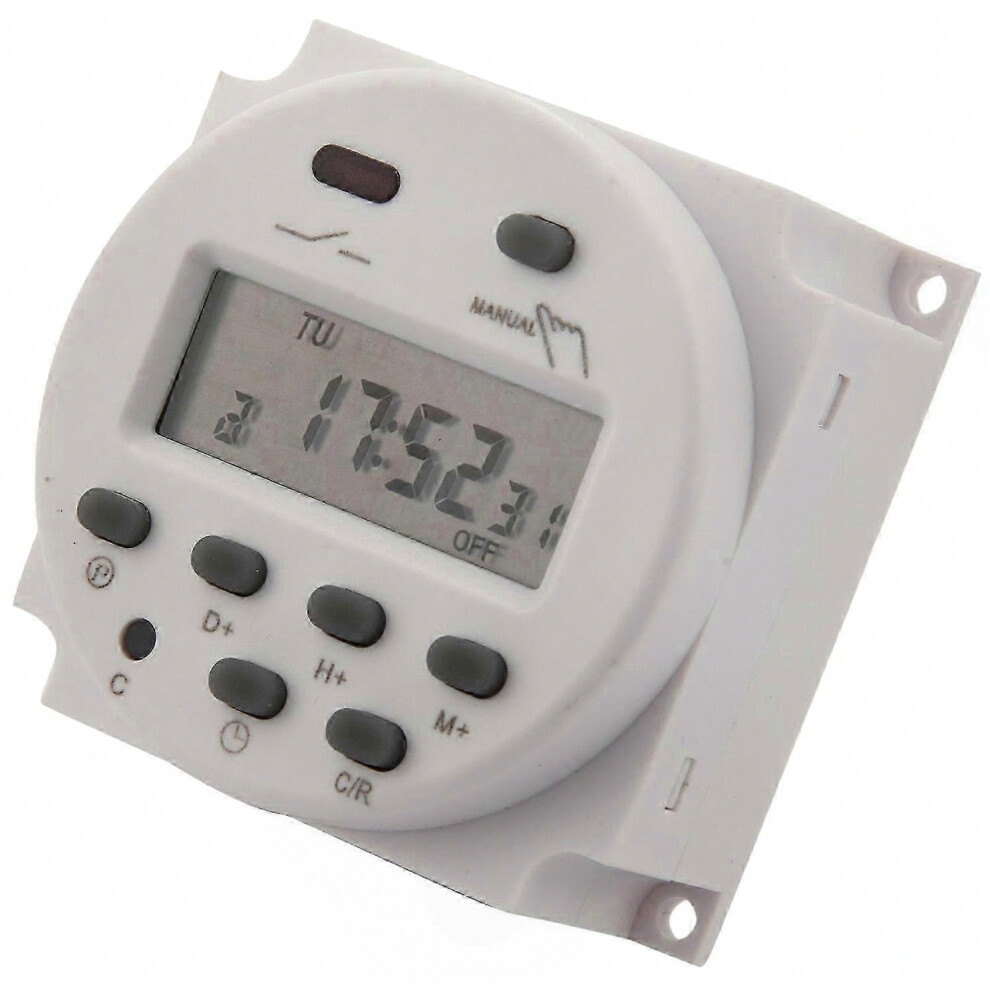

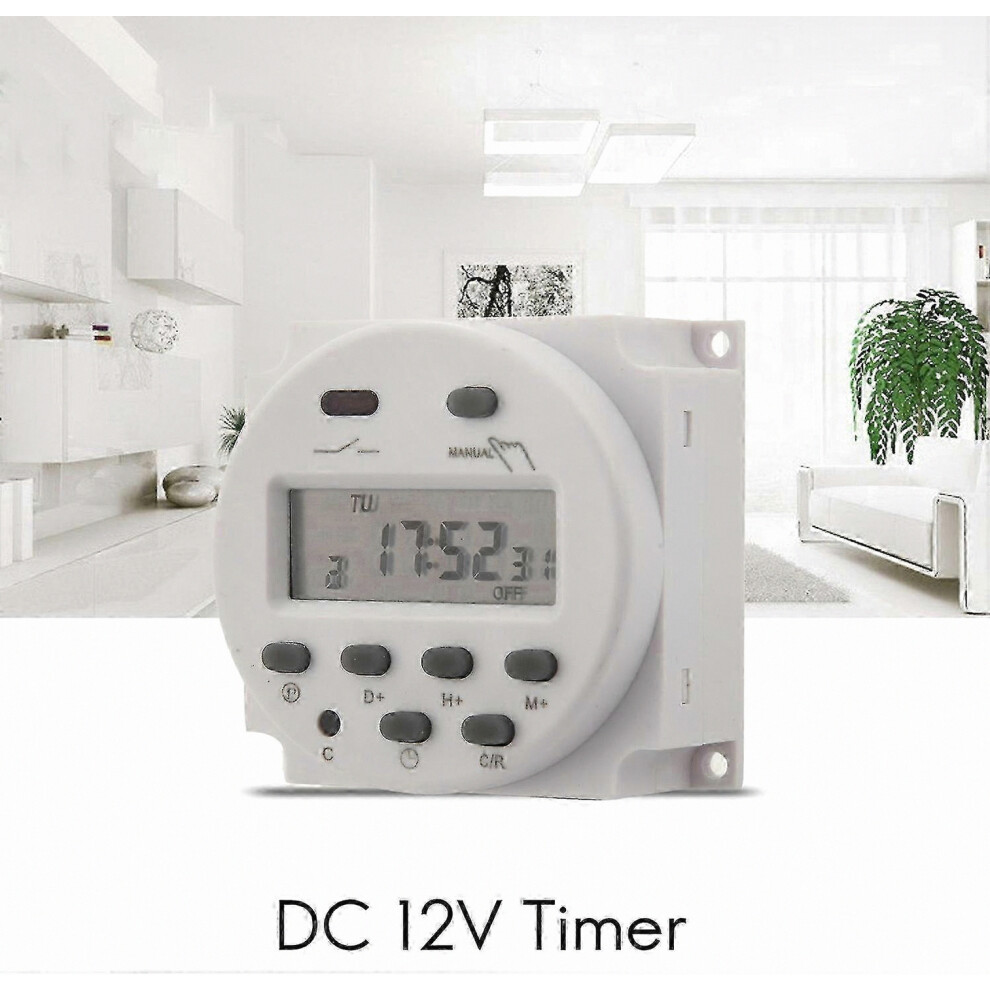

Programmable Timer Relay with LCD Display, 12V DC, 16A Power Switch Control

Descrição de Programmable Timer Relay with LCD Display, 12V DC, 16A Power Switch Control

Programmable Timer

Rated Control Voltage: DC 12V

Contact Capacity: 16A(8)A, 250V AC

Hysteresis: 2 sec/day (25C)

ON/OFF Operation: 17 ON/OFF settings

Power Consumption: 7.5VA (max.)

Display: LCD

Minimum Interval: 1 minute

Switching Contact: 1 changeover switch

Ambient Temperature: -10C to +40C

Ambient Humidity: 35-85% RH

Mounting Hole Diameter: 3mm / 0.12 inch

Overall Size: 62 x 60 x 33mm / 2.4 x 2.36 x 1.3 inch (L x W x H)

Material: Plastic, Electronic Parts

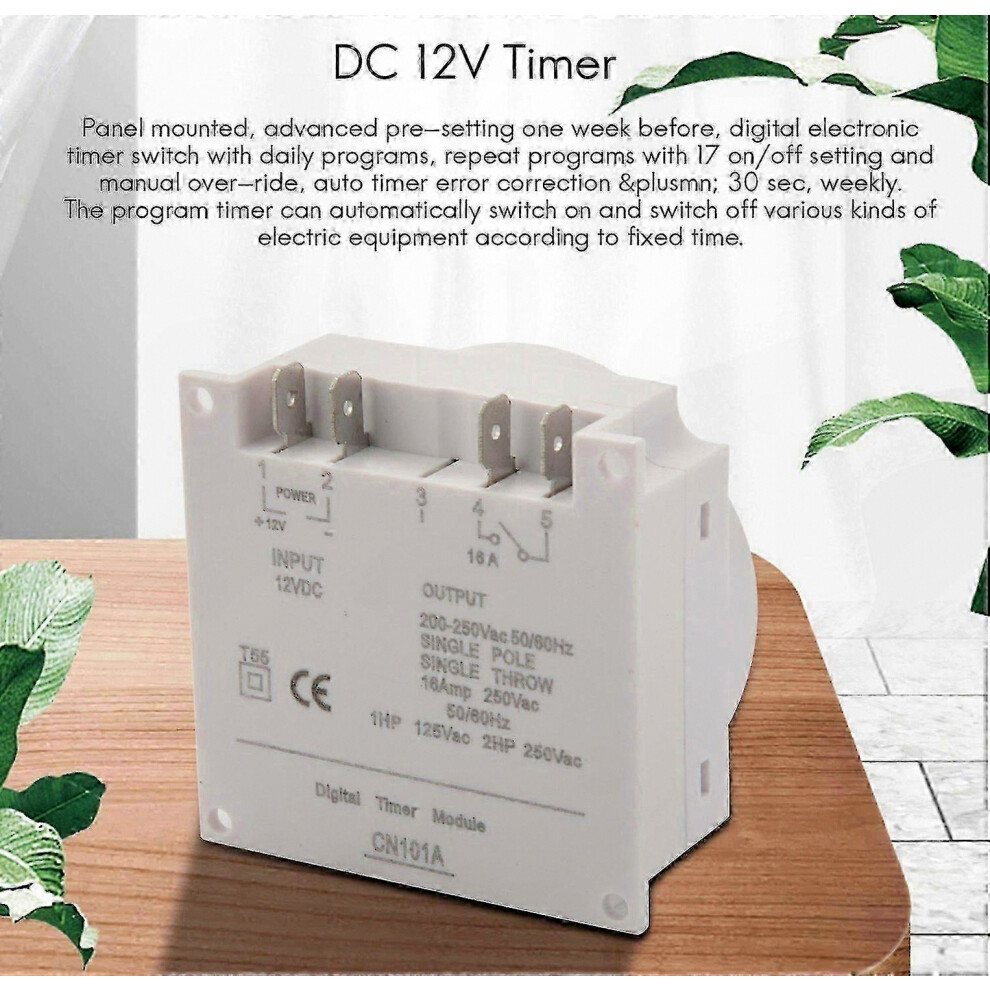

Panel mounted digital electronic timer switch with advanced pre-setting for one week, daily and repeat programs, 17 on/off cycles, manual override, and auto timer error correction of 30 seconds per month. Automatically turns electric equipment on and off at preset times.

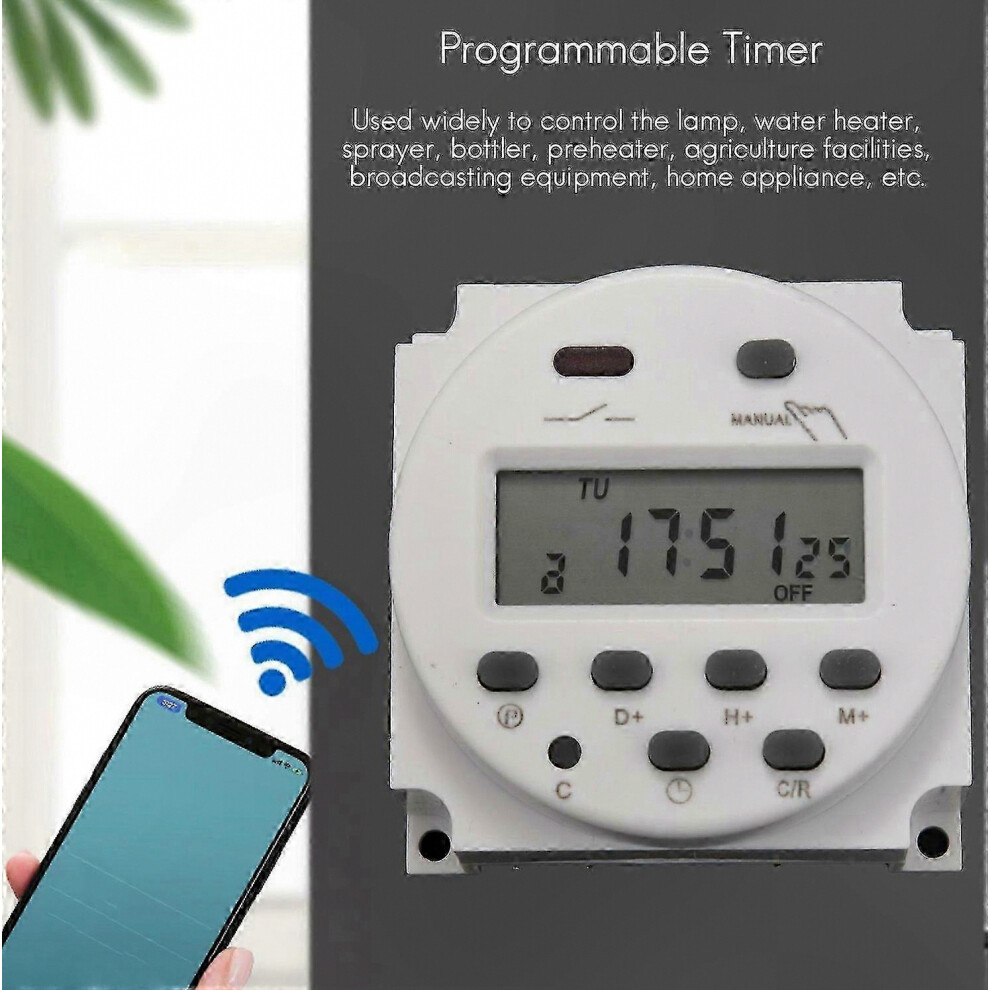

Ideal for controlling lamps, water heaters, sprayers, bottlers, preheaters, agricultural systems, broadcasting devices, home appliances, and more.

Net Weight: 68g

Package Contents:

1 x Programmable Timer

1 x Manual

Note: Light and display differences may cause slight color variation between the product image and actual item. Measurement error allowed is +/- 1-3cm.
