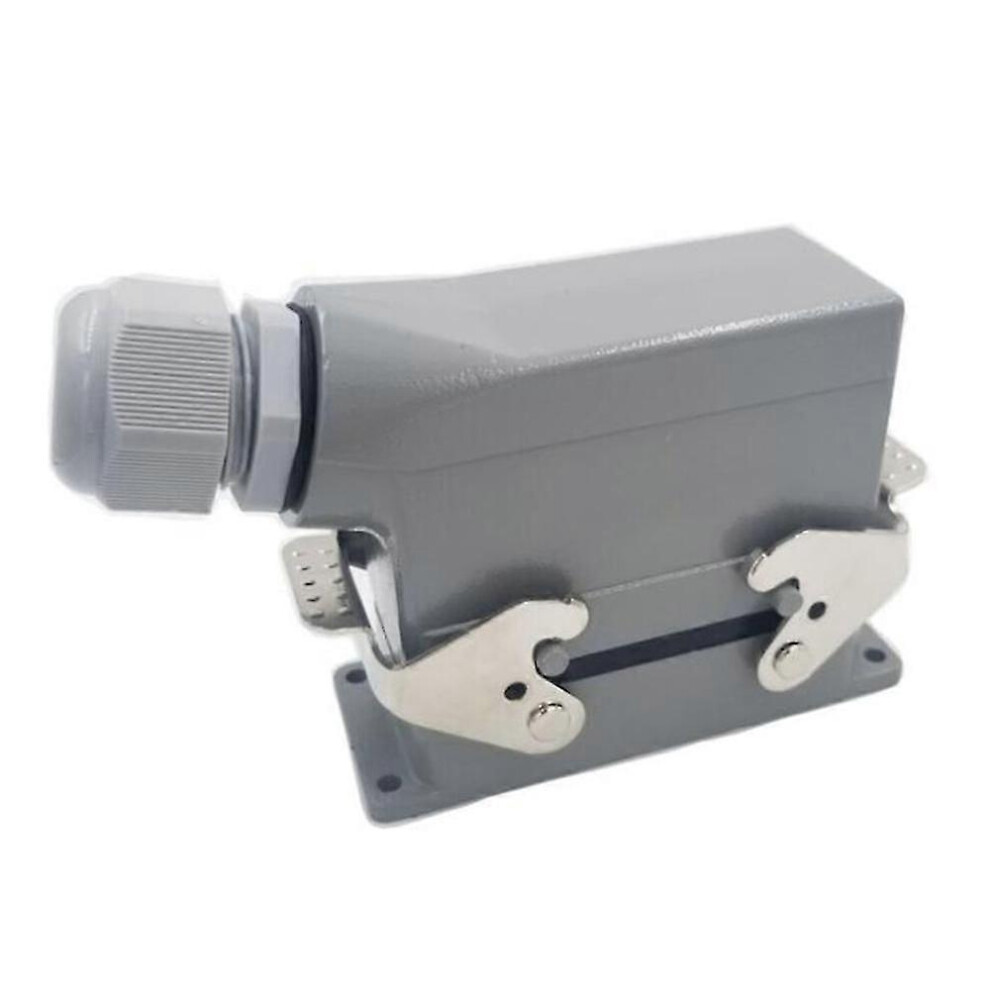

Rectangular Heavy Duty Connectors HDC HE 10 Core Pin 16A 500V Waterproof Aviation Plug Side Line Connector

Descrição de Rectangular Heavy Duty Connectors HDC HE 10 Core Pin 16A 500V Waterproof Aviation Plug Side Line Connector

Product Name: Heavy Duty Connector

Model: HDC-HE-10 Core. Side outlet design. Rated current: 16A. Rated voltage: 500V. Contact resistance: 1 mΩ or less. Wiring method: screw connection. Wire specification: 0.5-4 mm². Screw torque: 0.5 N·m. Wire stripping length: 7-9 mm. Plug count: 500 or higher. Working temperature: -40C to +125C.

The shell is finished with high-temperature powder coating, helping it maintain stable performance in demanding environments. Protection grade: IP65. Size: 44 93 86 mm. Material: die-cast aluminium alloy. Colour: grey.

The side outlet structure supports neat wiring and practical installation, while the screw-link connection method makes cable fixing straightforward. With support for 0.5-4 mm² wire sizes, this connector is suitable for a range of electrical connection needs.

Package Contents: 1 10-core lateral line heavy duty connector. Only the above package content is included; other products are not included.

Note: Light and different display settings may cause the colour of the item in the picture to differ slightly from the actual product. Measurement tolerance is +/- 1-3 cm.
