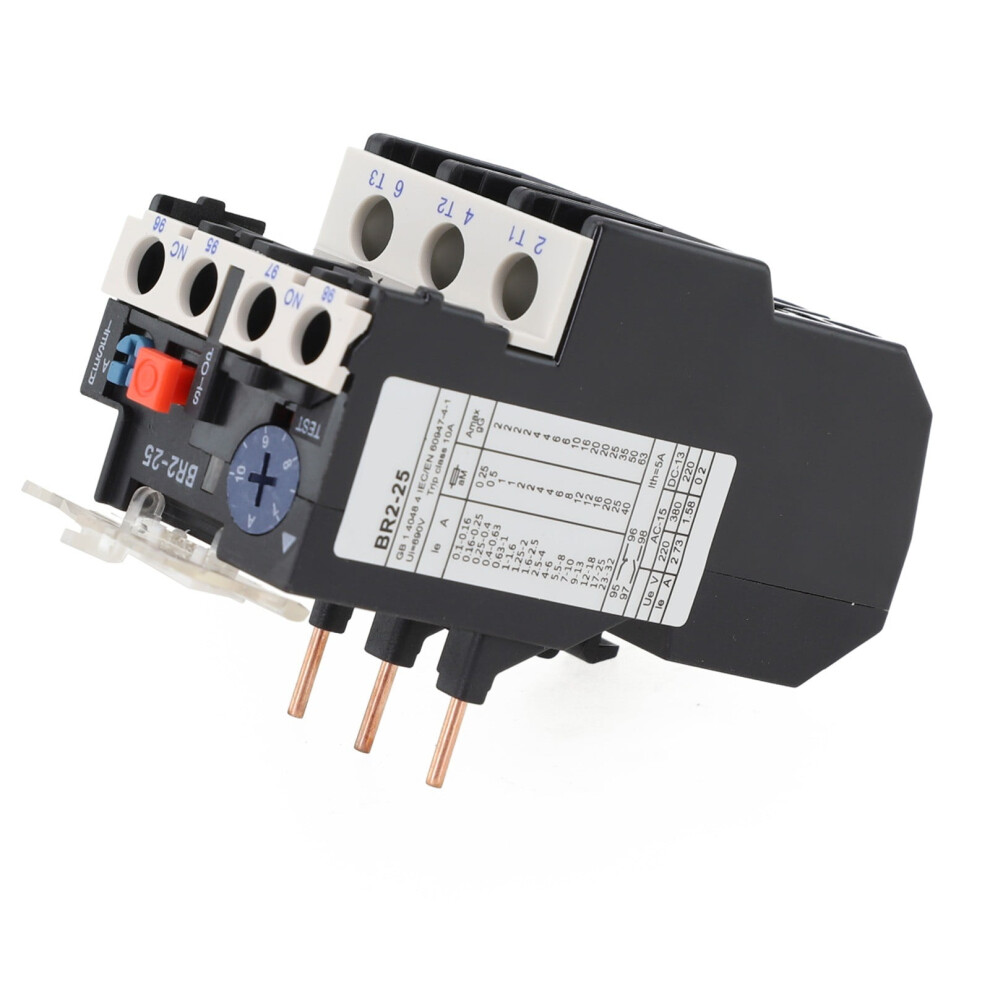

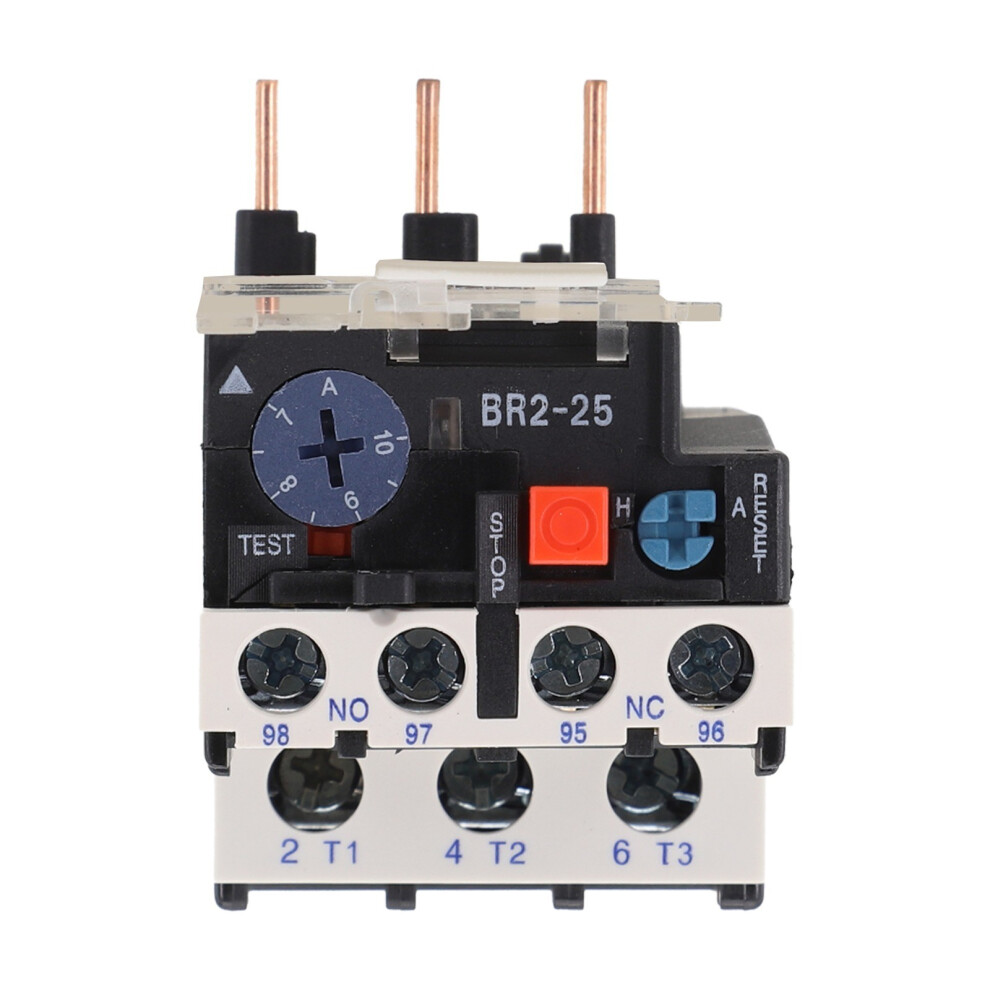

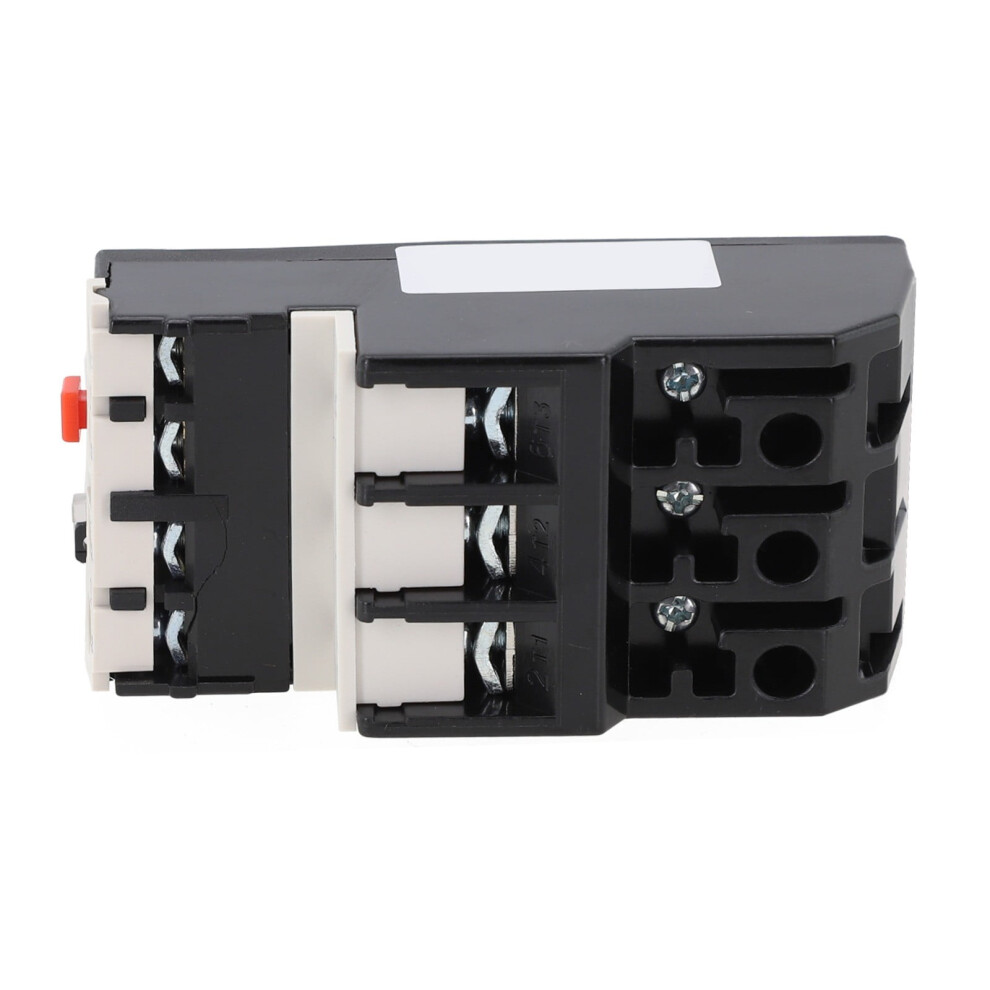

Thermal Overload Relay3-Phase FR-NR2-25 7-10A

Descrição de Thermal Overload Relay3-Phase FR-NR2-25 7-10A

Features: * Brand new and high quality * Motor three-phase thermal overload relay FR NR2-25has a setting current range of0.1A to25A * Applicable to CJX2series contactors * Made of high-quality materials, environmentally friendly, safe, reliable,, small in size, light in weight, with many varieties and complete specifications. It has complete functions, convenient and flexible installation, simple maintenance, and better cost performance, allowing you to easily build a safe and beautiful power distribution network. * NR2-25series thermal overload relay is suitable for overload and phase loss protection of AC motors with AC50Hz/60Hz, voltage up to690V, and set current0.1A to25A for long-term or intermittent. * It also has functions such as temperature compensation, operating instructions, automatic and manual reset, stop and test, etc., With stable and reliable performance. * The thermal overload relay can be plugged and installed together with the contactor(applicable to CJX2series contactors, the contactor needs to be purchased separately). *"NO"= Normally Open,"NC"= Normally Closed. Specification: Model: NR2-25Set current range(optional): 0.1-0.16For Amp, 0.4-0.63For Amp, 0.63-1For Amp, 1-1.6For Amp, 1.25-2For Amp, 1.6-2.5For Amp, 2.5-4For Amp, 4-6for Amp, 5.5- 8For Amp, 7-10for Amp, 9-13for Amp, 12-18for Amp, 17-25for Amp Applicable contactor models: CJX2-09to CJX2-32Rated insulation voltage(Ui): 690V Rated impulse withstand voltage(Uimp): 6kV Rated current(AC-15 220V): 2.73A Rated current(AC-15 380V): 1.58A Rated current(DC-13 220V): 0.2A Protection level: IP20Travel Class: Class10A Shell material: plastic flame retardant material With phase loss protection and overload protection With continuously adjustable setting current device With temperature compensation With running indicator light Have a testing agency There is a stop button Has manual and automatic reset buttons Comes with auxiliary contacts: 1normally open, 1normally closed Ambient air temperature: maximum operating temperature-35C to+70C, normal operating temperature-5C to+40C, the average value within24hours does not exceed+35C. Altitude: no more than2000m. Installation: plug-in Exact dimensions can also be viewed in the photo gallery. Package Included: 1x thermal overload relay Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
