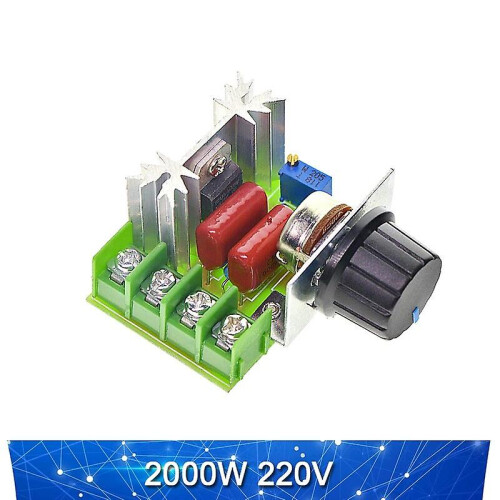

Voltage Regulator SCR Speed Controller, 220V AC 2000W 25A, High Power Electronic Governor Thermostat

Descrição de Voltage Regulator SCR Speed Controller, 220V AC 2000W 25A, High Power Electronic Governor Thermostat

Product Details ①. Adopts imported silicon controlled rectifier with voltage withstand up to 1200V, ensuring stable performance during voltage regulation ②. Equipped with wave peak voltage absorption circuit to protect high-power SCR, extending service life ③. Precise multi turn potentiometer allows adjustment of output low voltage for convenient use ④. Uses imported trigger diode and CBB capacitor with DC withstand voltage 630V, enhancing reliability ⑤. All potentiometers come with nuts, enabling direct use without additional components Specification ①. Module size: 60mm 48mm 28mm (2.36in 1.89in 1.10in) ②. Input voltage: AC 220V ③. Voltage regulation range: 50V-200V ④. Maximum power limit: 2000W ⑤. Maximum current limit: 25A Package List ①. Voltage regulator module x1 Warm Tips ①. The module is connected with 220V AC voltage, please pay attention to safety during commissioning ②. Connect the product in series in the circuit of desk lamp or electric appliance by disconnecting any one of the live line or zero line and connecting the two lines of the product ③. Rotate the rotary rod of potentiometer to adjust light and shade, speed, voltage and temperature
